ᐅ Floor Plan Design Single-Family Home 164 sqm / 2 Full Stories Optimization
Created on: 16 Mar 2022 23:26
H
holm667
Hello everyone,
We are currently in the schematic design phase with our architect and now have a design draft that largely meets our requirements and that we like. I would be interested to know if you see any potential for optimization or if there are details/distances that seem completely unrealistic or impractical.
Development Plan / Restrictions
Plot size: 1053 sqm (11334 sq ft)
Slope: no
Floor area ratio: no development plan
Site coverage ratio: no development plan
Building envelope, building line and boundary line
Edge development
Number of parking spaces: 2 parking spaces / double garage
Number of floors: 2 full floors
Roof type: gable roof 28°
Architectural style: modern / townhouse

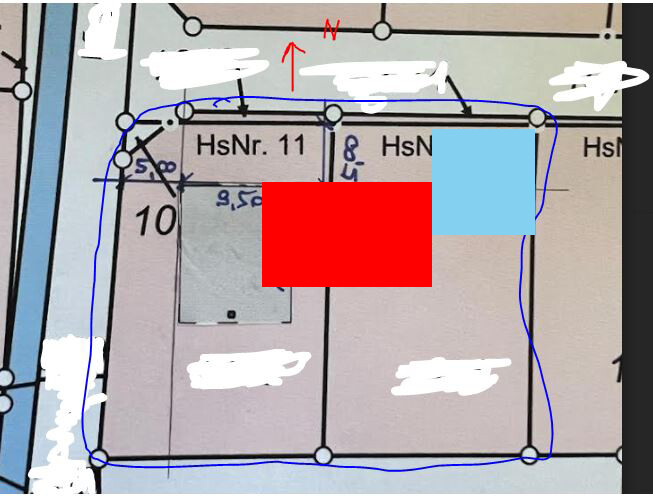

Orientation: see drawing / entrance on north side
Maximum heights / limits: n/a
Other requirements: n/a
Client Requirements
Style, roof type, building type: modern / gable roof
Basement, floors: slab-on-grade / 2 full floors
Number of occupants, age: 2 adults (35/40), 2 children (2/5)
Space requirement ground floor, upper floor: 80 sqm (860 sq ft) each
Office: family use or home office?: yes, necessary (daily use)
Overnight guests per year: 5-10
Open or closed architecture: open
Conservative or modern construction: modern
Open kitchen, kitchen island: open kitchen with island
Number of dining seats: 6
Fireplace: yes
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: double garage
Utility garden, greenhouse: no
Other wishes / special features / daily routine, including reasons for certain choices or exclusions
House Design
Designer:
- Architect from a construction company
What do you particularly like? Why?
- open design
- all rooms we need
What do you not like? Why?
- corridor too narrow?
- possibly a half-landing staircase (is that possible / planner says it probably doesn’t fit)
- little wall space for furniture
Cost estimate according to architect/planner: 400,000 €
Personal budget limit for the house, including fittings:
Preferred heating system: air-to-water heat pump
If you have to give up anything, which details/upgrades
- can you give up: fireplace
- cannot give up: office / shower/WC on the ground floor
Why does the design look like it does now?
- visited a show home with a similar layout / 2 adjustment loops with the planner have been completed
We are currently in the schematic design phase with our architect and now have a design draft that largely meets our requirements and that we like. I would be interested to know if you see any potential for optimization or if there are details/distances that seem completely unrealistic or impractical.
Development Plan / Restrictions
Plot size: 1053 sqm (11334 sq ft)
Slope: no
Floor area ratio: no development plan
Site coverage ratio: no development plan
Building envelope, building line and boundary line
Edge development
Number of parking spaces: 2 parking spaces / double garage
Number of floors: 2 full floors
Roof type: gable roof 28°
Architectural style: modern / townhouse
Orientation: see drawing / entrance on north side
Maximum heights / limits: n/a
Other requirements: n/a
Client Requirements
Style, roof type, building type: modern / gable roof
Basement, floors: slab-on-grade / 2 full floors
Number of occupants, age: 2 adults (35/40), 2 children (2/5)
Space requirement ground floor, upper floor: 80 sqm (860 sq ft) each
Office: family use or home office?: yes, necessary (daily use)
Overnight guests per year: 5-10
Open or closed architecture: open
Conservative or modern construction: modern
Open kitchen, kitchen island: open kitchen with island
Number of dining seats: 6
Fireplace: yes
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: double garage
Utility garden, greenhouse: no
Other wishes / special features / daily routine, including reasons for certain choices or exclusions
House Design
Designer:
- Architect from a construction company
What do you particularly like? Why?
- open design
- all rooms we need
What do you not like? Why?
- corridor too narrow?
- possibly a half-landing staircase (is that possible / planner says it probably doesn’t fit)
- little wall space for furniture
Cost estimate according to architect/planner: 400,000 €
Personal budget limit for the house, including fittings:
Preferred heating system: air-to-water heat pump
If you have to give up anything, which details/upgrades
- can you give up: fireplace
- cannot give up: office / shower/WC on the ground floor
Why does the design look like it does now?
- visited a show home with a similar layout / 2 adjustment loops with the planner have been completed
Thank you very much for your ideas. This provides really valuable input for making adjustments.
We have not planned a separate children’s bathroom. We think one bathroom and a small shower toilet on the ground floor are sufficient. Of course, this is also a cost factor. This is how it currently is in our apartment as well.
The clear ceiling height is 2.79m (9.15 ft). The ceiling thickness between the basement and the upper floor is 22mm (7/8 inch), and the floor construction is 21mm (13/16 inch).

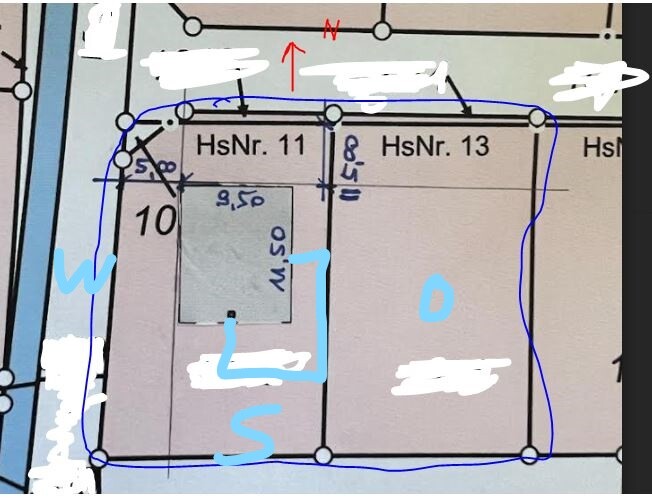

We are planning the terrace as a corner terrace on the east/south side around the large windows. The sun should then be on the south terrace until the evening from the west side (see attachment).
We have not planned a separate children’s bathroom. We think one bathroom and a small shower toilet on the ground floor are sufficient. Of course, this is also a cost factor. This is how it currently is in our apartment as well.
The clear ceiling height is 2.79m (9.15 ft). The ceiling thickness between the basement and the upper floor is 22mm (7/8 inch), and the floor construction is 21mm (13/16 inch).
We are planning the terrace as a corner terrace on the east/south side around the large windows. The sun should then be on the south terrace until the evening from the west side (see attachment).
gutentag schrieb:
Read off the rise-to-run ratio of the staircase. Unfortunately, it's hard to read this clearly on the plan. Related note in the plan: 17 steps, 18.6/25.8
holm667 schrieb:
The clear ceiling height is 2.79m (9 ft 2 in). Ceiling thickness between the upper and lower floors is 22mm (0.87 inches), floor construction height is 21mm (0.83 inches).I assume you mean meters and centimeters.Then the floor-to-floor height is
(2.79 - 0.21) + 0.22 + 0.16 = 2.96m (9 ft 8.5 in), which corresponds to 16 steps with a rise of 18.5cm (7.3 inches) each.
K a t j a schrieb:

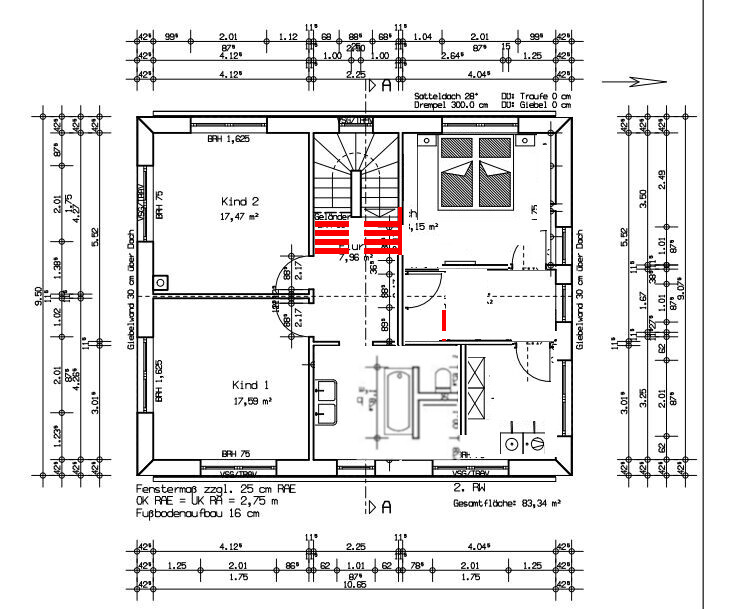

Well, it shouldn’t be a problem downstairs. Something like this might be possible upstairs:
[ATTACH alt="Podest.jpg"]70365[/ATTACH]
But in my opinion, it loses some aesthetic appeal that way. For example, the corner near the bedroom/dressing room would probably need to be squared off.If you straighten the wall, you could also swap the bathroom and bedroom, and access the utility room (HAR) as a “back room,” for example, through the dressing area. However, the bathroom should be carefully checked again with precise measurements.PS: Sorry for the poor image quality.
Where does the clear height of 2.79m (9 ft 2 in) come from? Is there a section drawing?
Clear floor-to-floor height doesn’t make sense. "Clear" refers to the distance between two surfaces. Floor-to-floor height means from the unfinished ground floor slab to the unfinished upper floor slab.
On the other hand, you mention room height. Then that is probably correct — from the floor slab to the underside of the ceiling, as I assumed?
Clear floor-to-floor height doesn’t make sense. "Clear" refers to the distance between two surfaces. Floor-to-floor height means from the unfinished ground floor slab to the unfinished upper floor slab.
On the other hand, you mention room height. Then that is probably correct — from the floor slab to the underside of the ceiling, as I assumed?
