ᐅ Ikea Utrusta Horizontal Drilling Template

Hello everyone,

I installed a Utrusta press hinge in a horizontal wall cabinet measuring 40cm x 80cm (16 inches x 31.5 inches). Unfortunately, I don’t have a drilling template for the Jutis door to drill the hinges.

Does anyone perhaps have a 1:1 copy of the template or could provide it to me? Without this drilling template, I simply can’t fit the hinges onto the door.

Thanks

I don’t have a template, but I can help with the millimeter measurements; the rest involves marking, tools, and tool skills – or you can quickly make the template yourself if you need to install many hinges.

Carcass:
You need 2 holes with a 5mm (0.2 inch) drill bit at distances of 20mm (0.8 inch) and 32mm (1.3 inches) from the front edge – double-check this. The distance between the screw holes for the hinge cup that goes into the carcass should be 12mm (0.5 inch).

Door:
The “cup” fits into a hole 13mm (0.5 inch) deep with a diameter of 35mm (1.4 inches). Its center should be 23.5mm (0.9 inch) from the door edge. You can mark the screw positions after drilling the cup hole (each 22.5mm (0.9 inch) above and below the axis, 33mm (1.3 inches) from the door edge, 8mm (0.3 inch) drill hole diameter).

Good luck.

hampshire schrieb:

I don’t have a template, but I can help with millimeter measurements. The rest is marking, tools, and skill – or you can quickly make the template yourself if you need to install many hinges.

Cabinet:
You need two 5mm diameter holes (about 0.2 inches) drilled at 20mm and 32mm (about 0.8 inches and 1.3 inches) from the front edge – please double-check this. The distance between the holes for the hinge mounting that goes into the cabinet should be 12mm (about 0.5 inches).

Door:
The “cup” fits into a 13mm (about 0.5 inches) deep hole with a diameter of 35mm (about 1.4 inches). The center of this hole is 23.5mm (about 0.9 inches) from the edge of the door. You can mark the screw holes after drilling the cup hole (each 22.5mm (about 0.9 inches) above and below the center axis, 33mm (about 1.3 inches) from the door edge, with an 8mm (about 0.3 inches) hole diameter).

Good luck.

I don’t understand any of this 🙄
Sorry, it’s my first time dealing with IKEA cabinets and their assembly.
Do you maybe have a small illustration? 😉

[

speedrunner schrieb:

I’m not following at all 🙄
Sorry, this is the first time I’m dealing with Ikea cabinets and their assembly.
Do you maybe have a simple illustrated guide?? 😉

Ah, I thought you wanted to install the hinges on non-Ikea cabinets. If you also have Ikea cabinets, you can find everything in their downloads.

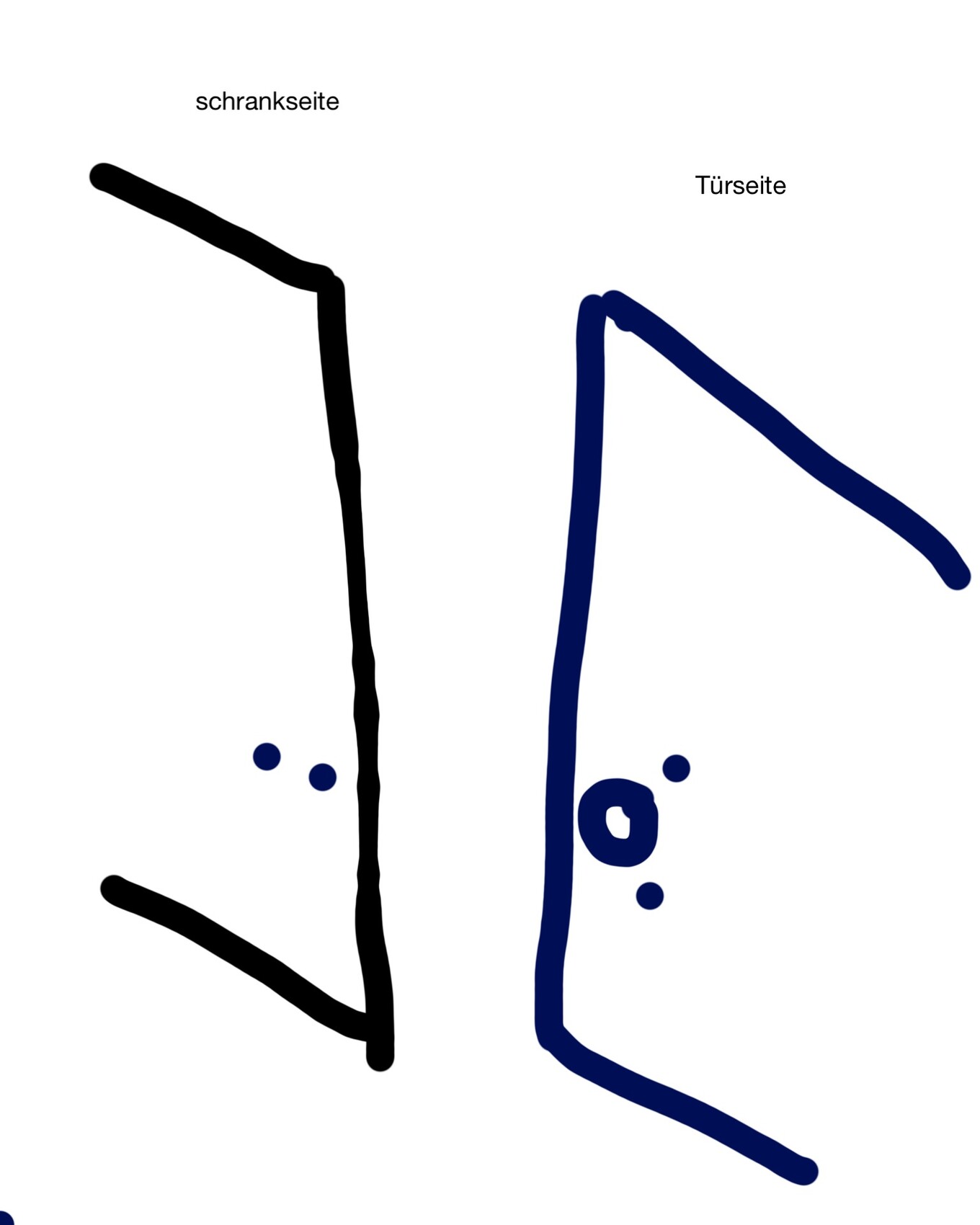

Sketch showing carcass and door, dimensions as above.

hampshire schrieb:

Sketch with carcass and door, dimensions as above.

Um... yes, I have Ikea cabinets and an Ikea Jutis door. Both are 40cm x 80cm (16 inches x 31.5 inches).

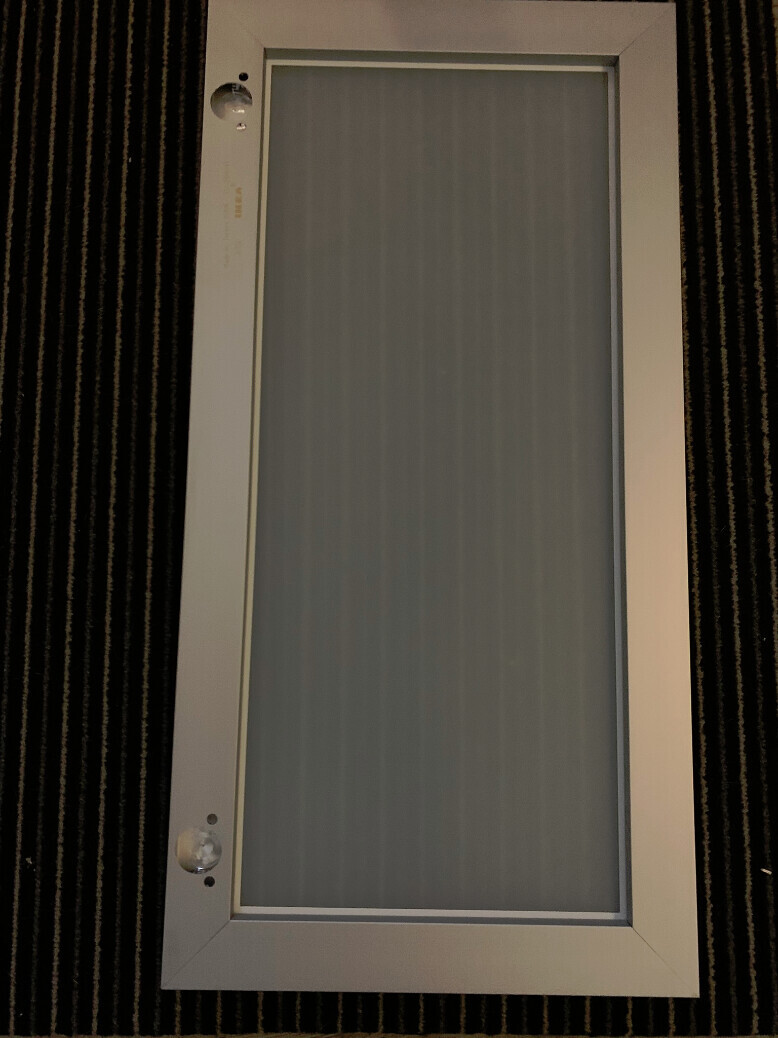

I already have the press-in hinge installed in the cabinet, but what I’m missing is the exact drilling distance on the door for the hinges.
Yes, the instructions explain how to do it... if you have the drilling template 😉
The template has 4 holes, and these are the ones I need to drill precisely.
