Hello everyone,
this is my third post in this forum. First of all, thank you for the valuable tips I have already received. I think I have learned a lot so far.
I have linked the previous posts below. To avoid any misunderstandings, I will list all the necessary information again. Therefore, reading the old posts only makes limited sense. For completeness, I have included them here.
https://www.hausbau-forum.de/threads/grundrissplanung-Bungalow-170qm.31445/
https://www.hausbau-forum.de/threads/grobe-Grundstücksplanung-819m.31558/
For the initial selection, there were three rough floor plan drafts. One was from Yvonne, the second from kbt09, and the third from the planner/ourselves. Many thanks to both of you for the good ideas! After some time for consideration and consultation with the developer, we decided to pursue the third floor plan.
Now to the main topic.
At the end of April 2019, we reserved a plot (plot no. 10) and started working on the floor plan. The plot is tied to the developer, and unfortunately, the planner has not turned out to be very creative (myself included). Two weeks ago, we had another meeting with the developer and talked about the three options mentioned above. We then chose one variant and want to proceed with it. We have now received a draft, which certainly still needs improvement.
For this reason, I would like to present the floor plan here again for discussion and hope for feedback, ideas, suggestions, and tips. Maybe you will immediately see things that “just don’t work” or are not practical for everyday life. I have also already noticed a few things that I would change, but since we will probably make quite a few modifications anyway, I have not yet suggested my own improvements in the floor plan. Also, the planner and I have not yet discussed doors and windows.
Attached again is the completed questionnaire.
Development plan/restrictions
Plot size: 819m² (8809 sq ft)
Slope: NO
Floor area ratio (FAR): 0.4 (allowable exceedance 25 per 100)
Gross floor area ratio (GFAR): 0.6
Building envelope, building line and boundary: On the northeast side approximately 31m (102 ft) deep, west side approximately 35m (115 ft) deep, plot frontage on the street 18.7m (61 ft) and rear boundary (development limit) approximately 27m (89 ft). The major challenge with the plot is the narrow width at the front. Depending on house orientation, after the 3m (10 ft) building setback on the street side, we have about 19.5m (64 ft) to 20.4m (67 ft) available. This means that if the house is parallel to the street, it is 19.5m (64 ft), and parallel to the neighbor in the northeast direction about 20.1m (66 ft).
Side building setback: 3m (10 ft)
Number of parking spaces required: no specification
Number of floors: maximum 2 full floors
Roof type: gable roof, hip roof
Other requirements: Garage must be at least 5m (16 ft) from the property boundary.
Client requirements
Style, roof shape, building type: bungalow with hip roof
Basement, floors: no basement due to high groundwater level
Number of people, age: 4 people aged 36 years (female), 37 years (male), 2 years (child), 7 months (child)
Room requirements on ground floor and upper floor:
Ground floor: living/dining/kitchen, utility room, guest toilet with shower, hallway with coat area and stairs to the upper floor, children’s rooms, master bedroom, bathroom, and storage room.
Upper floor: office, children’s playroom and additional storage space.
Office: family use or home office? home office
Overnight guests per year: 1–2 times
Open or closed floor plan: a mix of both
Conservative or modern design: a mix of both
Open kitchen, kitchen island: open kitchen with island would be nice but not a must, closed kitchen also has advantages
Number of dining seats: 4, with the option for 6–8 would be nice but not essential
Fireplace: no
Music/sound wall: sound system in the living room
Balcony, roof terrace: no
Garage, carport: Space for 2 cars is required. Currently, I am considering a garage (3x6m / 10x20 ft) and carport (3.6m / 12 ft).
Kitchen garden, greenhouse: no
Other wishes/special requirements/daily routine, including reasons for preferences or restrictions
House design
Who designed the plan:
-Developer’s planner / do-it-yourself
What do you particularly like? Why?
-There should be enough space in the coat area and behind the stairs to store jackets, shoes, etc.
-The children’s rooms have a comfortable size and are practically equal in size.
-Living room/kitchen are close to entrance and garage.
-The storage room has a good (central) location.
-
What do you not like? Why?
-Garage/carport is very far to the back (but I can probably live with this)
-The utility room is comparatively large and long
-The kitchen in my opinion is somewhat too large
-The living room is only the desired minimum size and could use 5m² (54 sq ft) more
-The main bathroom is located between both children’s rooms and the noise from showering and toilet use is likely to be a major issue
-The main bathroom could be slightly larger
-Between the garage and the property boundary there will be a dead space where weeds will probably grow later. Does anyone have ideas on how to prevent this?
-The garage is currently planned with a length of 9m (30 ft), of which 6m (20 ft) is for the garage and 3m (10 ft) for a storage room. The current position directly behind the garage is not optimal in my view
Price estimate according to architect/planner: no new price estimate received yet
Personal price limit for the house including equipment: 400,000
Preferred heating technology: heat pump
Why is the design the way it is now? e.g.
ideas from planner and do-it-yourself ideas from me
What is the most important/basic question about the floor plan summarized in 130 characters?
The main bathroom is located between the children’s rooms. How can we reduce noise disturbance to a minimum?
Imagine I drive a Skoda Superb into the garage. Since the garage is on the property boundary and the driveway narrows between the house and property line, I have to enter at a slight angle. Does this cause problems in everyday life? See pictures.
Assuming we build a double garage directly attached to the bungalow instead of a garage and carport, is there anything special to consider during construction?
this is my third post in this forum. First of all, thank you for the valuable tips I have already received. I think I have learned a lot so far.
I have linked the previous posts below. To avoid any misunderstandings, I will list all the necessary information again. Therefore, reading the old posts only makes limited sense. For completeness, I have included them here.
https://www.hausbau-forum.de/threads/grundrissplanung-Bungalow-170qm.31445/
https://www.hausbau-forum.de/threads/grobe-Grundstücksplanung-819m.31558/
For the initial selection, there were three rough floor plan drafts. One was from Yvonne, the second from kbt09, and the third from the planner/ourselves. Many thanks to both of you for the good ideas! After some time for consideration and consultation with the developer, we decided to pursue the third floor plan.
ypg schrieb:
If I say that the plot is not easy, I am understated.
Maybe this is an approach?
kbt09 schrieb:
I continued with the approach from the floor plan adjustments.
Now to the main topic.
At the end of April 2019, we reserved a plot (plot no. 10) and started working on the floor plan. The plot is tied to the developer, and unfortunately, the planner has not turned out to be very creative (myself included). Two weeks ago, we had another meeting with the developer and talked about the three options mentioned above. We then chose one variant and want to proceed with it. We have now received a draft, which certainly still needs improvement.
For this reason, I would like to present the floor plan here again for discussion and hope for feedback, ideas, suggestions, and tips. Maybe you will immediately see things that “just don’t work” or are not practical for everyday life. I have also already noticed a few things that I would change, but since we will probably make quite a few modifications anyway, I have not yet suggested my own improvements in the floor plan. Also, the planner and I have not yet discussed doors and windows.
Attached again is the completed questionnaire.
Development plan/restrictions
Plot size: 819m² (8809 sq ft)
Slope: NO
Floor area ratio (FAR): 0.4 (allowable exceedance 25 per 100)
Gross floor area ratio (GFAR): 0.6
Building envelope, building line and boundary: On the northeast side approximately 31m (102 ft) deep, west side approximately 35m (115 ft) deep, plot frontage on the street 18.7m (61 ft) and rear boundary (development limit) approximately 27m (89 ft). The major challenge with the plot is the narrow width at the front. Depending on house orientation, after the 3m (10 ft) building setback on the street side, we have about 19.5m (64 ft) to 20.4m (67 ft) available. This means that if the house is parallel to the street, it is 19.5m (64 ft), and parallel to the neighbor in the northeast direction about 20.1m (66 ft).
Side building setback: 3m (10 ft)
Number of parking spaces required: no specification
Number of floors: maximum 2 full floors
Roof type: gable roof, hip roof
Other requirements: Garage must be at least 5m (16 ft) from the property boundary.
Client requirements
Style, roof shape, building type: bungalow with hip roof
Basement, floors: no basement due to high groundwater level
Number of people, age: 4 people aged 36 years (female), 37 years (male), 2 years (child), 7 months (child)
Room requirements on ground floor and upper floor:
Ground floor: living/dining/kitchen, utility room, guest toilet with shower, hallway with coat area and stairs to the upper floor, children’s rooms, master bedroom, bathroom, and storage room.
Upper floor: office, children’s playroom and additional storage space.
Office: family use or home office? home office
Overnight guests per year: 1–2 times
Open or closed floor plan: a mix of both
Conservative or modern design: a mix of both
Open kitchen, kitchen island: open kitchen with island would be nice but not a must, closed kitchen also has advantages
Number of dining seats: 4, with the option for 6–8 would be nice but not essential
Fireplace: no
Music/sound wall: sound system in the living room
Balcony, roof terrace: no
Garage, carport: Space for 2 cars is required. Currently, I am considering a garage (3x6m / 10x20 ft) and carport (3.6m / 12 ft).
Kitchen garden, greenhouse: no
Other wishes/special requirements/daily routine, including reasons for preferences or restrictions
House design
Who designed the plan:
-Developer’s planner / do-it-yourself
What do you particularly like? Why?
-There should be enough space in the coat area and behind the stairs to store jackets, shoes, etc.
-The children’s rooms have a comfortable size and are practically equal in size.
-Living room/kitchen are close to entrance and garage.
-The storage room has a good (central) location.
-
What do you not like? Why?
-Garage/carport is very far to the back (but I can probably live with this)
-The utility room is comparatively large and long
-The kitchen in my opinion is somewhat too large
-The living room is only the desired minimum size and could use 5m² (54 sq ft) more
-The main bathroom is located between both children’s rooms and the noise from showering and toilet use is likely to be a major issue
-The main bathroom could be slightly larger
-Between the garage and the property boundary there will be a dead space where weeds will probably grow later. Does anyone have ideas on how to prevent this?
-The garage is currently planned with a length of 9m (30 ft), of which 6m (20 ft) is for the garage and 3m (10 ft) for a storage room. The current position directly behind the garage is not optimal in my view
Price estimate according to architect/planner: no new price estimate received yet
Personal price limit for the house including equipment: 400,000
Preferred heating technology: heat pump
Why is the design the way it is now? e.g.
ideas from planner and do-it-yourself ideas from me
What is the most important/basic question about the floor plan summarized in 130 characters?
The main bathroom is located between the children’s rooms. How can we reduce noise disturbance to a minimum?
Imagine I drive a Skoda Superb into the garage. Since the garage is on the property boundary and the driveway narrows between the house and property line, I have to enter at a slight angle. Does this cause problems in everyday life? See pictures.
Assuming we build a double garage directly attached to the bungalow instead of a garage and carport, is there anything special to consider during construction?
Chrisi1906 schrieb:
I sometimes send floor plans to my dad so he can share his opinion. He asked me where the floor plan came from and if I could send him an AutoCAD file. He wanted to make some changes to the rooms and show me how he would do it. So what has happened so far? We give you ideas, and then your dad changes them. We don’t get to see those changes.
I would say: every design from us—Kerstin, Katja, and me—is already fully planned. Usually, you can’t just make changes without creating a new design.
ypg schrieb:
Usually, any change means a new design has to be created.Isn’t that the point?
kaho674 schrieb:
So you end up dividing the rooms lengthwise under the ridge, making them long and narrow. No, nothing is divided, and nothing becomes long and narrow. I have integrated the "gable triangle" into the drawing.
kaho674 schrieb:
With zero knee wall height, you need to combine the area under the ridge on the left and right to make a room — otherwise, it’s all just storage space. In my proposal, under the shed roof on the left side there is only the attic space, and under the shed roof on the right side there is only the open underside of the roof of the ground floor rooms.
https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
11ant schrieb:
No, nothing is divided, and nothing is long and narrow. I have already integrated the "gable triangle" into the drawing. Then I’m afraid I don’t understand what you mean by a load-bearing wall. To me, that is a wall from the floor all the way up to the ceiling.
11ant schrieb:
In my suggestion, under the sloping roof on the left side of the plan there is only an attic space, and under the sloping roof on the right side of the plan there is only the exposed roof underside of the rooms on the ground floor. I believe this proposal was rejected – they want to expand the upper floor after all.
kaho674 schrieb:
Then I’m not sure what you mean by a load-bearing wall.See the drawing in post #154: the one running between the utility room-hall-storage-bedroom on one side and child-child-kitchen-dining-living on the other. I would extend that all the way up to the ridge beam.https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
C
Chrisi190620 Aug 2019 13:57kaho674 schrieb:
Unfortunately not. The program is a very old Architect 3D version – it’s not even available anymore. Your dad can just sketch over it. This is only about collecting ideas here.
Any updates on the roof? Have you made a decision? It’s quite important for the staircase position. He lives 200km (125 miles) away. But I can call him, and he can tell me what he would change. Or he could print it out, take a photo, and send it to me. There are a few options. I thought maybe you had it as an ACAD version.
I think we’ll stick with a hip roof with a 35° pitch. As I said, we can make the house 16.5m (54 feet) long (or 17m (56 feet) if needed) and 12m (39 feet) wide. Maybe that helps?
ypg schrieb:
So what’s happened so far? We give you ideas, and your dad changes them. But we don’t get to see those changes.
I’d say every design from us – Kerstin, Katja, and me – is already carefully planned. Usually, changes require a completely new design. Yes, you’re all giving me lots of ideas and I’m very thankful for that. Thank you!

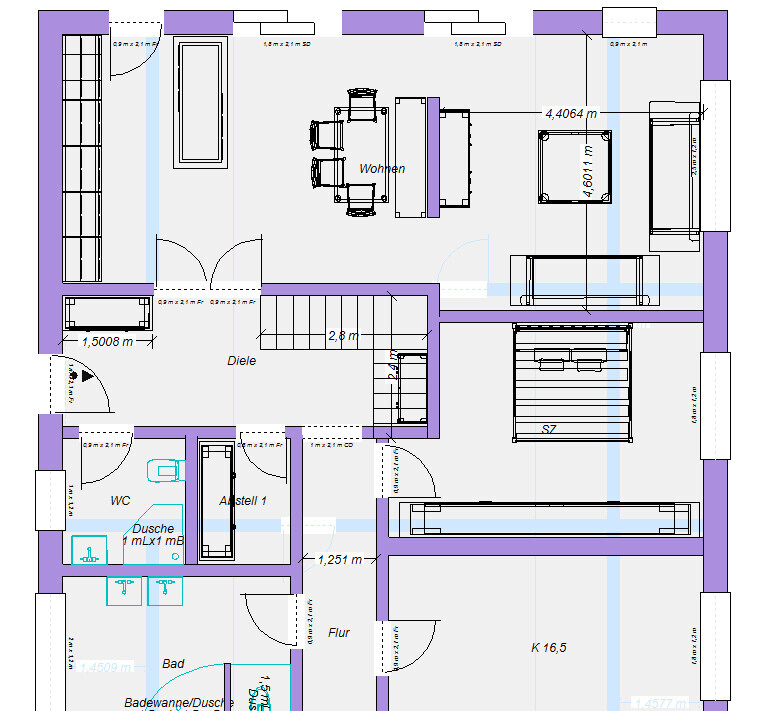

So far, my dad hasn’t changed any of the floor plans. He only gave me his opinions on them. This is the first time he has asked for changes.
I see that the designs from you three are very well planned.
I think this is a design we can live well with.
The only disadvantages I currently see are:
- Kitchen on the left instead of the right
- Hallway has too little light due to the narrow door (maybe a glass door could help here)
- The staircase space shouldn’t be too tight (as mentioned, we can go up to 16.5m x 12m (54 feet x 39 feet))
- Living room could use a few more square meters, but we can definitely live with it!
- The second storage room is actually unnecessary since we have enough storage space under the roof.
Advantages:
- All rooms with plumbing are on the left
- Private rooms on the right, separated from rooms that could cause noise. We can ignore the bedroom being next to the living room since my wife and I usually go to bed at the same time.
- Short traffic routes
- And much more.
This one is good too.
Disadvantages:
- Utility room between the bedroom and children’s room. What do you think about placing the washer and dryer in the utility room? That might ease the situation, but then the “noise” is closer to the living room.
- Bathroom next to the bedroom
- Hallway has very little space for a coat rack (only under the stairs)
- Hallway has too little light due to the narrow door (maybe a glass door could help here)
- Relatively small living room, but we can live with it
Advantages:
- Dining area and kitchen on the right, near the terrace
- L shape of living, dining, and kitchen is preferable to the previous layout
- And much more.
