Hello everyone,

we are struggling with our bathroom layout, including the plumbing plan. I hope I can explain the conditions clearly:

- Dimensions: 3.50 by 4 meters (11.5 by 13 feet)
- Below the bathroom is the guest room. Most likely, there will be a plumbing line coming down at one corner, which is acceptable. Two plumbing lines are a no-go.
- The two windows can still be moved a few centimeters.
- We are completely flexible with the two doors.
- In the bathroom, we would like: a walk-in shower, a double sink, washer and dryer (here a countertop can be used to cover a possible half-height partition wall. That means the countertop can be placed on top of the half-height partition wall)

I can’t manage to combine all components without needing a second plumbing line. Is it perhaps possible to install sanitary fixtures on the opposite wall and route the drain pipes to the other wall? Maybe we are overcomplicating things?

Here is one solution where we can route the plumbing from the sink around the corner workspace:

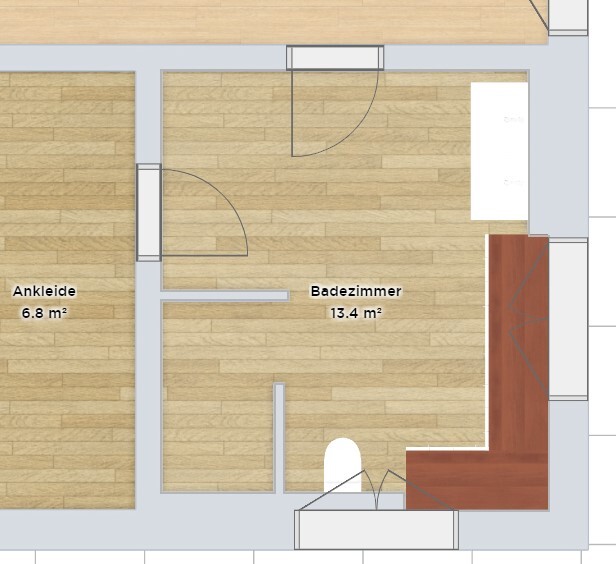

Grundriss eines Badezimmers mit Toilette, Waschbecken und rotem L-Möbel; angrenzende Ankleide.

3D-Küchen-Grundriss von oben mit Spüle rechts und Holzboden.

Does anyone have suggestions for optimization? We are not happy with the current solution.

hanghaus202323 May 2023 10:55

#73

I was also considering installing a sliding door.

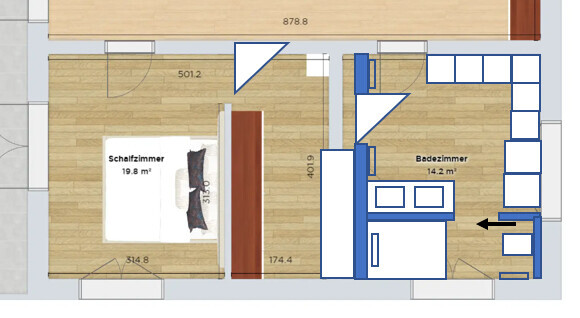

Floor plan: Bedroom (19.8 m² / 213 sq ft) on the left with bed; Bathroom (14.2 m² / 153 sq ft) on the right with fixtures.

hanghaus202323 May 2023 11:11

#74

Is the east side visible from the outside? Perhaps a vertical window could be installed in the bathroom?

hanghaus202323 May 2023 12:45

#75

I have created a visualization of the children's bathroom.

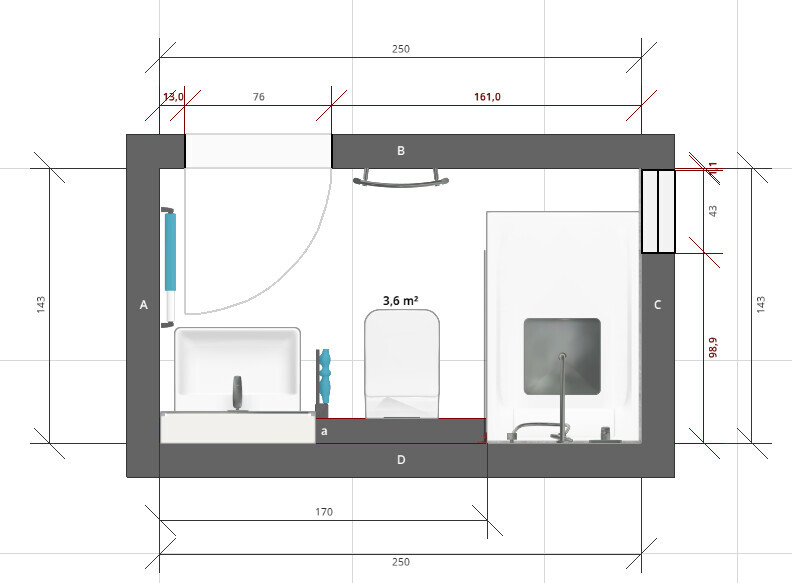

Floor plan of a bathroom with a sink on the left, toilet in the middle, shower on the right.

Modern 3D bathroom shower with red feature wall, tiles, and towel radiator

Stein202323 May 2023 13:12

#76

Thank you @hanghaus2023. Could it be that you planned the children’s bathroom in the space intended for the utility room? That is exactly how we would have done it. However, we relocated it to the following area:

Floor plan of an interior: utility room 4.1 m², children’s bathroom 6.1 m², master bathroom 6.8 m² with doors.

We have planned the master bathroom slightly larger than the children’s bathroom. The depth of 1.75 meters (5 ft 9 in) in the children’s bathroom should still be sufficient.

hanghaus202323 May 2023 13:20

#77

My children's bathroom is only 3.6 m2 (39 sq ft) so that the master bathroom can accommodate both a shower and a bathtub.

How do you bring the toilet wastewater down in post #76? Drop the ceiling in the guest room? What is the ceiling height on the ground floor?

Are you planning with a basement?

Stein202323 May 2023 13:29

#78

hanghaus2023 schrieb:

My children’s bathroom is only 3.6 m² (39 sq ft) to make room for both a shower and a bathtub in the master bathroom.

How do you route the toilet waste pipe downwards as mentioned in post #76? Drop the ceiling in the guest room? What is the ceiling height on the ground floor?

Are you planning with a basement?

We are planning without a bathtub. And yes, we are building with a basement.

The idea is to place the wastewater pipe either in the corner of the guest room or in the hallway next to the front door. From there, it would go directly to the main sewer line, which runs under the driveway:

Floor plan: Utility room 3.9 m² (42 sq ft), children’s bathroom 5.7 m² (61 sq ft), and master bathroom 6.8 m² (73 sq ft); red routing through the hallway.

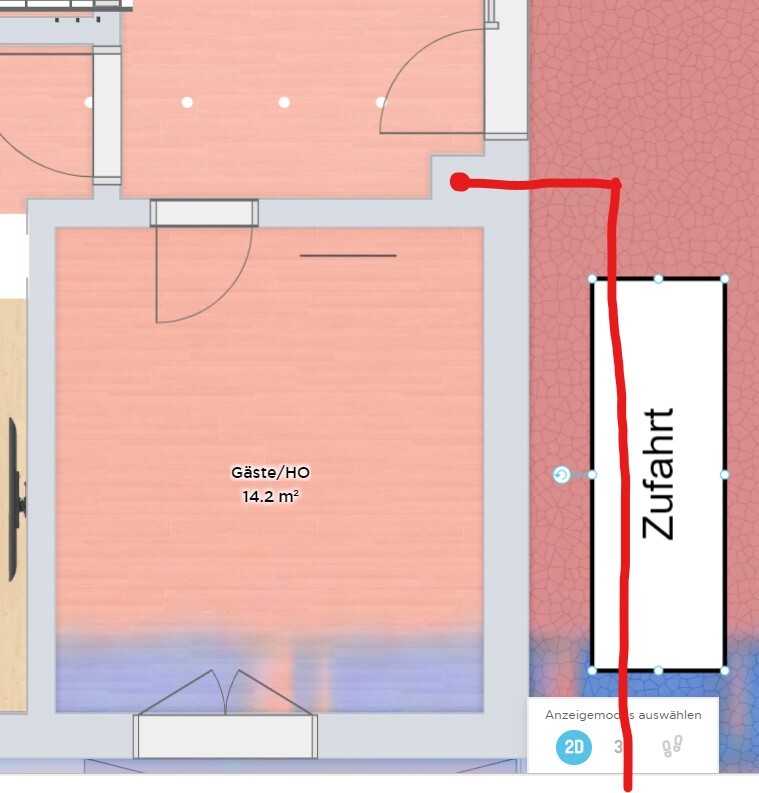

Floor plan: Guest room/home office 14.2 m² (153 sq ft); driveway marked with red line on the right.

Should work, right?
