ᐅ Terraced Corner House Floor Plan in Development – Any Suggestions for Changes?

Created on: 20 Aug 2022 21:05
B
Bauherrin123
Hello dear forum members,

we are building an end-terrace house measuring 7 by 10 m (23 by 33 ft) without a basement. It will have 2 full floors and an attic above. Now the question is which roof we should have. I was shown a house with a 38-degree gable roof without a knee wall, which I found very nice in terms of the feeling of space. Now we have been informed that only a 35-degree gable roof is allowed for us, but with a 30 cm (12 inches) knee wall. What I didn’t realize was that our attic has a maximum height of only 63 cm (25 inches). So the attic space is very low. Now I have no basement and hardly any storage space and I’m a bit frustrated because the building permit application is now in front of me. I initially agreed that this was okay, but I would prefer a 1 m (3 ft) knee wall. The development plan only allows a maximum of 30 cm (12 inches). I’m really unsure what to choose... I don’t want to spend unnecessary money if it doesn’t make a big difference since we have a very large plot and can build storage in the garage, barn, or garden house...

What would you do?
A. 38-degree gable roof or
B. 35-degree gable roof with 30 cm (12 inches) knee wall or
C. 35-degree gable roof with 1 m (3 ft) knee wall, applying to the city office...

We would need to submit a request to the building authority to increase the knee wall to 1 m (3 ft), which would mean more effort, bureaucracy, and delays... I don’t know what it would cost or if it’s even possible, but it’s weighing on my mind because I only read online about people who built houses with a knee wall on the attic. The extra cost of $3,000–$5,000, if that’s roughly the amount, would be worth it to me if it creates nicer rooms and I get a higher attic for storage.

The second problem is that the plot is much lower than street level. We are paying an extra €10,000 to fill the plot with gravel up to street level. Now the house will be built just slightly above street level, so there will be a step at the entrance. There will be a total of 3 terraced houses, and we have the end house. In our row, two finished terraced houses from other builders are already standing next to ours. However, these are built 1 m (3 ft) above street level with 3 or 4 steps higher, so they probably look taller overall. I find this visually unappealing and also, personally, I want our house to be higher.

What are your thoughts on this?

I’m also uploading my floor plan, which I think is finished. I don’t understand how high the ceilings are; can someone tell from the plans? Inside the rooms, how high are they? And generally, do you notice anything about the floor plan?
My building permit application is ready, but I want to change it after all. It doesn’t suit me, and I’m sure it will cause trouble with the company if they have to make changes for us, but I want to be able to decide again and just need some feedback here.

Looking forward to your support!

Best regards

Zweigeschossiges Haus mit Dachgeschoss; Schnitte A-A und Front-, Garten- und Rückansicht


Grundriss eines Hauses: Erdgeschoss mit Wohnen/Essen, Küche, Diele, WC, Terrasse.


Grundriss Obergeschoss: Eltern, Kind 1, Büro, Flur, Bad, Dachterrasse, Treppe.


Dachgeschoss-Grundriss mit Studio, Bad und HWR, Treppe, Türen und Maßangaben


Schematischer Gebäudeschnitt eines Hauses mit Treppen, Räumen (Büro, Flur, Bad).
K
kbt09
28 Oct 2022 17:20
A fixed parapet element with a height of 20 cm (8 inches) does not have much appeal.
B
Bauherrin123
24 Nov 2022 21:40
Hello,

This is my final version. Does anyone have any objections? Regarding the studio, I don’t want the window to be right on the wall, but about 50cm (20 inches) away from it. The window should be floor-to-ceiling; otherwise, I’m done.

Looking forward to your feedback. Tomorrow it goes for signing.

Grundriss eines Hauses: Terrasse, Küche, Wohnen/Essen, Diele, Abstellraum.


Grundriss Obergeschoss: Eltern-, Kinderzimmer, Bad, Flur und Büro mit Abmessungen.

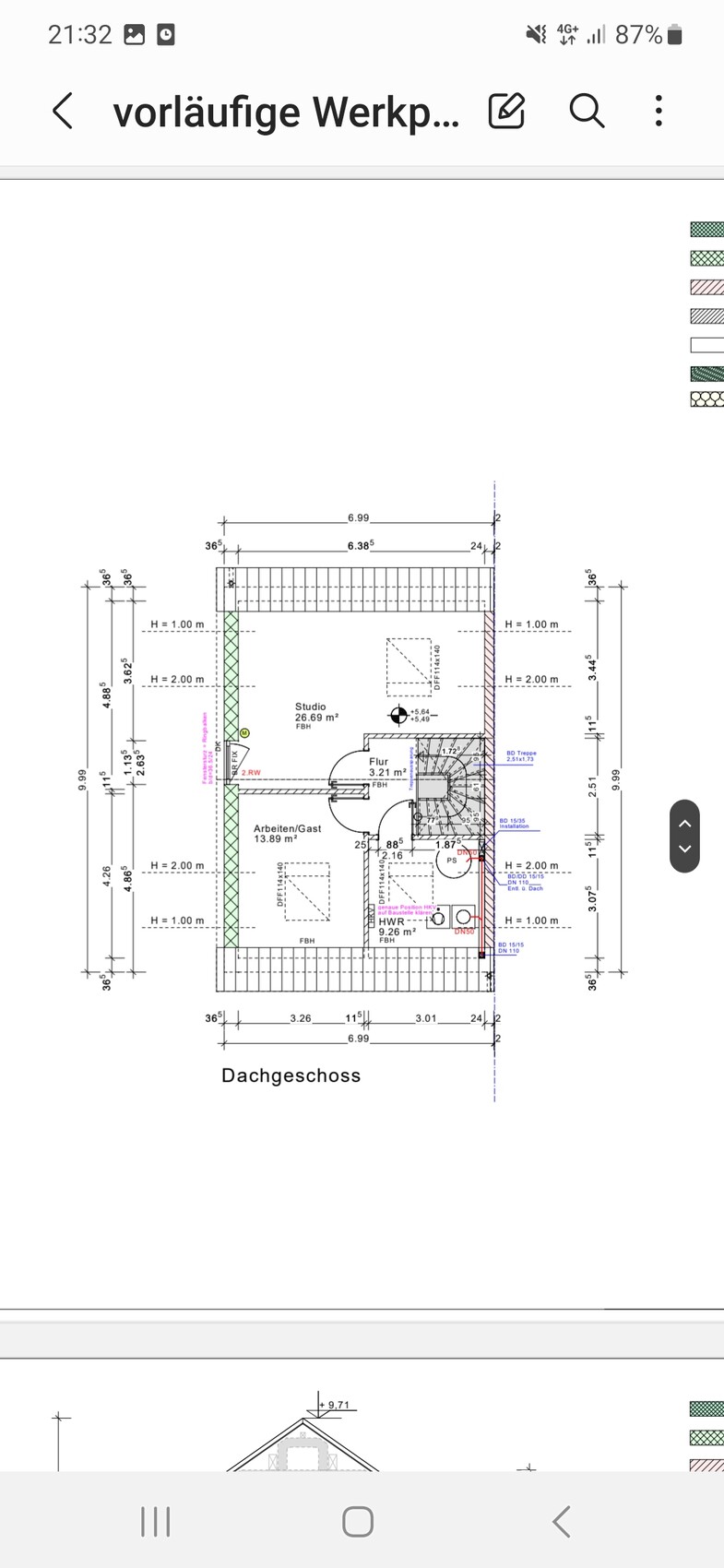

Dachgeschoss-Grundriss: Studio, Arbeiten/Gast, Flur, Treppe; Maße und Raumaufteilung.

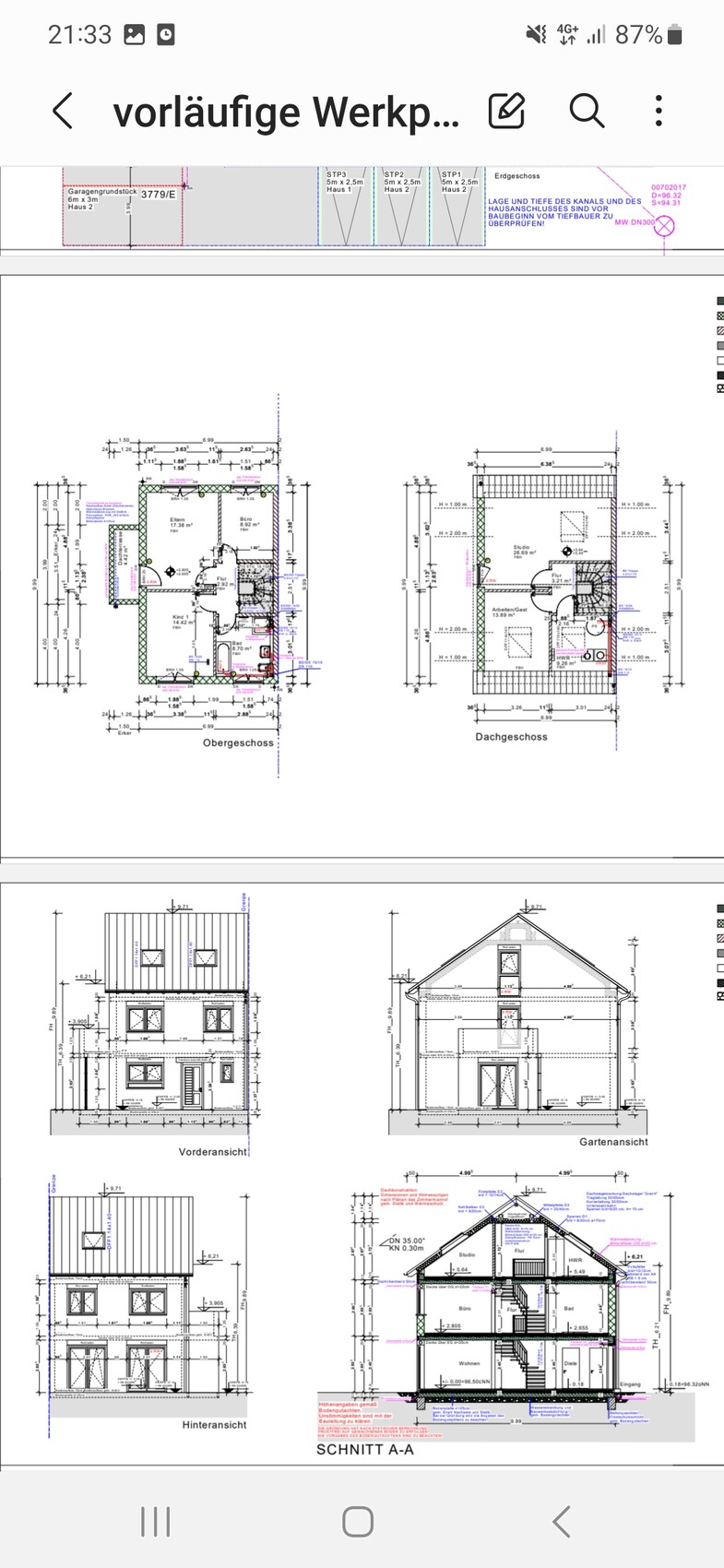

Architekturpläne eines Hauses: Grundrisse Ober-/Dachgeschoss, Vorder-/Garten-/Hinteransicht
B
Bauherrin123
28 Jan 2023 22:12
Hello everyone,

After a long wait, the building permit / planning permission finally arrived and the project is starting. Markings have been set, and next week the excavator and concrete for the foundation slab will arrive. I am quite concerned about the temperatures, which are below zero at night... is it allowed to build in such conditions? The site manager says it’s not a problem and that they add something to the concrete mix?
W
WilderSueden
28 Jan 2023 22:16
In cold weather, concrete is mixed using warm water and heated aggregate, along with increased amounts of cement and possibly additional admixtures. Depending on the temperature, it is also covered or insulated.

Of course, there are limits to this, but in typical cold conditions, there is no need to worry.
E
evelinoz
29 Jan 2023 04:29
Do you really want to set up the kitchen lighting like this?

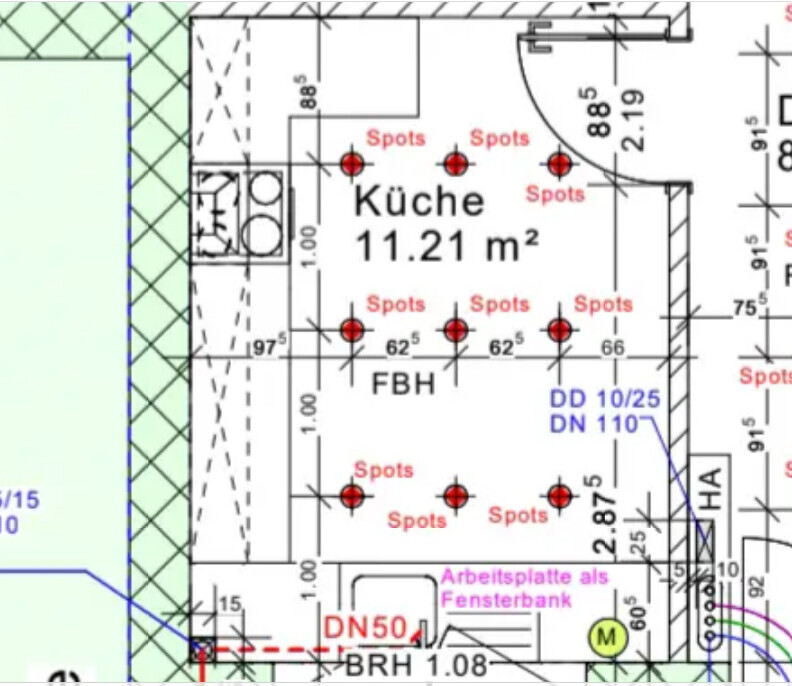

Kitchen floor plan, area 11.21 m² (121 sq ft), red spots indicate lamps in the room, underfloor heating.

Where is the task lighting? According to this kitchen plan, there is nothing in the center that needs light—it’s not an office; your heads will be lit up instead...
K
kbt09
29 Jan 2023 07:06
@evelinoz is right, but I believe we already had this discussion earlier in the thread.
There should be at least one row of spotlights spaced about 30cm (12 inches) from the wall at the bottom of the plan, above the countertop by the window.
