ᐅ Floor Plan for a 150 m² Corner Bungalow with Expansion Options
Created on: 5 Feb 2022 01:31
R
Ramona13
Hello 🙂
After what felt like hundreds of crumpled drafts in the recycle bin, we finally have a floor plan that we like and that fits our size requirements. Initially, we planned way too large, sometimes over 250m² (2700 sq ft) of living space... oops... Now we have settled on a nice 150m² (1600 sq ft) 🙂
We mainly reduced the number of rooms. Originally, we planned 2 offices and 2 future children’s rooms, but now only 2 offices remain, with at least one definitely convertible into a children’s room. This makes more sense since we don’t want to seriously consider having children before at least 5 years from now. We also initially planned a small wellness area with a sauna, loungers, and a hot tub inside the house, but this will now be a separate building in the garden.
More generally, I have already written here https://www.hausbau-forum.de/threads/vereinigung-zweier-Grundstücke-baufenster-neu-legen.42280/ about our plots. The request for merging them is still in progress, so we don’t have a definitive location for the house yet. Ideally, we’d like it centered on the current boundary line or, alternatively, on the rear building plot with border development facing the neighboring property.
Fortunately, regarding the development plan/planning restrictions, we will have quite a bit of flexibility. We can submit a preliminary building inquiry to check if everything is acceptable. The last house built here in the village about 4 years ago had 2 full floors, a different roof pitch, and presumably got some exceptions approved without problems. The community is generally happy that we want to fill a building gap 😉
Development Plan / Restrictions
Plot size: approx. 1500m² (0.37 acres)
Slope: no
Floor area ratio & plot ratio... very confusing 🤨
Building window, building line and boundary
Edge development
Number of parking spaces
Number of floors: 1
Roof shape: gable roof, half-hip roof
Style
Ridge orientation parallel to street
Maximum heights/limits
Additional requirements: knee wall 0-50cm (0-20 inches)
Homeowner Requirements
Style, roof type, building type
Corner bungalow with gable roof, modern with Japanese elements
Timber construction by local carpentry with the possibility of contributing a lot of own work.
Basement, floors
No basement, 1 floor
Number of people, age
25 (female) and 28 (male) + 2 cats
Children not planned initially, earliest in 5 years
Space needs ground floor / upper floor
Office: family use or home office?
Separate offices for home office
Guest bedrooms per year
Very few
Open or closed layout
Open living area
Conservative or modern design
Modern
Open kitchen, kitchen island
Kitchen island facing the garden, pantry as a separate room behind the kitchen
Number of dining seats
4-6
Fireplace
No
Music / stereo wall
No
Balcony, roof terrace
No
Garage, carport
Probably carport, but not decided yet
Utility garden, greenhouse
Vegetable garden with large greenhouse definitely planned on the property
Other wishes / special features / daily routine, including reasons why some things are or are not desired
- A gallery in the roof, open to the living area, would be a big dream of mine, but only if financially feasible. Otherwise, this part of the roof will be storage space or intended for later expansion.
- Smart home with KNX installed by ourselves (all electrical work will be DIY in cooperation with a certified electrician who will inspect and approve)
- Controlled mechanical ventilation and a separate split air conditioning system
- Photovoltaic system on the roof facing south and east
- Garden must be cat-proof fenced since our cats are not outdoor cats (currently strictly indoor cats)
- Exposed beam ceiling in the open living area
House Design
Designer:
- Do-it-Yourself
What do you particularly like? Why?
The open living area with the possibility to use both the south and north terraces.
Small “reading nook” at the end of the hallway with a large seat window (-> if there is a gallery, the staircase will lead upstairs here and the reading nook will be located there)
What don’t you like? Why?
Maybe the hallway is too long...
Estimated cost according to architect/planner: none yet, appointment with architect next week.
Personal price limit for the house including equipment: we hope to stay under €500,000 (approx. $540,000)
Preferred heating technology: air-water heat pump with underfloor heating
If you had to give up, which details / expansions
- could you do without:
- Gallery would be nice but is not essential
- Wellness area in the garden can be built later
- Reading nook
- could you not do without:
- Air conditioning
- KNX system
- Separate offices
- Cat-proof garden
Why did the design turn out this way? e.g.
Standard draft from planner?
Which wishes were implemented by the architect?
A mix of many examples from various magazines...
What do you think makes it particularly good or bad?
Our design developed step by step from many sketches, floor plans, and photos found online.
The interior furnishing in the 3D images is only a placeholder; the detailed interior design is still being planned.
Finally, this design gives us a satisfied feeling in terms of size and room layout 🙂
What is the most important / fundamental question about the floor plan in 130 characters?
In your opinion, is our project achievable for a maximum of €500,000 (approx. $540,000), and is it sensible to plan smaller first and then expand by adding a loft conversion?
I am very grateful for your opinions, ideas, and suggestions for improvement! 🙂
After what felt like hundreds of crumpled drafts in the recycle bin, we finally have a floor plan that we like and that fits our size requirements. Initially, we planned way too large, sometimes over 250m² (2700 sq ft) of living space... oops... Now we have settled on a nice 150m² (1600 sq ft) 🙂
We mainly reduced the number of rooms. Originally, we planned 2 offices and 2 future children’s rooms, but now only 2 offices remain, with at least one definitely convertible into a children’s room. This makes more sense since we don’t want to seriously consider having children before at least 5 years from now. We also initially planned a small wellness area with a sauna, loungers, and a hot tub inside the house, but this will now be a separate building in the garden.
More generally, I have already written here https://www.hausbau-forum.de/threads/vereinigung-zweier-Grundstücke-baufenster-neu-legen.42280/ about our plots. The request for merging them is still in progress, so we don’t have a definitive location for the house yet. Ideally, we’d like it centered on the current boundary line or, alternatively, on the rear building plot with border development facing the neighboring property.
Fortunately, regarding the development plan/planning restrictions, we will have quite a bit of flexibility. We can submit a preliminary building inquiry to check if everything is acceptable. The last house built here in the village about 4 years ago had 2 full floors, a different roof pitch, and presumably got some exceptions approved without problems. The community is generally happy that we want to fill a building gap 😉
Development Plan / Restrictions
Plot size: approx. 1500m² (0.37 acres)
Slope: no
Floor area ratio & plot ratio... very confusing 🤨
Building window, building line and boundary
Edge development
Number of parking spaces
Number of floors: 1
Roof shape: gable roof, half-hip roof
Style
Ridge orientation parallel to street
Maximum heights/limits
Additional requirements: knee wall 0-50cm (0-20 inches)
Homeowner Requirements
Style, roof type, building type
Corner bungalow with gable roof, modern with Japanese elements
Timber construction by local carpentry with the possibility of contributing a lot of own work.
Basement, floors
No basement, 1 floor
Number of people, age
25 (female) and 28 (male) + 2 cats
Children not planned initially, earliest in 5 years
Space needs ground floor / upper floor
Office: family use or home office?
Separate offices for home office
Guest bedrooms per year
Very few
Open or closed layout
Open living area
Conservative or modern design
Modern
Open kitchen, kitchen island
Kitchen island facing the garden, pantry as a separate room behind the kitchen
Number of dining seats
4-6
Fireplace
No
Music / stereo wall
No
Balcony, roof terrace
No
Garage, carport
Probably carport, but not decided yet
Utility garden, greenhouse
Vegetable garden with large greenhouse definitely planned on the property
Other wishes / special features / daily routine, including reasons why some things are or are not desired
- A gallery in the roof, open to the living area, would be a big dream of mine, but only if financially feasible. Otherwise, this part of the roof will be storage space or intended for later expansion.
- Smart home with KNX installed by ourselves (all electrical work will be DIY in cooperation with a certified electrician who will inspect and approve)
- Controlled mechanical ventilation and a separate split air conditioning system
- Photovoltaic system on the roof facing south and east
- Garden must be cat-proof fenced since our cats are not outdoor cats (currently strictly indoor cats)
- Exposed beam ceiling in the open living area
House Design
Designer:
- Do-it-Yourself
What do you particularly like? Why?
The open living area with the possibility to use both the south and north terraces.
Small “reading nook” at the end of the hallway with a large seat window (-> if there is a gallery, the staircase will lead upstairs here and the reading nook will be located there)
What don’t you like? Why?
Maybe the hallway is too long...
Estimated cost according to architect/planner: none yet, appointment with architect next week.
Personal price limit for the house including equipment: we hope to stay under €500,000 (approx. $540,000)
Preferred heating technology: air-water heat pump with underfloor heating
If you had to give up, which details / expansions
- could you do without:
- Gallery would be nice but is not essential
- Wellness area in the garden can be built later
- Reading nook
- could you not do without:
- Air conditioning
- KNX system
- Separate offices
- Cat-proof garden
Why did the design turn out this way? e.g.
Standard draft from planner?
Which wishes were implemented by the architect?
A mix of many examples from various magazines...
What do you think makes it particularly good or bad?
Our design developed step by step from many sketches, floor plans, and photos found online.
The interior furnishing in the 3D images is only a placeholder; the detailed interior design is still being planned.
Finally, this design gives us a satisfied feeling in terms of size and room layout 🙂
What is the most important / fundamental question about the floor plan in 130 characters?
In your opinion, is our project achievable for a maximum of €500,000 (approx. $540,000), and is it sensible to plan smaller first and then expand by adding a loft conversion?
I am very grateful for your opinions, ideas, and suggestions for improvement! 🙂
ypg schrieb:
It may be that the architect has a strong conviction. Or too many clients to whom she cannot give adequate attention. Or other reasons. Or the client is resistant to advice, at least discussion, and/or couldn’t really explain why certain things are a "must-have."
As a service provider, you face the client, and the client focuses on their wishes, listening to arguments. Personally, I find the real reason for the split is missing here.I see it as the building couple lacked—or had disturbed or lost—the "the architect understands us" feeling, which I definitely consider a valid "argument" (in an esoteric sense) to part ways with this planning partner. However, I would then look for someone else. An amateur plan with the carpenter as a rubber stamp is, in my opinion, not sensible. ypg schrieb:
Furthermore: the basic structure is being kept here. Maybe that is more of a hindrance?A fixed house shape dogma definitely has the significant potential to become a burden for the success of the planning process.https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
In the meantime, we had also planned a two-story house, which influenced, for example, the layout of the living area. However, we simply were not happy with having two levels and have now returned to the bungalow design.
I had already considered a straight hallway, but then felt it was far too long before finally reaching the living area.
I had already considered a straight hallway, but then felt it was far too long before finally reaching the living area.
Ramona13 schrieb:
In the meantime, we had also planned a two-story house, from which, for example, the layout of the living area was developed. But we just weren’t happy with having two levels, so we have now returned to a bungalow.
I had already considered a straight hallway, but I felt it was too long before finally reaching the living area. I am not talking about building two full stories right away. Most houses (excluding, for example, two-story townhouses) work well with a finished attic. Especially if you’re not sure what the future holds, it’s advisable to keep the attic reserved as a potential expansion area for children or guests, even if it’s not finished right away.
Not building children’s rooms at all is certainly not an alternative when you’re young and still uncertain about your needs. Or how do you imagine it if the home offices have to give way later? What about working from home then? And honestly: even if you later convert children’s rooms into offices, it’s great to have nice rooms under the roof for home office, where you can have more peace and quiet to work while the kids are playing downstairs.
ypg schrieb:
Especially when you’re not exactly sure what will happen, it’s a good idea to keep expandable attic space for children and guests, even if it’s not finished right away. The plan is indeed to eventually convert the attic into children’s rooms and even a second bathroom. The roof pitch is 35 degrees, plus the allowed 50cm (20 inches) knee wall, which provides enough width. You can also replace the folding attic ladder with a proper staircase later on; I know several cases where this was done among friends and family.
Ramona13 schrieb:

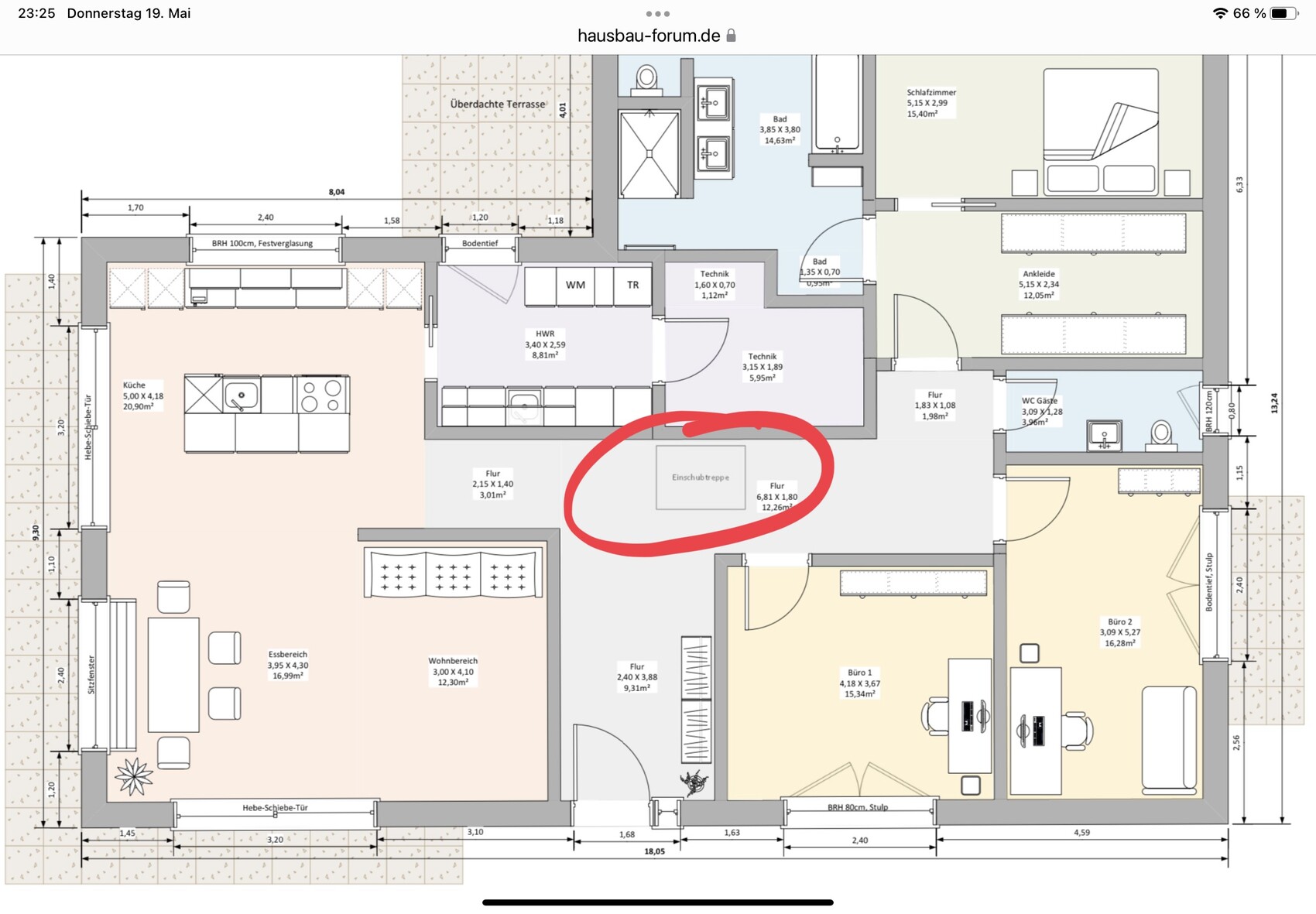

You can always add a proper staircase later instead of a folding ladder, You can’t be serious?

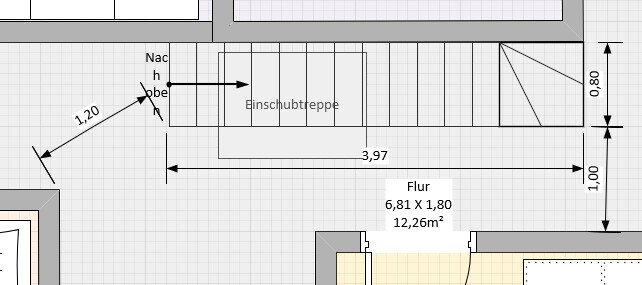

Where exactly would you put it here? That would fill up your hallway so much that it would barely be passable. Of course, you can enlarge a floor hatch afterwards, but that needs to be planned in advance. There are also ledger boards resting on the load-bearing walls, supporting beams, and, of course, the obvious lack of space in a hallway that already takes up far too much valuable living area.
ypg schrieb:
Where is it supposed to go here? You’re filling up your hallway so much that it’s barely passable. Wouldn’t that be enough? With an open staircase, there is still plenty of space in the hallway.
And the structural engineering needs to be planned accordingly in advance, I understand that already 🙂
