ᐅ Floor plan design for an urban villa of approximately 160 m² without a basement
Created on: 3 Apr 2018 14:35
Z
Zisu2000Hello everyone,
we are almost finished with our planning phase. That’s why we would like to hear your opinion on the floor plan of the house. I have been enthusiastically reading this forum for months now. I especially appreciate the helpfulness and the respectful tone here. However, this does not mean you shouldn’t give criticism. We are grateful for any comments or ideas for improvement.
A small issue is the orientation of the plot. Our main facade faces southwest, but once the house is built, there will be only about 6 meters (20 feet) to the neighboring property (depending on where the double garage is placed). The main garden is also oriented to the northwest. We planned the terrace in an L-shape from southwest to northwest. We will probably spend more time on the northwest terrace (which is why there is a sliding door leading outside there). If the main facade (living/dining area) were oriented northwest, I think the living room might become too dark (north-facing). But I’m open to being corrected if that is not the case.
Initially, there was an office planned on the ground floor. But that would have made the kitchen too small. We have now planned the office on the upper floor, which is fine for us. The bathroom is located on the north side but has a good size (should be sufficient). At first, we wanted a T-shaped layout (probably because it is often seen in model homes and we liked it there). However, I think an L-shaped layout might be better here. In front of the toilet, there is a planned privacy wall about 1 meter high (3 feet).

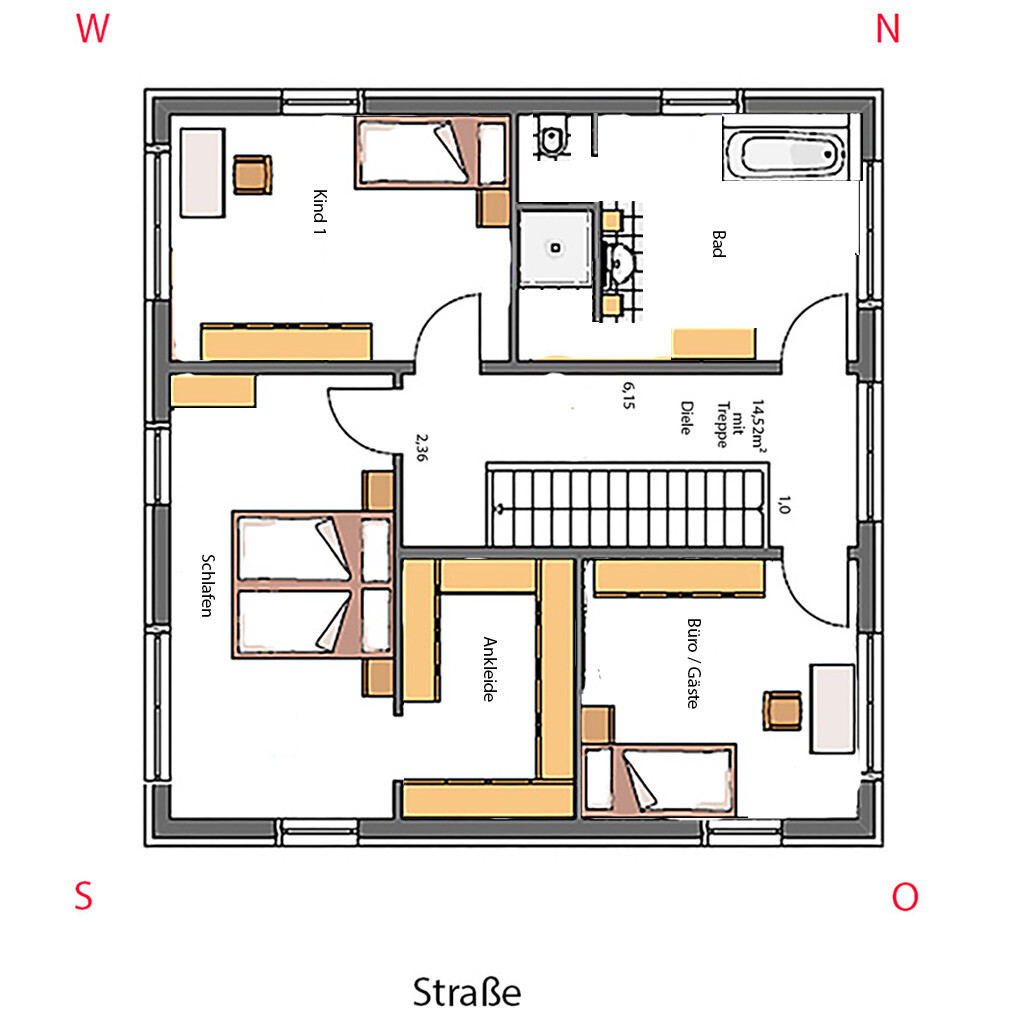

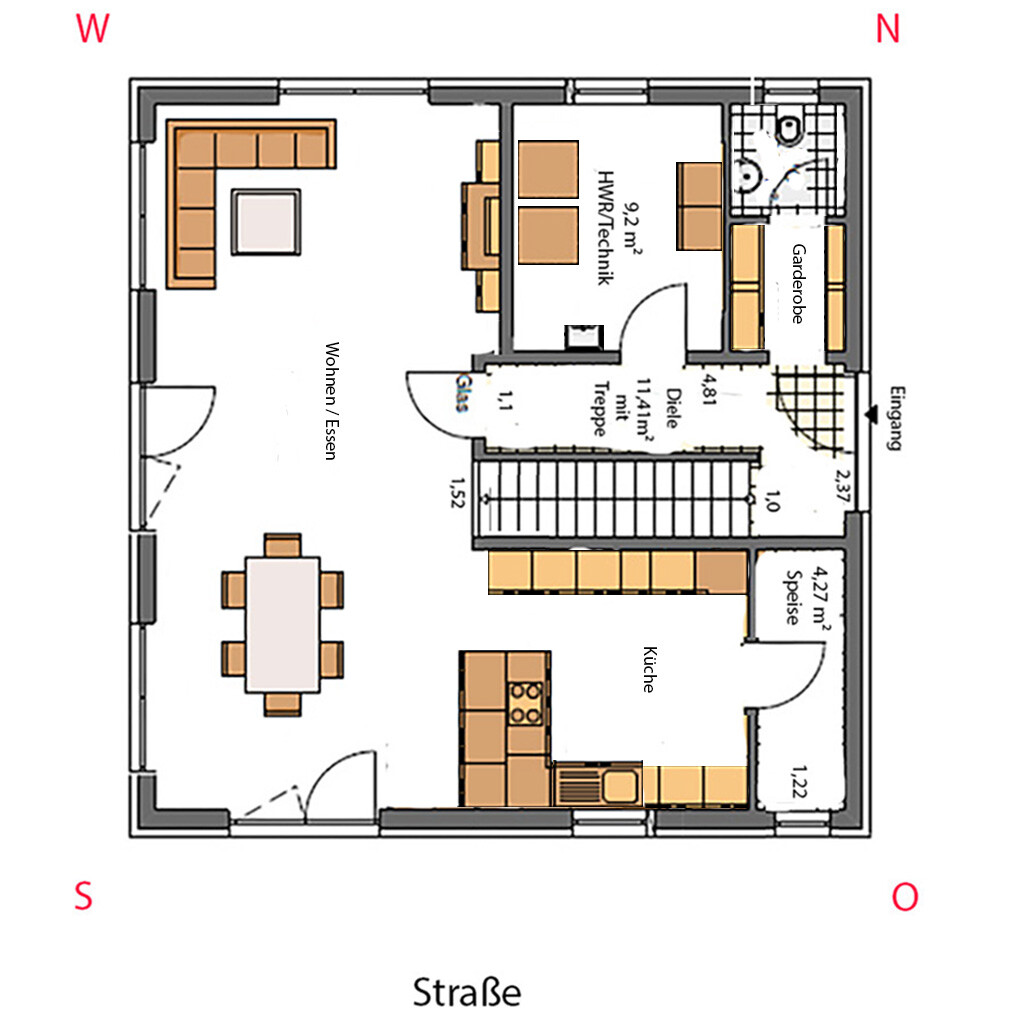

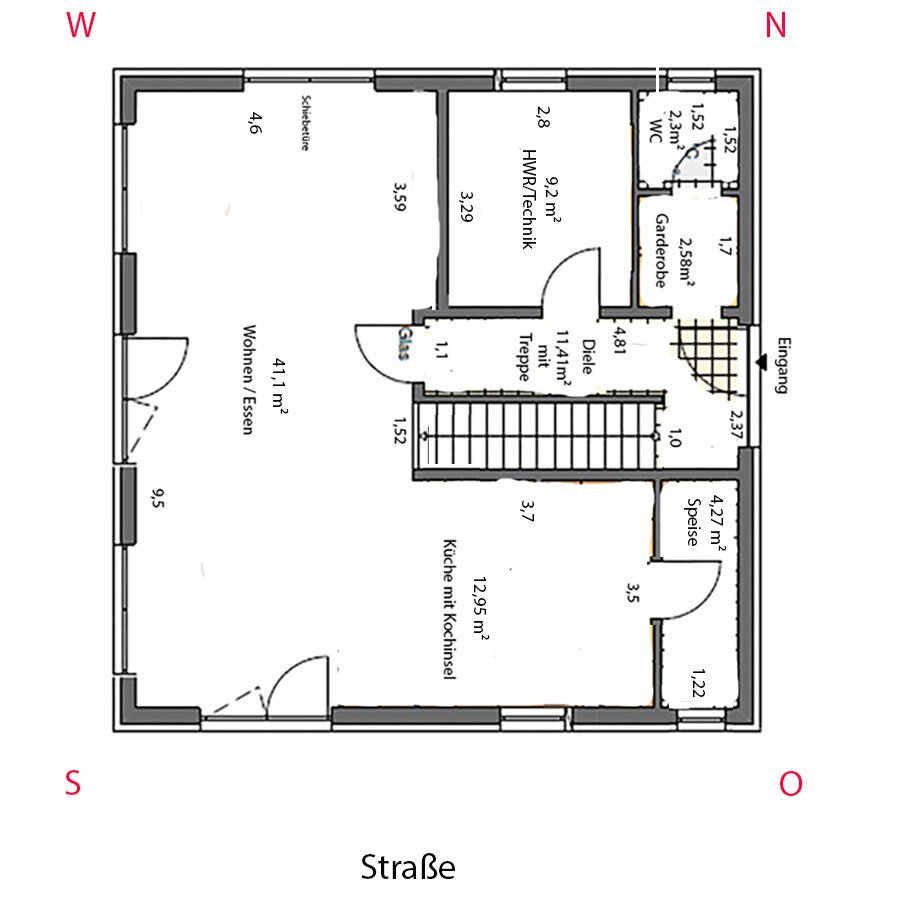

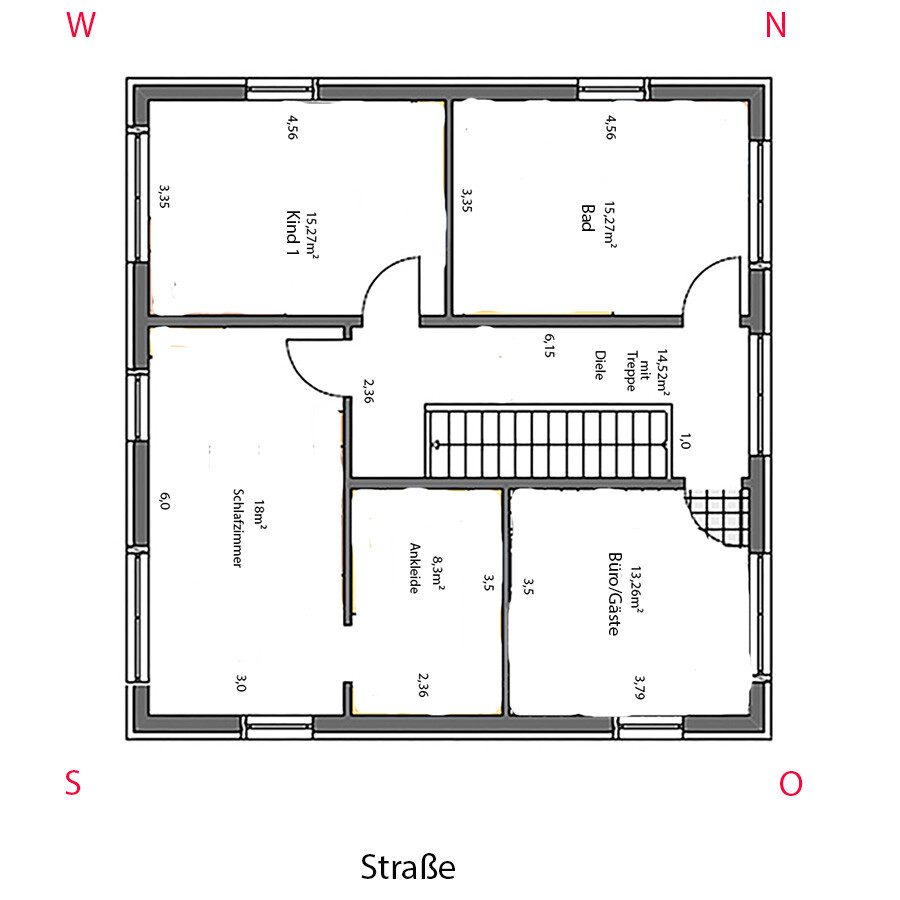

I have marked the floor plans with compass directions and measurements. The house measures about 10 x 10 meters (33 x 33 feet) externally (this does not have to remain that way). I also sent furnished versions of the floor plans. The plot is included as well, but without a building envelope shown (full width and about 20 meters (66 feet) deep from the street). The attached exterior views match the floor plan, except the street view on the ground floor has changed slightly (kitchen and pantry windows are different from the exterior view). Additionally, in the floor plan, the sliding door in the living room has been shifted slightly inward to avoid the couch blocking access to the terrace.
For the exterior views, the street is unfortunately shown on the wrong side (now southeast as per the floor plan). We had originally planned for a different plot, but there were some issues (slope, etc.). We were able to acquire this plot at short notice. The garage is also shown rotated and does not necessarily have to have a separation from the house.
I’m sure I have forgotten some things but I will try to answer your replies as quickly as possible. We are looking forward to your opinions/criticism.
Best regards from Bavaria
Development Plan / Restrictions

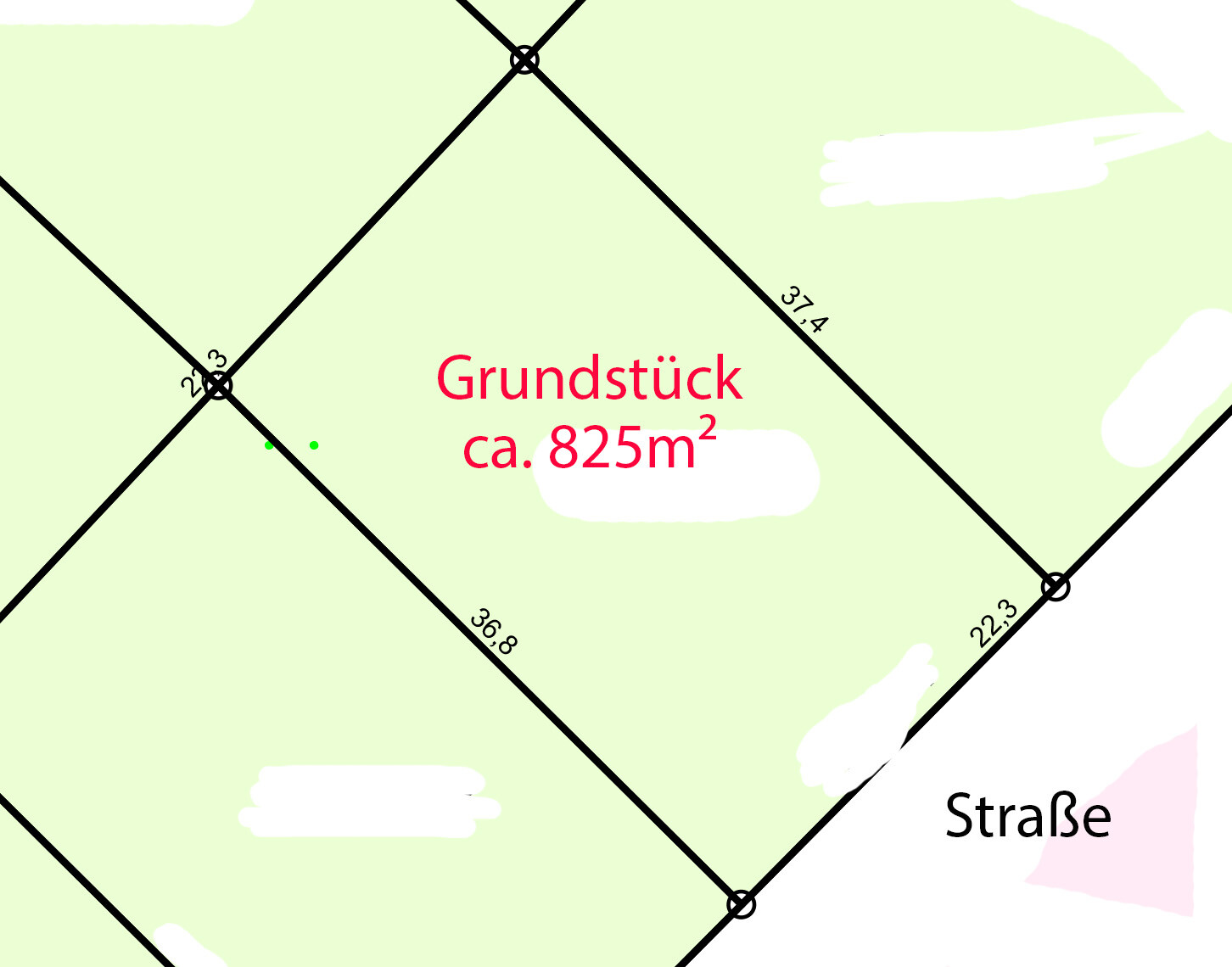

Plot size: approx. 825 m² (approx. 8,880 sq ft)
Slope: none
Floor Area Ratio (FAR): 0.4
Building Coverage Ratio / building envelope / building line and boundary: Building envelope covers the full width of the plot, about 20 meters (66 feet) deep from the street
Edge development
Number of parking spaces: 2
Number of floors: 2 full floors
Roof style: gable roof, hip roof, shed roof
Architectural style: urban villa
Orientation: freely selectable
Maximum height restrictions: max. 8 meters (26 feet) height
Other requirements
Client Requirements
Style, roof shape, building type: urban villa, hipped or pyramid roof with 22-degree pitch
Basement, floors: slab-on-grade only, 2 full floors
Number of occupants, age: 2 persons (33, 30)
Space requirements ground floor, upper floor: approx. 80 m² (860 sq ft), total approx. 160 m² (1,720 sq ft)
Office: family use or home office? family use
Guest stays per year: approx. 10
Open or closed architecture: open
Conservative or modern style: modern
Open kitchen, cooking island: open kitchen with island
Number of dining seats: 4–6
Fireplace: yes, currently not shown on plan (not sure where exactly yet)
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: double garage, preferably right side of the house (flush) at the property line, exact location still uncertain
Kitchen garden, greenhouse: no
Other wishes / special features / daily routines, please also explain reasons why or why not:
Must have:
- large open living/dining/kitchen area
- bright living/dining area with 5 floor-to-ceiling windows here
- pantry
- large bathroom (hence swapping with office/guest room)
- fireplace
- walk-in closet
House Design
Who designed the plans:
- planner from a building company (originally with office on ground floor)
- do-it-yourself (current plan slightly adjusted since office on the ground floor was removed)
What do you especially like? Why?
- large open living/dining area
- pantry
What don’t you like? Why?
- is the entrance area big enough?
- is parking on the right side directly next to the house possible and convenient?
- entrance unfortunately on the right side of the house, not at the front; not a big problem
Price estimate according to architect/planner: approx. €290,000 (house and slab only)
Personal price limit, including fixtures and fittings: approx. €400,000
Preferred heating system: air-to-water heat pump, full underfloor heating
If you had to give up something, which details / features?
- could give up: straight staircase (could have a different shape)
- could not give up: large living/dining area, open kitchen, fireplace
Why is the design as it is now?
Initially planned with office on the ground floor. The technical room was in front of the kitchen (now pantry), which made the kitchen too small (noticed during measuring). The office has now been replaced with the technical room and moved upstairs (which is okay for us).
Standard design from the planner?
Which client requests have been implemented?
Almost all, but at that time still with office on ground floor
A mix of many examples from various magazines...
What makes it particularly good or bad in your eyes?
What is the most important/basic question about the floor plan summarized in 130 characters?
Is the layout okay? Is the hallway spacious and bright enough? Should rooms be arranged or divided differently? Is sun orientation okay?
we are almost finished with our planning phase. That’s why we would like to hear your opinion on the floor plan of the house. I have been enthusiastically reading this forum for months now. I especially appreciate the helpfulness and the respectful tone here. However, this does not mean you shouldn’t give criticism. We are grateful for any comments or ideas for improvement.
A small issue is the orientation of the plot. Our main facade faces southwest, but once the house is built, there will be only about 6 meters (20 feet) to the neighboring property (depending on where the double garage is placed). The main garden is also oriented to the northwest. We planned the terrace in an L-shape from southwest to northwest. We will probably spend more time on the northwest terrace (which is why there is a sliding door leading outside there). If the main facade (living/dining area) were oriented northwest, I think the living room might become too dark (north-facing). But I’m open to being corrected if that is not the case.
Initially, there was an office planned on the ground floor. But that would have made the kitchen too small. We have now planned the office on the upper floor, which is fine for us. The bathroom is located on the north side but has a good size (should be sufficient). At first, we wanted a T-shaped layout (probably because it is often seen in model homes and we liked it there). However, I think an L-shaped layout might be better here. In front of the toilet, there is a planned privacy wall about 1 meter high (3 feet).
I have marked the floor plans with compass directions and measurements. The house measures about 10 x 10 meters (33 x 33 feet) externally (this does not have to remain that way). I also sent furnished versions of the floor plans. The plot is included as well, but without a building envelope shown (full width and about 20 meters (66 feet) deep from the street). The attached exterior views match the floor plan, except the street view on the ground floor has changed slightly (kitchen and pantry windows are different from the exterior view). Additionally, in the floor plan, the sliding door in the living room has been shifted slightly inward to avoid the couch blocking access to the terrace.
For the exterior views, the street is unfortunately shown on the wrong side (now southeast as per the floor plan). We had originally planned for a different plot, but there were some issues (slope, etc.). We were able to acquire this plot at short notice. The garage is also shown rotated and does not necessarily have to have a separation from the house.
I’m sure I have forgotten some things but I will try to answer your replies as quickly as possible. We are looking forward to your opinions/criticism.
Best regards from Bavaria
Development Plan / Restrictions
Plot size: approx. 825 m² (approx. 8,880 sq ft)
Slope: none
Floor Area Ratio (FAR): 0.4
Building Coverage Ratio / building envelope / building line and boundary: Building envelope covers the full width of the plot, about 20 meters (66 feet) deep from the street
Edge development
Number of parking spaces: 2
Number of floors: 2 full floors
Roof style: gable roof, hip roof, shed roof
Architectural style: urban villa
Orientation: freely selectable
Maximum height restrictions: max. 8 meters (26 feet) height
Other requirements
Client Requirements
Style, roof shape, building type: urban villa, hipped or pyramid roof with 22-degree pitch
Basement, floors: slab-on-grade only, 2 full floors
Number of occupants, age: 2 persons (33, 30)
Space requirements ground floor, upper floor: approx. 80 m² (860 sq ft), total approx. 160 m² (1,720 sq ft)
Office: family use or home office? family use
Guest stays per year: approx. 10
Open or closed architecture: open
Conservative or modern style: modern
Open kitchen, cooking island: open kitchen with island
Number of dining seats: 4–6
Fireplace: yes, currently not shown on plan (not sure where exactly yet)
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: double garage, preferably right side of the house (flush) at the property line, exact location still uncertain
Kitchen garden, greenhouse: no
Other wishes / special features / daily routines, please also explain reasons why or why not:
Must have:
- large open living/dining/kitchen area
- bright living/dining area with 5 floor-to-ceiling windows here
- pantry
- large bathroom (hence swapping with office/guest room)
- fireplace
- walk-in closet
House Design
Who designed the plans:
- planner from a building company (originally with office on ground floor)
- do-it-yourself (current plan slightly adjusted since office on the ground floor was removed)
What do you especially like? Why?
- large open living/dining area
- pantry
What don’t you like? Why?
- is the entrance area big enough?
- is parking on the right side directly next to the house possible and convenient?
- entrance unfortunately on the right side of the house, not at the front; not a big problem
Price estimate according to architect/planner: approx. €290,000 (house and slab only)
Personal price limit, including fixtures and fittings: approx. €400,000
Preferred heating system: air-to-water heat pump, full underfloor heating
If you had to give up something, which details / features?
- could give up: straight staircase (could have a different shape)
- could not give up: large living/dining area, open kitchen, fireplace
Why is the design as it is now?
Initially planned with office on the ground floor. The technical room was in front of the kitchen (now pantry), which made the kitchen too small (noticed during measuring). The office has now been replaced with the technical room and moved upstairs (which is okay for us).
Standard design from the planner?
Which client requests have been implemented?
Almost all, but at that time still with office on ground floor
A mix of many examples from various magazines...
What makes it particularly good or bad in your eyes?
What is the most important/basic question about the floor plan summarized in 130 characters?
Is the layout okay? Is the hallway spacious and bright enough? Should rooms be arranged or divided differently? Is sun orientation okay?
I would replace the floor-to-ceiling windows in front of the sofa with windows that have a sill height.
The pantry is barely usable. Shelves won’t fit on either side of the window, nor opposite the door. Consider giving the room about half a meter (1.5 feet) more depth.
Your grocery trips become a house tour: entrance, hallway, living room, kitchen, pantry. The kitchen should have a direct access from the hallway, possibly by reversing the stairs or placing the kitchen on the side of the utility room. I’m sure someone will come up with a good solution.
I don’t like the bathroom upstairs; the bedroom is quite narrow. With a bed that has a slightly larger frame at the foot end, it might become less comfortable to move around.
The pantry is barely usable. Shelves won’t fit on either side of the window, nor opposite the door. Consider giving the room about half a meter (1.5 feet) more depth.
Your grocery trips become a house tour: entrance, hallway, living room, kitchen, pantry. The kitchen should have a direct access from the hallway, possibly by reversing the stairs or placing the kitchen on the side of the utility room. I’m sure someone will come up with a good solution.
I don’t like the bathroom upstairs; the bedroom is quite narrow. With a bed that has a slightly larger frame at the foot end, it might become less comfortable to move around.
Honestly, I don’t quite understand the garages here. Could they possibly be drawn incorrectly?
If I place the house and imagine the garages on the right side (instead of the left), it gets quite tight around the supposed terrace area. I would therefore clarify the orientation first.
If I place the house and imagine the garages on the right side (instead of the left), it gets quite tight around the supposed terrace area. I would therefore clarify the orientation first.
Thanks for the quick responses
@haydee
Increasing the depth of the pantry would work. The door to the pantry is planned as a sliding door, but I haven’t found one to include in the drawing. A door to the pantry from the hallway is also a good idea, thanks. Should the window then be smaller or moved? Or should we remove it entirely and only use ceiling lighting?
In the living room, we specifically want a sliding door because we want direct access to the terrace from there. Swapping the kitchen with the utility room... wouldn’t the kitchen become too dark? We positioned it on this side because of the morning sun.
@kaho674
Sorry, the exterior views are unfortunately incorrect here. They are still from the old house plan. I wrote about this in the long text above, but it probably got overlooked. I just wanted to send the exterior views along because the windows etc. are shown well there. Unfortunately, the street is also shown on the wrong side in the pictures (it is now parallel below the house).
@haydee
Increasing the depth of the pantry would work. The door to the pantry is planned as a sliding door, but I haven’t found one to include in the drawing. A door to the pantry from the hallway is also a good idea, thanks. Should the window then be smaller or moved? Or should we remove it entirely and only use ceiling lighting?
In the living room, we specifically want a sliding door because we want direct access to the terrace from there. Swapping the kitchen with the utility room... wouldn’t the kitchen become too dark? We positioned it on this side because of the morning sun.
@kaho674
Sorry, the exterior views are unfortunately incorrect here. They are still from the old house plan. I wrote about this in the long text above, but it probably got overlooked. I just wanted to send the exterior views along because the windows etc. are shown well there. Unfortunately, the street is also shown on the wrong side in the pictures (it is now parallel below the house).
Zisu2000 schrieb:
@kaho678
Sorry, the exterior views are unfortunately not correct. They are still from the old house plan. I mentioned this earlier in the long text above, but it probably got overlooked. I just wanted to include the exterior views because the windows and so on are clearly visible there. Unfortunately, the street is also still shown on the wrong side in the images (it is now running parallel below the house). I’m afraid that will only cause confusion. Maybe you could draw the site plan yourself with the house included.
@kaho674

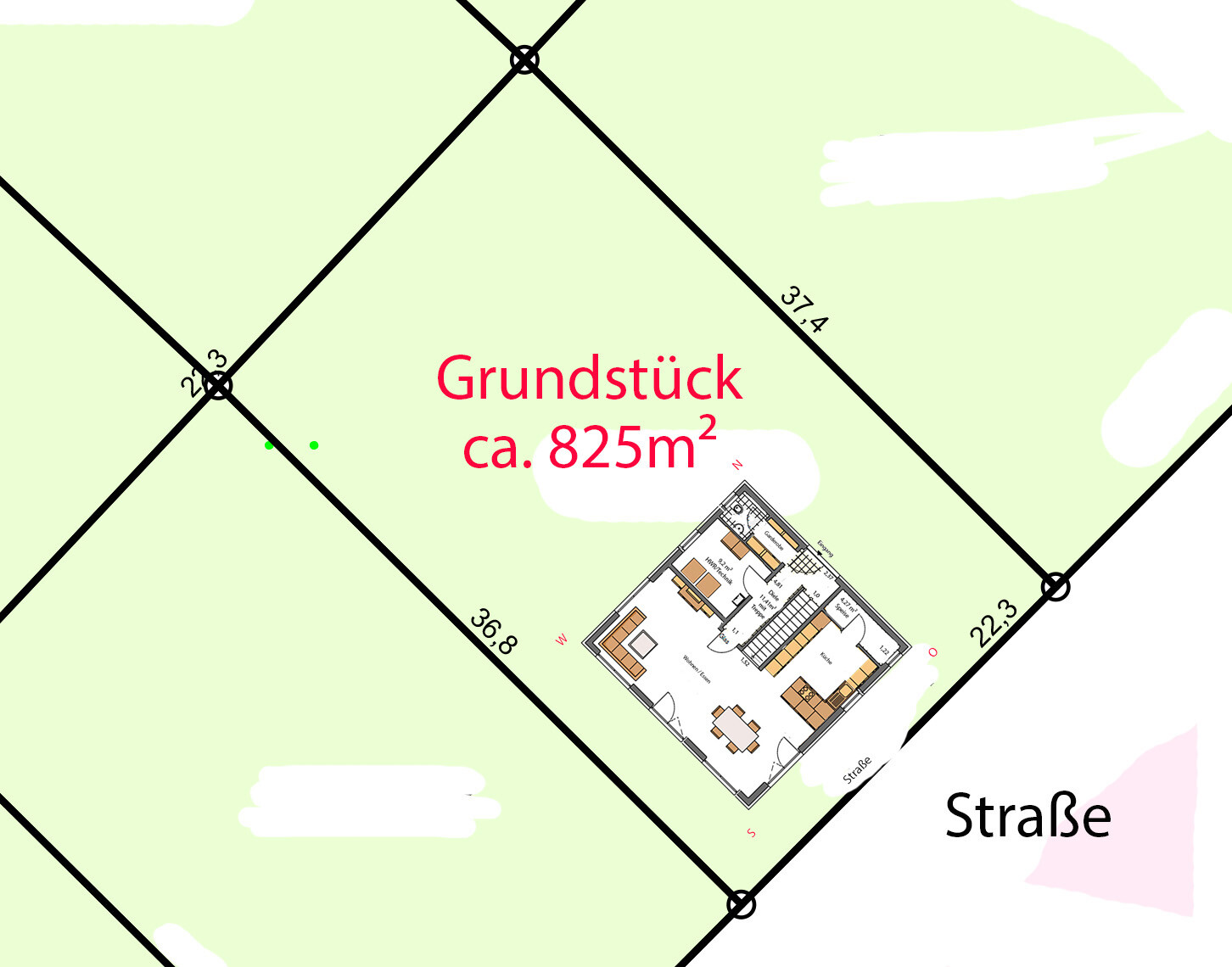

As you indicated, that is correct. On the far right, the garages are meant to be placed along the property boundary, with the house next to the garages. This leaves space adjacent to the neighboring property to the southwest.
