ᐅ Floor Plan Design for a Single-Family Home of Approximately 240 sqm with a Double Garage and a Basement Granny Flat / Secondary Apartment
Created on: 14 Jun 2021 16:04
G
Grandioos
Dear house-building community,
I have already read several plans and posts here in the forum and am always grateful for the different ideas and especially the comments. About our project: We already own a serviced plot of land in an established residential area (gap in the building line) in southern Germany (BW). We plan to build a solid masonry house (stone) probably to KfW 55 standard.
Many thanks in advance for your ideas and comments.
Development plan/restrictions
Plot size: 967 sqm (10,406 sq ft)
Slope: Approx. 1.5 meters (5 feet) drop over 45 m (148 feet) plot length
Floor area ratio: 0.4
Site occupancy index: 0.5

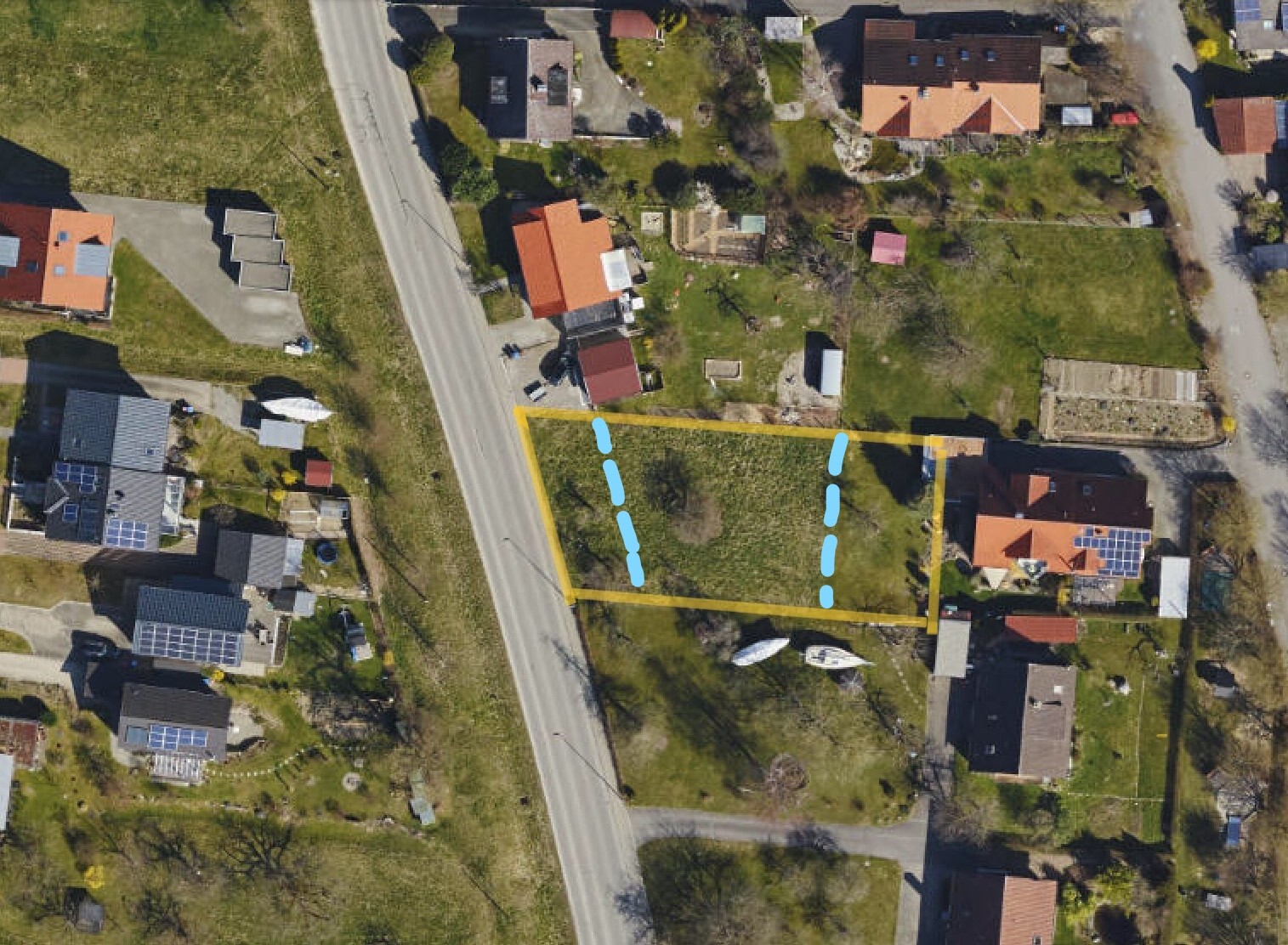

Building envelope, building line and boundaries: according to development plan / see photo "Site plan" – blue lines
Edge development: 10 m (33 feet) building setback from road (west side). No development yet at the south boundary.
Number of parking spaces: no requirements
Number of floors: 1
Roof type: Gable roof – 38° to 48°
Architectural style: open design
Orientation: no specifications
Maximum heights/limits: uphill ground floor slab height above natural terrain: 1 m (3.3 feet)
Maximum ridge height: 9.25 m (30 feet)
Client requirements

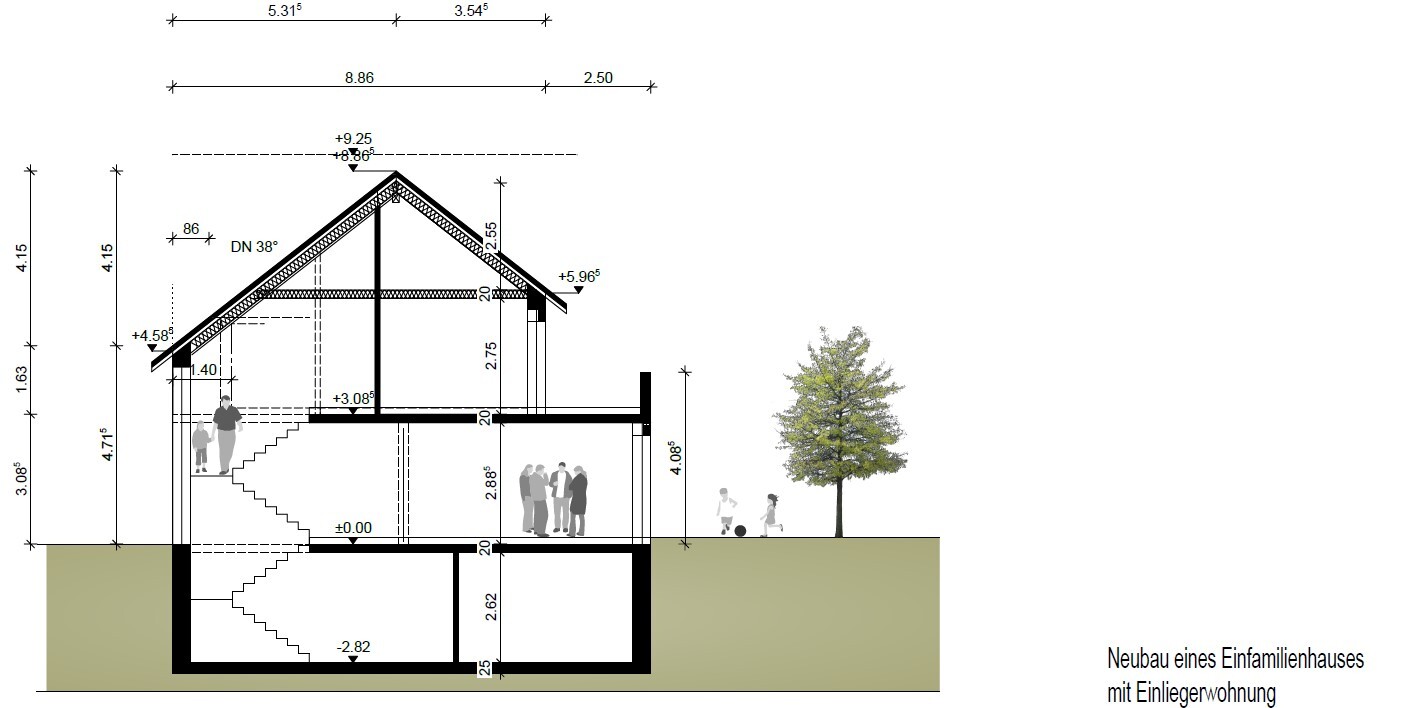

Style, roof type, building type: Classic detached house with gable roof, no dormers but with overhanging eaves on the gable sides. High knee wall on the south side of the upper floor (>2 m (6.6 feet))
Basement, floors: Basement with separate apartment (approx. 50 sqm (538 sq ft)). Living spaces on ground floor and upper floor with high clear ceiling height (approx. 2.80 m (9.2 feet)) – because I am 1.99 m (6’6”) tall
Number of occupants, ages: 2 adults (32 & 31), 1 toddler (<1), up to 3 children desired in total.
Space requirements:

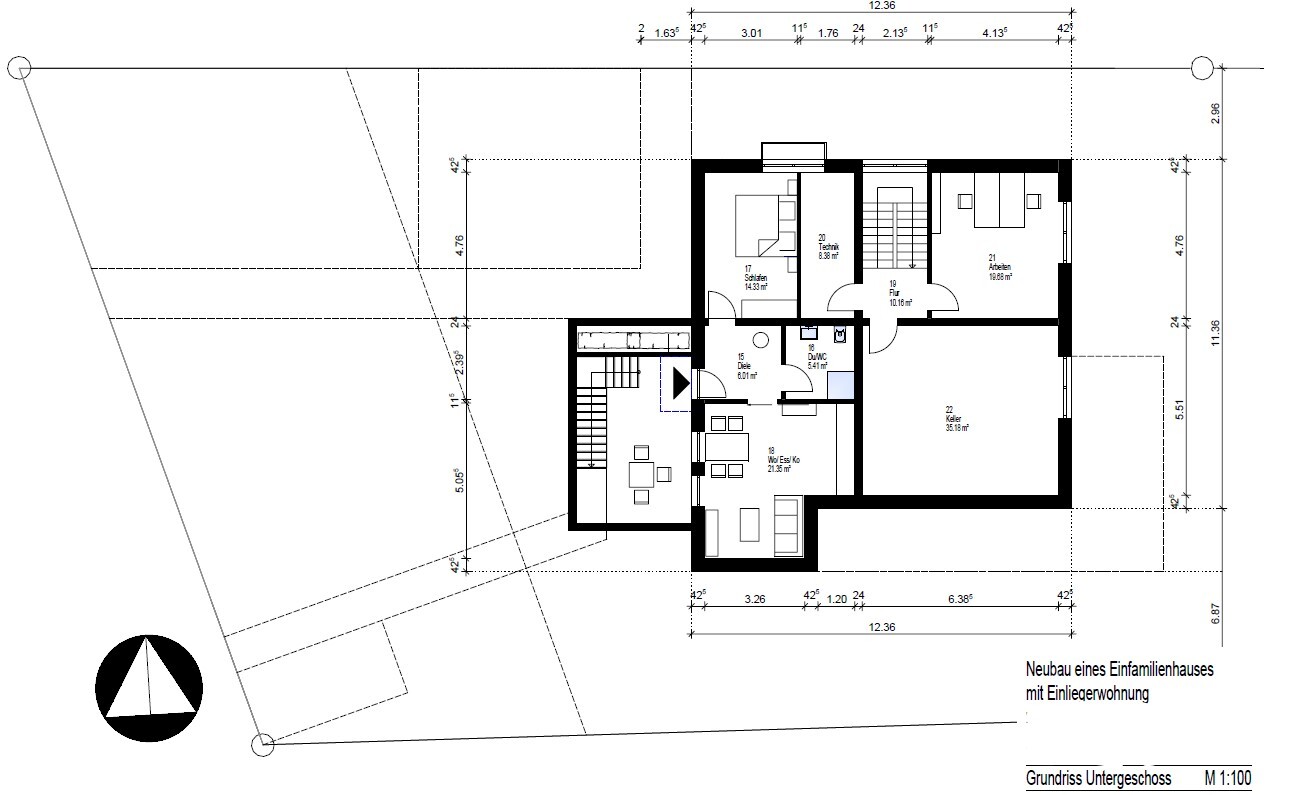

Basement: separate apartment with independent entrance (west side), separated from our areas; cellar room; technical room; guest/hobby room

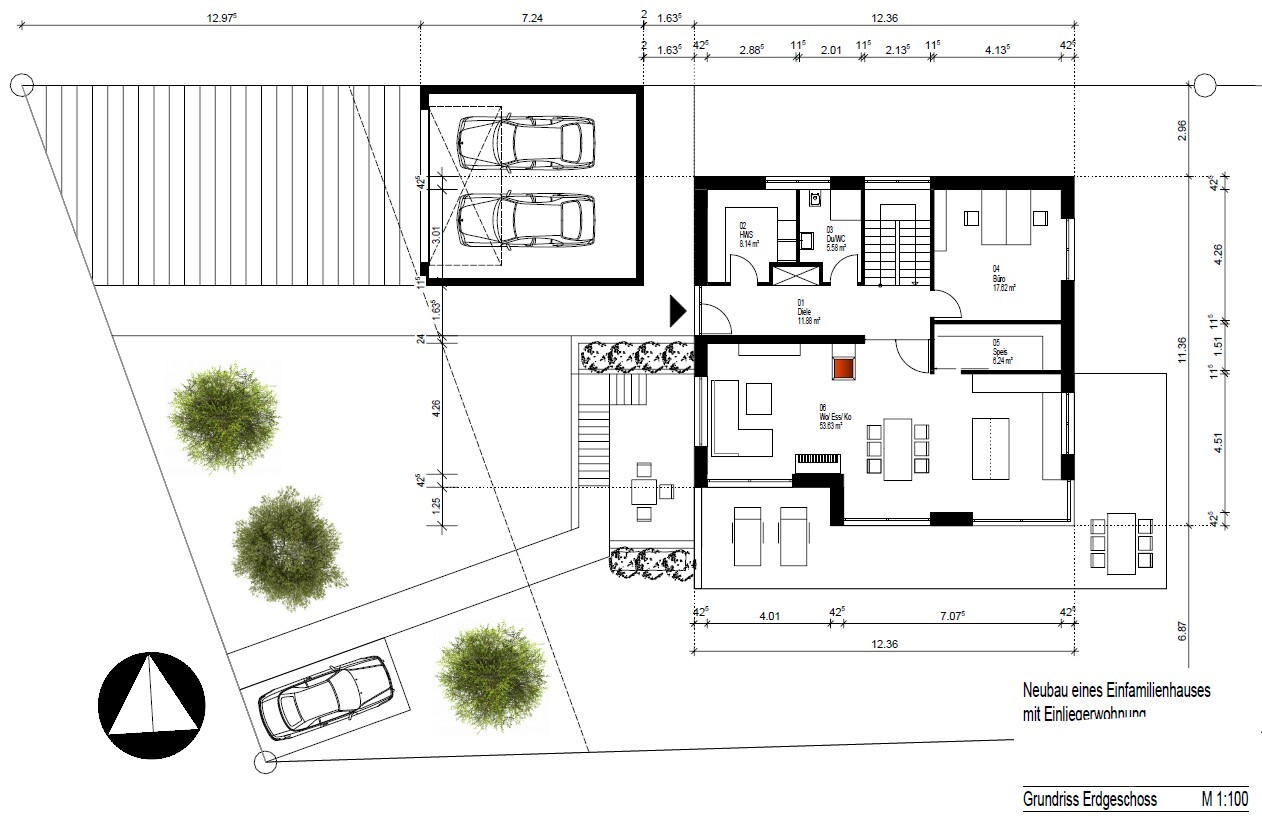

Ground floor: open living area with spacious open kitchen including island, pantry, guest WC with barrier-free shower, home office/guest room, wardrobe, utility room including laundry and drying

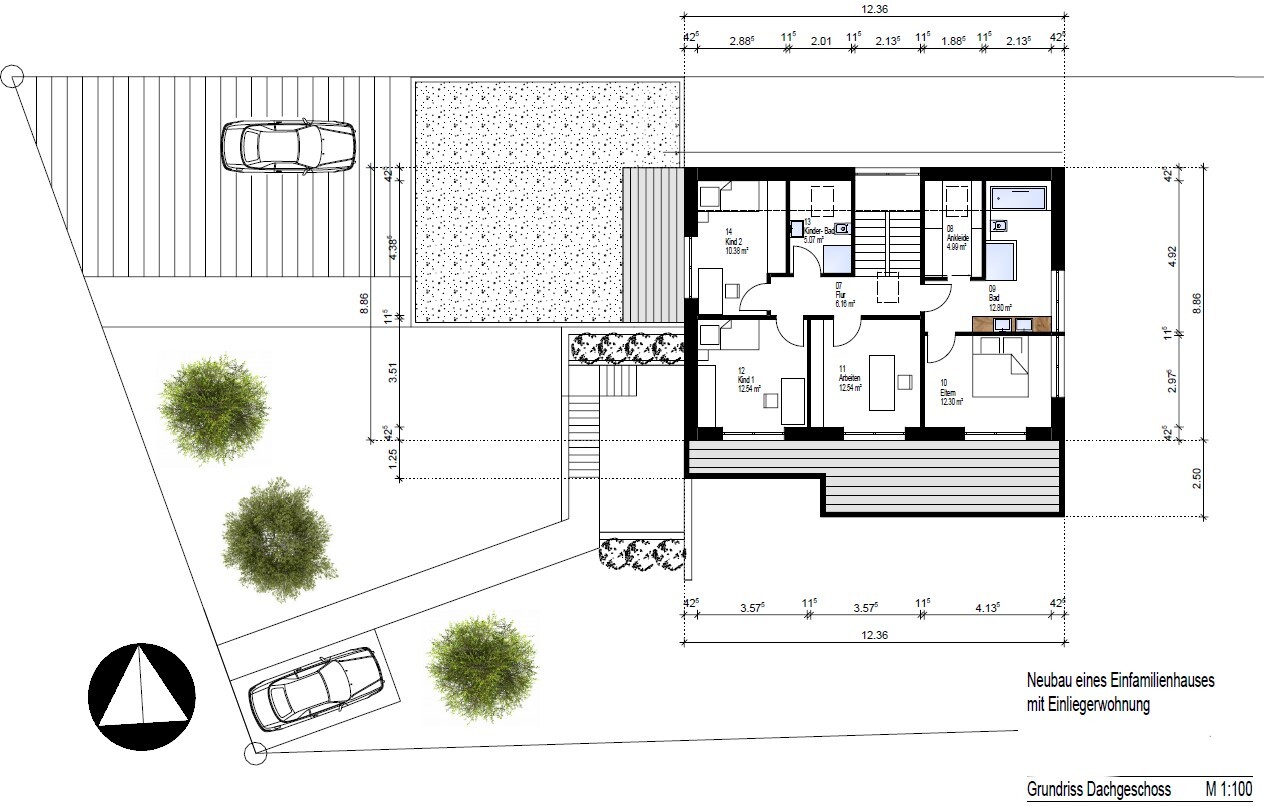

Upper floor: parents’ bathroom with bathtub, parents’ bedroom, walk-in closet, 2 children’s bedrooms, second study (teacher)
Office: 1 person working 60–80% from home, 1 person employed as teacher (incl. grading)
Annual overnight guests: many (>15), large family and wide circle of distant friends
Open or closed architecture: open
Conservative or modern style: My wife prefers a cozy country house style, I also prefer some modern elements and clear lines → it will certainly be a mix
Open kitchen, kitchen island: Open kitchen (L-shaped with island facing dining area)
Number of dining seats: at least 8
Fireplace: yes, ideally as a room divider in the “living corridor”
Music/stereo wall: rather secondary, we rarely watch TV, when we do, it’s hidden behind a cabinet somewhere in the living room
Balcony, roof terrace: terrace very important, balcony rather not. Southeast-facing terrace to enjoy the sun’s benefits and escape it when it becomes too intense. The separate apartment should also have a small terrace facing west.
Garage, carport: double garage for us, parking space for separate apartment
Utility garden, greenhouse: utility garden on the east side
Other wishes/particulars/daily routine:
Open access from kitchen and dining room to terrace/garden
Dry/covered access from garage to house
House design
Planner: Architect, including our input after two meetings
What do you particularly like? Why: Separate entrance for the apartment; 1 office on the ground floor; large utility room; large terrace; high knee wall on the south upper floor; space found for piano; lots of light at the half-landing staircase on the north side
What do you dislike? Why? Overall simply too large and therefore prospectively too expensive, we actually wanted an open roof structure
Price estimate according to architect/designer: total 300+400 gross including double garage after federal correction factor: €725,000 (without landscaping and additional costs)
Personal price limit for house including fittings: €600,000 without additional costs
Preferred heating system: hybrid heating, air-to-water heat pump combined with gas condensing boiler, photovoltaic system on south roof
If you had to give up on which details/extensions
- Can give up: second study on the upper floor, smaller multipurpose room, smaller office 1/guest room, reluctantly even the shower bathroom on the upper floor, south-facing windows in the living room
- Cannot give up: shower bathroom on the ground floor, utility room with laundry on the ground floor, separate entrance and outdoor area for the separate apartment
Why is the design the way it is now?
What is the most important/fundamental question about the floor plan summarized in 130 characters?
How can this or a slightly reduced floor plan be planned more efficiently? Have we overlooked major design mistakes?
I have already read several plans and posts here in the forum and am always grateful for the different ideas and especially the comments. About our project: We already own a serviced plot of land in an established residential area (gap in the building line) in southern Germany (BW). We plan to build a solid masonry house (stone) probably to KfW 55 standard.
Many thanks in advance for your ideas and comments.
Development plan/restrictions
Plot size: 967 sqm (10,406 sq ft)
Slope: Approx. 1.5 meters (5 feet) drop over 45 m (148 feet) plot length
Floor area ratio: 0.4
Site occupancy index: 0.5
Building envelope, building line and boundaries: according to development plan / see photo "Site plan" – blue lines
Edge development: 10 m (33 feet) building setback from road (west side). No development yet at the south boundary.
Number of parking spaces: no requirements
Number of floors: 1
Roof type: Gable roof – 38° to 48°
Architectural style: open design
Orientation: no specifications
Maximum heights/limits: uphill ground floor slab height above natural terrain: 1 m (3.3 feet)
Maximum ridge height: 9.25 m (30 feet)
Client requirements
Style, roof type, building type: Classic detached house with gable roof, no dormers but with overhanging eaves on the gable sides. High knee wall on the south side of the upper floor (>2 m (6.6 feet))
Basement, floors: Basement with separate apartment (approx. 50 sqm (538 sq ft)). Living spaces on ground floor and upper floor with high clear ceiling height (approx. 2.80 m (9.2 feet)) – because I am 1.99 m (6’6”) tall
Number of occupants, ages: 2 adults (32 & 31), 1 toddler (<1), up to 3 children desired in total.
Space requirements:
Basement: separate apartment with independent entrance (west side), separated from our areas; cellar room; technical room; guest/hobby room
Ground floor: open living area with spacious open kitchen including island, pantry, guest WC with barrier-free shower, home office/guest room, wardrobe, utility room including laundry and drying
Upper floor: parents’ bathroom with bathtub, parents’ bedroom, walk-in closet, 2 children’s bedrooms, second study (teacher)
Office: 1 person working 60–80% from home, 1 person employed as teacher (incl. grading)
Annual overnight guests: many (>15), large family and wide circle of distant friends
Open or closed architecture: open
Conservative or modern style: My wife prefers a cozy country house style, I also prefer some modern elements and clear lines → it will certainly be a mix
Open kitchen, kitchen island: Open kitchen (L-shaped with island facing dining area)
Number of dining seats: at least 8
Fireplace: yes, ideally as a room divider in the “living corridor”
Music/stereo wall: rather secondary, we rarely watch TV, when we do, it’s hidden behind a cabinet somewhere in the living room
Balcony, roof terrace: terrace very important, balcony rather not. Southeast-facing terrace to enjoy the sun’s benefits and escape it when it becomes too intense. The separate apartment should also have a small terrace facing west.
Garage, carport: double garage for us, parking space for separate apartment
Utility garden, greenhouse: utility garden on the east side
Other wishes/particulars/daily routine:
Open access from kitchen and dining room to terrace/garden
Dry/covered access from garage to house
House design
Planner: Architect, including our input after two meetings
What do you particularly like? Why: Separate entrance for the apartment; 1 office on the ground floor; large utility room; large terrace; high knee wall on the south upper floor; space found for piano; lots of light at the half-landing staircase on the north side
What do you dislike? Why? Overall simply too large and therefore prospectively too expensive, we actually wanted an open roof structure
Price estimate according to architect/designer: total 300+400 gross including double garage after federal correction factor: €725,000 (without landscaping and additional costs)
Personal price limit for house including fittings: €600,000 without additional costs
Preferred heating system: hybrid heating, air-to-water heat pump combined with gas condensing boiler, photovoltaic system on south roof
If you had to give up on which details/extensions
- Can give up: second study on the upper floor, smaller multipurpose room, smaller office 1/guest room, reluctantly even the shower bathroom on the upper floor, south-facing windows in the living room
- Cannot give up: shower bathroom on the ground floor, utility room with laundry on the ground floor, separate entrance and outdoor area for the separate apartment
Why is the design the way it is now?
- Limited options due to a relatively narrow and elongated plot (length 44 m (144 feet) x width 22 m (72 feet)) and small building envelope (10 m (33 feet) setback on west side as well as road on west side)
- Architect prefers “narrow houses”
- Terraces and garden area optimized to the south – “living facing south”. House positioned as far north as possible
- This plan allows spacious living and working with large windows and terrace areas facing south and east with maximum separation from the street
What is the most important/fundamental question about the floor plan summarized in 130 characters?
How can this or a slightly reduced floor plan be planned more efficiently? Have we overlooked major design mistakes?
