ᐅ Single-family house floor plan, approximately 150 sqm, with east-facing garden
Created on: 9 Jan 2020 21:17
O
OWLer
Hello everyone,
after reading many threads here about how well-intentioned floor plans are expertly dissected, I’m now stepping out from the shadows. We plan to build this year and have already purchased the plot. We are currently in discussions with two providers. Provider 1 never really impressed us with their designs and plans very large houses without offering much living space. I’m bringing Provider 2 into the discussion here because, apart from the points mentioned below, we still like their design.
We hope the collective forum expertise will point out some pitfalls and maybe even help solve our hallway dilemma.
Sorry for the rough sketches of the measurements.
Development Plan / Restrictions
Plot size: 610 sqm (648 with purchased noise barrier)
Slope: approx. 70cm (28 inches) over 19m (62 feet), sloping from north to south
Site coverage ratio: 0.4
Floor area ratio: 0.8
Building envelope, building line and boundary: 3m (10 feet) from the street, 3m (10 feet) to neighbors north/south, building envelope 10m (33 feet) east-west
Edge development
Number of parking spaces
Number of stories: 2
Roof type: gable roof ≤45°
Architectural style
Orientation: ridge running north-south
Maximum heights / limits: max. ridge height 10.5m (34 feet), eaves max. 6.0m (20 feet)
Other requirements: On the east side, a noise barrier is built along half of the plot, with forest behind it. Due to the noise barrier, the garden is practically not visible from outside.
Clients’ Requirements
Style, roof type, building type: rather classic
Basement, number of floors: basement, 1.5 floors
Number of residents, age: currently 2 (ages 33 and 27 – planning 2 children)
Space requirements on ground floor: shower WC, open living space (kitchen, dining, living), study; upper floor: 2 kids’ rooms, bathroom, master bedroom (walk-in closet)
Office: home office (teaching profession)
Overnight guests per year: approx. 15
Open or closed architecture: rather open
Conservative or modern construction: conservative and brick-faced
Open kitchen, kitchen island: yes
Number of dining seats: 6
Fireplace: preferably yes, budget permitting
Music / stereo wall: no
Balcony, roof terrace: no
Garage, carport: carport / budget permitting
Utility garden, greenhouse: no
Further wishes / special features / daily routine, also reasons for why or why not something is desired
House Design
Designer: planner from a construction company
What do you particularly like? Why?
We really like the upper floor. Room sizes fit well. We can’t really assess the master bedroom on the south side yet. The kids’ rooms seem the right size and have a good layout in my opinion.
A guest room was not a requirement – apparently there was space on the upper floor. We are not unhappy about that.
The living-dining area really appeals to me. Kitchen opening to the terrace. My wife likes the pantry options with access to the garden, basement, and carport.
What don’t you like? Why?
What we don’t like is the narrow corridors. I imagine 1.2m (4 feet) and 1m (3 feet) very cramped. Between the carport and along the stairs, this wouldn’t bother me so much, but the entrance definitely should be wider.
The master bedroom on the south side does not convince me much.
Price estimate according to architect/planner: >440k€
Personal price limit for the house, including fittings: approx. 440k€
Preferred heating system: gas heating required by the plot purchase contract.
If you had to give up something, which details / features could you do without:
I could do without the pantry and use that space for the WC instead. My wife, however, sees this differently.
Which features can you not give up:
The study on the ground floor is a must due to my teaching profession. The idea is to be able to drop things off in the study after returning from school, close the door, and have some downtime without needing to go upstairs or downstairs.
The basement is also essential. Many friends and acquaintances who have built in recent years do so mostly without basements. It takes iron discipline to keep utility rooms “tidy.” We manage that in our rental now but want to move away from that. We don’t want to become hoarders but want more space to spread out. Also, I want to be able to store all my tools in the basement and comfortably repair my bicycles.
Why was the design made the way it is?
Standard design from the planner?
Which wishes were implemented by the architect?
Large windows on the ground floor facing the garden, as it is not directly visible.
A bay window on the street side is mandatory for the look. The planned flat-roof bay will definitely be changed to a pitched roof. The plaster on the bay will be replaced by brick cladding. We find the bay window to the garden quite nice. Not a must-have, but it was part of the planning basis we provided and, in my opinion, positively impacts the kids’ rooms.
A mix of many examples from various magazines...
What makes it particularly good or bad in your eyes?
What is the most important / fundamental question about the floor plan, summarized in 130 characters?
How do you evaluate the usability of the pantry—does it work as well as we imagine it? What other ways, besides widening the house, do you see to widen the corridors? Does the indicated wardrobe area fit?
In principle, I would like to build it this way if only the narrow corridors weren’t an issue. Making the house 25-50cm (10-20 inches) wider is not technically feasible and probably financially difficult.
after reading many threads here about how well-intentioned floor plans are expertly dissected, I’m now stepping out from the shadows. We plan to build this year and have already purchased the plot. We are currently in discussions with two providers. Provider 1 never really impressed us with their designs and plans very large houses without offering much living space. I’m bringing Provider 2 into the discussion here because, apart from the points mentioned below, we still like their design.
We hope the collective forum expertise will point out some pitfalls and maybe even help solve our hallway dilemma.
Sorry for the rough sketches of the measurements.
Development Plan / Restrictions
Plot size: 610 sqm (648 with purchased noise barrier)
Slope: approx. 70cm (28 inches) over 19m (62 feet), sloping from north to south
Site coverage ratio: 0.4
Floor area ratio: 0.8
Building envelope, building line and boundary: 3m (10 feet) from the street, 3m (10 feet) to neighbors north/south, building envelope 10m (33 feet) east-west
Edge development
Number of parking spaces
Number of stories: 2
Roof type: gable roof ≤45°
Architectural style
Orientation: ridge running north-south
Maximum heights / limits: max. ridge height 10.5m (34 feet), eaves max. 6.0m (20 feet)
Other requirements: On the east side, a noise barrier is built along half of the plot, with forest behind it. Due to the noise barrier, the garden is practically not visible from outside.
Clients’ Requirements
Style, roof type, building type: rather classic
Basement, number of floors: basement, 1.5 floors
Number of residents, age: currently 2 (ages 33 and 27 – planning 2 children)
Space requirements on ground floor: shower WC, open living space (kitchen, dining, living), study; upper floor: 2 kids’ rooms, bathroom, master bedroom (walk-in closet)
Office: home office (teaching profession)
Overnight guests per year: approx. 15
Open or closed architecture: rather open
Conservative or modern construction: conservative and brick-faced
Open kitchen, kitchen island: yes
Number of dining seats: 6
Fireplace: preferably yes, budget permitting
Music / stereo wall: no
Balcony, roof terrace: no
Garage, carport: carport / budget permitting
Utility garden, greenhouse: no
Further wishes / special features / daily routine, also reasons for why or why not something is desired
House Design
Designer: planner from a construction company
What do you particularly like? Why?
We really like the upper floor. Room sizes fit well. We can’t really assess the master bedroom on the south side yet. The kids’ rooms seem the right size and have a good layout in my opinion.
A guest room was not a requirement – apparently there was space on the upper floor. We are not unhappy about that.
The living-dining area really appeals to me. Kitchen opening to the terrace. My wife likes the pantry options with access to the garden, basement, and carport.
What don’t you like? Why?
What we don’t like is the narrow corridors. I imagine 1.2m (4 feet) and 1m (3 feet) very cramped. Between the carport and along the stairs, this wouldn’t bother me so much, but the entrance definitely should be wider.
The master bedroom on the south side does not convince me much.
Price estimate according to architect/planner: >440k€
Personal price limit for the house, including fittings: approx. 440k€
Preferred heating system: gas heating required by the plot purchase contract.
If you had to give up something, which details / features could you do without:
I could do without the pantry and use that space for the WC instead. My wife, however, sees this differently.
Which features can you not give up:
The study on the ground floor is a must due to my teaching profession. The idea is to be able to drop things off in the study after returning from school, close the door, and have some downtime without needing to go upstairs or downstairs.
The basement is also essential. Many friends and acquaintances who have built in recent years do so mostly without basements. It takes iron discipline to keep utility rooms “tidy.” We manage that in our rental now but want to move away from that. We don’t want to become hoarders but want more space to spread out. Also, I want to be able to store all my tools in the basement and comfortably repair my bicycles.
Why was the design made the way it is?
Standard design from the planner?
Which wishes were implemented by the architect?
Large windows on the ground floor facing the garden, as it is not directly visible.
A bay window on the street side is mandatory for the look. The planned flat-roof bay will definitely be changed to a pitched roof. The plaster on the bay will be replaced by brick cladding. We find the bay window to the garden quite nice. Not a must-have, but it was part of the planning basis we provided and, in my opinion, positively impacts the kids’ rooms.
A mix of many examples from various magazines...
What makes it particularly good or bad in your eyes?
What is the most important / fundamental question about the floor plan, summarized in 130 characters?
How do you evaluate the usability of the pantry—does it work as well as we imagine it? What other ways, besides widening the house, do you see to widen the corridors? Does the indicated wardrobe area fit?
In principle, I would like to build it this way if only the narrow corridors weren’t an issue. Making the house 25-50cm (10-20 inches) wider is not technically feasible and probably financially difficult.
We have exactly this situation: a fixed window in the kitchen facing the street and a patio door at the level of the apartment block. This is sufficient for ventilation. So I would also stick with the fixed window. We also have a mechanical ventilation system and the Miele cooktop, but you shouldn’t expect miracles from either. Honestly, both have disappointed me. The best option is still the gas grill on the kitchen terrace, which we like to use for grilling meat and fish.
N
NatureSys3 May 2021 13:16Looks great! When is the move-in date?
I think we will start the move in September. We will make more detailed plans once the screed is laid, which should happen in 3-4 weeks.
It’s really dragging on in the final stages. My complaining about the wall heating isn't exactly speeding things up either. But good things take time. There’s no point rushing. The general contractor won’t have to live with the cold bathroom for the next (hopefully) 60 years if I’m careful now.
It’s really dragging on in the final stages. My complaining about the wall heating isn't exactly speeding things up either. But good things take time. There’s no point rushing. The general contractor won’t have to live with the cold bathroom for the next (hopefully) 60 years if I’m careful now.
Unfortunately, there is currently a medium-sized, schedule-delaying mess in the house.

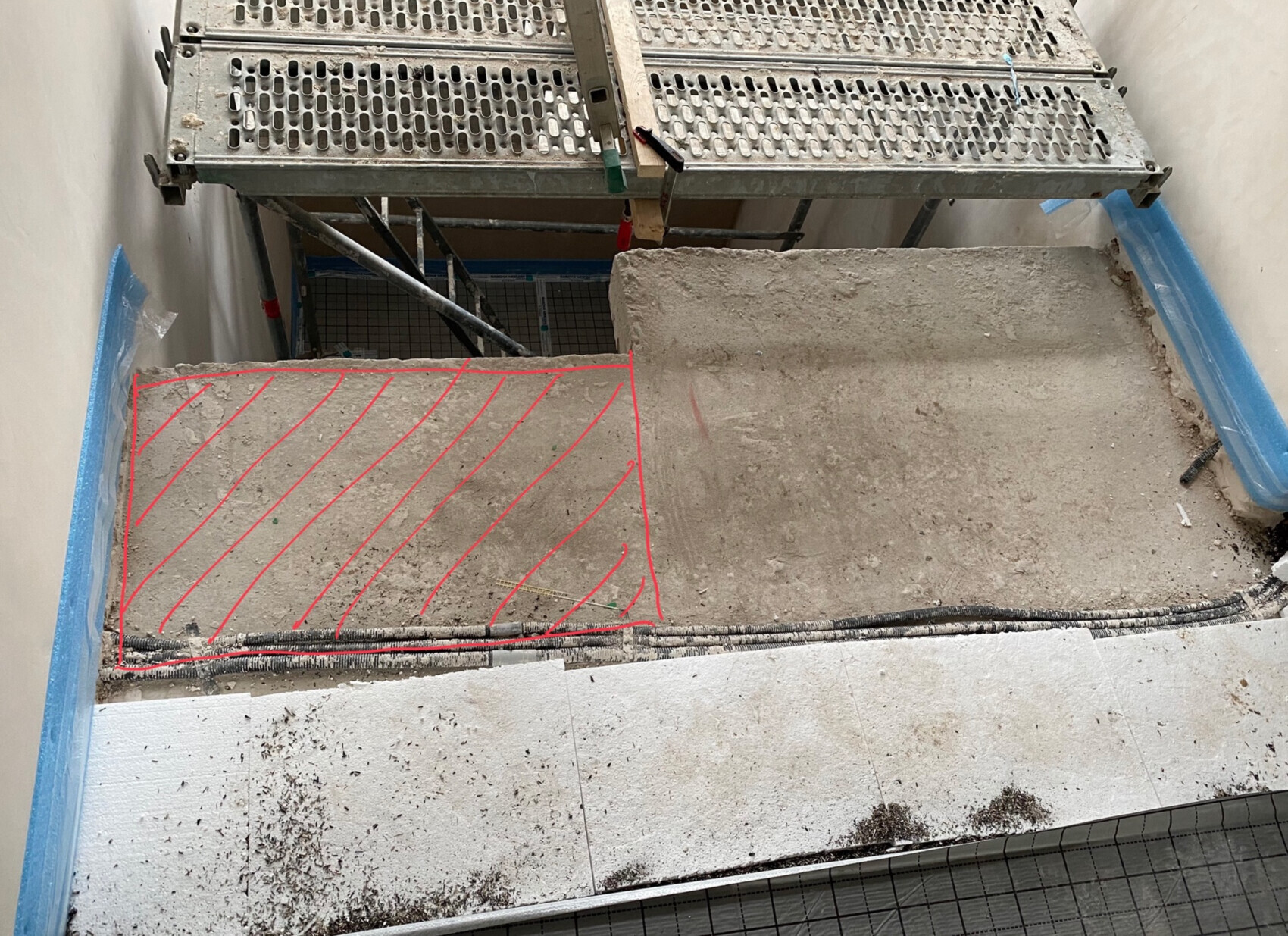

There was an error in the chain between the general contractor, shell builder, and concrete supplier, which only became apparent to the stair builder after about three-quarters of a year, because our planned landing staircase wouldn’t fit without becoming impossibly steep. The marked area is currently being cut out.
I knew it was going to get dirty. What I didn’t expect, however, was how heavy almost 30cm (12 inches) of reinforced concrete is.

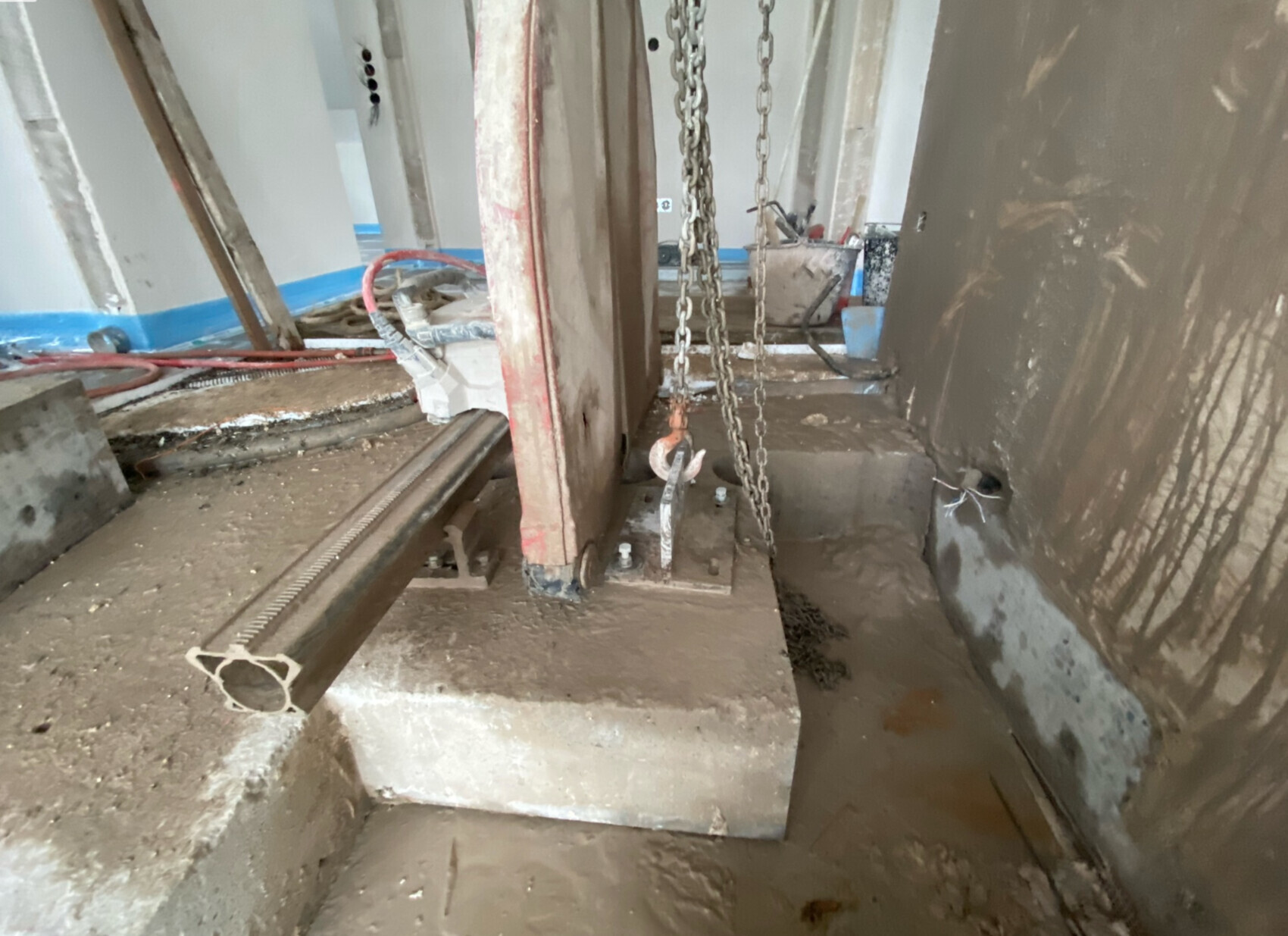

Unfortunately, the photo doesn’t capture the situation as clearly as I had hoped. In any case, the team set up a makeshift crane attached to the walls and a saw with its guide fixed to the floor. Apparently, they worked their way forward yesterday from core drill to core drill and are continuing today. In my opinion, everything has been carefully covered to prevent water splashing everywhere.

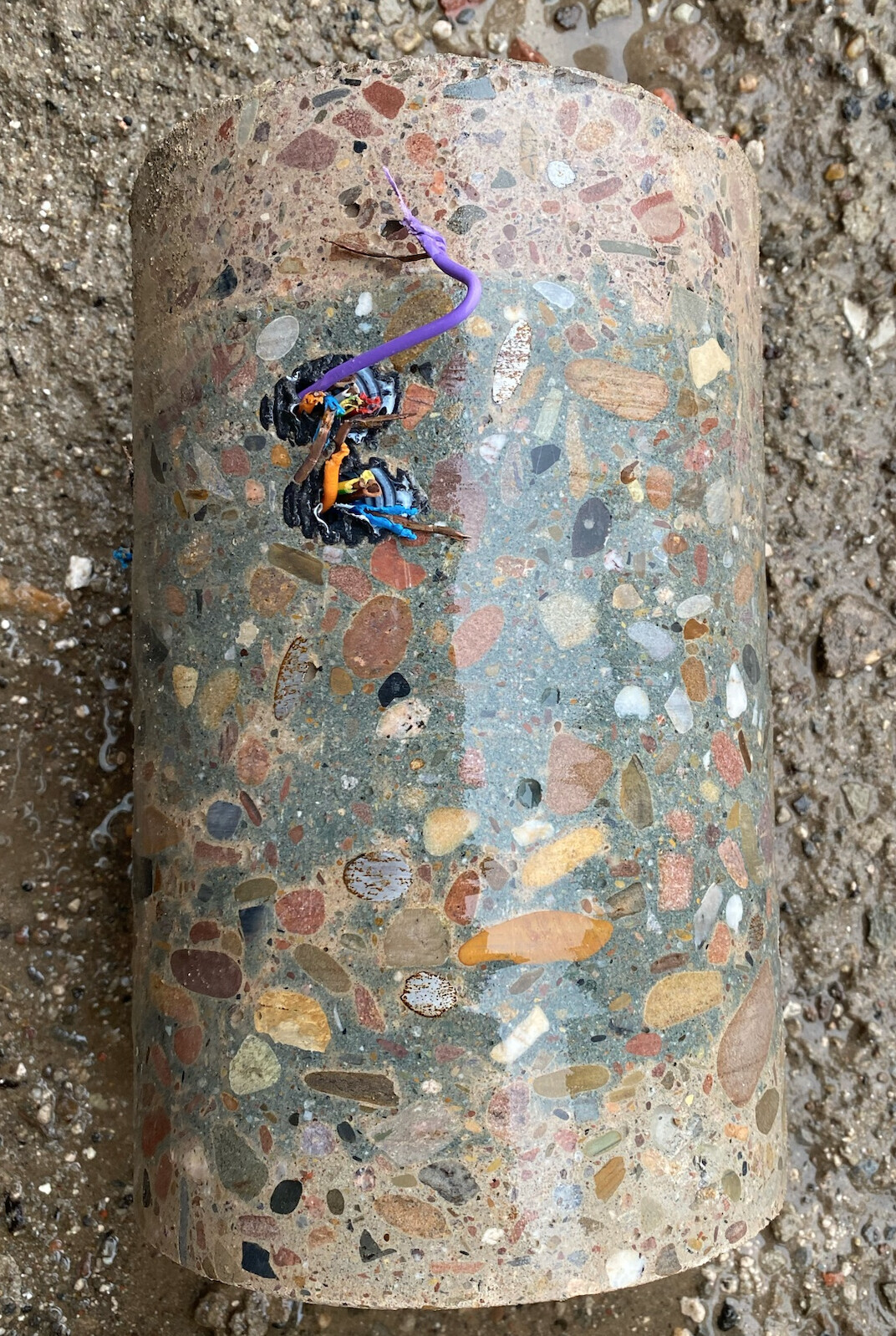

It’s a bit of a shame about the cables laid in the intermediate ceilings.
There was an error in the chain between the general contractor, shell builder, and concrete supplier, which only became apparent to the stair builder after about three-quarters of a year, because our planned landing staircase wouldn’t fit without becoming impossibly steep. The marked area is currently being cut out.
I knew it was going to get dirty. What I didn’t expect, however, was how heavy almost 30cm (12 inches) of reinforced concrete is.
Unfortunately, the photo doesn’t capture the situation as clearly as I had hoped. In any case, the team set up a makeshift crane attached to the walls and a saw with its guide fixed to the floor. Apparently, they worked their way forward yesterday from core drill to core drill and are continuing today. In my opinion, everything has been carefully covered to prevent water splashing everywhere.
It’s a bit of a shame about the cables laid in the intermediate ceilings.
