ᐅ Floor Plan Design for a Single-Family Home of Approximately 150 m²
Created on: 12 Feb 2018 18:09
C
chrisw81
Hello,
After a long search, we signed the notarized contract for the land purchase at the end of December. We are now actively planning the floor plan. Unfortunately, the plot is somewhat awkwardly shaped (not rectangular), which creates some limitations for the layout from our perspective. We already have a first draft, but there are several areas we don’t like and are unsure how to improve. Maybe you have some ideas; we would appreciate your input.
Development Plan / Restrictions
Plot size: 601 m² (6465 sq ft)
Building envelope, building line, boundary: Building line with the house on the west side
Peripheral setbacks: 7 m (23 ft) from the street (north), otherwise the usual 3 m (10 ft)
Number of parking spaces: 2 desired
Number of floors: 1 full story allowed
Roof style: Gable roof
Design style: open construction method
Orientation: South
Maximum heights / limits: Ridge height max. 8.5 m (28 ft)
Additional requirements: Max. 100 m² (1076 sq ft) of built-up area
Client Requirements
Style, roof form, building type: Solid construction house, rectangular, no bay windows, no projections, etc., gable roof
Basement, floors: no basement; 1.5 stories
Number and age of residents: 2 people, age between 30 and 40, possibly children later
Space needs on ground floor and upper floor: Ground floor – living/dining room, kitchen, guest toilet, utility room, office
Office: family use or home office?: family use
Guest stays per year: 20 days
Open or closed architecture: open living area, closed hallway
Conservative or modern style: conservative
Open kitchen, kitchen island: open kitchen, island without cooktop
Number of dining seats: 2-4
Fireplace: yes, chimney planned
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: carport
Utility garden, greenhouse: no
Further wishes, special features, daily routine, and reasons for preferences:
- A wardrobe area on the ground floor is important where coats can be stored relatively out of sight.
- On the upper floor, it would be nice to have an open gallery with a desk or similar (not a must and not necessarily next to the stairs).
- A walk-in closet would be nice but not essential.
- A storage room on the upper floor is very important since we do not have a basement.
House Design
Who created the design:
- Basic design by the construction company (FIBAV Stadthaus Vision Studio)
- DIY modifications based on online floor plans (especially Viebrockhaus Maxime 330)
What do you particularly like? Why?:
- Layout of the living/dining area and the narrowing kitchen reduces the hallway effect a bit
- Many windows in the living/dining area
- Wide hallway on the ground floor
What do you dislike? Why?:
- Few options to place furniture (dresser, wardrobe) in the ground floor hallway due to many doors
- Very large hallway upstairs, considered wasted space
- Bedroom is quite small; should be the largest room upstairs (preferably 16 m² (172 sq ft), children’s rooms rather 14 m² (151 sq ft))
- Stair placement limited by chimney location
- Door placement upstairs limited by chimney
- A staircase rotated 90 degrees (entrance next to front door) would appeal more
- Difficult to align windows upstairs and downstairs on the gable end vertically
- Floor-to-ceiling windows upstairs; wider windows with a sill height around 100 cm (40 inches) would be preferred
Price estimate by architect/planner: 200,000 €
Personal price limit for the house including equipment: 210,000 €
Preferred heating technology: gas heating
What details or expansions could you give up?
- Can do without: gallery next to stairs upstairs. Living area could also be narrower (e.g., 4.20 m (14 ft) instead of 4.47 m (15 ft))
- Cannot do without: storage room upstairs, shower in guest toilet, extra natural light in the ground floor hallway (e.g., side panel on front door or window)
Why was the design made this way? For example, standard plan from planner?
- Since the house has very little space on the south side, the house should be very narrow in order not to waste more space to the south. It should be wider so that living, dining, and kitchen areas face south as much as possible.
Were corresponding wishes from the architect implemented? No architect meeting has taken place yet.
What is the most important/basic question about the floor plan summarized in 130 characters?
How can the ground floor hallway be better designed to fit a wardrobe? Can the stairs be positioned better or replaced? Should the hallway be enlarged and living space reduced? How can the upstairs hallway be better utilized? Can the bedroom be enlarged? Is it possible to swap the bedroom with another room, e.g., move it to the southeast to allow a walk-in closet?
Thank you very much in advance for your criticism and suggestions!
After a long search, we signed the notarized contract for the land purchase at the end of December. We are now actively planning the floor plan. Unfortunately, the plot is somewhat awkwardly shaped (not rectangular), which creates some limitations for the layout from our perspective. We already have a first draft, but there are several areas we don’t like and are unsure how to improve. Maybe you have some ideas; we would appreciate your input.
Development Plan / Restrictions
Plot size: 601 m² (6465 sq ft)
Building envelope, building line, boundary: Building line with the house on the west side
Peripheral setbacks: 7 m (23 ft) from the street (north), otherwise the usual 3 m (10 ft)
Number of parking spaces: 2 desired
Number of floors: 1 full story allowed
Roof style: Gable roof
Design style: open construction method
Orientation: South
Maximum heights / limits: Ridge height max. 8.5 m (28 ft)
Additional requirements: Max. 100 m² (1076 sq ft) of built-up area
Client Requirements
Style, roof form, building type: Solid construction house, rectangular, no bay windows, no projections, etc., gable roof
Basement, floors: no basement; 1.5 stories
Number and age of residents: 2 people, age between 30 and 40, possibly children later
Space needs on ground floor and upper floor: Ground floor – living/dining room, kitchen, guest toilet, utility room, office
Office: family use or home office?: family use
Guest stays per year: 20 days
Open or closed architecture: open living area, closed hallway
Conservative or modern style: conservative
Open kitchen, kitchen island: open kitchen, island without cooktop
Number of dining seats: 2-4
Fireplace: yes, chimney planned
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: carport
Utility garden, greenhouse: no
Further wishes, special features, daily routine, and reasons for preferences:
- A wardrobe area on the ground floor is important where coats can be stored relatively out of sight.
- On the upper floor, it would be nice to have an open gallery with a desk or similar (not a must and not necessarily next to the stairs).
- A walk-in closet would be nice but not essential.
- A storage room on the upper floor is very important since we do not have a basement.
House Design
Who created the design:
- Basic design by the construction company (FIBAV Stadthaus Vision Studio)
- DIY modifications based on online floor plans (especially Viebrockhaus Maxime 330)
What do you particularly like? Why?:
- Layout of the living/dining area and the narrowing kitchen reduces the hallway effect a bit
- Many windows in the living/dining area
- Wide hallway on the ground floor
What do you dislike? Why?:
- Few options to place furniture (dresser, wardrobe) in the ground floor hallway due to many doors
- Very large hallway upstairs, considered wasted space
- Bedroom is quite small; should be the largest room upstairs (preferably 16 m² (172 sq ft), children’s rooms rather 14 m² (151 sq ft))
- Stair placement limited by chimney location
- Door placement upstairs limited by chimney
- A staircase rotated 90 degrees (entrance next to front door) would appeal more
- Difficult to align windows upstairs and downstairs on the gable end vertically
- Floor-to-ceiling windows upstairs; wider windows with a sill height around 100 cm (40 inches) would be preferred
Price estimate by architect/planner: 200,000 €
Personal price limit for the house including equipment: 210,000 €
Preferred heating technology: gas heating
What details or expansions could you give up?
- Can do without: gallery next to stairs upstairs. Living area could also be narrower (e.g., 4.20 m (14 ft) instead of 4.47 m (15 ft))
- Cannot do without: storage room upstairs, shower in guest toilet, extra natural light in the ground floor hallway (e.g., side panel on front door or window)
Why was the design made this way? For example, standard plan from planner?
- Since the house has very little space on the south side, the house should be very narrow in order not to waste more space to the south. It should be wider so that living, dining, and kitchen areas face south as much as possible.
Were corresponding wishes from the architect implemented? No architect meeting has taken place yet.
What is the most important/basic question about the floor plan summarized in 130 characters?
How can the ground floor hallway be better designed to fit a wardrobe? Can the stairs be positioned better or replaced? Should the hallway be enlarged and living space reduced? How can the upstairs hallway be better utilized? Can the bedroom be enlarged? Is it possible to swap the bedroom with another room, e.g., move it to the southeast to allow a walk-in closet?
Thank you very much in advance for your criticism and suggestions!
chrisw81 schrieb:
I see it a bit differently, maybe my opinion is a bit old-fashioned. Besides books, there are also closed cabinets and some nice glass elements on the shelves, so there’s some variety. I wouldn’t want to give that up. As long as you don’t provide measurements and/or a photo, it will be overlooked here.
chrisw81 schrieb:
We planned the south-facing window so that it is completely behind the sofa. May I remind you that your planning did not account for specific furniture arrangements? May I remind you that we’ve been trying for over 10 pages to make the best out of a bad situation?

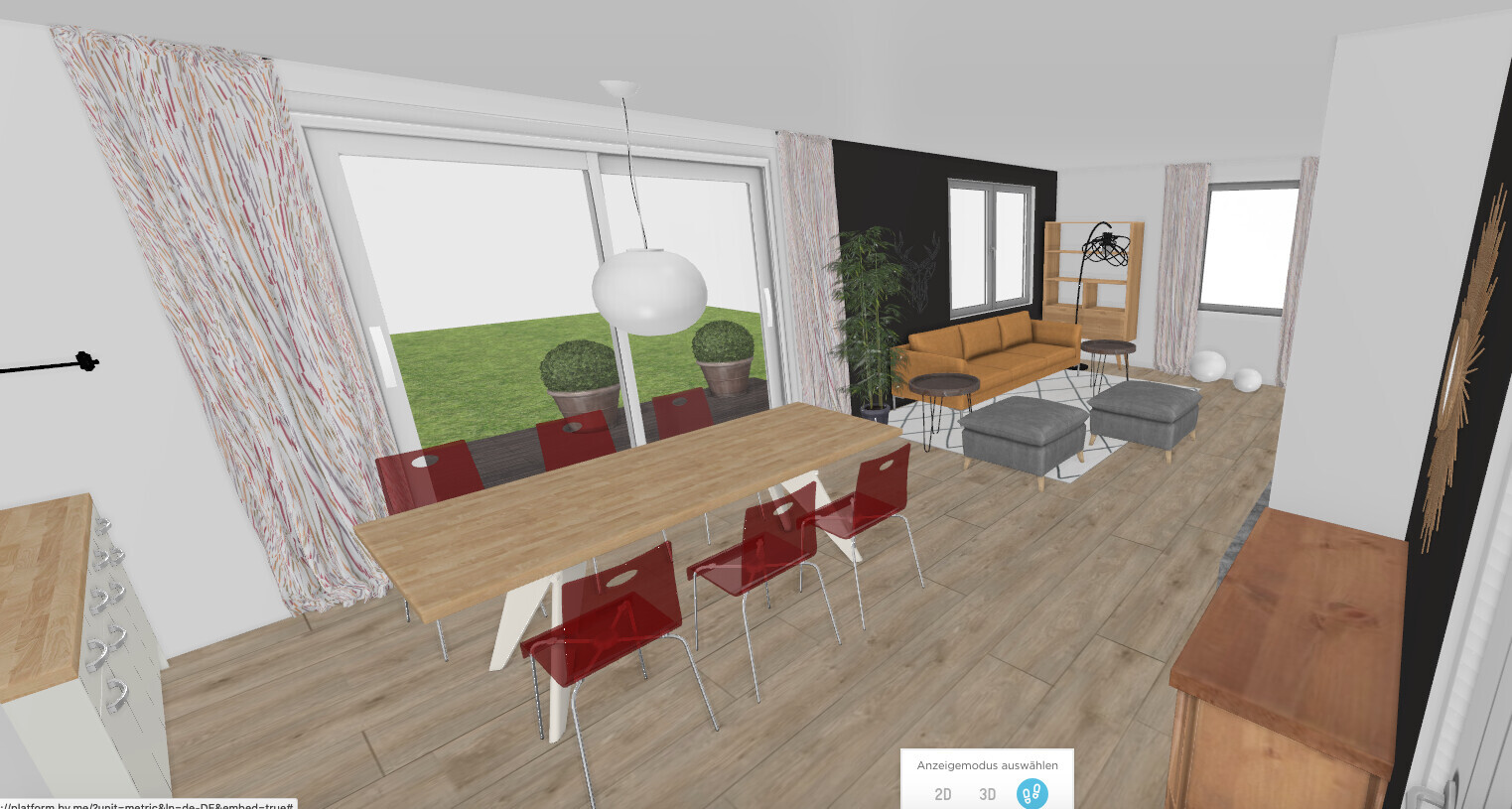

So, because it’s so much fun, here’s another idea:
The table is rotated conventionally, lawn has been seeded, and the terrace is finished... I initially chose a gray sofa, but it looked simply too cold, so I removed it immediately.
I cheekily left the wall as is because it provides a nice contrast. I have poufs in subtle gray, and the shelf at the back is 120cm (47 inches) wide.
The west wall remains white due to the issue of the missing west window and to connect with the other white walls in the room.
And if you want to keep living in an old-fashioned way, then don’t complain here!
P.S. The sofa is positioned below the window following the golden ratio – as it should be. And if not, it doesn’t matter, as long as it looks good.
Asuni schrieb:
whether it’s a huge TV or the paperback collection of medical novels.Or the fake lever-arch file with the visitor’s brandy, and instead of the medical novels, Tintin & Snowy with gilded edgeshttps://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
ypg schrieb:
Curtains, nicely drawn wide, simulate more window area. Sounds good. We always struggle with curtains because they need to match the rest of the interior but shouldn’t be too overwhelming. Still, it would be great if they also make the windows appear larger at the same time!
ypg schrieb:
May I remind you that your planning was not designed with specific furnishings in mind? May I also remind you that we have been trying for over 10 pages to turn rubbish into gold?This is only true in the sense that at the very beginning of the planning process here in the forum, I did not list all the furnishings with their exact measurements that I wanted to include in the living area. As the furniture is arranged now, I have planned the windows and distances accordingly:
- The south-facing window ends 2.4 meters (8 feet) from the west wall and aligns exactly with the backrest of the sofa
- Next to it is a wall without windows, allowing space for the end of the sofa (20 centimeters (8 inches)) as well as the piano (1.2 meters (4 feet)) with air on both sides (30 centimeters (12 inches) each) = 2 meters (6.5 feet) total
- Next to the west window there is 2 meters (6.5 feet) of space to the south side, providing room for the corner section of the planned sectional sofa while still maintaining privacy
- Next to the chimney there are 3 meters (10 feet) to the south side, offering space for the TV unit (1.2 meters (4 feet)) and bookshelf (1.2 meters (4 feet)) with some clearance in between and around them
So in fact, everything was originally adapted by me to the furnishings. During that process, unfortunately, I did not consider proportions, what I might want (like a window view?), and I stuck to the furniture that definitely had to be included. It would, of course, have been better to explore several layout options with you earlier, as we are doing now, and then incorporate the most sensible solution into the floor plan. At the time, I simply thought I would follow the furniture arrangement and that it would turn out well.
When I presented the architect’s floor plan in #273, both the piano and the sectional sofa were already included.
ypg schrieb:
As long as you don't provide the measurements and/or a photo, it will be ignored here. It is exactly 1.2 x 2.5 meters (4.0 x 8.2 feet)
chrisw81 schrieb:

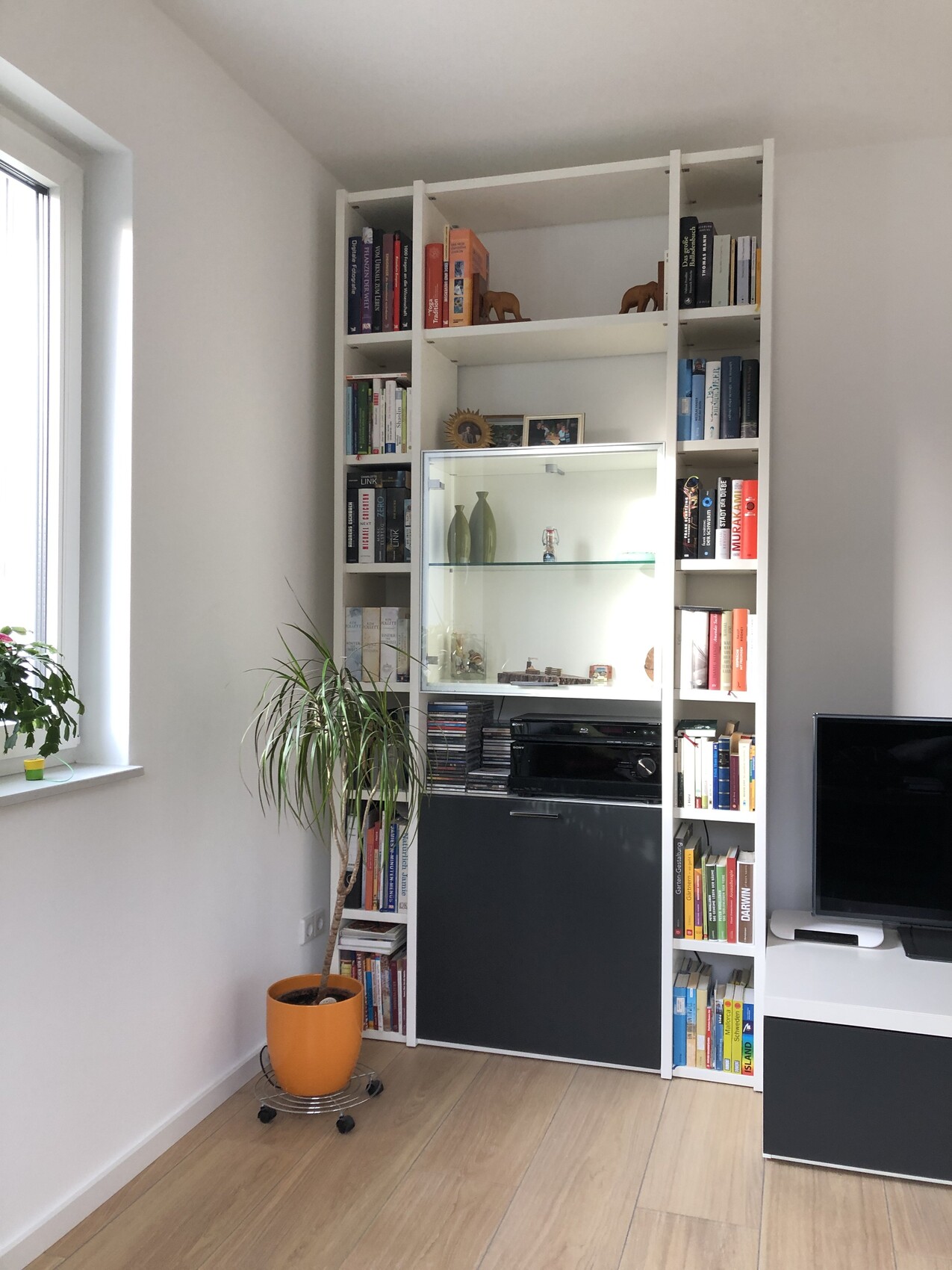

It is exactly 1.2 x 2.5m (4 x 8 ft)
[ATTACH alt="835ECA7F-5BDE-4F64-9CC9-31DED81C209B.jpeg"]42090[/ATTACH] Then I could have just kept the white shelf with me. You could have mentioned that. Now it’s gone.
I’m now reminded why I stopped taking part in floor plan discussions for such reasons... because when you develop something here in the forum for someone else, there really has to be input and output from the original poster.
In that sense, I think the examples speak for themselves and you can make use of them.
