ᐅ Floor plan of a manor house with a gable roof, 170 m² of living space
Created on: 20 Apr 2018 22:19
H
HausbauTiNa
Hello everyone,

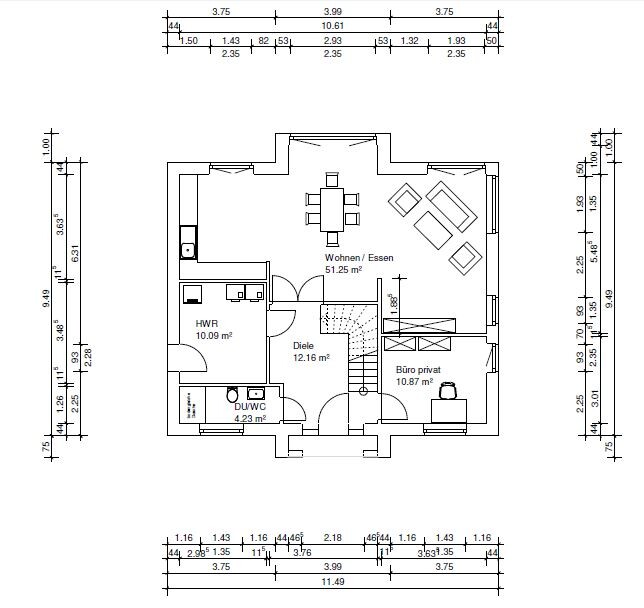

we look forward to your feedback on the floor plan.
Development plan/restrictions: No development plan / rural area

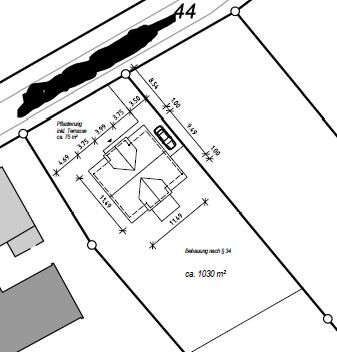

Plot size: 1,030 m² (11,090 sq ft)
Slope: None
Floor area ratio: According to neighboring buildings
Plot ratio: According to neighboring buildings
Building envelope, building line, and boundary: According to neighboring buildings / approx. 10 meters (33 feet) from the street
Edge development
Number of parking spaces: 2
Number of storeys: Single-storey
Roof style: Gable roof
Design style: Manor house gable
Orientation: South
Maximum heights/limits: None
Other requirements
Homeowners’ requirements
Design style, roof form, building type: North German manor house with facing bricks
Basement, floors: Single-storey / ground floor & attic
Number of occupants, age: 2 adults / 2 children
Space requirements ground floor, upper floor: 170 m² (1,830 sq ft) total
Office: Family use or home office? Home office
Guest stays per year: 5 overnight stays
Open or closed architecture
Conservative or modern building style: Mixed, rather conservative
Open kitchen, cooking island: Open with island
Number of dining seats: 1
Fireplace: No
Music / stereo wall: Yes
Balcony, roof terrace: No
Garage, carport: Carport
Utility garden, greenhouse
Additional wishes / special features / daily routine, including reasons for preferences:
No fireplace/wood stove due to underfloor heating
Different wake-up times of the adults
House design
Designed by:
- Planner from a general contractor: GC according to our requirements
What do you particularly like? Large hallway, master bedroom “soundproofed” from the children’s rooms
What do you dislike? Why? Bathroom still too large, enlarge master bedroom. Walk-in closet with only one door and separate entrance to master bedroom.
Price estimate according to architect/planner: 290,000
Personal price limit for the house, including equipment: Pure house cost GC: 280,000 EUR
Preferred heating technology: Gas with underfloor heating
If you had to give up on details/extensions, which ones?
- Could you give up: Velux window in the bathroom, sauna
- Could not give up: Walk-in closet
Why has the design turned out as it is? For example:
Standard design from the planner? --> Visiting show houses, the modified floor plan feels open and friendly
What makes it especially good or bad in your opinion? Separation of master and children’s rooms. Large living and dining area. Large hallway.
What is the most important / fundamental question about the floor plan in 130 characters?
Are the children’s rooms too small? Is the bathroom too small if the master bedroom has its own entrance door?
we look forward to your feedback on the floor plan.
Development plan/restrictions: No development plan / rural area
Plot size: 1,030 m² (11,090 sq ft)
Slope: None
Floor area ratio: According to neighboring buildings
Plot ratio: According to neighboring buildings
Building envelope, building line, and boundary: According to neighboring buildings / approx. 10 meters (33 feet) from the street
Edge development
Number of parking spaces: 2
Number of storeys: Single-storey
Roof style: Gable roof
Design style: Manor house gable
Orientation: South
Maximum heights/limits: None
Other requirements
Homeowners’ requirements
Design style, roof form, building type: North German manor house with facing bricks
Basement, floors: Single-storey / ground floor & attic
Number of occupants, age: 2 adults / 2 children
Space requirements ground floor, upper floor: 170 m² (1,830 sq ft) total
Office: Family use or home office? Home office
Guest stays per year: 5 overnight stays
Open or closed architecture
Conservative or modern building style: Mixed, rather conservative
Open kitchen, cooking island: Open with island
Number of dining seats: 1
Fireplace: No
Music / stereo wall: Yes
Balcony, roof terrace: No
Garage, carport: Carport
Utility garden, greenhouse
Additional wishes / special features / daily routine, including reasons for preferences:
No fireplace/wood stove due to underfloor heating
Different wake-up times of the adults
House design
Designed by:
- Planner from a general contractor: GC according to our requirements
What do you particularly like? Large hallway, master bedroom “soundproofed” from the children’s rooms
What do you dislike? Why? Bathroom still too large, enlarge master bedroom. Walk-in closet with only one door and separate entrance to master bedroom.
Price estimate according to architect/planner: 290,000
Personal price limit for the house, including equipment: Pure house cost GC: 280,000 EUR
Preferred heating technology: Gas with underfloor heating
If you had to give up on details/extensions, which ones?
- Could you give up: Velux window in the bathroom, sauna
- Could not give up: Walk-in closet
Why has the design turned out as it is? For example:
Standard design from the planner? --> Visiting show houses, the modified floor plan feels open and friendly
What makes it especially good or bad in your opinion? Separation of master and children’s rooms. Large living and dining area. Large hallway.
What is the most important / fundamental question about the floor plan in 130 characters?
Are the children’s rooms too small? Is the bathroom too small if the master bedroom has its own entrance door?
H

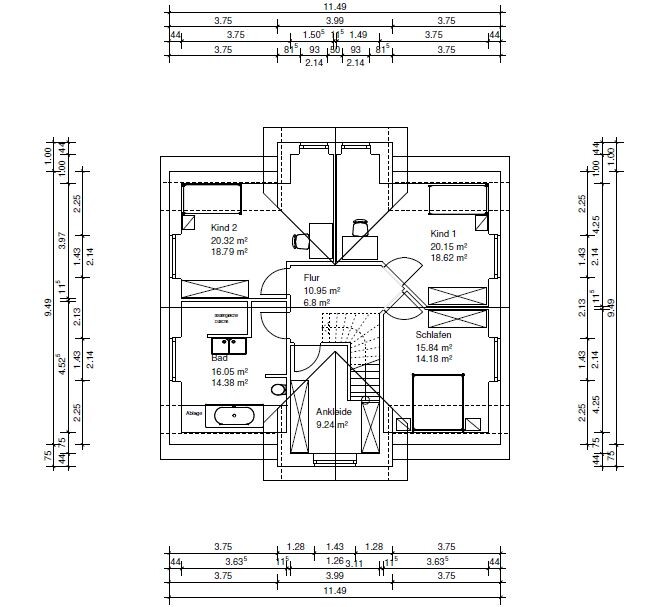

HausbauTiNa29 Jul 2018 22:05We had our floor plan revised once again.
Unlike the file attached, the staircase will now also be constructed as a half-turn staircase.
Benefits: More space in the dressing room, a door from the dressing room to the bedroom, space for furniture in the hallway.
In addition, the staircase will continue upwards to the converted attic.
What do you think of this floor plan?
Unlike the file attached, the staircase will now also be constructed as a half-turn staircase.
Benefits: More space in the dressing room, a door from the dressing room to the bedroom, space for furniture in the hallway.
In addition, the staircase will continue upwards to the converted attic.
What do you think of this floor plan?
H
HausbauTiNa29 Jul 2018 22:24User0815 schrieb:
Personally, it would bother me to have to always walk through the hallway just to get to the walk-in closet.Thank you for your opinion.
In the latest design, a door was added here to provide a direct connection.
A lot has changed upstairs, while on the ground floor I only notice the removal of a kitchen window, and the chimney has been taken out (?).
https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
H
HausbauTiNa29 Jul 2018 23:0411ant schrieb:
There have been various changes on the upper floor, on the ground floor I only see the removal of a kitchen window, and the fireplace is gone (?)Correct, and also the staircase has been changed. Unfortunately, the design is copyrighted, so I cannot show it here. The staircase is now a half-turn design. This means the issue of the "mudroom" area at the entrance is no longer relevant.
