Hello everyone,
We are starting to plan an alternative to the costly renovation of our house. So far, we have had our first discussions and collaboration with a general contractor of our choice.
I would appreciate honest feedback so that we can identify any overlooked issues now, rather than during construction.
Summary:
Development plan exists, few restrictions, maximum eaves height of 8m (26 ft) might cause some issues for us.
Plot size: 710m² (7,645 ft²)
Slope: No
Number of parking spaces: 2
Number of floors: 2
Roof type: Hip roof
Style: Townhouse / Urban villa
Orientation: Plot faces northwest, see attachment
Maximum height/limits: 8m (26 ft) eaves height, 5m (16 ft) setback from northern and western property boundaries for the building, due to requested landscaping
Owners’ requirements
Style, roof type, building type: Flexible; overall package must be appealing
No basement, two full stories
Number of occupants: 6 persons (ages 38, 37, 8, 6, 2, 2)
Space needs: 5 bedrooms on the upper floor, living room, dining room, kitchen, 2 offices on the ground floor, at least 2 showers
Offices: Both offices necessary, 1 fully dedicated home office (regardless of pandemic), 1 study for a teacher
Overnight guests per year: 6; can sleep elsewhere or in one of the offices
Open or closed layout: Flexible
Conservative or modern construction: Flexible
Kitchen: Preferably open with an island (for food prep, not for cooking at)
Number of dining seats: 6
Fireplace: Provision for a wood stove, thus chimney required
2 carports, no garage
Special features: A cleaning area/utility room “mudroom” is desired because our children tend to be messy. Children’s bedrooms to be approximately the same size (+/-).
House design
Designed by: Planner from a construction company
What we like:
- Simple floor plan
- 2 offices
- 5 bedrooms on one level
- Bedrooms roughly the same size
- Kitchen easily furnishable
- Not larger than 200m² (2,153 ft²) (cleaning, construction costs)
- Fits the plot well
- Short access for groceries (directly into kitchen)
What we don’t like:
- The path to the living room goes through the kitchen
- Relatively large circulation areas
- No pantry
Price estimate according to architect/planner: approximately €440,000 (about $490,000) excluding painting and floor coverings (except tiles, which are included for kitchen, entrance, hallway on ground floor, and bathrooms)
Personal price limit for the house including fittings: €540,000 (about $600,000), including fittings and additional construction costs, land extra. Can be increased if needed up to €640,000 (about $710,000)
Preferred heating technology: Heat pump or gas
What can you do without? Which details or extras can you skip?
- Can omit 1 office if the corresponding bedroom is 3m² (32 ft²) bigger (a desk corner instead)
Why does the design look like this now?
We found a standard design that we were able to adapt to our needs with relatively few changes.
What is the most important/basic question about the floor plan, summarized in 130 characters?
What daily challenges do you see with 4 children that we might have missed? What haven’t we considered?
The house is planned for the top left corner plot (circled) on the site map.
The floor plans have unfortunately been manually altered, so my revisions regarding room names are included. The guest room is actually office 2... The revised room sizes are approximate.
Thank you very much and best regards,
SoL
We are starting to plan an alternative to the costly renovation of our house. So far, we have had our first discussions and collaboration with a general contractor of our choice.
I would appreciate honest feedback so that we can identify any overlooked issues now, rather than during construction.
Summary:
Development plan exists, few restrictions, maximum eaves height of 8m (26 ft) might cause some issues for us.
Plot size: 710m² (7,645 ft²)
Slope: No
Number of parking spaces: 2
Number of floors: 2
Roof type: Hip roof
Style: Townhouse / Urban villa
Orientation: Plot faces northwest, see attachment
Maximum height/limits: 8m (26 ft) eaves height, 5m (16 ft) setback from northern and western property boundaries for the building, due to requested landscaping
Owners’ requirements
Style, roof type, building type: Flexible; overall package must be appealing
No basement, two full stories
Number of occupants: 6 persons (ages 38, 37, 8, 6, 2, 2)
Space needs: 5 bedrooms on the upper floor, living room, dining room, kitchen, 2 offices on the ground floor, at least 2 showers
Offices: Both offices necessary, 1 fully dedicated home office (regardless of pandemic), 1 study for a teacher
Overnight guests per year: 6; can sleep elsewhere or in one of the offices
Open or closed layout: Flexible
Conservative or modern construction: Flexible
Kitchen: Preferably open with an island (for food prep, not for cooking at)
Number of dining seats: 6
Fireplace: Provision for a wood stove, thus chimney required
2 carports, no garage
Special features: A cleaning area/utility room “mudroom” is desired because our children tend to be messy. Children’s bedrooms to be approximately the same size (+/-).
House design
Designed by: Planner from a construction company
What we like:
- Simple floor plan
- 2 offices
- 5 bedrooms on one level
- Bedrooms roughly the same size
- Kitchen easily furnishable
- Not larger than 200m² (2,153 ft²) (cleaning, construction costs)
- Fits the plot well
- Short access for groceries (directly into kitchen)
What we don’t like:
- The path to the living room goes through the kitchen
- Relatively large circulation areas
- No pantry
Price estimate according to architect/planner: approximately €440,000 (about $490,000) excluding painting and floor coverings (except tiles, which are included for kitchen, entrance, hallway on ground floor, and bathrooms)
Personal price limit for the house including fittings: €540,000 (about $600,000), including fittings and additional construction costs, land extra. Can be increased if needed up to €640,000 (about $710,000)
Preferred heating technology: Heat pump or gas
What can you do without? Which details or extras can you skip?
- Can omit 1 office if the corresponding bedroom is 3m² (32 ft²) bigger (a desk corner instead)
Why does the design look like this now?
We found a standard design that we were able to adapt to our needs with relatively few changes.
What is the most important/basic question about the floor plan, summarized in 130 characters?
What daily challenges do you see with 4 children that we might have missed? What haven’t we considered?
The house is planned for the top left corner plot (circled) on the site map.
The floor plans have unfortunately been manually altered, so my revisions regarding room names are included. The guest room is actually office 2... The revised room sizes are approximate.
Thank you very much and best regards,
SoL
That is too many rooms/requirements for the square meters, especially when you have about 40m² (430 sq ft) for hallways/entrance/stairs/void space. Five bedrooms plus two offices!
The staircase in the middle ruins everything. Access is only possible through the kitchen to the dining/living area...
The house already feels overcrowded after a short time...
The staircase in the middle ruins everything. Access is only possible through the kitchen to the dining/living area...
The house already feels overcrowded after a short time...

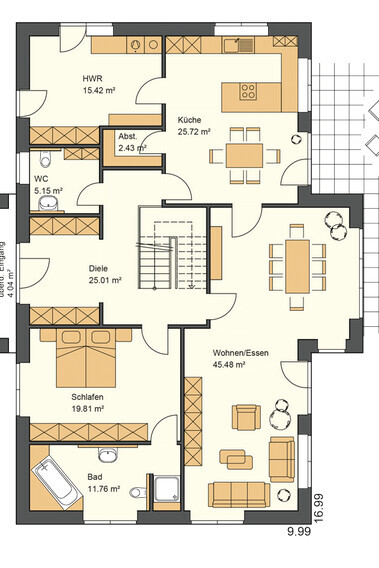

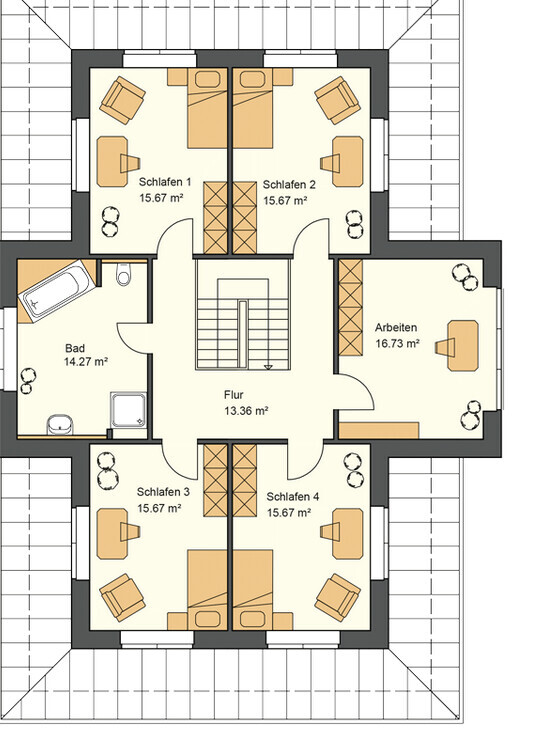

Your proposed floor plan isn’t oriented to true north, right? That would place the entrance facing south. Is that intentional? I found a floor plan on Kalobau with five bedrooms on the upper floor that I like. It’s unfortunately too large, but it might serve as inspiration. The sleeping area on the ground floor could then be converted into two offices. Of course, the plan would need to be rotated so the entrance faces north, though that means you would have to walk around the house.
SoL schrieb:
Could you please explain the point about facade symmetry? At which point do you see advantages in breaking the symmetry?For the floor plan. Not symmetry itself, but the obsession with symmetry is like a handbrake applied to the floor plan.https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
Good point about the orientation,
This means the living room / dining room (so “top” on the floor plan) faces west/southwest.
Thanks for the floor plan, it’s definitely helpful as inspiration!

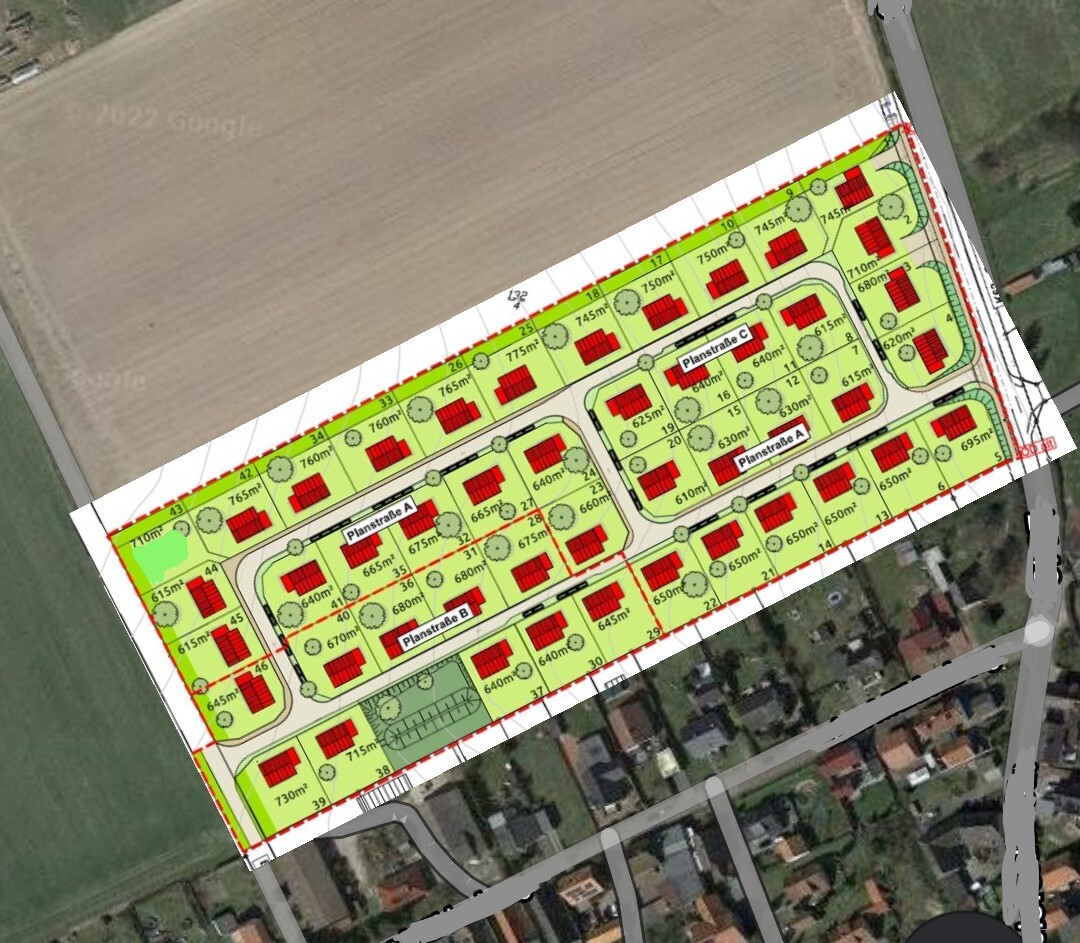

Ibdk14 schrieb:No, thanks for the hint, that information was indeed missing. I created a Google Maps mockup. The target plot is number 43, with the main entrance coming from the direction of number 42.
But your floor plan proposal isn’t aligned to true north, right? The entrance would be on the south side for you. Is that intentional?
This means the living room / dining room (so “top” on the floor plan) faces west/southwest.
Thanks for the floor plan, it’s definitely helpful as inspiration!
Hello everyone,

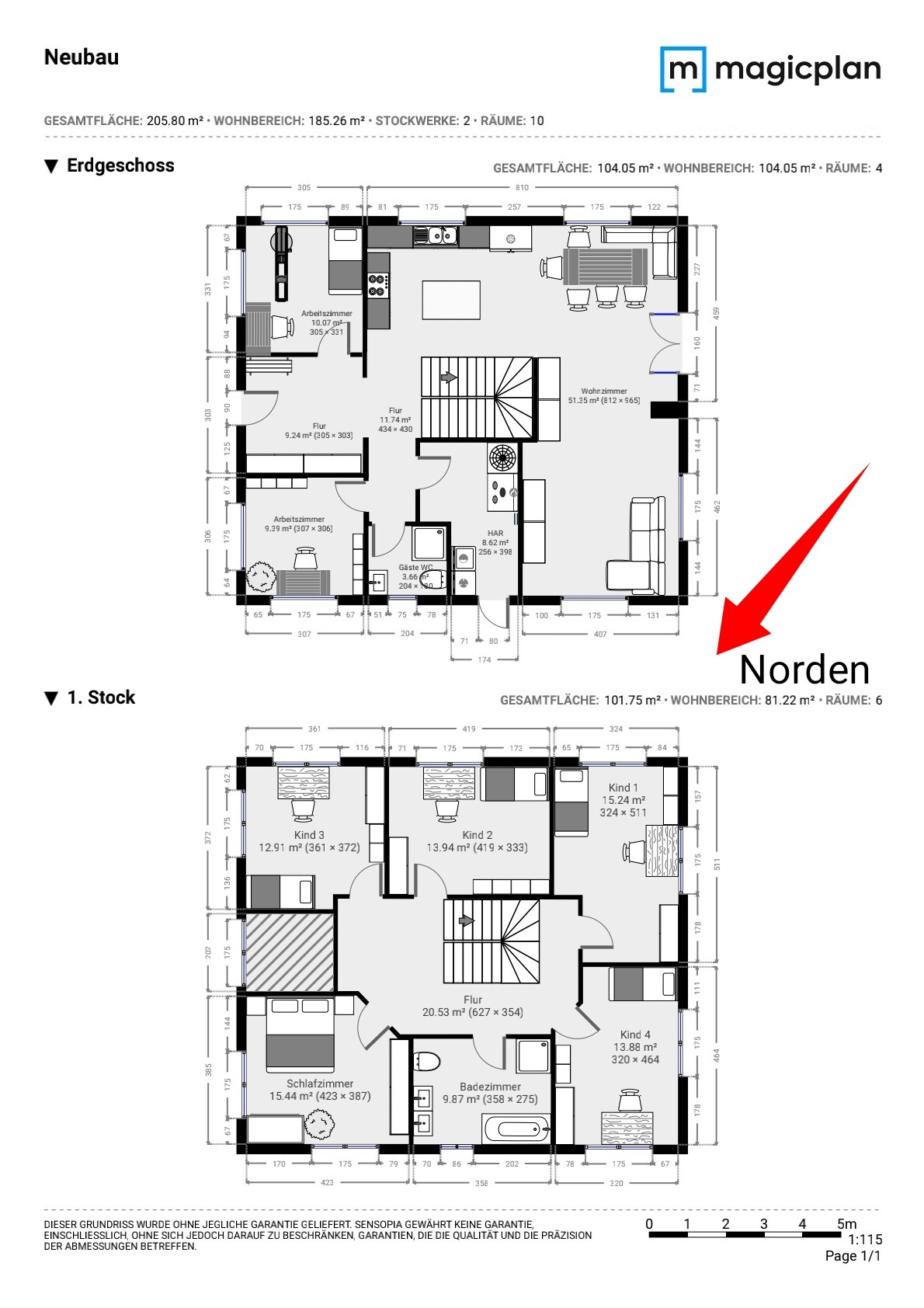

I took some time to redraw the floor plan, and it is now dimensioned. Additionally, I included the furniture layout so you can get an idea of where this is headed.
Since I’m neither an architect nor artistically skilled, it might not be perfect, but for now, I’m looking for feedback, ideas, and suggestions.
Thanks in advance for your input,
SoL
I took some time to redraw the floor plan, and it is now dimensioned. Additionally, I included the furniture layout so you can get an idea of where this is headed.
Since I’m neither an architect nor artistically skilled, it might not be perfect, but for now, I’m looking for feedback, ideas, and suggestions.
Thanks in advance for your input,
SoL
SoL schrieb:
I took the time to redraw the floor plan, ... and it just occurred to me that your stair placement reminds me of @blubbernases Maypole topic 🙂
https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
