ᐅ New construction of a semi-detached house approximately 8 by 11 meters, assessment of floor plan and windows

Created on: 18 May 2018 12:56
E
espressionist
Hello everyone,

we are currently planning a semi-detached house measuring 8 x 11 m (26 x 36 ft) on a 289 sqm (3,110 sq ft) plot in a new development area (the neighboring house has not been built yet, as the area is still being developed).
We would appreciate your comments on the current floor plans and any tips regarding window planning!

Thank you very much!
Development Plan / Restrictions
Plot size: 289 sqm (3,110 sq ft), approx. 10.3 x 29 m (34 x 95 ft), slightly angled in the southern section
Slope: no
Site coverage ratio: 0.35
Floor area ratio: 0.6
Building envelope, building line and boundaries: The building envelope starts 3 m (10 ft) south of the northern street and is 14 m (46 ft) long. There is an additional building easement (semi-detached house), and the building envelope ends 2.5 m (8 ft) before the eastern dead-end street.
Parking spaces: 2
Orientation: north-south
Other requirements: roof shape (gable roof), roof pitch (34 degrees), and eaves height (6 m / 20 ft) have already been agreed with the neighbors.

Client Requirements
Style, roof shape, building type: classic-modern, gable roof, semi-detached house
Basement, floors: basement, ground floor + upper floor as full stories
Number of occupants, ages: 4 (40, 40, 5, 1)
Ground floor room requirements: kitchen, dining area, living room, study (for occasional home office), WC + shower, cloakroom

Upper floor room requirements: bathroom, master bedroom, 2 children’s bedrooms (preferably similar size)
Office: home office
Guest stays per year: probably rare (2-3 times for 2-3 days)
Open or closed layout: open preferred on the ground floor (kitchen, dining, living areas), otherwise the rooms might feel too small
Open kitchen, kitchen island: open kitchen with a peninsula
Number of dining seats: regularly 6 with our current table (can be extended for up to 4 more seats)
Fireplace: no
Music/sound system wall: in the living room by the TV wall
Balcony, rooftop terrace: no
Garage, carport: carport (6.5 x 4 m / 21 x 13 ft) on the north side. Currently, a 2 x 2.5 m (7 x 8 ft) shed for bicycles, etc. is planned on the west side of the carport. The carport also serves as a covered entrance.
Vegetable garden, greenhouse: we would like to plant a little (e.g. raised bed), but it should not cause stress
Additional wishes / special features / daily routine, also reasons why certain things should or should not be included:

Our requirement for the upper floor was that the parents’ and children’s areas are at least somewhat separated (no shared wall).

This was achieved by the architect through a walk-in closet between the master bedroom and children’s room.

We can hardly do without a basement, as we cannot fit a garage on the plot (due to setback requirements in the development plan, this would force us to make the house narrower or give up too much garden space), and we also have limited space for storage or building services.

Because this results in a nicely sized hobby room in the basement, we decided not to finish the attic (so it will only be a roof space), as we believe we can fit everything else inside.

A finished attic would certainly be nice (guest room, media room, library, etc.) but with estimated additional costs of about 30,000, we prefer to forgo it.

House Design
Planning by: architect of our prefabricated house company
What do you like most? Why? Bedrooms and children’s rooms are adequately sized (previous plans had children’s rooms at 13 sqm / 140 sq ft), office on the ground floor (close to kitchen for coffee breaks), bright dining area
What do you dislike? Why? Windows—the architects’ design in the children’s rooms is okay, but in the master bedroom (window on the north side with the bed partially underneath), in the office (we would like a bookshelf on the north side and desk on the south side to avoid direct light on the monitor; parking space is planned on the east side, so a car would be parked right in front of the window), and bathroom / WC (parapet height too low?) are not completely convincing.
Price estimate from architect/planner: approximately 370,000 (turnkey, with floors already selected by us—we had a preliminary selection)
Personal budget limit for house, including finishing: about 400,000
Preferred heating system: air-to-water heat pump, underfloor heating

If you had to give up something, which details/finishes
- What you can give up: instead of a sliding door to the terrace, a regular door; instead of aluminum-plastic windows, only plastic windows (difference of 4,000); planned premium for a different staircase (7,000); partial wood facade omitted (planned cost 1,500)
- What you cannot give up: house size (should not be smaller)

Why is the design as it is now?

We initially spent several hours with a very friendly consultant from the company to develop a design based on our requirements (office on ground floor, slight separation of parent and children areas, shower on ground floor, basement, carport).

A friend who is an architect made some suggestions, and after an in-depth discussion with us, the company’s architect created the attached floor plan.

We like the floor plan quite well so far (we know that planning a semi-detached house comes with some limitations), but the window planning seems somewhat “old-fashioned” to us.

What is the most important / fundamental question about the floor plan, summarized in 130 characters?

Are there any major flaws in the floor plan that we have not noticed yet?
What would you possibly optimize?
What do you think about the window planning and our suggestions regarding it?

Thank you very much for your help and for the time you spend in this forum.
We appreciate any feedback!

Two-story residential building north view with carport and entrance area

Two-story house with garage; cars in front; group under a tree, boundary street

South facade of a house with photovoltaic roof, windows, glass door and terrace

Floor plan of a single-family house with garden, trees, street and two cars in driveway

Site plan of a building with floor plan, street surroundings and dimensions

Floor plan of a house with rooms, stairs, bathroom, terrace and street access

Sketch of two buildings (south/north) with photovoltaic, windows, doors, cars and people

Sketch of a single-family house with tree on the left, group of people at the front door, car at carport
E
espressionist
28 May 2018 15:13
Thank you all for your contributions and comments!
kaho674 schrieb:
I would suggest you see something like this in person. With and without a wall.
Seeing exactly that in person will be difficult – we would have to build it twice.
kaho674 schrieb:
[...] Mini staircase [...]
We actually saw that staircase already in a show home, and we didn’t find it mini at all. I was surprised myself.
(Space-saving staircases are generally narrower.)
11ant schrieb:
It’s probably wider than a towel- or even bowling alley-style terraced house. Nevertheless, it still has the character of an end-of-terrace house, with the typical layout:

I partly agree with you: the semi-detached character naturally comes from the fact that no window is possible on one side and
the room arrangement is more oriented along the longer side (unlike a detached house).
However, in terms of dimensions, there are plenty of detached houses with similar measurements (I checked multiple prefab home providers and their show homes again). Our floor plan offers about 138 sqm (1,488 sq ft) of living space spread over the ground and first floors. A typical semi-detached or terraced house offers a similar living area but spread over three floors. So, regarding this, I would say it resembles a detached house more.

Friends of ours have a detached house with 125 sqm (1,345 sq ft), the same number of rooms. No one there suffers from claustrophobia, even during a party with 10 guests.
11ant schrieb:
In addition, I consider the recessing of the staircase area unsuitable. I would rather think of a change of flooring (both visualizations show the same floor covering in both areas – to me, it’s a kitchen with a TV corner).

We have considered a flooring change between the kitchen (tiles) and the living/dining area (parquet). However, I couldn’t visualize this using the software – unfortunately, only one type of flooring was possible...
ypg schrieb:
We’re talking about an 8 x 11 floor plan here. Sometimes even “normal” houses don’t have that...
Thank you.
Y
ypg
28 May 2018 15:48
espressionist schrieb:

Watching that live exactly like this will be difficult – we would have to build it twice

Sometimes it helps just to look at pictures of semi-detached or terraced houses on Immonet or IS24. Everything, whether closed or open layouts, has already been built before.
11ant28 May 2018 18:31
espressionist schrieb:
We have considered changing the flooring from tile in the kitchen to parquet in the living/dining area.

In my opinion, this creates a much clearer sense of division than the floor plan recess. Especially if you continue it with the wall surfaces.
https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
lastdrop28 May 2018 18:44

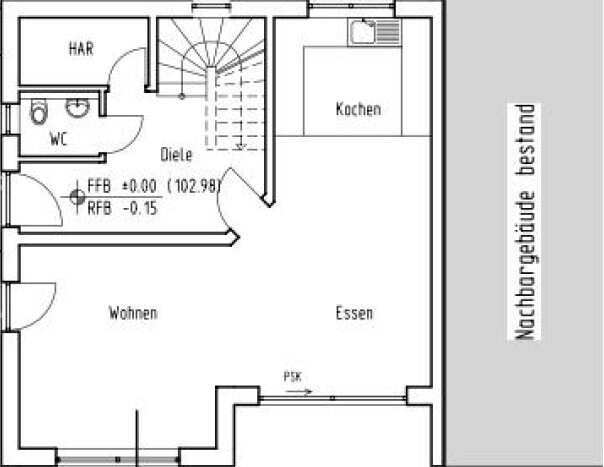

You can create space even on a small lot ...
9.00 x 9.50 meters (29.5 x 31.2 feet)

2D floor plan of a house with living room, dining area, kitchen, staircase, and toilet
E
espressionist
28 May 2018 19:52
lastdrop schrieb:
Even with a small footprint, you can create space ...
9.00 x 9.50

Thank you very much. The living/dining area and kitchen are planned quite similarly to our current design.
What are the dimensions/square meters of the individual areas?
If you have any more pictures, that would be great, of course. Feel free to send them via private message.

Edit: And the staircase is even outside...
K
kbt09
30 May 2018 07:14
First of all, great opening post, site plan, and everything included—this really makes it enjoyable to look at the details.

Just a quick note: I would also exclude the staircase from the living area, both because of the basement and for the teenager/privacy reasons you mentioned.

However, I would swap the living and kitchen areas.

Also, the walk-in closet, master bedroom, and bathroom don’t seem ideal yet, but I couldn’t come up with a good suggestion on short notice.

I would probably avoid the corner windows in both the office and the bedroom.
