ᐅ Floor plan design for an urban villa of approximately 160 m² without a basement
Created on: 3 Apr 2018 14:35
Z
Zisu2000
Hello everyone,
we are almost finished with our planning phase. That’s why we would like to hear your opinion on the floor plan of the house. I have been enthusiastically reading this forum for months now. I especially appreciate the helpfulness and the respectful tone here. However, this does not mean you shouldn’t give criticism. We are grateful for any comments or ideas for improvement.
A small issue is the orientation of the plot. Our main facade faces southwest, but once the house is built, there will be only about 6 meters (20 feet) to the neighboring property (depending on where the double garage is placed). The main garden is also oriented to the northwest. We planned the terrace in an L-shape from southwest to northwest. We will probably spend more time on the northwest terrace (which is why there is a sliding door leading outside there). If the main facade (living/dining area) were oriented northwest, I think the living room might become too dark (north-facing). But I’m open to being corrected if that is not the case.

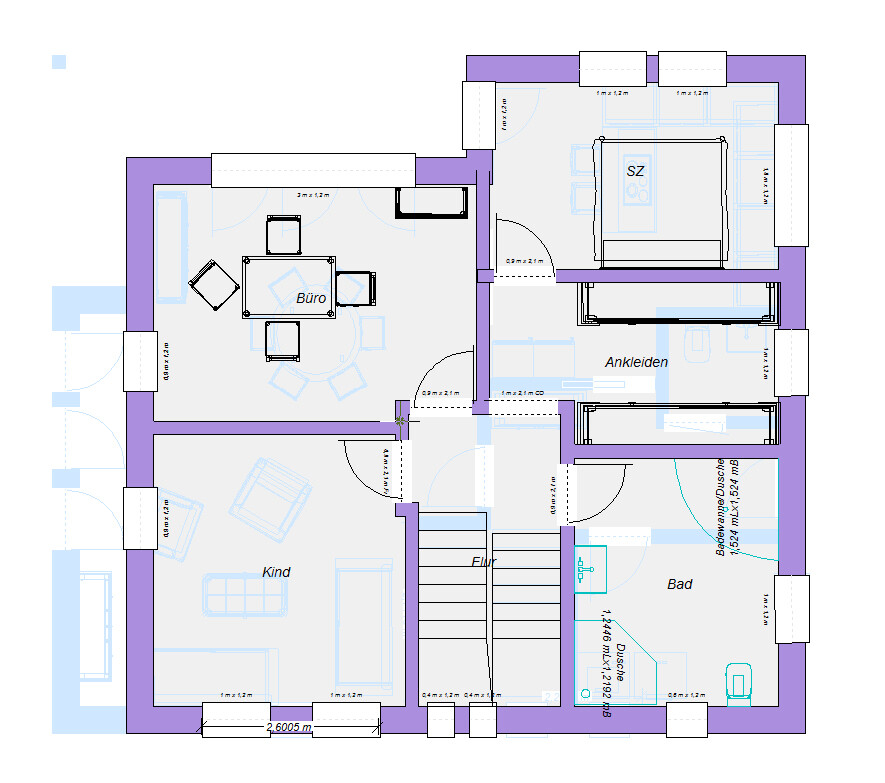

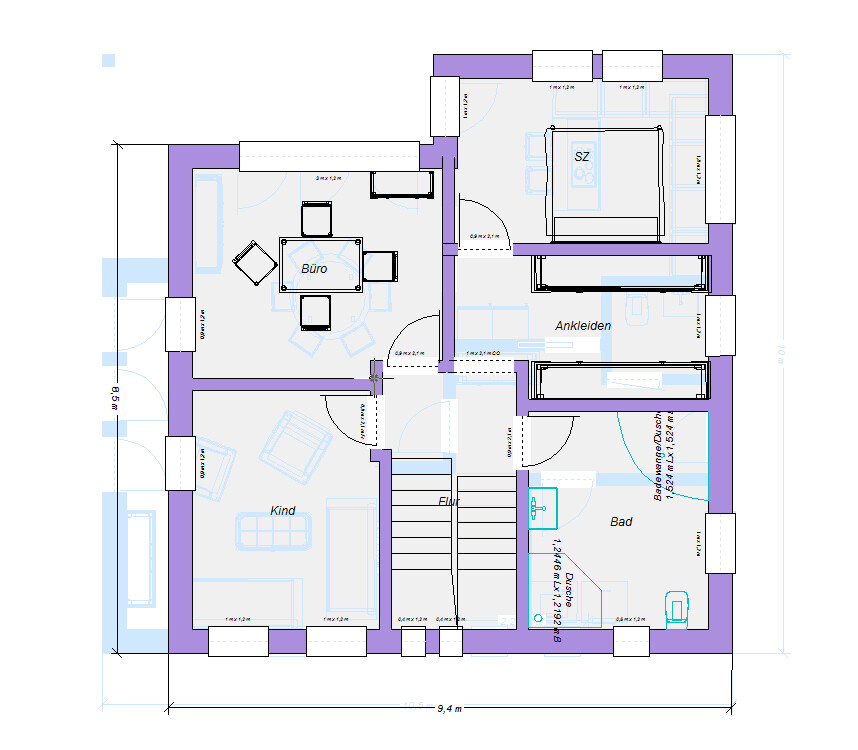

Initially, there was an office planned on the ground floor. But that would have made the kitchen too small. We have now planned the office on the upper floor, which is fine for us. The bathroom is located on the north side but has a good size (should be sufficient). At first, we wanted a T-shaped layout (probably because it is often seen in model homes and we liked it there). However, I think an L-shaped layout might be better here. In front of the toilet, there is a planned privacy wall about 1 meter high (3 feet).

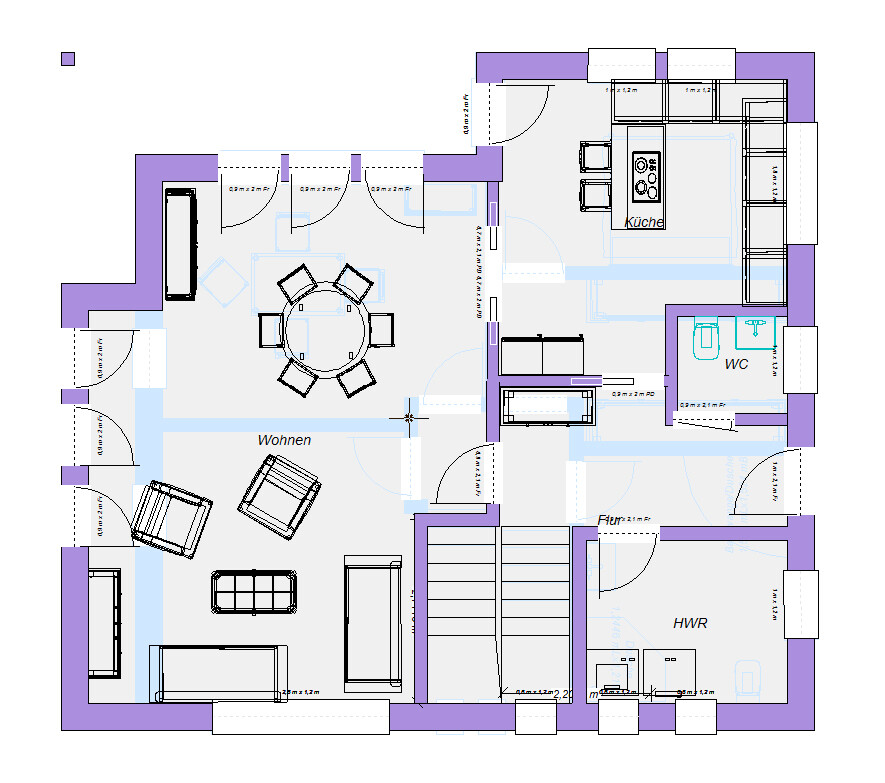

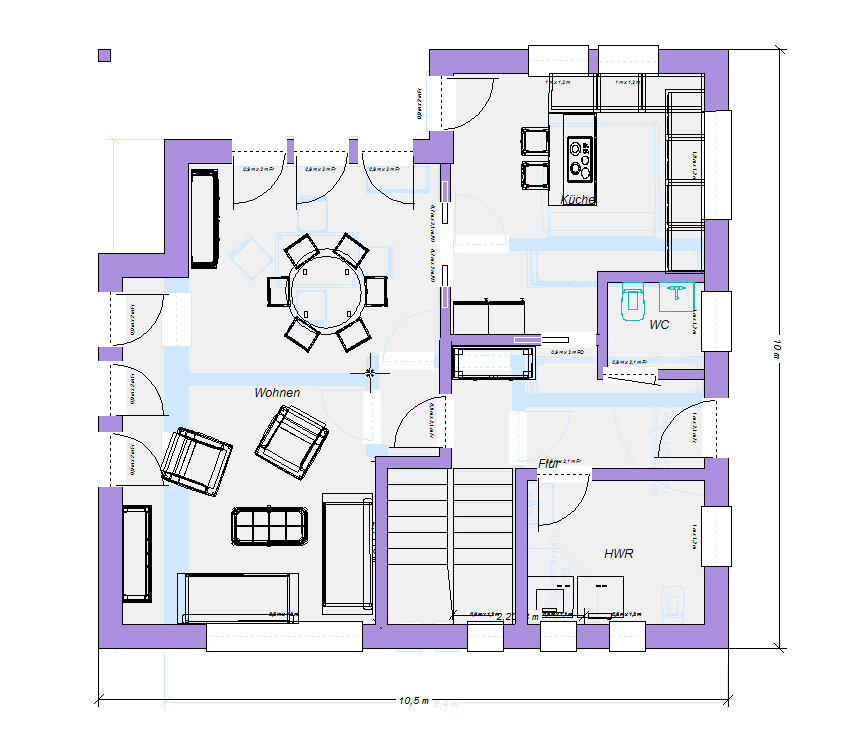

I have marked the floor plans with compass directions and measurements. The house measures about 10 x 10 meters (33 x 33 feet) externally (this does not have to remain that way). I also sent furnished versions of the floor plans. The plot is included as well, but without a building envelope shown (full width and about 20 meters (66 feet) deep from the street). The attached exterior views match the floor plan, except the street view on the ground floor has changed slightly (kitchen and pantry windows are different from the exterior view). Additionally, in the floor plan, the sliding door in the living room has been shifted slightly inward to avoid the couch blocking access to the terrace.
For the exterior views, the street is unfortunately shown on the wrong side (now southeast as per the floor plan). We had originally planned for a different plot, but there were some issues (slope, etc.). We were able to acquire this plot at short notice. The garage is also shown rotated and does not necessarily have to have a separation from the house.
I’m sure I have forgotten some things but I will try to answer your replies as quickly as possible. We are looking forward to your opinions/criticism.
Best regards from Bavaria
Development Plan / Restrictions
Plot size: approx. 825 m² (approx. 8,880 sq ft)
Slope: none
Floor Area Ratio (FAR): 0.4
Building Coverage Ratio / building envelope / building line and boundary: Building envelope covers the full width of the plot, about 20 meters (66 feet) deep from the street
Edge development
Number of parking spaces: 2
Number of floors: 2 full floors
Roof style: gable roof, hip roof, shed roof
Architectural style: urban villa
Orientation: freely selectable
Maximum height restrictions: max. 8 meters (26 feet) height
Other requirements
Client Requirements
Style, roof shape, building type: urban villa, hipped or pyramid roof with 22-degree pitch
Basement, floors: slab-on-grade only, 2 full floors
Number of occupants, age: 2 persons (33, 30)
Space requirements ground floor, upper floor: approx. 80 m² (860 sq ft), total approx. 160 m² (1,720 sq ft)
Office: family use or home office? family use
Guest stays per year: approx. 10
Open or closed architecture: open
Conservative or modern style: modern
Open kitchen, cooking island: open kitchen with island
Number of dining seats: 4–6
Fireplace: yes, currently not shown on plan (not sure where exactly yet)
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: double garage, preferably right side of the house (flush) at the property line, exact location still uncertain
Kitchen garden, greenhouse: no
Other wishes / special features / daily routines, please also explain reasons why or why not:
Must have:
- large open living/dining/kitchen area
- bright living/dining area with 5 floor-to-ceiling windows here
- pantry
- large bathroom (hence swapping with office/guest room)
- fireplace
- walk-in closet
House Design
Who designed the plans:
- planner from a building company (originally with office on ground floor)
- do-it-yourself (current plan slightly adjusted since office on the ground floor was removed)
What do you especially like? Why?
- large open living/dining area
- pantry
What don’t you like? Why?
- is the entrance area big enough?
- is parking on the right side directly next to the house possible and convenient?
- entrance unfortunately on the right side of the house, not at the front; not a big problem
Price estimate according to architect/planner: approx. €290,000 (house and slab only)
Personal price limit, including fixtures and fittings: approx. €400,000
Preferred heating system: air-to-water heat pump, full underfloor heating
If you had to give up something, which details / features?
- could give up: straight staircase (could have a different shape)
- could not give up: large living/dining area, open kitchen, fireplace
Why is the design as it is now?
Initially planned with office on the ground floor. The technical room was in front of the kitchen (now pantry), which made the kitchen too small (noticed during measuring). The office has now been replaced with the technical room and moved upstairs (which is okay for us).
Standard design from the planner?
Which client requests have been implemented?
Almost all, but at that time still with office on ground floor
A mix of many examples from various magazines...
What makes it particularly good or bad in your eyes?
What is the most important/basic question about the floor plan summarized in 130 characters?
Is the layout okay? Is the hallway spacious and bright enough? Should rooms be arranged or divided differently? Is sun orientation okay?
we are almost finished with our planning phase. That’s why we would like to hear your opinion on the floor plan of the house. I have been enthusiastically reading this forum for months now. I especially appreciate the helpfulness and the respectful tone here. However, this does not mean you shouldn’t give criticism. We are grateful for any comments or ideas for improvement.
A small issue is the orientation of the plot. Our main facade faces southwest, but once the house is built, there will be only about 6 meters (20 feet) to the neighboring property (depending on where the double garage is placed). The main garden is also oriented to the northwest. We planned the terrace in an L-shape from southwest to northwest. We will probably spend more time on the northwest terrace (which is why there is a sliding door leading outside there). If the main facade (living/dining area) were oriented northwest, I think the living room might become too dark (north-facing). But I’m open to being corrected if that is not the case.
Initially, there was an office planned on the ground floor. But that would have made the kitchen too small. We have now planned the office on the upper floor, which is fine for us. The bathroom is located on the north side but has a good size (should be sufficient). At first, we wanted a T-shaped layout (probably because it is often seen in model homes and we liked it there). However, I think an L-shaped layout might be better here. In front of the toilet, there is a planned privacy wall about 1 meter high (3 feet).
I have marked the floor plans with compass directions and measurements. The house measures about 10 x 10 meters (33 x 33 feet) externally (this does not have to remain that way). I also sent furnished versions of the floor plans. The plot is included as well, but without a building envelope shown (full width and about 20 meters (66 feet) deep from the street). The attached exterior views match the floor plan, except the street view on the ground floor has changed slightly (kitchen and pantry windows are different from the exterior view). Additionally, in the floor plan, the sliding door in the living room has been shifted slightly inward to avoid the couch blocking access to the terrace.
For the exterior views, the street is unfortunately shown on the wrong side (now southeast as per the floor plan). We had originally planned for a different plot, but there were some issues (slope, etc.). We were able to acquire this plot at short notice. The garage is also shown rotated and does not necessarily have to have a separation from the house.
I’m sure I have forgotten some things but I will try to answer your replies as quickly as possible. We are looking forward to your opinions/criticism.
Best regards from Bavaria
Development Plan / Restrictions
Plot size: approx. 825 m² (approx. 8,880 sq ft)
Slope: none
Floor Area Ratio (FAR): 0.4
Building Coverage Ratio / building envelope / building line and boundary: Building envelope covers the full width of the plot, about 20 meters (66 feet) deep from the street
Edge development
Number of parking spaces: 2
Number of floors: 2 full floors
Roof style: gable roof, hip roof, shed roof
Architectural style: urban villa
Orientation: freely selectable
Maximum height restrictions: max. 8 meters (26 feet) height
Other requirements
Client Requirements
Style, roof shape, building type: urban villa, hipped or pyramid roof with 22-degree pitch
Basement, floors: slab-on-grade only, 2 full floors
Number of occupants, age: 2 persons (33, 30)
Space requirements ground floor, upper floor: approx. 80 m² (860 sq ft), total approx. 160 m² (1,720 sq ft)
Office: family use or home office? family use
Guest stays per year: approx. 10
Open or closed architecture: open
Conservative or modern style: modern
Open kitchen, cooking island: open kitchen with island
Number of dining seats: 4–6
Fireplace: yes, currently not shown on plan (not sure where exactly yet)
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: double garage, preferably right side of the house (flush) at the property line, exact location still uncertain
Kitchen garden, greenhouse: no
Other wishes / special features / daily routines, please also explain reasons why or why not:
Must have:
- large open living/dining/kitchen area
- bright living/dining area with 5 floor-to-ceiling windows here
- pantry
- large bathroom (hence swapping with office/guest room)
- fireplace
- walk-in closet
House Design
Who designed the plans:
- planner from a building company (originally with office on ground floor)
- do-it-yourself (current plan slightly adjusted since office on the ground floor was removed)
What do you especially like? Why?
- large open living/dining area
- pantry
What don’t you like? Why?
- is the entrance area big enough?
- is parking on the right side directly next to the house possible and convenient?
- entrance unfortunately on the right side of the house, not at the front; not a big problem
Price estimate according to architect/planner: approx. €290,000 (house and slab only)
Personal price limit, including fixtures and fittings: approx. €400,000
Preferred heating system: air-to-water heat pump, full underfloor heating
If you had to give up something, which details / features?
- could give up: straight staircase (could have a different shape)
- could not give up: large living/dining area, open kitchen, fireplace
Why is the design as it is now?
Initially planned with office on the ground floor. The technical room was in front of the kitchen (now pantry), which made the kitchen too small (noticed during measuring). The office has now been replaced with the technical room and moved upstairs (which is okay for us).
Standard design from the planner?
Which client requests have been implemented?
Almost all, but at that time still with office on ground floor
A mix of many examples from various magazines...
What makes it particularly good or bad in your eyes?
What is the most important/basic question about the floor plan summarized in 130 characters?
Is the layout okay? Is the hallway spacious and bright enough? Should rooms be arranged or divided differently? Is sun orientation okay?
So, a slightly different style is easy to show. How about something Mediterranean? It would fit nicely here:
Okay, I know you still want a pantry – maybe someone could adjust the plan to add that and at the same time make the utility room a bit larger. I just wanted to give an example of the direction I’m thinking.
Okay, I know you still want a pantry – maybe someone could adjust the plan to add that and at the same time make the utility room a bit larger. I just wanted to give an example of the direction I’m thinking.
@kaho674
Looks great!! But I think it’s definitely bigger than our floor plan and with the Mediterranean style it will probably exceed our budget... Unfortunately :-(
@Curly
The clear structural height is 2.75 meters (9 feet).
@Wickie
Yes, we’ve already thought it through mentally. The long distances didn’t put us off at first. But of course, there are better ways to solve that. The bathroom isn’t fully planned yet, so we’ll definitely work on that again.
Looks great!! But I think it’s definitely bigger than our floor plan and with the Mediterranean style it will probably exceed our budget... Unfortunately :-(
@Curly
The clear structural height is 2.75 meters (9 feet).
@Wickie
Yes, we’ve already thought it through mentally. The long distances didn’t put us off at first. But of course, there are better ways to solve that. The bathroom isn’t fully planned yet, so we’ll definitely work on that again.
Zisu2000 schrieb:
Looks great!! But I think it’s definitely larger than our floor plan. Not necessarily, with the upper floor set back, it’s actually smaller:
Zisu2000 schrieb:
And the Mediterranean style probably also exceeds our budget... Unfortunately :-( That could be true.
Let’s see how it develops.
Zisu2000 schrieb:
@Curly
The clear structural height is 2.75m (9 feet).
I think you will need 16 steps for that. You should make sure there is enough space for them, as it looks quite tight at the top.
Best regards,
Sabine
kaho674 schrieb:
Great... and basically an optimal layout... if, as in the initial post, W is located in the upper left corner.
10 x 10 m (33 x 33 ft) external dimensions in the initial post... If you straighten that here, you should be able to get something good.
Possibly also create some storage space under the staircase.
I’ll take another look at the staircase. Maybe a 90-degree staircase (or however that’s called) would work better in terms of space.
@kbt09
I’ll get started on it (if only the work wasn’t in the way and I had more time). But from what I see above, with the utility room, staircase, and living room next to each other, I think the living room might end up too narrow. It should be at least 4m (13 feet) wide, I believe.
@kbt09
I’ll get started on it (if only the work wasn’t in the way and I had more time). But from what I see above, with the utility room, staircase, and living room next to each other, I think the living room might end up too narrow. It should be at least 4m (13 feet) wide, I believe.
