ᐅ Air-to-Water Heat Pump: Current Consumption and Data

Created on: 29 Sep 2020 11:06
B
Bookstar
Hello!
I'll start.
Heated area 200m2 (2,153 sq ft)
KfW 55 standard
Mechanical ventilation with heat recovery
Current outdoor temperature 6°C (43°F)
Heating energy consumption including hot water 35 kWh
Electricity consumption 9 kWh
COP 3.88
kati133728 Feb 2021 17:02
February was a particularly interesting month for our heat pump’s energy consumption. 🙂
It clearly shows how much electricity usage depends on the outside temperature. This February, here in the north, we experienced everything from -10°C (14°F) to +18°C (64°F).
We heat, ventilate, and bathe with the Tecalor THZ 504, now in its first year (so the consumption is still a bit higher), and we maintain a cozy 24°C (75°F) indoors.

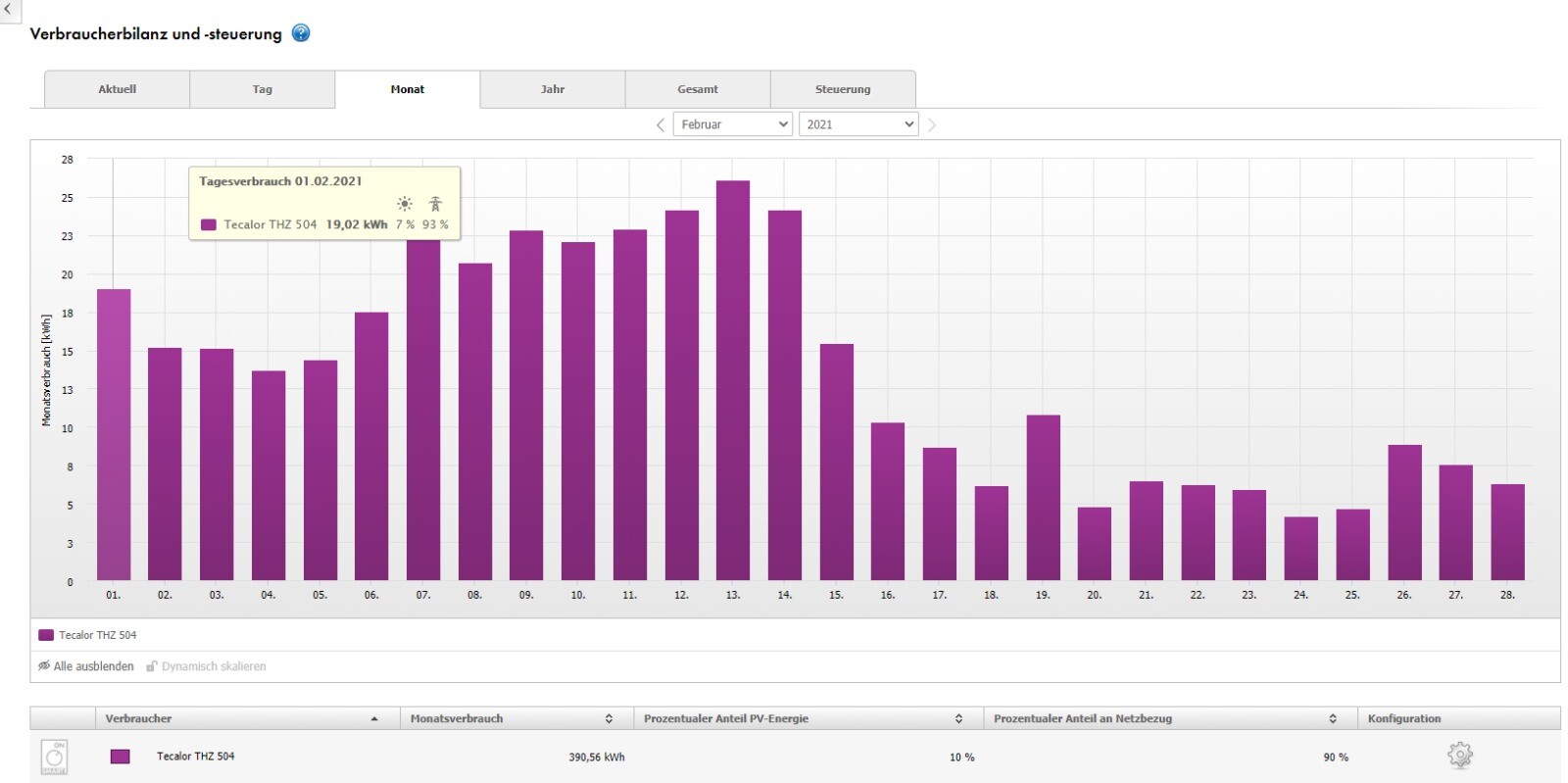

Bar chart of daily energy consumption in February 2021, purple bars (Tecalor THZ 504).
blackm8828 Feb 2021 17:32
kati1337 schrieb:

We are treating ourselves to a cozy 24°C (75°F) indoors.

You don’t build a house to be cold. 🙂
What other comforts are you enjoying right now?
Z
Zaba12
28 Feb 2021 17:40
blackm88 schrieb:

You don’t build a house to be cold. 🙂
What other luxuries do you have at the moment?
If you are cold in your house, something is wrong. But heated rooms are not a luxury.
B
Bookstar
28 Feb 2021 17:47
T_im_Norden schrieb:

What is needed, I had already written a few pages earlier,
but as I said, start your own thread for that.
And you yourself have already realized that there is still potential with your heat pump.

“Here’s the thing: the consumption has almost halved! We currently need 10-12 kWh and don’t have to ventilate out as much heat anymore. The system also runs only 4 hours daily instead of 8.”

“As for the heat output, my only explanation is that we were overheating and therefore ventilating out so much, and the system was constantly reheating. But I haven’t fully understood it yet either.”

OK, but I don’t want to start my own thread, and I’m not willing to spend that much time on it anymore—maybe next winter again. But thanks for your support!

@Kathi: how large is your house? We used 650 kWh in February. The average temperature was 1.9°C (35.4°F).
tomtom7928 Feb 2021 17:54
Zaba12 schrieb:

If you are cold in your house, something is wrong. But heated rooms are not a luxury.

The problem is that in about 90% of cases the temperature is right, but then you have guests, the sun is shining, and suddenly it’s 23.5°C (74.3°F) in the living room and I’m sweating...
blackm8828 Feb 2021 18:03
tomtom79 schrieb:

In about 90% of cases, the temperature is fine, but then you have visitors, the sun is shining, and suddenly it’s 23.5°C (74°F) in the living room and I’m sweating..
Yes, or with the sun it’s 25-28°C (77-82°F). In the morning, you still have 23.5°C (74°F) throughout the house 😉
