Hi everyone,

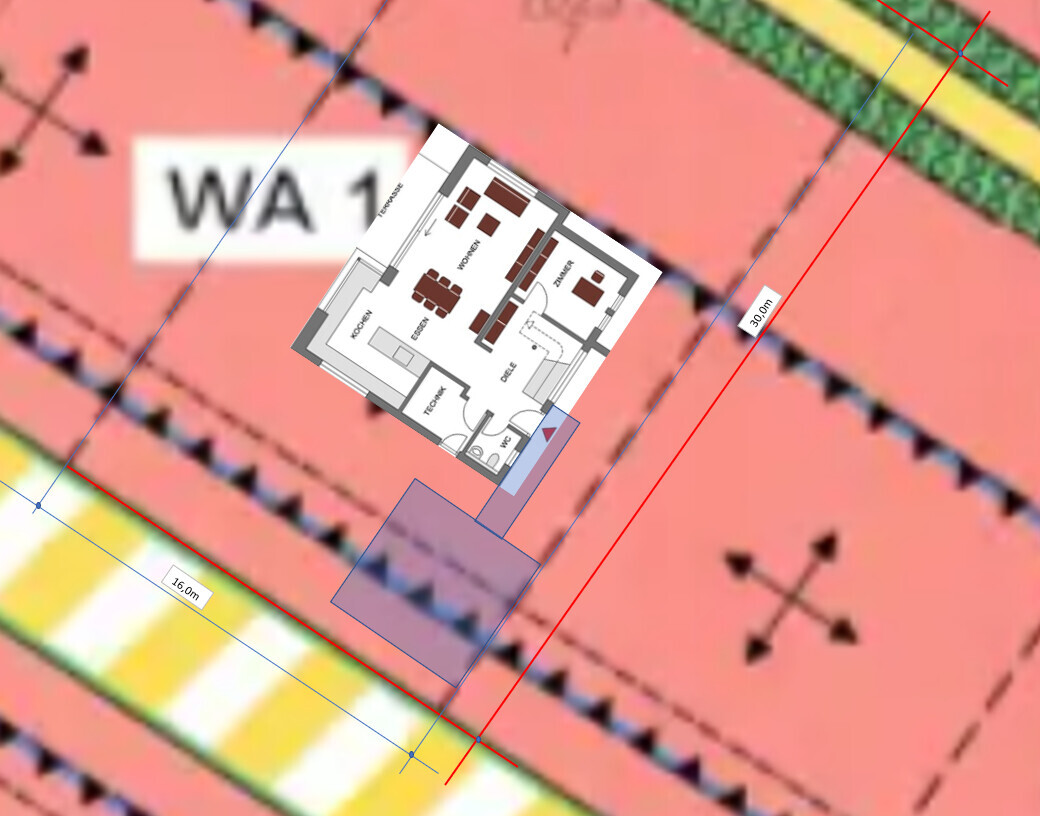

We have a plot in the new development area Jahnplatz in Lachen-Speyerdorf and have had initial talks with a general contractor (solid construction). The preliminary plan (we will only receive the official plan after signing 🙄, so I recreated it as best as I could – room sizes and rough dimensions should be correct) matches our wish list but definitely exceeds our budget. According to the general contractor, this is not a problem; we will continue to work together until we reach an agreement. The next meeting is in one month. We have requested two new plans (one with less floor area but still with a basement, one without a basement), including cost estimates. In the meantime, I wanted to ask here in the forum for obvious issues, suggestions for improvements, ideas, and further opinions.
Development plan / Restrictions
Plot size: 480 m2 (16m x 30m; 52.5ft x 98.4ft)
Slope: No
Floor area ratio: 0.4
Floor space index: -
Building line, boundary, and setback: minimum 3m (10ft) from the street, maximum 19m (62ft)
Edge development: 12m (39ft)
Number of parking spaces: 2
Number of floors: Officially 2 full floors, but the upper floor has a knee wall height of 2.30m (7.5ft) to avoid exceeding maximum building height
Roof type
Style: Gable roof
Orientation: Not fixed
Maximum pitches/restrictions: 30-38°
Additional requirements
Owner requirements
Style, roof type, building type: Standard house
Basement, floors: 2 floors, basement if possible
Number of occupants, age: 2 adults (35), 1 child (+1)
Room needs on ground and upper floors: Home office, otherwise only bedrooms and nothing special
Guest stays per year: once a month
Open or closed architecture: open
Conservative or modern construction: modern? (What does conservative mean?)
Open kitchen, cooking island: open kitchen, half kitchen island
Number of dining seats: 4 daily, up to 8 should fit
Fireplace: No
Music/stereo wall: Nothing special
Balcony, roof terrace: No
Garage, carport: Doesn’t really matter
Utility garden, greenhouse: Utility garden and lawn planned
Other wishes/features/daily routine, preferably with reasons why certain choices or omissions: nothing special
House design
Who created the plan: Planner from a construction company
What do you particularly like? Why? Generally, all our nice-to-haves are covered; we would move in immediately.
What do you not like? Why? Pantry seems to be in the wrong place, cloakroom feels somewhat out of place, garage too long, bathroom and office could be smaller
Estimated price according to architect/planner: 648,000, including extras (garage 46k, ventilation system 16k, solar 10 kWh 22k, lump sum landscaping 25k), excluding earthworks, ancillary costs, and other expenses
Personal price limit for the house including equipment: All in, we have set 600,000 as the budget, meaning we would like to reduce the house price to 500,000 to have enough buffer for everything else (furnishing, additional construction costs, contingency).
Preferred heating system: District heating is mandatory
If you have to give up something, which details/expansions
- can you do without: The garage could become a carport plus tool/bike shed, reading and seating area upstairs can go, bathroom and office could be smaller. Walk-in closet is a nice-to-have and could be arranged differently. If absolutely necessary, we could probably live without the basement, but then the roof must be adapted for storage space and the heating/utility room has to be located somewhere on the ground or upper floor. The pantry as it currently is makes no sense; alternatively, we would enlarge the kitchen and use tall cabinets for storage.
- can you not do without: Shower bathroom on the ground floor, kitchen with 4m length (13ft)
Why did the design turn out like it is now? e.g.
The presented floor plan has been implemented individually and well adapted to the plot with minor exceptions. Some items were only nice-to-haves. The budget has not really been addressed so far. I am a bit worried that the two new variants will also not fit our budget and wonder what else we can optimize.
What is the most important/fundamental question about the floor plan in 130 characters?
How can we best meet our budget? Can we afford the basement, or is that wishful thinking?
Otherwise, I hope I didn’t forget anything in my first post. I have been reading here for a while and hopefully understood the basics 😉 Thanks in advance for your input!
We have a plot in the new development area Jahnplatz in Lachen-Speyerdorf and have had initial talks with a general contractor (solid construction). The preliminary plan (we will only receive the official plan after signing 🙄, so I recreated it as best as I could – room sizes and rough dimensions should be correct) matches our wish list but definitely exceeds our budget. According to the general contractor, this is not a problem; we will continue to work together until we reach an agreement. The next meeting is in one month. We have requested two new plans (one with less floor area but still with a basement, one without a basement), including cost estimates. In the meantime, I wanted to ask here in the forum for obvious issues, suggestions for improvements, ideas, and further opinions.
Development plan / Restrictions
Plot size: 480 m2 (16m x 30m; 52.5ft x 98.4ft)
Slope: No
Floor area ratio: 0.4
Floor space index: -
Building line, boundary, and setback: minimum 3m (10ft) from the street, maximum 19m (62ft)
Edge development: 12m (39ft)
Number of parking spaces: 2
Number of floors: Officially 2 full floors, but the upper floor has a knee wall height of 2.30m (7.5ft) to avoid exceeding maximum building height
Roof type
Style: Gable roof
Orientation: Not fixed
Maximum pitches/restrictions: 30-38°
Additional requirements
Owner requirements
Style, roof type, building type: Standard house
Basement, floors: 2 floors, basement if possible
Number of occupants, age: 2 adults (35), 1 child (+1)
Room needs on ground and upper floors: Home office, otherwise only bedrooms and nothing special
Guest stays per year: once a month
Open or closed architecture: open
Conservative or modern construction: modern? (What does conservative mean?)
Open kitchen, cooking island: open kitchen, half kitchen island
Number of dining seats: 4 daily, up to 8 should fit
Fireplace: No
Music/stereo wall: Nothing special
Balcony, roof terrace: No
Garage, carport: Doesn’t really matter
Utility garden, greenhouse: Utility garden and lawn planned
Other wishes/features/daily routine, preferably with reasons why certain choices or omissions: nothing special
House design
Who created the plan: Planner from a construction company
What do you particularly like? Why? Generally, all our nice-to-haves are covered; we would move in immediately.
What do you not like? Why? Pantry seems to be in the wrong place, cloakroom feels somewhat out of place, garage too long, bathroom and office could be smaller
Estimated price according to architect/planner: 648,000, including extras (garage 46k, ventilation system 16k, solar 10 kWh 22k, lump sum landscaping 25k), excluding earthworks, ancillary costs, and other expenses
Personal price limit for the house including equipment: All in, we have set 600,000 as the budget, meaning we would like to reduce the house price to 500,000 to have enough buffer for everything else (furnishing, additional construction costs, contingency).
Preferred heating system: District heating is mandatory
If you have to give up something, which details/expansions
- can you do without: The garage could become a carport plus tool/bike shed, reading and seating area upstairs can go, bathroom and office could be smaller. Walk-in closet is a nice-to-have and could be arranged differently. If absolutely necessary, we could probably live without the basement, but then the roof must be adapted for storage space and the heating/utility room has to be located somewhere on the ground or upper floor. The pantry as it currently is makes no sense; alternatively, we would enlarge the kitchen and use tall cabinets for storage.
- can you not do without: Shower bathroom on the ground floor, kitchen with 4m length (13ft)
Why did the design turn out like it is now? e.g.
The presented floor plan has been implemented individually and well adapted to the plot with minor exceptions. Some items were only nice-to-haves. The budget has not really been addressed so far. I am a bit worried that the two new variants will also not fit our budget and wonder what else we can optimize.
What is the most important/fundamental question about the floor plan in 130 characters?
How can we best meet our budget? Can we afford the basement, or is that wishful thinking?
Otherwise, I hope I didn’t forget anything in my first post. I have been reading here for a while and hopefully understood the basics 😉 Thanks in advance for your input!
hanghaus2023 schrieb:

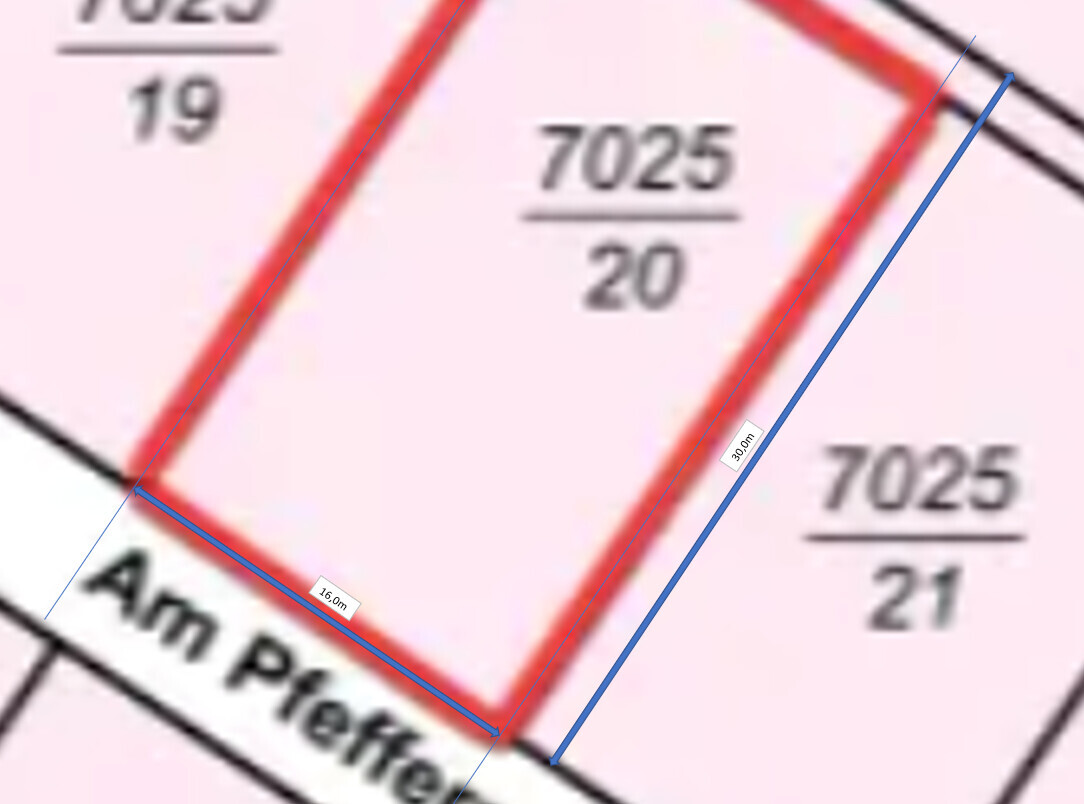

Either your information about the plot (16 x 30 m) is incorrect, or your plans are wrong. Is there a survey plan for the plot? What makes you say that? ...
Pfefferminz schrieb:
District heating is mandatoryWhat are the conditions here? Connection and base fees plus price per kWh?
Is the heat supplier the municipal utility company? Is there an easement recorded in the land register?
H
hanghaus202315 Apr 2023 20:44ypg schrieb:
How do you come to that conclusion? ...When I measure on the plan, I don’t get 16 by 30 meters (52 by 98 feet)hanghaus2023 schrieb:
When I measure on the plan, I don’t get 16*30m (52.5*98.4 ft)On the neighboring property, you can see 27.5 (90.2 ft). Pfefferminz schrieb:
Building window, building line and boundary: minimum 3m (10 ft) from the road,I see a building boundary along the road, so the distance would be 3 + 2 … 5 meters (16 ft)?P
Pfefferminz15 Apr 2023 23:16There is no survey yet; the entire construction area is still being developed until September. Currently, only the sewer system seems to be completed.
Regarding the local heating system, it was simply a prerequisite for the plot. It uses highly efficient gas combustion and also a high-temperature network, so it’s very green and environmentally friendly. The pricing is linked to certain indices; according to last year’s price list (the new one still refers to a different supply area), the energy price is 8.91 c/kWh, the basic charge is 7.26 €/m2 (7.26 €/square meter), and the metering service costs 88.06. There is an easement registered in the land registry; another couple apparently tried to cancel it, but without lengthy legal disputes, there is probably nothing to be done for now.
I have made a few changes and optimizations in my planning, but the best option is probably to wait for the two versions from the planner: a) smaller with a basement and b) without a basement, along with the corresponding cost estimates. Then we will have a better idea of the price difference and whether the extra cost for the additional spaces is worth it for us. We are lucky that there is potential to build upwards, we just need to be certain.
Regarding the local heating system, it was simply a prerequisite for the plot. It uses highly efficient gas combustion and also a high-temperature network, so it’s very green and environmentally friendly. The pricing is linked to certain indices; according to last year’s price list (the new one still refers to a different supply area), the energy price is 8.91 c/kWh, the basic charge is 7.26 €/m2 (7.26 €/square meter), and the metering service costs 88.06. There is an easement registered in the land registry; another couple apparently tried to cancel it, but without lengthy legal disputes, there is probably nothing to be done for now.
I have made a few changes and optimizations in my planning, but the best option is probably to wait for the two versions from the planner: a) smaller with a basement and b) without a basement, along with the corresponding cost estimates. Then we will have a better idea of the price difference and whether the extra cost for the additional spaces is worth it for us. We are lucky that there is potential to build upwards, we just need to be certain.
X
xMisterDx15 Apr 2023 23:54Forget about the basement; it’s not within your all-inclusive budget of 500,000.
