ᐅ Floor Plans – Do you see any potential for improvement? Any ideas?

Created on: 5 Sep 2016 17:47

skybiker2000

Hello everyone,

I am an avid reader of this forum and have already incorporated some of your ideas into our planning.

We are now approaching the final stage (building permit / planning permission) but still have a few questions and are not completely certain about some decisions.

Could you please support us once again?

Here are the questions...

Is a roof pitch of 25° practical if it allows us to achieve a knee wall height of 2 m (6 ft 7 in)? Are there disadvantages to a flatter roof?
Should we also plan knee wall windows on the south side?
Do you see any other areas for optimization?

Grundrissplan eines Wohnhauses mit Garten, Terrasse und Garage im Maßstab 1:100.

Architektur-Grundriss: Wohnhaus mit Garage, Gartenflächen, Maßlinien und Beschriftungen.

Grundrissplan eines Wohnhauses mit Garage; Außenmaße, Raumaufteilung, Maßlinien, Nordpfeil.

Schnitt durch ein mehrstöckiges Wohnhaus mit Keller und Garage, umgeben von Bäumen.

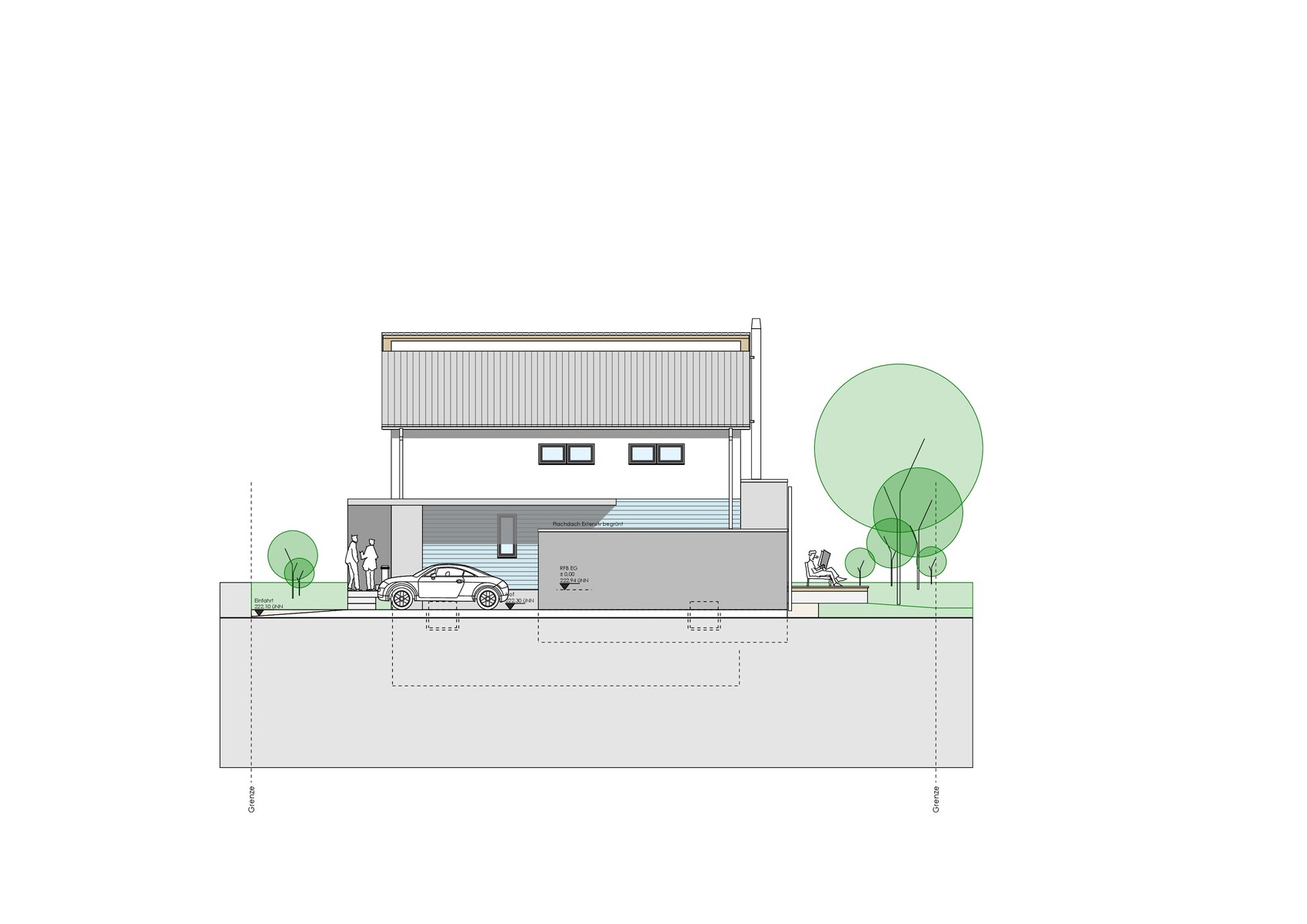

Nordansicht eines modernen Wohnhauses mit Garage, Auto und Bäumen.

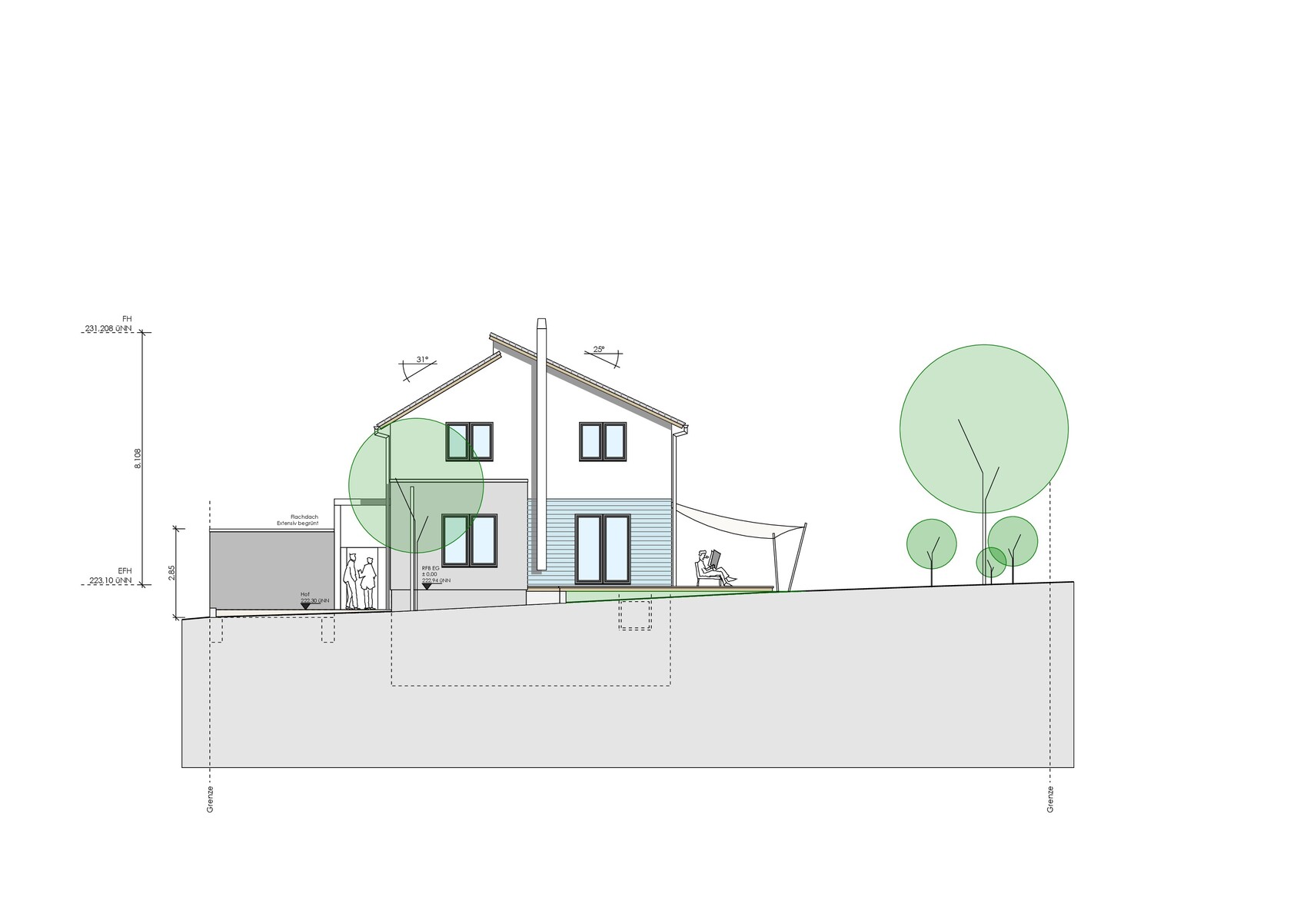

Ansicht Ost: Haus mit Garage am Hang, Bäume links, zwei Personen am Eingang.

Südansicht eines Wohnhauses mit Garage, Terrasse, Sonnenschirm und Bäumen; Architekturskizze

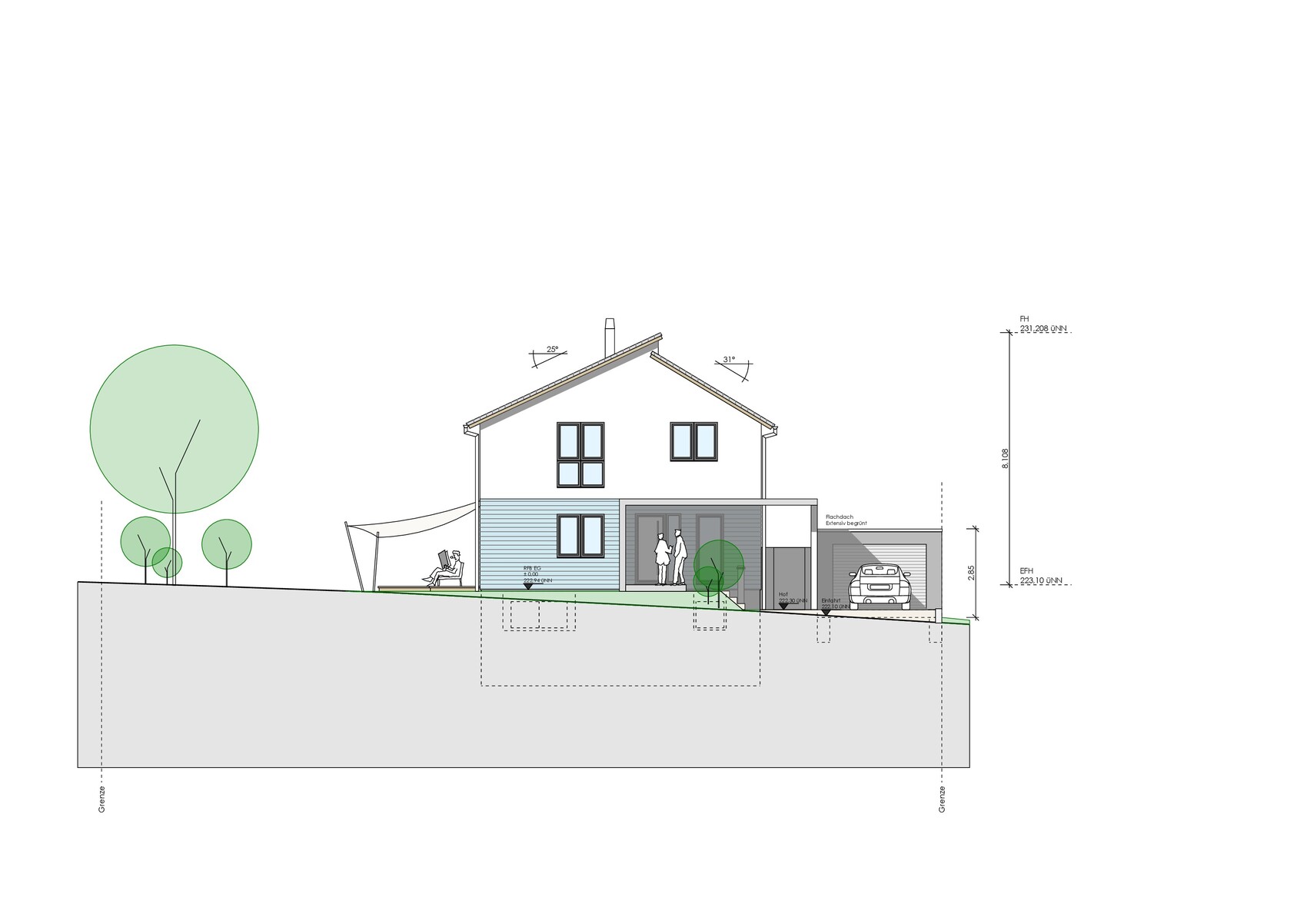

Westansicht eines zweigeschossigen Hauses mit Garage, Garten und Bäumen (Architekturzeichnung).

Thank you very much for your feedback!

skybiker20001 Dec 2016 13:31

#37

Thank you all for your feedback! We will now mentally include a sliding door in the plans.

skybiker20001 Dec 2016 21:40

#38

These are the plans we want to move forward with. At least until March, there is still the possibility to make adjustments to interior details.

Thank you very much for your support!

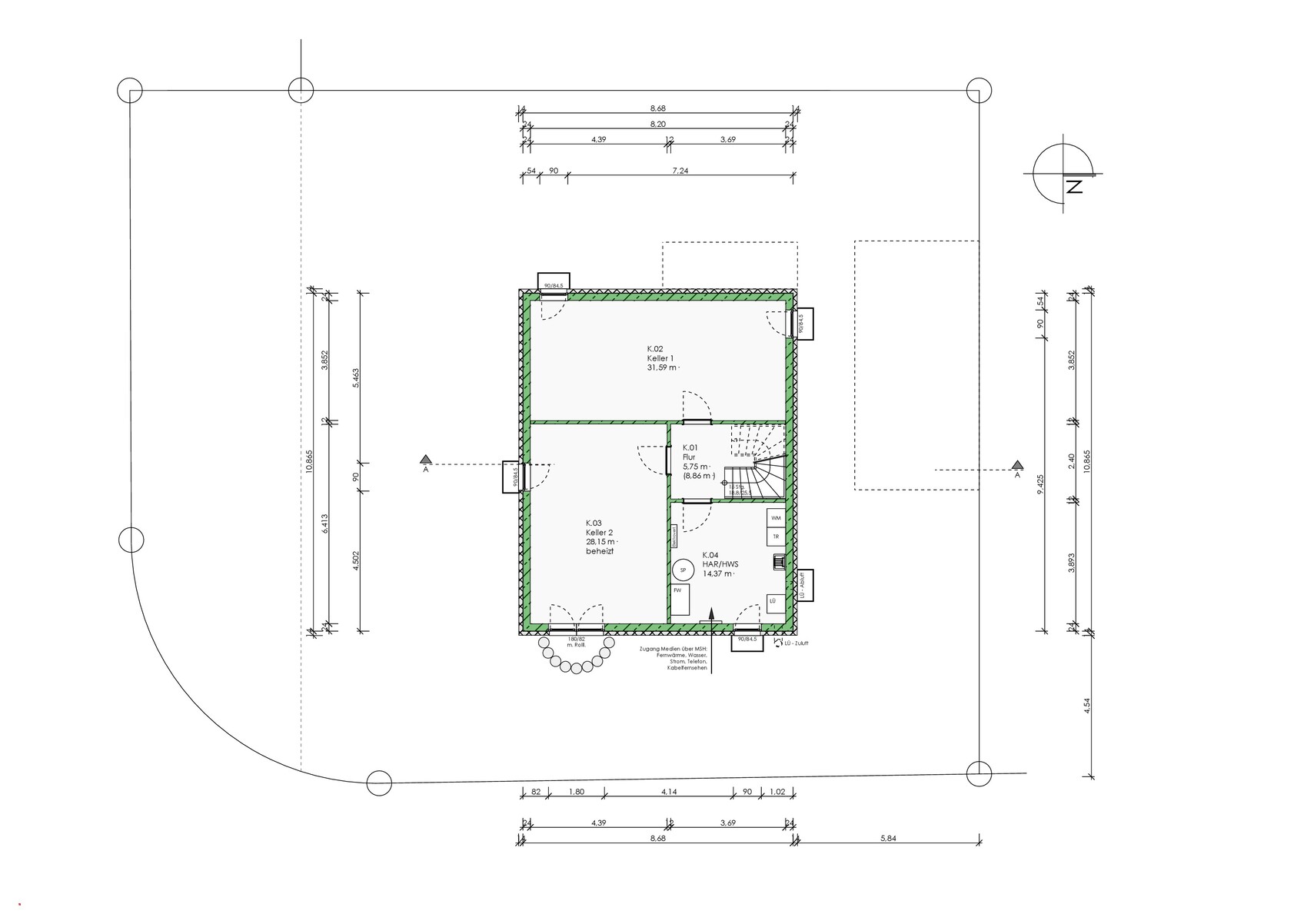

Floor plan of a building with basement rooms outlined in green, doors, stairs and dimension lines

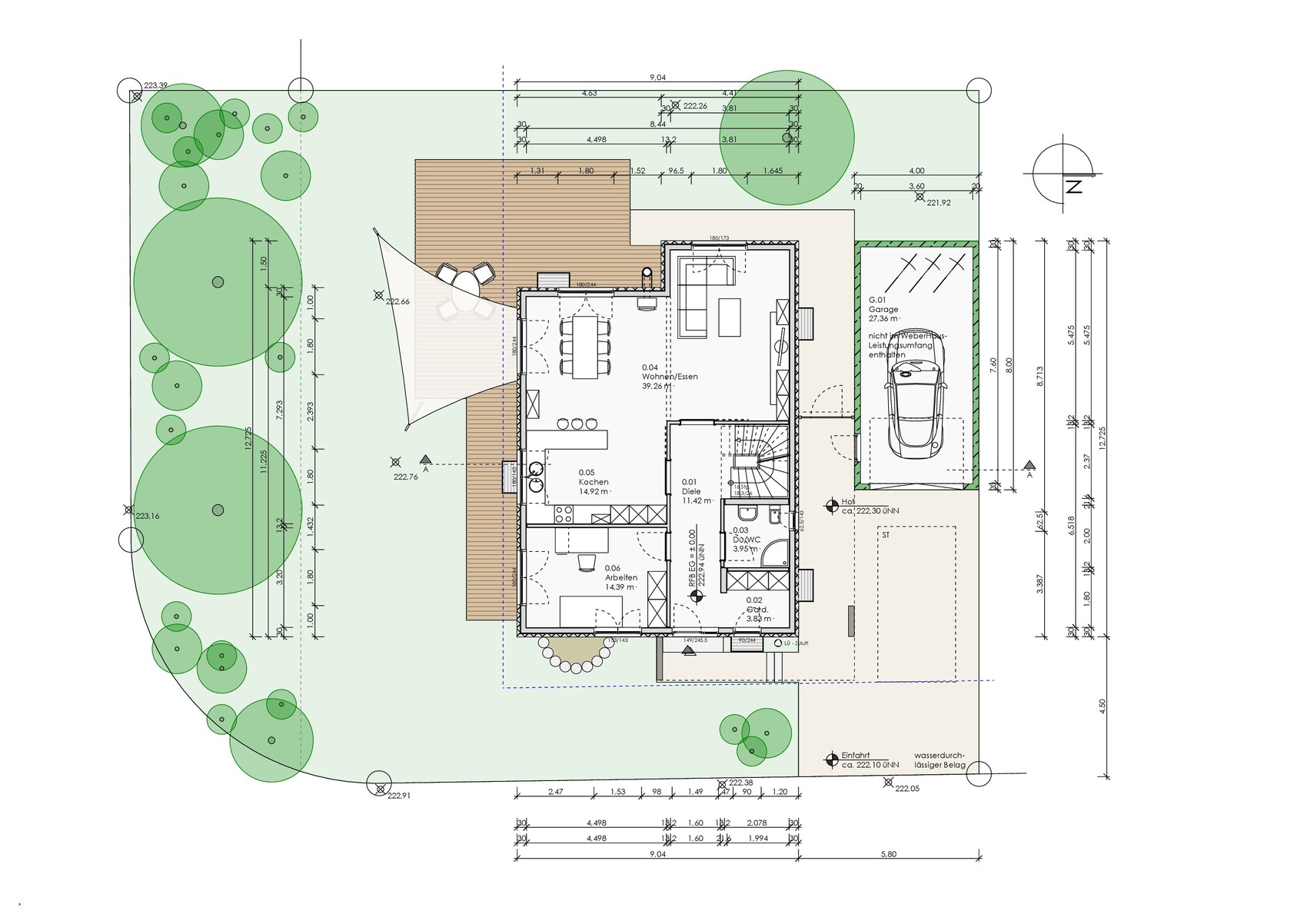

Floor plan of a house with garden, terrace, garage and entrance area

Architectural floor plan of a house with garden, trees and measurements

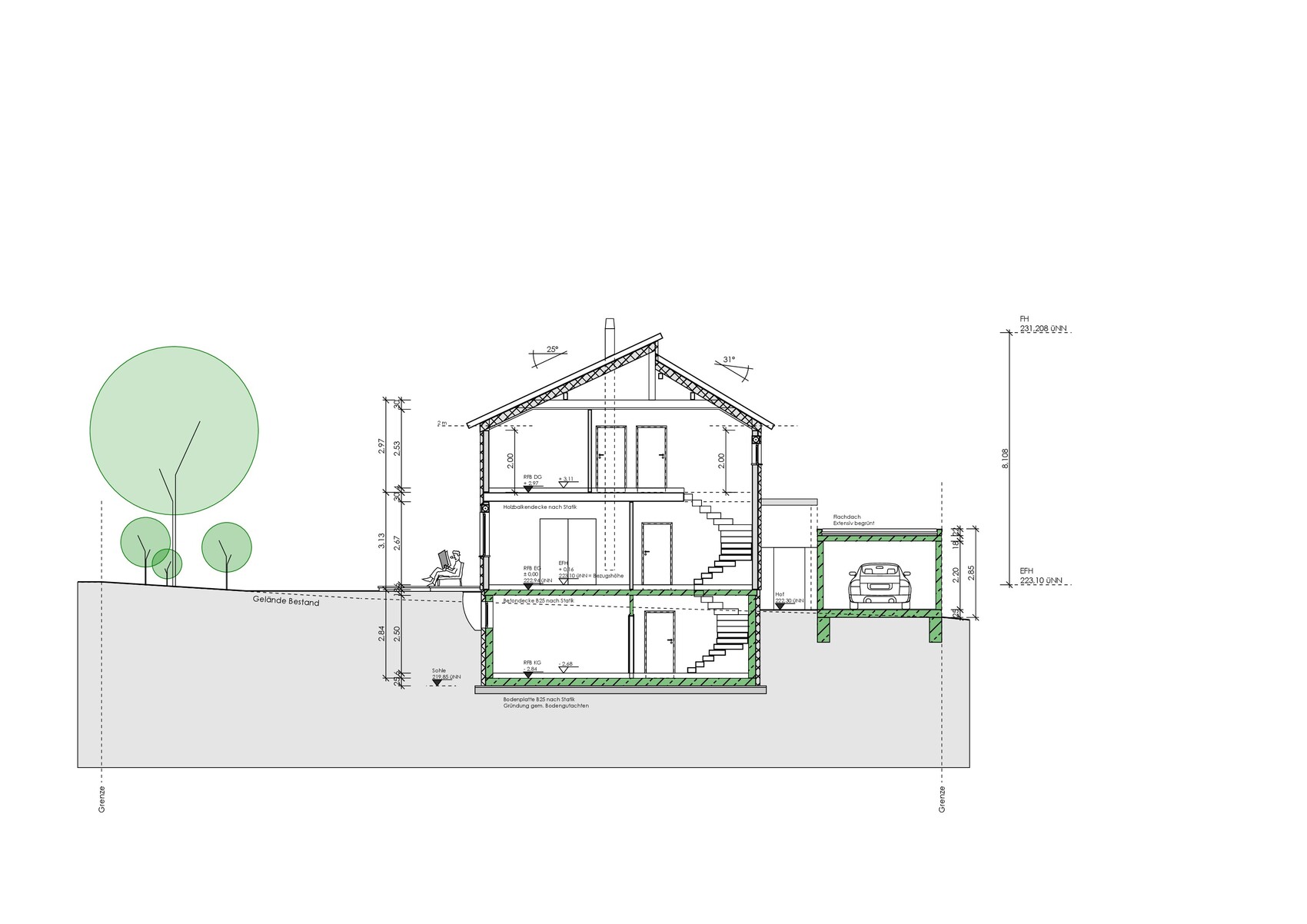

Section through a multi-story house with basement, stairs, garage and trees on a slope

View of a modern two-story house with garage, car, entrance, garden and trees

Architect's rendering of a two-story house with garage on a slope and trees

View of a modern two-story house with gray pitched roof, terrace, sunshade and trees

Architectural drawing: Two-story house with pitched roof, terrace, trees; figures at the entrance

RobsonMKK1 Dec 2016 22:27

#39

I think it’s good... and the floor plan will be almost identical, slightly smaller and with a pitched roof.

skybiker20003 Dec 2016 02:06

#40

One final question.

We have received updated plans again. The rise and tread of the stairs did not fit properly and had to be corrected.

We now have for the stairs (basement -> ground floor)
15 steps / rise 18.9cm (7.4 inches) / tread 26cm (10.2 inches) → step length 63.8cm (25.1 inches)
and for the stairs (ground floor -> upper floor)
16 steps / rise 19.4cm (7.6 inches) / tread 26cm (10.2 inches) → step length 64.8cm (25.5 inches)

A rise of 19.4cm (7.6 inches) seems quite high to me. What do you think?

Thanks!

Bieber08154 Dec 2016 23:44

#41

skybiker2000 schrieb:
Rise 19.4 / Tread 26

In our initial design (from the developer), the values were 19.1/25. I compared this to real existing stairs we know and found them quite steep. We now have 19.7/27, which I find very comfortable but not excessively shallow.

Hope this helps you? We were able to measure in a parent’s house and two grandparents’ houses. You could also do this in a multi-family building...
