ᐅ Floor plan of an urban villa with a hip roof, approximately 170 square meters
Created on: 18 May 2019 15:35
D
Danvane
Hello everyone,
My wife and I have been considering building a house for quite some time now. As a result, I have been reading this forum for a while. First of all, thank you very much for your many helpful tips, which have already helped us tremendously. Many compliments to the numerous users who actively participate here and share their knowledge with others.
Now the time has come for us as well. We have purchased a plot of land in Lower Saxony and are currently working with an architect to develop an optimal floor plan for us.
We have now received a draft, which we think could still be improved in some areas. For this reason, I have decided to share the floor plan here for discussion and hope to get some suggestions or ideas on what we can improve. Perhaps you will also spot things that “just don’t work” or are not practical for everyday use.
Note: The subdivision plan showing the plot (green cross) is oriented to north.
I look forward to any feedback! Here is the questionnaire:
Development plan/restrictions
Plot size: 583 sqm
Slope: no
Floor area ratio (FAR): 0.3
Plot coverage ratio (site occupancy): no requirement
Building envelope, building line, and boundaries:
The plot is 22 m wide and 24.8 m to 26.5 m deep depending on the side. The house should ideally extend more in width than in depth to leave as much garden space as possible on the southwest side. Maximum house width: 22 m (plot width) – 6 m (width of double carport) – 3 m (building boundary where the carport is not located) = 13 m. As for depth, depending on the layout, we are considering between 9 m and a maximum of 11 m.
Setback/building margin: 3 m
Number of parking spaces: no requirement
Number of floors: one full floor
Roof pitch: minimum 15 degrees
Architectural style: no requirement
Orientation: no requirement
Maximum height/limitations: no requirement
Homeowners' requirements
Architectural style, roof type, building type:
Preferred style: townhouse villa with only one full floor (ground floor) and a hip roof on the upper floor; the upper floor may only cover 2/3 of the ground floor area to meet the full-floor condition; whether the ground floor has a projection on two sides or a symmetrical projection on all four sides is initially not decisive and should result from the floor plan; the ground floor projection should be covered with a roof like the upper floor — no balconies or similar.
Basement, floors:
No basement, ground floor is full floor + upper floor as a recessed floor with a maximum of 2/3 of the ground floor area
Number of occupants, ages:
3 people aged 30 (female), 29 (male), and 8 months (child)
Space requirements on ground floor and upper floor:
Ground floor: living/dining/kitchen as one room, utility room, guest WC with shower, office/guest room, entrance hallway with wardrobe
Upper floor: bedroom, dressing room, 2 x children’s rooms, gallery (hallway)
Office: family use or home office:
Primarily home office, but must also provide sleeping space for guests; in younger years, possibly used as a playroom for children on the ground floor
Number of overnight guests per year: <5
Open or closed architecture:
Open concept in the main living area on the ground floor; however, the staircase to the upper floor should be closed off — in other words, we definitely do not want a staircase in the main living space leading upstairs (although stylish, it is not ideal with children’s rooms upstairs)
Conservative or modern construction: modern
Open kitchen, kitchen island: open kitchen with island
Number of dining seats: 6 with option for up to 12 (for visitors, etc.)
Fireplace: no
Music/stereo wall: no, only a sideboard or similar for TV
Balcony, roof terrace: no
Garage, carport:
Double carport with storage room (6 m x 9 m) on the northeast side of the plot at the building boundary
Utility garden, greenhouse: no
Additional wishes/special features/daily routine, also reasons why certain things should or should not be included:
It is important for us to have a generous wardrobe near the front door that allows jackets, shoes, etc., to be dropped off immediately upon entering the house — this keeps dirt from spreading further inside and prevents tripping over shoes, bags, etc., all the time.
House design
Planning by:
The design was created by an architect.
What do you particularly like? Why?
What do you dislike? Why?
Preferred heating system: gas
If you have to do without, which details/extras can you live without / which can you not live without?
Basically, we would very reluctantly deviate from the presented architectural style (“concealed” townhouse villa).
Why did the design turn out the way it is now?
Our wish was a house without sloped ceilings on the upper floor, which of course has to comply with the development plan. Accordingly, the architect designed a form of townhouse villa with a sufficiently large projection on the ground floor as the basic concept. Regarding the room program, it’s probably standard for a house of this size, and we have no special demands in this regard. Some ideas, like connecting the office to the main living area, also came from this forum. In particular, the floor plans by kaho674 have always been very inspiring for new ideas (many thanks for that!).
What is the main/basic question about the floor plan summed up in 130 characters?
We are looking for ideas on how to improve the floor plan and better tailor it to our requirements (e.g., room orientation upstairs, see generally “dislikes”) without increasing the house’s footprint.
My wife and I have been considering building a house for quite some time now. As a result, I have been reading this forum for a while. First of all, thank you very much for your many helpful tips, which have already helped us tremendously. Many compliments to the numerous users who actively participate here and share their knowledge with others.
Now the time has come for us as well. We have purchased a plot of land in Lower Saxony and are currently working with an architect to develop an optimal floor plan for us.
We have now received a draft, which we think could still be improved in some areas. For this reason, I have decided to share the floor plan here for discussion and hope to get some suggestions or ideas on what we can improve. Perhaps you will also spot things that “just don’t work” or are not practical for everyday use.
Note: The subdivision plan showing the plot (green cross) is oriented to north.
I look forward to any feedback! Here is the questionnaire:
Development plan/restrictions
Plot size: 583 sqm
Slope: no
Floor area ratio (FAR): 0.3
Plot coverage ratio (site occupancy): no requirement
Building envelope, building line, and boundaries:
The plot is 22 m wide and 24.8 m to 26.5 m deep depending on the side. The house should ideally extend more in width than in depth to leave as much garden space as possible on the southwest side. Maximum house width: 22 m (plot width) – 6 m (width of double carport) – 3 m (building boundary where the carport is not located) = 13 m. As for depth, depending on the layout, we are considering between 9 m and a maximum of 11 m.
Setback/building margin: 3 m
Number of parking spaces: no requirement
Number of floors: one full floor
Roof pitch: minimum 15 degrees
Architectural style: no requirement
Orientation: no requirement
Maximum height/limitations: no requirement
Homeowners' requirements
Architectural style, roof type, building type:
Preferred style: townhouse villa with only one full floor (ground floor) and a hip roof on the upper floor; the upper floor may only cover 2/3 of the ground floor area to meet the full-floor condition; whether the ground floor has a projection on two sides or a symmetrical projection on all four sides is initially not decisive and should result from the floor plan; the ground floor projection should be covered with a roof like the upper floor — no balconies or similar.
Basement, floors:
No basement, ground floor is full floor + upper floor as a recessed floor with a maximum of 2/3 of the ground floor area
Number of occupants, ages:
3 people aged 30 (female), 29 (male), and 8 months (child)
Space requirements on ground floor and upper floor:
Ground floor: living/dining/kitchen as one room, utility room, guest WC with shower, office/guest room, entrance hallway with wardrobe
Upper floor: bedroom, dressing room, 2 x children’s rooms, gallery (hallway)
Office: family use or home office:
Primarily home office, but must also provide sleeping space for guests; in younger years, possibly used as a playroom for children on the ground floor
Number of overnight guests per year: <5
Open or closed architecture:
Open concept in the main living area on the ground floor; however, the staircase to the upper floor should be closed off — in other words, we definitely do not want a staircase in the main living space leading upstairs (although stylish, it is not ideal with children’s rooms upstairs)
Conservative or modern construction: modern
Open kitchen, kitchen island: open kitchen with island
Number of dining seats: 6 with option for up to 12 (for visitors, etc.)
Fireplace: no
Music/stereo wall: no, only a sideboard or similar for TV
Balcony, roof terrace: no
Garage, carport:
Double carport with storage room (6 m x 9 m) on the northeast side of the plot at the building boundary
Utility garden, greenhouse: no
Additional wishes/special features/daily routine, also reasons why certain things should or should not be included:
It is important for us to have a generous wardrobe near the front door that allows jackets, shoes, etc., to be dropped off immediately upon entering the house — this keeps dirt from spreading further inside and prevents tripping over shoes, bags, etc., all the time.
House design
Planning by:
The design was created by an architect.
What do you particularly like? Why?

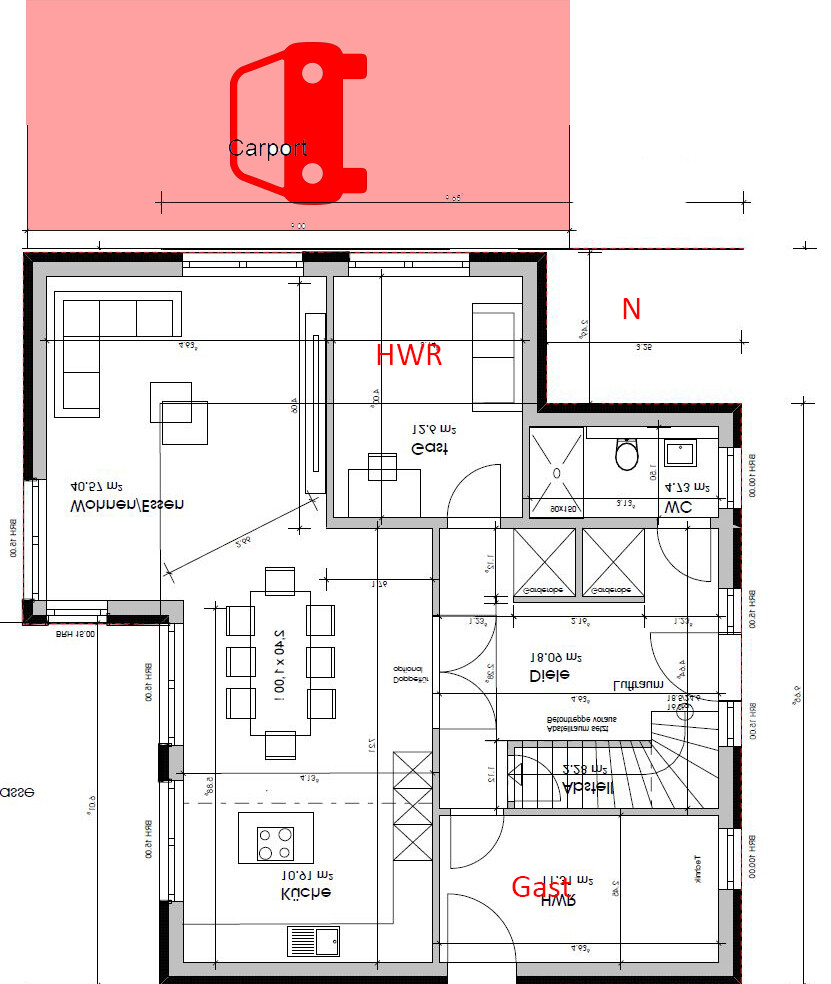

- The entrance hall does not feel narrow but opens comparatively wide
- The wardrobe provides enough space to store jackets, shoes, etc.
- Connection between kitchen and utility room
- Connection between living area and office — the office is not isolated but integrated into the main living area (also usable as a play area for children, for example)
What do you dislike? Why?
- Staircase located in the “dirty” area is not optimal
- Utility room only accessible through the kitchen — potentially inconvenient in everyday life
- Kitchen might be difficult to furnish (storage space issue)
- The entire upper floor needs improvement:
- Both children’s rooms should face southwest with a view of the garden
- Bedroom should be in the north / east
- Dressing room is integrated as requested but is not really usable due to its size
- Bathroom on the upper floor is not connected to the bathroom on the ground floor — probably not ideal
Preferred heating system: gas
If you have to do without, which details/extras can you live without / which can you not live without?
Basically, we would very reluctantly deviate from the presented architectural style (“concealed” townhouse villa).
Why did the design turn out the way it is now?
Our wish was a house without sloped ceilings on the upper floor, which of course has to comply with the development plan. Accordingly, the architect designed a form of townhouse villa with a sufficiently large projection on the ground floor as the basic concept. Regarding the room program, it’s probably standard for a house of this size, and we have no special demands in this regard. Some ideas, like connecting the office to the main living area, also came from this forum. In particular, the floor plans by kaho674 have always been very inspiring for new ideas (many thanks for that!).
What is the main/basic question about the floor plan summed up in 130 characters?
We are looking for ideas on how to improve the floor plan and better tailor it to our requirements (e.g., room orientation upstairs, see generally “dislikes”) without increasing the house’s footprint.
Hehe, no, the carport will of course stay on the north side. Sorry, I didn’t erase that on the mirror image. The advantage would be that everything remains as it is, since the house wall and the carport end at the same height. Except maybe for the windows.
Front view: yes, I think everyone is definitely confused now.
It’s best if you wait for the correct view.
I find the cloakroom interesting. Whether I would like it, I need to think about first. In any case, these are solid spaces with storage also for thick winter coats.
Front view: yes, I think everyone is definitely confused now.
It’s best if you wait for the correct view.
I find the cloakroom interesting. Whether I would like it, I need to think about first. In any case, these are solid spaces with storage also for thick winter coats.
@kaho674
I have to say, in this form it looks quite coherent, although the late west sun might be blocked by the extension. The window on the side of the living room would also no longer make sense, since the storage room for the carport would probably be in the way.
Also, we would need to figure out how to fit the dimensions for the office and utility room without changing too much of the rest, as we are actually very satisfied with the room sizes.
I have to say, in this form it looks quite coherent, although the late west sun might be blocked by the extension. The window on the side of the living room would also no longer make sense, since the storage room for the carport would probably be in the way.
Also, we would need to figure out how to fit the dimensions for the office and utility room without changing too much of the rest, as we are actually very satisfied with the room sizes.
J
j.bautsch27 Jun 2019 10:22Maybe the staircase could be partially integrated into the "new" guest room by installing a custom wardrobe adapted to the slope underneath it. Then the door could be moved upwards to eliminate this "niche" in the hallway. On the hallway side, wardrobes could also be added, for example shoe cabinets.

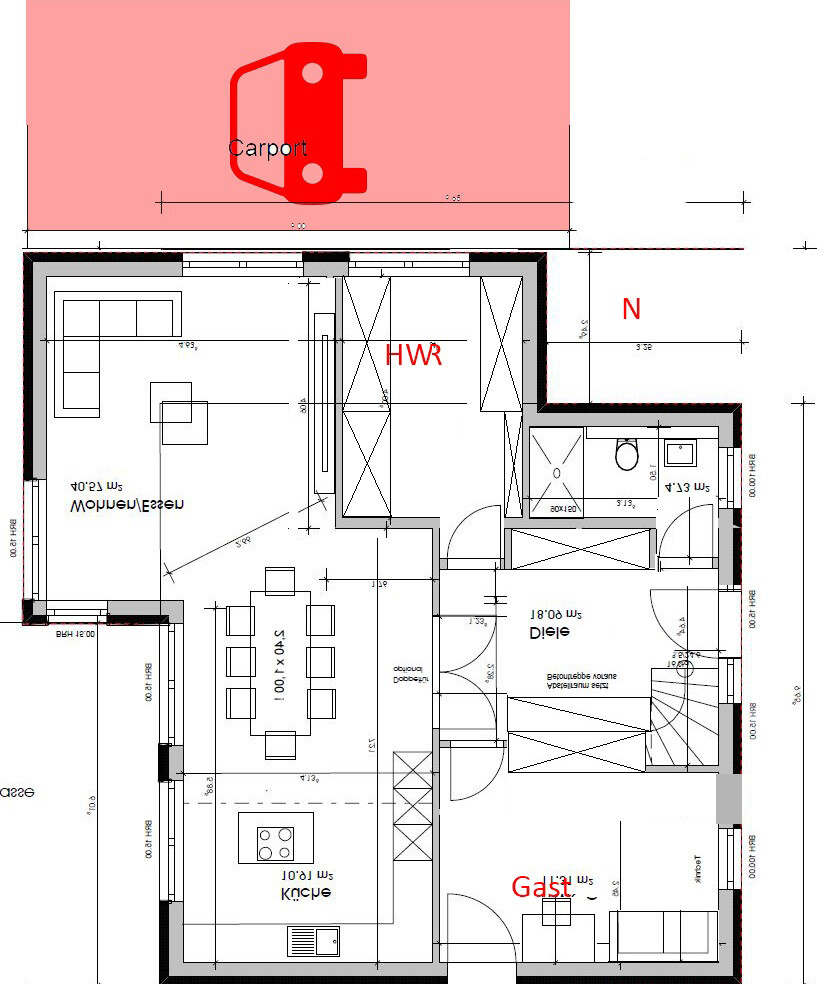

I’m not really fond of these bulky "cubbies." Perhaps it would be better to position "normal" wardrobes straight along the wall between the utility room and the restroom. The wall could be moved slightly downwards on both sides, which would benefit the restroom a lot (90cm (35 inches) rough opening is quite narrow). The wardrobe could be made a bit narrower to improve the restroom space.
The utility room could then be made somewhat smaller, giving the living room a bit more space, and the passage by the dining table would also be more generous.
Sorry for my poor paint skills
I’m not really fond of these bulky "cubbies." Perhaps it would be better to position "normal" wardrobes straight along the wall between the utility room and the restroom. The wall could be moved slightly downwards on both sides, which would benefit the restroom a lot (90cm (35 inches) rough opening is quite narrow). The wardrobe could be made a bit narrower to improve the restroom space.
The utility room could then be made somewhat smaller, giving the living room a bit more space, and the passage by the dining table would also be more generous.
Sorry for my poor paint skills
Well, these are just initial ideas to consider. I think having windows under the carport is better than having none at all. Now you could also start calculating the height of the carport to allow the late evening sun to shine through the carport into the house. The architect would be pleased to hear something like that.
However, I’m afraid that fine-tuning will require a redesign. So don’t be alarmed – this would involve details like the exact position or shape of the staircase, changing the wardrobe layout, and so on.
However, I’m afraid that fine-tuning will require a redesign. So don’t be alarmed – this would involve details like the exact position or shape of the staircase, changing the wardrobe layout, and so on.
@j.bautsch
Thank you for your input. We need to take some time to think it over carefully. I find the ideas very interesting!
@kaho674
You're probably right regarding the detailed planning. I can tell from the feedback here that we are moving into that stage. Basically, I take away that the floor plan’s room sizes and dimensions are appropriate, and we don’t have to completely redo everything, but we should reconsider the terrace layout and perhaps mirror the house as part of that. Thank you!
Thank you for your input. We need to take some time to think it over carefully. I find the ideas very interesting!
@kaho674
You're probably right regarding the detailed planning. I can tell from the feedback here that we are moving into that stage. Basically, I take away that the floor plan’s room sizes and dimensions are appropriate, and we don’t have to completely redo everything, but we should reconsider the terrace layout and perhaps mirror the house as part of that. Thank you!
j.bautsch schrieb:
Maybe the staircase could be partially integrated into the "new" guest room by installing a custom wardrobe adapted to the sloping ceiling underneath. Then the door could be moved upwards, eliminating the "niche" in the hallway. On the hallway side, cabinets could also be added, for example, shoe cabinets.

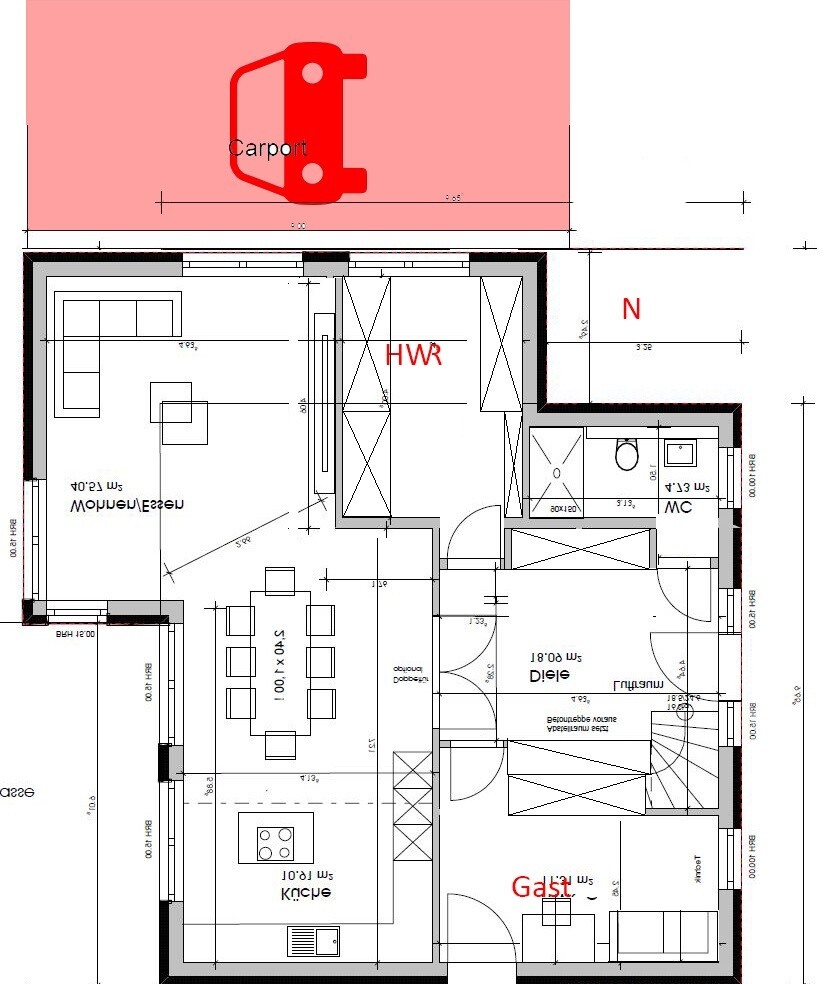

@j.bautsch If I may borrow your idea for a moment, Jenny...
Now let's shift the staircase properly towards the top of the plan. Suddenly, we have a large utility room and a huge guest room. Upstairs, the narrow bathroom could be made much wider or turned into a gallery – although this would mean losing the open space.
Well, as I said, just some ideas to play with. Now you can think about what you like and what you don’t.
