Kamikatzekeepe28 Apr 2022 09:27Hello everyone,
after reading here in the forum for a long time, I would now like to share my concerns.
We have purchased a 600m2 (about 6500 sq ft) sloping plot in a new development area and are currently in final negotiations with a prefab house provider. However, I realize that the plot is not easy to design, so ideally the plot and garden planning should be considered from the very beginning.
I would be interested to hear your thoughts on our concept and how you would proceed.
I have attached two pictures of the plot (one from the bottom, one from above) and one visualization with rough height details for the plot planning.
1. The plot is 600m2 (about 6500 sq ft) and roughly square with 25x25m (82x82 ft). It slopes about 4m (13 ft) from west (street side) to east and about 1.5m (5 ft) from north to south.
2. The gable roof house will be 9x10m (2 floors) with 140m2 (1500 sq ft) plus a full basement. The basement is half exposed on the west side (street side), and those rooms will be used as living spaces.
3. The house should be positioned towards the northeast side to maximize garden space on the south and west sides.
4. The main entrance will also be on the north side, as we do not want to enter the house through the basement. Therefore, the north side will have a driveway with a carport in front of the entrance.
5. The single-family house is defined according to the development plan. If the lowest point of the plot is set to 0m (northwest), the house will be at about 3m (10 ft) in height.
6. If I subtract 50cm (20 inches) for the ceiling thickness, 30cm (12 inches) for the gap between ceiling and the top edge of the window, 90cm (35 inches) for window height, and another 30cm (12 inches) between the floor and bottom edge of the window, this results in about 2m (6.5 ft) of basement exposure relative to the house.
7. This means there is a height difference of 2m (6.5 ft) in our garden between the west side (in front of the basement) and the south side (our terrace).
8. I am now wondering whether it makes sense to introduce three levels (as shown in the picture), or to extend the 3m (10 ft) height from the south side to the street, leaving a relatively large 2m (6.5 ft) difference to the rest of the garden. The latter would likely be much cheaper, as we would pay significantly less in disposal fees/earthworks due to less soil filling. However, this would require a higher retaining wall toward the street.
9. According to the development plan, the retaining wall can be a maximum of 80cm (31 inches) high, with a maximum of two walls in a row, spaced 80cm (31 inches) apart. The slope in between can be graded at a ratio of 1:1.5.
10. For a height difference of about 2m (6.5 ft), approximately 1.6m (5 ft) depth with two retaining walls will be needed.
11. The retaining wall on the east side will probably be the most complex, as almost 2m (6.5 ft) height must be retained along its entire length.
Questions:
1. How would you approach this? Does my very rough visualization make sense, or is it not practical?
2. What costs would you expect for the retaining walls (especially on the east side; for the street side it would also be around 1.5m (5 ft) if the height from the south garden to the street is extended)?
3. Would you discuss these issues with the architect of the prefab house company (with whom we have not yet had contact and are still before signing the contract) or directly with a garden and landscaping specialist? I want to avoid addressing the planning too late and then running into problems due to incorrect house positioning.
Thank you!
Best regards,
Florian
after reading here in the forum for a long time, I would now like to share my concerns.
We have purchased a 600m2 (about 6500 sq ft) sloping plot in a new development area and are currently in final negotiations with a prefab house provider. However, I realize that the plot is not easy to design, so ideally the plot and garden planning should be considered from the very beginning.
I would be interested to hear your thoughts on our concept and how you would proceed.
I have attached two pictures of the plot (one from the bottom, one from above) and one visualization with rough height details for the plot planning.
1. The plot is 600m2 (about 6500 sq ft) and roughly square with 25x25m (82x82 ft). It slopes about 4m (13 ft) from west (street side) to east and about 1.5m (5 ft) from north to south.
2. The gable roof house will be 9x10m (2 floors) with 140m2 (1500 sq ft) plus a full basement. The basement is half exposed on the west side (street side), and those rooms will be used as living spaces.
3. The house should be positioned towards the northeast side to maximize garden space on the south and west sides.
4. The main entrance will also be on the north side, as we do not want to enter the house through the basement. Therefore, the north side will have a driveway with a carport in front of the entrance.
5. The single-family house is defined according to the development plan. If the lowest point of the plot is set to 0m (northwest), the house will be at about 3m (10 ft) in height.
6. If I subtract 50cm (20 inches) for the ceiling thickness, 30cm (12 inches) for the gap between ceiling and the top edge of the window, 90cm (35 inches) for window height, and another 30cm (12 inches) between the floor and bottom edge of the window, this results in about 2m (6.5 ft) of basement exposure relative to the house.
7. This means there is a height difference of 2m (6.5 ft) in our garden between the west side (in front of the basement) and the south side (our terrace).
8. I am now wondering whether it makes sense to introduce three levels (as shown in the picture), or to extend the 3m (10 ft) height from the south side to the street, leaving a relatively large 2m (6.5 ft) difference to the rest of the garden. The latter would likely be much cheaper, as we would pay significantly less in disposal fees/earthworks due to less soil filling. However, this would require a higher retaining wall toward the street.
9. According to the development plan, the retaining wall can be a maximum of 80cm (31 inches) high, with a maximum of two walls in a row, spaced 80cm (31 inches) apart. The slope in between can be graded at a ratio of 1:1.5.
10. For a height difference of about 2m (6.5 ft), approximately 1.6m (5 ft) depth with two retaining walls will be needed.
11. The retaining wall on the east side will probably be the most complex, as almost 2m (6.5 ft) height must be retained along its entire length.
Questions:
1. How would you approach this? Does my very rough visualization make sense, or is it not practical?
2. What costs would you expect for the retaining walls (especially on the east side; for the street side it would also be around 1.5m (5 ft) if the height from the south garden to the street is extended)?
3. Would you discuss these issues with the architect of the prefab house company (with whom we have not yet had contact and are still before signing the contract) or directly with a garden and landscaping specialist? I want to avoid addressing the planning too late and then running into problems due to incorrect house positioning.
Thank you!
Best regards,
Florian
Welcome to the forum,
Please indicate the north arrow in your sketch.
A prefabricated house could become more expensive; the general contractor starts their work from the top edge of the basement,
and until then, you first have to cover the costs.
This could make the earthworks more expensive than the catalog price of the house.
Please indicate the north arrow in your sketch.
A prefabricated house could become more expensive; the general contractor starts their work from the top edge of the basement,
and until then, you first have to cover the costs.
This could make the earthworks more expensive than the catalog price of the house.
W
WilderSueden28 Apr 2022 09:52Do you have a site plan with contour lines?
K

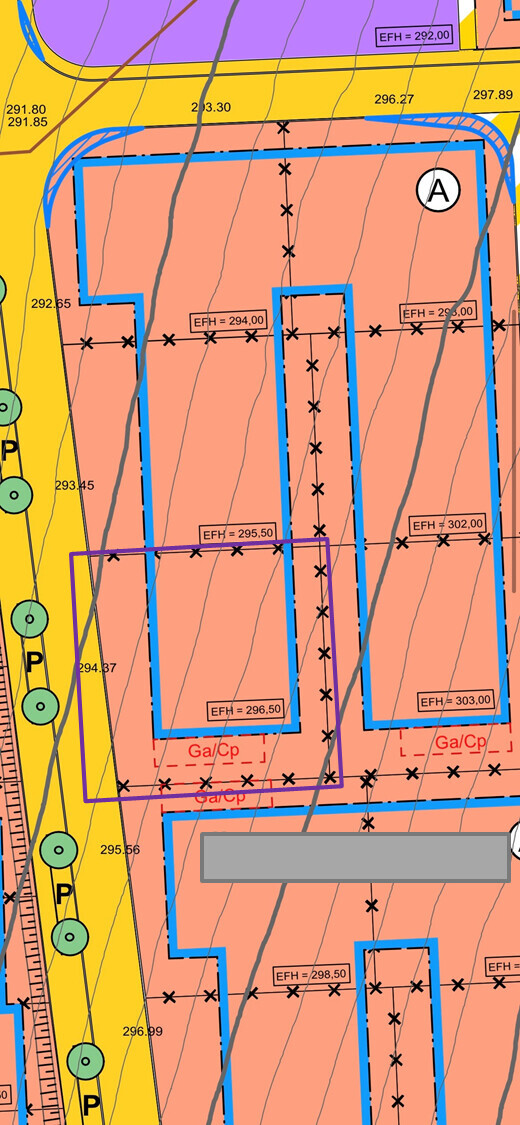

Kamikatzekeepe28 Apr 2022 12:46Hello everyone, my graphic was already oriented to the north. Attached is the site plan with contour lines. Our plot is outlined in purple.
Yes, construction costs have unfortunately increased quite a bit... the basement in the offer is priced at 70,000 (white tank construction, 2.62m (8.6 ft) raw construction height, perimeter insulation). But this is without interior finishes. Including interior finishes, the current offer will surely be over 100,000.
The meter values in my top illustration indicate elevation levels. That means the carport is 2.5m (8.2 ft) above street level. Designing the 14-15m (46-49 ft) driveway will probably be tricky. The width of the carport/house entrance will be about 4.5m (15 ft).
PS: The carport can either be within the drawn window or inside the building envelope. We will place it in the building envelope since we want to have the garden on the south side.
Yes, construction costs have unfortunately increased quite a bit... the basement in the offer is priced at 70,000 (white tank construction, 2.62m (8.6 ft) raw construction height, perimeter insulation). But this is without interior finishes. Including interior finishes, the current offer will surely be over 100,000.
The meter values in my top illustration indicate elevation levels. That means the carport is 2.5m (8.2 ft) above street level. Designing the 14-15m (46-49 ft) driveway will probably be tricky. The width of the carport/house entrance will be about 4.5m (15 ft).
PS: The carport can either be within the drawn window or inside the building envelope. We will place it in the building envelope since we want to have the garden on the south side.
I can’t quite follow the explanations and the approach here.
You have a sloped lot and you’re buying "a piece of the house" and "a piece of the basement" and now want to somehow position them optimally on the property? 🙄
Before any offers for the house/basement come in, everything needs to be planned together on the site.
Especially considering access from the top/north side, driveway, carport, etc.
What has been planned so far and how?
Of course, a prefabricated house supplier can handle the entire planning, but if I’m reading correctly that no discussions have taken place yet, then where is the basement coming from?
Or have you already decided on house X and just informed the basement builder that you need a basement on the slope with living space for that house?
Can’t quite understand. 😳
What drawings or plans do you have so far?
You have a sloped lot and you’re buying "a piece of the house" and "a piece of the basement" and now want to somehow position them optimally on the property? 🙄
Before any offers for the house/basement come in, everything needs to be planned together on the site.
Especially considering access from the top/north side, driveway, carport, etc.
What has been planned so far and how?
Of course, a prefabricated house supplier can handle the entire planning, but if I’m reading correctly that no discussions have taken place yet, then where is the basement coming from?
Or have you already decided on house X and just informed the basement builder that you need a basement on the slope with living space for that house?
Can’t quite understand. 😳
What drawings or plans do you have so far?
