Hello dear forum members,

The electrician has been working on the electrical installation in our shell construction for three weeks now, progressing step by step. Beforehand, I discussed some of my requirements with him. Now that he is almost finished, I have some doubts about whether everything has been done correctly. Without criticizing anything upfront, I would like to ask you to take a look.

This is mainly about the method of installation, not about why there are so few outlets in certain places—that can be sorted separately.

Best regards,
Steffen

Construction site with exposed brick walls; cable bundles lying on the floor along the wall.

Cable bundles of white and orange wires passed through a hole in the wall, tied together.

White electrical cables lying on dusty construction ground, tied in loops, a cable corner visible.

Plastered brick wall with vertical conduit and multiple cable penetrations with cables at the bottom.

Exterior view: door frame, black sealant around cable at the foundation of a brick wall.

Door threshold with black sealant around conduit; cable reels and construction waste outside.

Basement room: exposed green-yellow and white cables on dusty floor near a brick wall.

Construction site: unplastered brick wall, white and orange cables laid along the floor.

Unplastered interior: orange brick walls, visible electrical work, and window to the outside.

Shell construction: exposed brick wall with visible wiring and cables, plaster residues.

Mycraft20 Jun 2021 09:04

Looks quite okay, but yes, everything has already been said about the lack of protective conduits.

borxx20 Jun 2021 09:18

According to which DIN standard was the execution agreed upon as the basis (in writing)?

NoggerLoger20 Jun 2021 10:01

It will work, but I would have put everything inside conduits. I also have a KNX installation, so the conduits don’t really add much complexity. In my case, conduits for the NYM cables only run up to the screed height. It is also allowed to install without conduits, but whether you can pull new cables later is questionable if there are more than 2-3 bends. The builders in my house walked freely on the pipes, so make sure that no one steps on the cables.

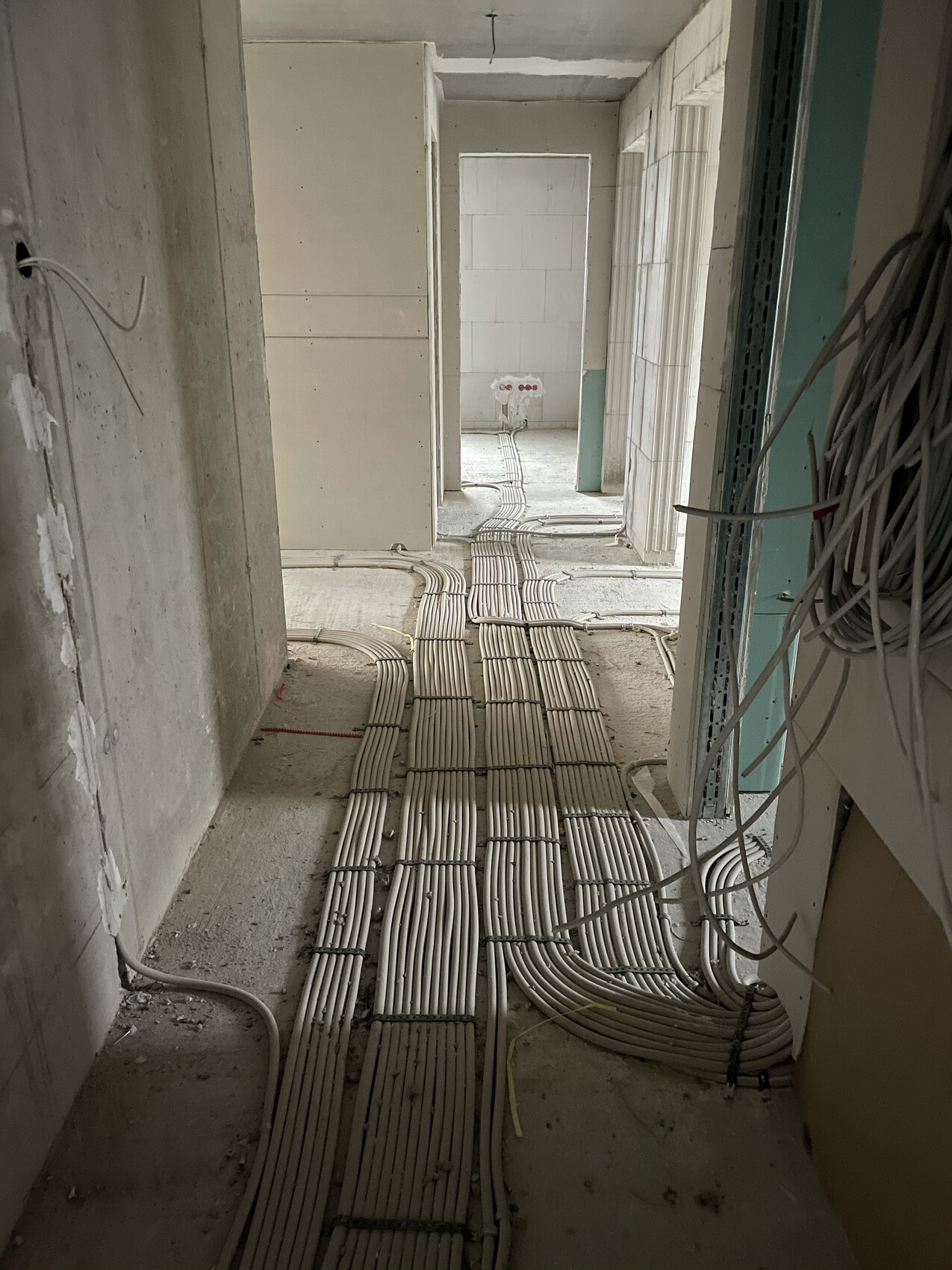

Hallway in shell construction with installed cable ducts and open electrical installation

dynaudio7920 Jun 2021 11:13

#10

borxx schrieb:

According to which DIN standard was the execution agreed upon as the written basis?

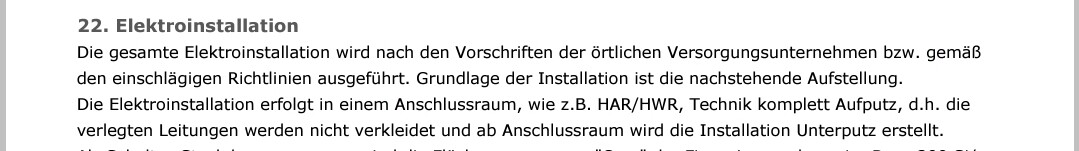

Here is an excerpt from the scope of work description..............................

Document section 22: Electrical installation with guidelines and continuous text

Mycraft20 Jun 2021 11:25

#11

So basically, just wing it. Because utility companies really don’t care much about anything beyond the meter.

dynaudio7920 Jun 2021 12:02

#12

Relevant guidelines mean VDE and DIN standards to me.
