Hello,
I would like to start a new thread regarding the initial design planning.
Previous thread: Single-family house – Opinions on our design
https://www.hausbau-forum.de/threads/Einfamilienhaus-Meinungen-zu-unserem-Entwurf.25622/
Here are the main points:
The foundation slab is already in place: 12.49 x 12.49 m2 (41 x 41 ft2) and 30 cm (12 inches) thick.
The foundation slab was inspected for quality by an energy consultant and a structural engineer – no issues were found.
The locations of the underground drainage pipes are marked in the image titled "Foundation Slab - Drainage Pipes."
The house is planned to be built on the existing foundation slab. Demolition is not planned.
The house needs to be constructed as a one-story plus attic (E+1) with a gable roof at a 22° pitch.
The original submission plan from the previous owner was applied for but has not been received yet.
Our own submission plan from the architect exists but was mostly rated as unsatisfactory.
Negative points in the submission plan:
Our specific requests:
We like the ground floor and its room layout quite well. However, the half-landing staircase should be replaced by a space-saving alternative.
The staircase was placed centrally to allow the desired rooms to be created.
------------------------------------------------------------------------
• Development plan / restrictions
Plot size: Parcel 35, 775 m2 (8,835 ft2)
KFW 55 standard
Slope: Yes
Site coverage ratio: 0.35
Floor area ratio: 0.80
Building envelope, building line, and boundary: see site plan
Edge development: No
Number of parking spaces: 2
Number of storeys: 2
Roof style: Gable roof, 22° pitch
Style / orientation: South - southeast
Maximum dimensions/limits: Building maximum = 14 m x 10 m (46 x 33 ft) plus single-story extension with max. length 10 m (33 ft), max. depth 3 m (10 ft)
Client requirements
Style, roof type, building type: Gable roof, 22° pitch
Basement, storeys: No basement, 2 full storeys
Number and ages of occupants: 4 persons (3 females, 1 male), ages 40, 38, 12, 9
Space requirements on ground and upper floors: Since no basement, more space per floor needed → approx. 90 m2 (970 ft2) per floor
Office use: Home office planned, possibly later converted to a bedroom / guests about 6 times a year
Open or closed layout: Open layout, at least on the ground floor
Traditional or modern design: Modern design
Open kitchen with island: Yes, open kitchen with cooking island
Number of dining seats: 1
Fireplace: Yes, should be placed in the living room, as the chimney should not pass through the children’s bedrooms.
Music / stereo wall: No
Balcony, roof terrace: Balcony: yes, roof terrace: no
Garage, carport: Double garage with partition
Additional wishes / special features / daily routine explanations:
Photovoltaic system + possibly battery storage, active ventilation system with heat recovery, air heat exchanger, cistern
House design
Planner: Architect
- Company planner: No
- Architect: Yes
- DIY: No
What do you especially like? Why? Ground floor thanks to the open design with large windows
What do you dislike? Why? Upper floor layout
Estimated price according to architect/planner: ?
Personal budget limit for house including fixtures: 400,000 €
Preferred heating technology: Air heat exchanger with underfloor heating
If you had to give up something, which details or features could you do without?
- Can give up: Battery
Cannot do without:
Why is the design the way it is now? e.g.
Not a standard design from the planner, ideas based on model houses + floor plans found online + architect input
What is the most important / fundamental question about the floor plan in 130 characters?
How can I improve the layout of the house?
I would like to start a new thread regarding the initial design planning.
Previous thread: Single-family house – Opinions on our design
https://www.hausbau-forum.de/threads/Einfamilienhaus-Meinungen-zu-unserem-Entwurf.25622/
Here are the main points:
The foundation slab is already in place: 12.49 x 12.49 m2 (41 x 41 ft2) and 30 cm (12 inches) thick.
The foundation slab was inspected for quality by an energy consultant and a structural engineer – no issues were found.
The locations of the underground drainage pipes are marked in the image titled "Foundation Slab - Drainage Pipes."
The house is planned to be built on the existing foundation slab. Demolition is not planned.
The house needs to be constructed as a one-story plus attic (E+1) with a gable roof at a 22° pitch.
The original submission plan from the previous owner was applied for but has not been received yet.
Our own submission plan from the architect exists but was mostly rated as unsatisfactory.
Negative points in the submission plan:
- Ground floor + upper floor
- Staircase between ground and upper floor is not properly dimensioned
- Ground floor
- Staircase unsuitable, takes up too much space; entrance to living area is through the kitchen
- Access from garage to house does not fit due to height differences
- Upper floor
- Staircase unsuitable, room layout and a dark hallway with hallway width only 1.10 m (3.6 ft)
- Balcony extends across the entire house length
- See east elevation under the image “View all sides”
- The balcony was extended because the upper floor protrudes 70 cm (28 inches) beyond the ground floor, covering the resulting overhang. In the previous plan, the balcony was only above the bay window.
Our specific requests:
We like the ground floor and its room layout quite well. However, the half-landing staircase should be replaced by a space-saving alternative.
The staircase was placed centrally to allow the desired rooms to be created.
- Keep the technical room in the marked position for connection reasons, near the turning circle.
- Keep the front door position as shown – access from the garage plus guests parking in front of the garage.
- Central staircase to maintain short walking distances.
- Type of staircase: corner staircase with quarter turns (1x or 2x 90° turns) or straight staircase. Spiral staircases are not desired.
- Modern house with an open kitchen and living area.
- Home office.
- Guest toilet with shower.
- Pantry for freezer, food, and beverages.
- Large children's bedrooms, preferably on the south side.
- Room for a walk-in dressing area.
- Separate entrance to the master bedroom, not through the dressing room.
- One master bathroom and one children’s bathroom.
- Small utility room (approx. 6–8 m2 (65–86 ft2)) on the upper floor for washing machine and dryer.
- Tiled stove; the chimney flue should not run through the children’s bedrooms. Preferred route is through the bathroom or utility room.
------------------------------------------------------------------------
• Development plan / restrictions
Plot size: Parcel 35, 775 m2 (8,835 ft2)
KFW 55 standard
Slope: Yes
Site coverage ratio: 0.35
Floor area ratio: 0.80
Building envelope, building line, and boundary: see site plan
Edge development: No
Number of parking spaces: 2
Number of storeys: 2
Roof style: Gable roof, 22° pitch
Style / orientation: South - southeast
Maximum dimensions/limits: Building maximum = 14 m x 10 m (46 x 33 ft) plus single-story extension with max. length 10 m (33 ft), max. depth 3 m (10 ft)
Client requirements
Style, roof type, building type: Gable roof, 22° pitch
Basement, storeys: No basement, 2 full storeys
Number and ages of occupants: 4 persons (3 females, 1 male), ages 40, 38, 12, 9
Space requirements on ground and upper floors: Since no basement, more space per floor needed → approx. 90 m2 (970 ft2) per floor
Office use: Home office planned, possibly later converted to a bedroom / guests about 6 times a year
Open or closed layout: Open layout, at least on the ground floor
Traditional or modern design: Modern design
Open kitchen with island: Yes, open kitchen with cooking island
Number of dining seats: 1
Fireplace: Yes, should be placed in the living room, as the chimney should not pass through the children’s bedrooms.
Music / stereo wall: No
Balcony, roof terrace: Balcony: yes, roof terrace: no
Garage, carport: Double garage with partition
Additional wishes / special features / daily routine explanations:
Photovoltaic system + possibly battery storage, active ventilation system with heat recovery, air heat exchanger, cistern
House design
Planner: Architect
- Company planner: No
- Architect: Yes
- DIY: No
What do you especially like? Why? Ground floor thanks to the open design with large windows
What do you dislike? Why? Upper floor layout
Estimated price according to architect/planner: ?
Personal budget limit for house including fixtures: 400,000 €
Preferred heating technology: Air heat exchanger with underfloor heating
If you had to give up something, which details or features could you do without?
- Can give up: Battery
Cannot do without:
Why is the design the way it is now? e.g.
Not a standard design from the planner, ideas based on model houses + floor plans found online + architect input
What is the most important / fundamental question about the floor plan in 130 characters?
How can I improve the layout of the house?
11ant schrieb:

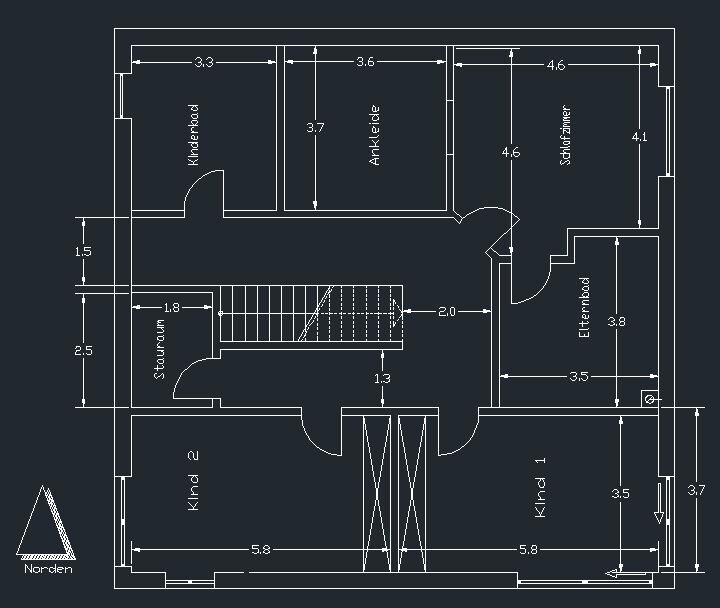

What I meant was that while your sketches might be completely clear to you, they are hardly understandable to others following along. Is room 14 supposed to be a storage room? – the “corridor” probably represents the staircase. Overall, overlaying the colorful drawing with the plan of the previous building doesn’t help with the readability of the entire composition. And where no one can make sense of it, there will naturally be little commentary. You need to form an opinion first, and that requires understanding what is meant.
It’s not clear to me either – but I can only say I’m guessing; the drawing is not really clear (at least not due to missing dimensions, as I also orient myself by proportions).
Fireplace? – I suspect the shaft next to the children’s closets is supposed to represent that (although it’s not located above what looks like a fireplace on the ground floor)?
From this perspective, I honestly see no other choice than the contractor who started the construction, as there is practically no alternative.
“Ah” (to quote Loriot again). I believe I have already made similar comments about this.Was there any response to this? Before you start drawing floor plans recklessly, the most basic questions need to be settled first. Afterwards, it’s too late!
MBS2201 schrieb:

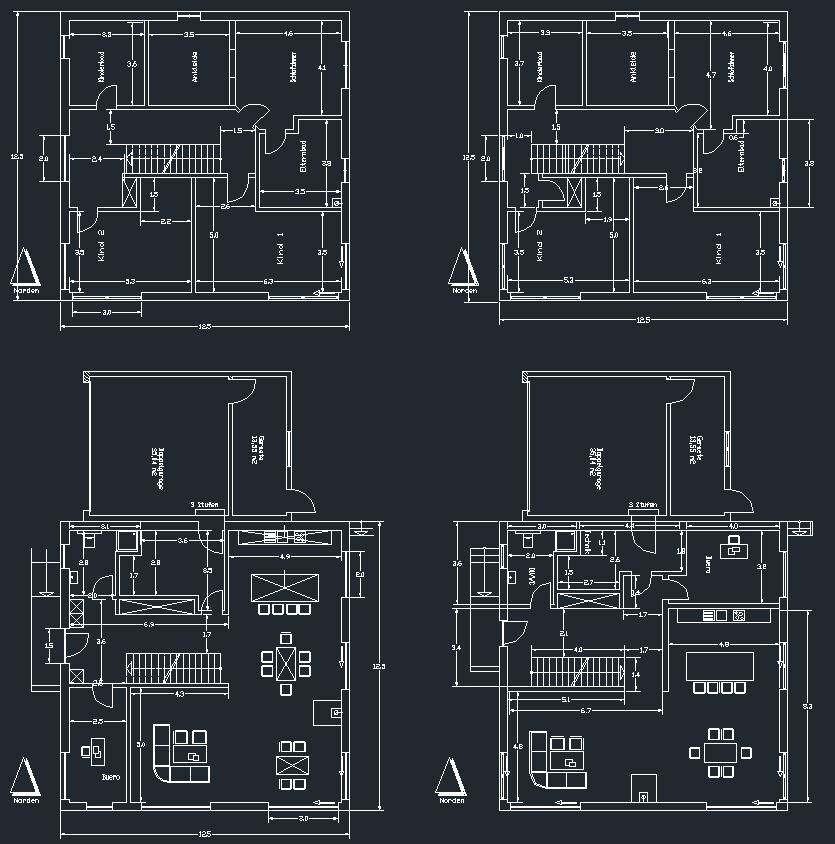

The drawings match the upper floor versions I created with Homebyme. Which ones do you mean? They are quite clearly legible anyway; I prefer the second one. For the first, I would move the stairs by one landing.
