ᐅ Floor plan design for a single-family house with approximately 130 square meters (about 1,400 square feet) of living space
Created on: 16 Jun 2024 19:36
J
jan_christlieb
Hello everyone,
attached is our design for a single-family house. I’m looking forward to your critical feedback and any questions. Thanks in advance!
Development Plan / Restrictions
Plot size: 500 sqm (5,382 sq ft)
Slope: no
Floor area ratio: 0.4 (built-up area according to design 0.26)
Floor space index: 2
Building line: construction must be directly at the property boundary (to maintain the urban character)
Number of parking spaces: 1
Number of floors: 2
Roof type: gable roof
Maximum heights / limits: living area between 6.00 - 7.50 m (19.7 - 24.6 ft) / full height max. 11 m (36 ft)
Other: no or only minimal roof overhang allowed
Client Requirements
Style, roof shape, building type: townhouse with a cost-optimized layout (no projections, recesses, gables, etc.)
Basement, floors: no basement
Number of occupants, age: 3 people (38 years, 38 years, 2 years)
Space requirement ground floor, upper floor: approx. 120-130 sqm (1,292-1,399 sq ft)
Office: family use or home office? Home office
Guest stays per year: between 20-25
Open or closed architecture: open
Conventional or modern design: modern
Open kitchen, cooking island: open kitchen
Number of dining seats: 4 standard (+4 when extended)
Fireplace: no
Music / stereo wall: no
Balcony, roof terrace: no
Garage, carport: carport
Utility garden, greenhouse: greenhouse
Other special features:
- Streetlight at bedroom level
House Design
Who planned it: mainly own planning with input from an architect
What do you like most? Why?
- Utility room with second entrance used as a mudroom
- Bright kitchen-living area with generous terrace
- Two offices or home offices still possible when guests are present
- Vaulted rooms on upper floor with sleeping gallery
- Covered main entrance via carport
What do you not like? Why?
- Northwest elevation (window arrangement)
- No existing trees on the property; a good, constructive sunshade on the terrace is absolutely necessary
- No evening sun in the garden
- Small office could get too hot in summer (many windows, little space)
Price estimate by architect/planner: 400K
Personal price limit for the house, including fittings: 450K
Preferred heating technology: air-to-water heat pump
If you had to give up, which details / additions
- Could give up: bikeport / second home office / shower on ground floor
- Could not give up: home office, bedroom, children’s room
Why is the design the way it is now? For example,
The design is the result of:
- our needs analysis
- available budget
- inspiration from model homes and media (magazines / books / YouTube)
attached is our design for a single-family house. I’m looking forward to your critical feedback and any questions. Thanks in advance!
Development Plan / Restrictions
Plot size: 500 sqm (5,382 sq ft)
Slope: no
Floor area ratio: 0.4 (built-up area according to design 0.26)
Floor space index: 2
Building line: construction must be directly at the property boundary (to maintain the urban character)
Number of parking spaces: 1
Number of floors: 2
Roof type: gable roof
Maximum heights / limits: living area between 6.00 - 7.50 m (19.7 - 24.6 ft) / full height max. 11 m (36 ft)
Other: no or only minimal roof overhang allowed
Client Requirements
Style, roof shape, building type: townhouse with a cost-optimized layout (no projections, recesses, gables, etc.)
Basement, floors: no basement
Number of occupants, age: 3 people (38 years, 38 years, 2 years)
Space requirement ground floor, upper floor: approx. 120-130 sqm (1,292-1,399 sq ft)
Office: family use or home office? Home office
Guest stays per year: between 20-25
Open or closed architecture: open
Conventional or modern design: modern
Open kitchen, cooking island: open kitchen
Number of dining seats: 4 standard (+4 when extended)
Fireplace: no
Music / stereo wall: no
Balcony, roof terrace: no
Garage, carport: carport
Utility garden, greenhouse: greenhouse
Other special features:
- Streetlight at bedroom level
House Design
Who planned it: mainly own planning with input from an architect
What do you like most? Why?
- Utility room with second entrance used as a mudroom
- Bright kitchen-living area with generous terrace
- Two offices or home offices still possible when guests are present
- Vaulted rooms on upper floor with sleeping gallery
- Covered main entrance via carport
What do you not like? Why?
- Northwest elevation (window arrangement)
- No existing trees on the property; a good, constructive sunshade on the terrace is absolutely necessary
- No evening sun in the garden
- Small office could get too hot in summer (many windows, little space)
Price estimate by architect/planner: 400K
Personal price limit for the house, including fittings: 450K
Preferred heating technology: air-to-water heat pump
If you had to give up, which details / additions
- Could give up: bikeport / second home office / shower on ground floor
- Could not give up: home office, bedroom, children’s room
Why is the design the way it is now? For example,
The design is the result of:
- our needs analysis
- available budget
- inspiration from model homes and media (magazines / books / YouTube)
J

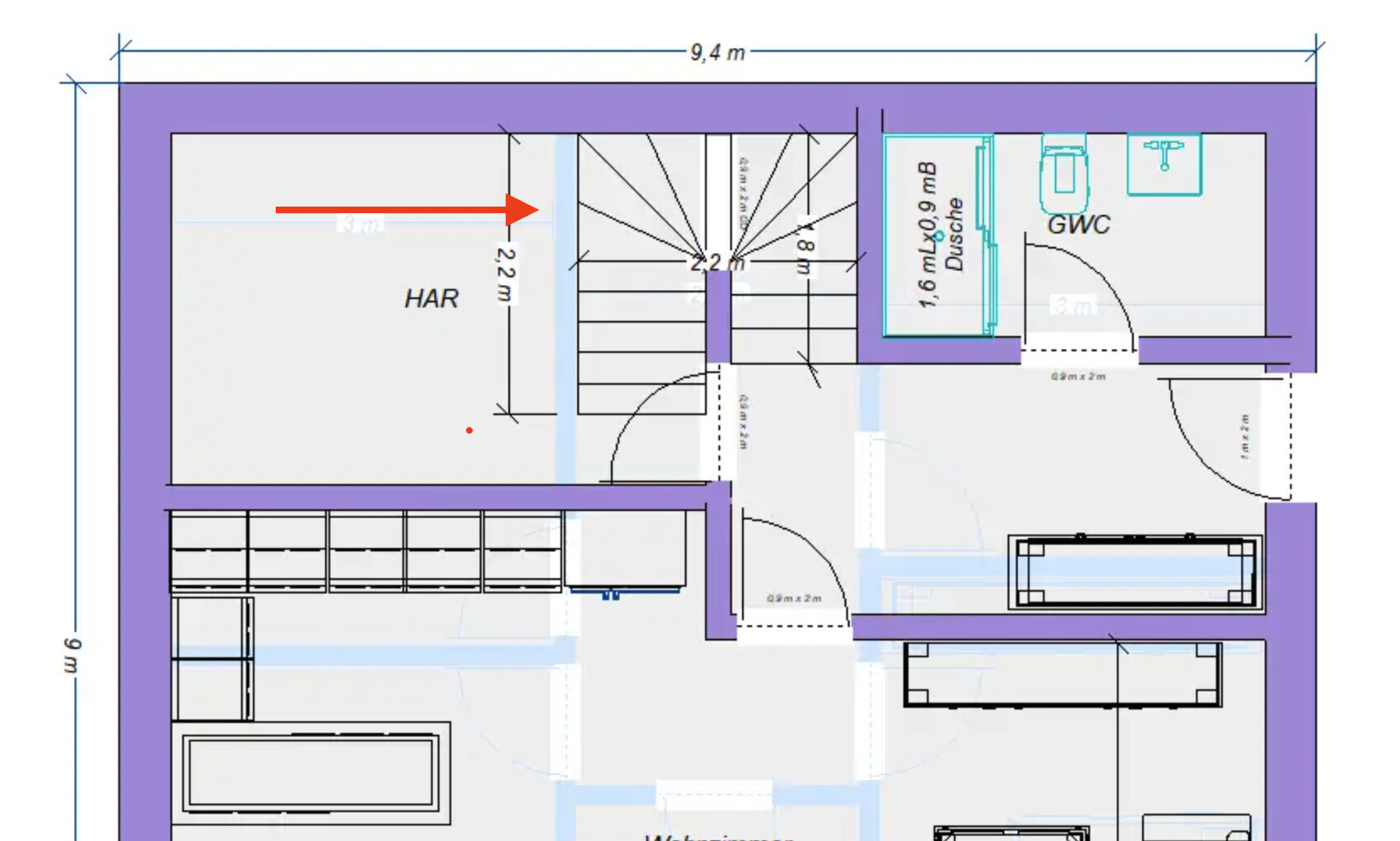

jan_christlieb29 Jun 2024 19:11@K a t j a The space under the stairs is part of the utility room in your sketch, right? On one hand, I find that very practical, but on the other hand, I’m concerned that we might have a noise insulation issue. The stairs transmit sound from sources like a washing machine much more than a wall would.
jan_christlieb schrieb:
@K a t j a In your sketch, the space under the stairs is part of the utility room, right? On one hand, I think that’s very practical, but on the other, I’m concerned we might have a sound insulation issue. The stairs transmit sound from, among other things, a washing machine much more effectively than a wall.I’d say it depends on the type of stairs.jan_christlieb schrieb:
@K a t j a The space under the stairs is part of the utility room in your sketch, right? On one hand, I find that very practical, but on the other, I’m concerned we might have a sound insulation issue. The staircase transmits noise from, among other things, a washing machine much more effectively than a wall does.I’ll respond differently: now it’s time for the architect!60cm (24 inches) from the edge of the table to the partition wall in the living area is not a realistic distance. Try to replicate this with your current table and a chair. You should plan for at least 90cm (36 inches), preferably 100cm (39 inches), and then the other distance to the island will naturally become quite tight, especially when people are actually sitting at the table.
K a t j a schrieb:
The bedroom would then be right next to the street. I would reconsider that if I were you. Yes, sigh, cobblestones can be quite tiring.
hanghaus2023 schrieb:
That should be enough. The T fitting also fits into an 11cm (4.3 inches) wall, so almost 1 meter (3.3 feet) in total. But 11cm (4.3 inches) wall thickness is actually closer to 11.5cm (4.5 inches). With plaster, the thickness is around 13–15cm (5.1–5.9 inches), and if tiled, it can be up to 18cm (7.1 inches). This also applies to the 90cm (35 inches) recesses for the toilet and shower. A bathtub will not be flush against the wall either. It can happen that the mason uses their tolerance and the stairwell shifts by 3cm (1.2 inches).
I wouldn’t plan everything (this applies to the entire design) down to the last centimeter so tightly that there’s hardly any room left.
You might have very limited options for placing light switches, for example in the cloakroom.
Regarding the bathroom, I would think carefully about the actual use of the shower stub.

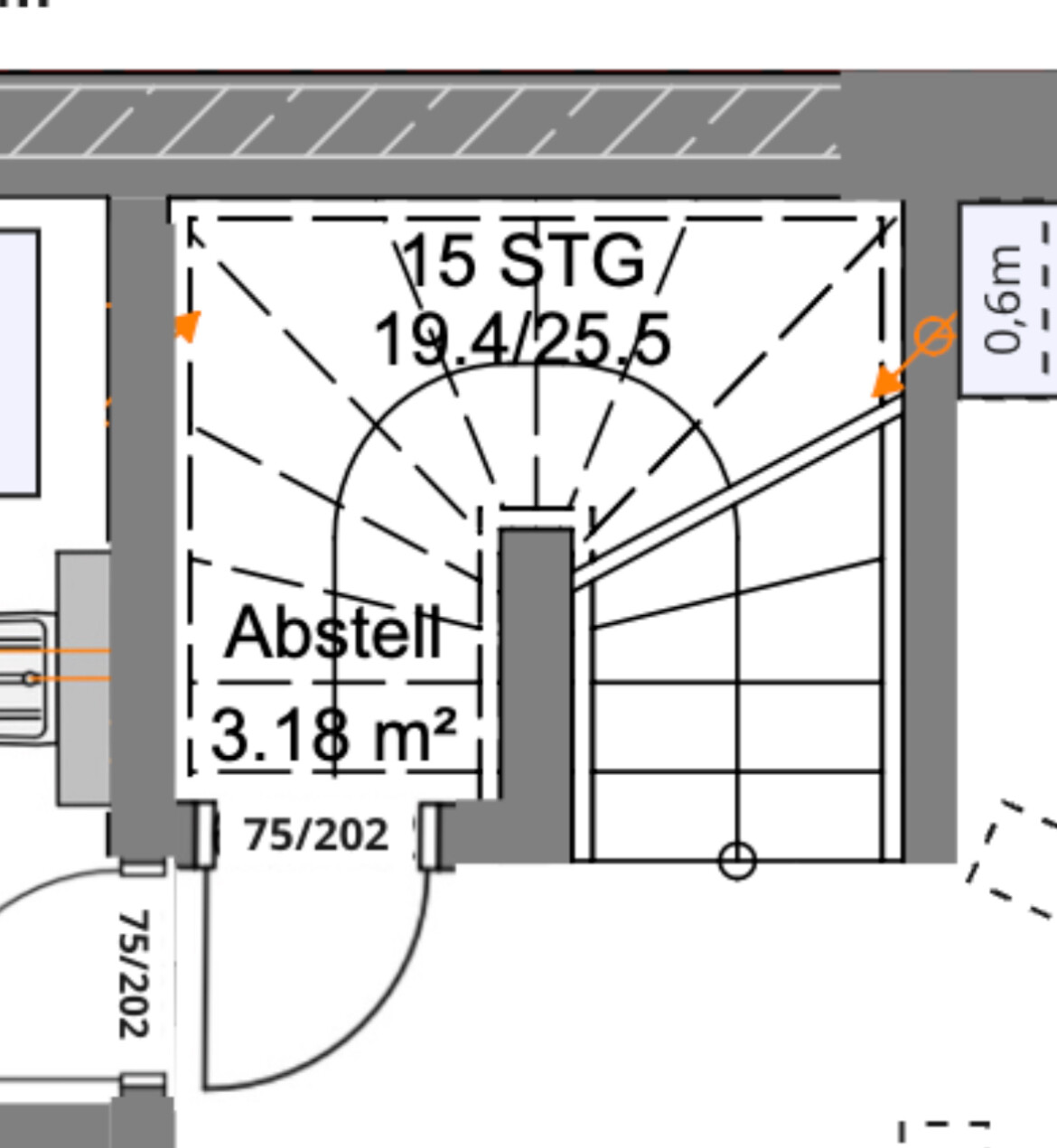

Furthermore, the stairs are planned with dimensions that are not comfortable. Steps should ideally be 19cm/26cm (7.5 inches/10.2 inches). Even half a centimeter difference can be really uncomfortable. The stairwell is planned with a height of 210cm (6.9 feet). Again, plaster is applied on both sides here.
The door is too narrow for technical purposes and practical use: equipment and ladder should be able to pass through.
