ᐅ Duplex floor plan with approximately 165 m² and 150 m² / with a pitched roof / dormer windows
Created on: 11 Apr 2022 10:15
M
Mexx110
Development Plan / Restrictions
Plot size 715 m2 (7,694 sq ft)
Slope 1 m (3 ft)
Site coverage ratio 45
Floor area ratio 30
Building envelope, building line, and boundary 12 x 18 meters (39 x 59 feet)
Edge development
Number of parking spaces 4
Number of stories / regulated by eaves height (4 meters / 13 ft) and ridge height (9.5 meters / 31 ft)
Roof type Gable
Architectural style Modern
Orientation
Maximum height / restrictions 9.5 meters (31 ft)
Additional requirements
Client Requirements
Architectural style, roof type, building type
Basement, floors Full basement
Number of occupants, ages: 2 adults and 2 children aged 6-8 years
Space needs on ground floor and upper floor as open as possible
Office: family use or home office? Family
Number of overnight guests per year Few
Open or closed architecture Open
Conservative or modern style Modern
Open kitchen, kitchen island
Number of dining seats
Fireplace yes
Music / stereo wall
Balcony, roof terrace: attic with balcony
Garage, carport 2 garages (with enclosed parking space in front)
Utility garden, greenhouse
Additional wishes / special features / daily routine, including reasons for preferences or exclusions
House Design
Planner: Architects and clients
- Builder’s planner
- Architect Yes
- DIY
What do you especially like? Why? In the optimization phase
What do you not like? Why?
Price estimate according to architect / planner:
Personal price limit for the house, including equipment:
Preferred heating technology: Photovoltaics + geothermal
If you have to give up on certain details or extensions
- What can you give up:
- What can’t you give up:
Why is the design as it is now? For example:
Standard design from the planner? No
Which requests were implemented by the architect? Yes
A mix of many examples from various magazines...
What makes it particularly good or bad in your opinion?
What is the most important / fundamental question about the floor plan in 130 characters or less
I have read many posts and am very happy to find such a forum.
We are still in the optimization phase, aiming for optimum use of space.
We also want to take advantage of the slope.
It will be a duplex, our half is about 80 cm (31 inches) wider.
Plinth height planned 25 cm (10 inches) above reference height, allowing a clear height of 2.80 meters (9 ft 2 in) in the ground floor, first upper floor 2.65 meters (8 ft 8 in).
The unusual beams serve as a visual reference for the slope.
Looking forward to your feedback.
Best regards
Mexx110
Plot size 715 m2 (7,694 sq ft)
Slope 1 m (3 ft)
Site coverage ratio 45
Floor area ratio 30
Building envelope, building line, and boundary 12 x 18 meters (39 x 59 feet)
Edge development
Number of parking spaces 4
Number of stories / regulated by eaves height (4 meters / 13 ft) and ridge height (9.5 meters / 31 ft)
Roof type Gable
Architectural style Modern
Orientation
Maximum height / restrictions 9.5 meters (31 ft)
Additional requirements
Client Requirements
Architectural style, roof type, building type
Basement, floors Full basement
Number of occupants, ages: 2 adults and 2 children aged 6-8 years
Space needs on ground floor and upper floor as open as possible
Office: family use or home office? Family
Number of overnight guests per year Few
Open or closed architecture Open
Conservative or modern style Modern
Open kitchen, kitchen island
Number of dining seats
Fireplace yes
Music / stereo wall
Balcony, roof terrace: attic with balcony
Garage, carport 2 garages (with enclosed parking space in front)
Utility garden, greenhouse
Additional wishes / special features / daily routine, including reasons for preferences or exclusions
House Design
Planner: Architects and clients
- Builder’s planner
- Architect Yes
- DIY
What do you especially like? Why? In the optimization phase
What do you not like? Why?
Price estimate according to architect / planner:
Personal price limit for the house, including equipment:
Preferred heating technology: Photovoltaics + geothermal
If you have to give up on certain details or extensions
- What can you give up:
- What can’t you give up:
Why is the design as it is now? For example:
Standard design from the planner? No
Which requests were implemented by the architect? Yes
A mix of many examples from various magazines...
What makes it particularly good or bad in your opinion?
What is the most important / fundamental question about the floor plan in 130 characters or less
I have read many posts and am very happy to find such a forum.
We are still in the optimization phase, aiming for optimum use of space.
We also want to take advantage of the slope.
It will be a duplex, our half is about 80 cm (31 inches) wider.
Plinth height planned 25 cm (10 inches) above reference height, allowing a clear height of 2.80 meters (9 ft 2 in) in the ground floor, first upper floor 2.65 meters (8 ft 8 in).
The unusual beams serve as a visual reference for the slope.
Looking forward to your feedback.
Best regards
Mexx110
In my opinion, it will be difficult to comply with the floor area ratio.
I also don’t think the floor space index can be met. 715 * 0.3 = 214.5 m² (2310 sq ft), one floor is 12 * 17.54 = 210.48 m² (2265 sq ft).
With the large dormers and the high knee wall, the roof is probably considered a full storey?
The architect will still need to work on the size.
Hold off on your planning for now.
In my opinion, the budget is too low anyway.
I also don’t think the floor space index can be met. 715 * 0.3 = 214.5 m² (2310 sq ft), one floor is 12 * 17.54 = 210.48 m² (2265 sq ft).
With the large dormers and the high knee wall, the roof is probably considered a full storey?
The architect will still need to work on the size.
Hold off on your planning for now.
In my opinion, the budget is too low anyway.
Mexx110 schrieb:
In the development plan, only a floor area ratio (FAR) I of 0.3 is specified for us. Therefore, 0.3 x 714 = 214.2 m² (12 m x 17.8 m (39.4 ft x 58.4 ft)) Mexx110 schrieb:
will be allowed (no floor area ratio specified). Oh... things like that, as well as the fact that the posts are not really addressed or the design is basically set in stone... but _that_ does cause some irritation...
Please share your budget.
My conservative estimate: without corner windows, floor-to-ceiling windows, 3 bathrooms per semi-detached house, etc.
House: Standard
Built volume: 214.2 x 4.5 + 214.2 x 5.5 x 0.5 + 2 x 4.5 x 2.0 x 2.0 * 0.5 = 1,570.95 m3 (55,460 ft3) * 700 = 1,099,665
(approx. 350 m2 (3,767 ft2) of living space * 3,000 = 1,050,000)
2 garages x 20,000 = 40,000
2 basements 214.2 * 3 * 300 = 192,780
Additional costs 10% 135,000
Total: 1,467,000
Do you have the 1.5+ million?
My conservative estimate: without corner windows, floor-to-ceiling windows, 3 bathrooms per semi-detached house, etc.
House: Standard
Built volume: 214.2 x 4.5 + 214.2 x 5.5 x 0.5 + 2 x 4.5 x 2.0 x 2.0 * 0.5 = 1,570.95 m3 (55,460 ft3) * 700 = 1,099,665
(approx. 350 m2 (3,767 ft2) of living space * 3,000 = 1,050,000)
2 garages x 20,000 = 40,000
2 basements 214.2 * 3 * 300 = 192,780
Additional costs 10% 135,000
Total: 1,467,000
Do you have the 1.5+ million?
I know it will be expensive.
Fortunately, the financing is secured.
The shell contractor (related) and architect (friend) are offering market-competitive prices.
The land value here is 1,500 per m2 (approximately 140 dollars per square foot). The sale value per m2 is around 8,000–10,000 per m2 (about 740–930 dollars per square foot).
Therefore, a certain standard must also be taken into account in this regard.

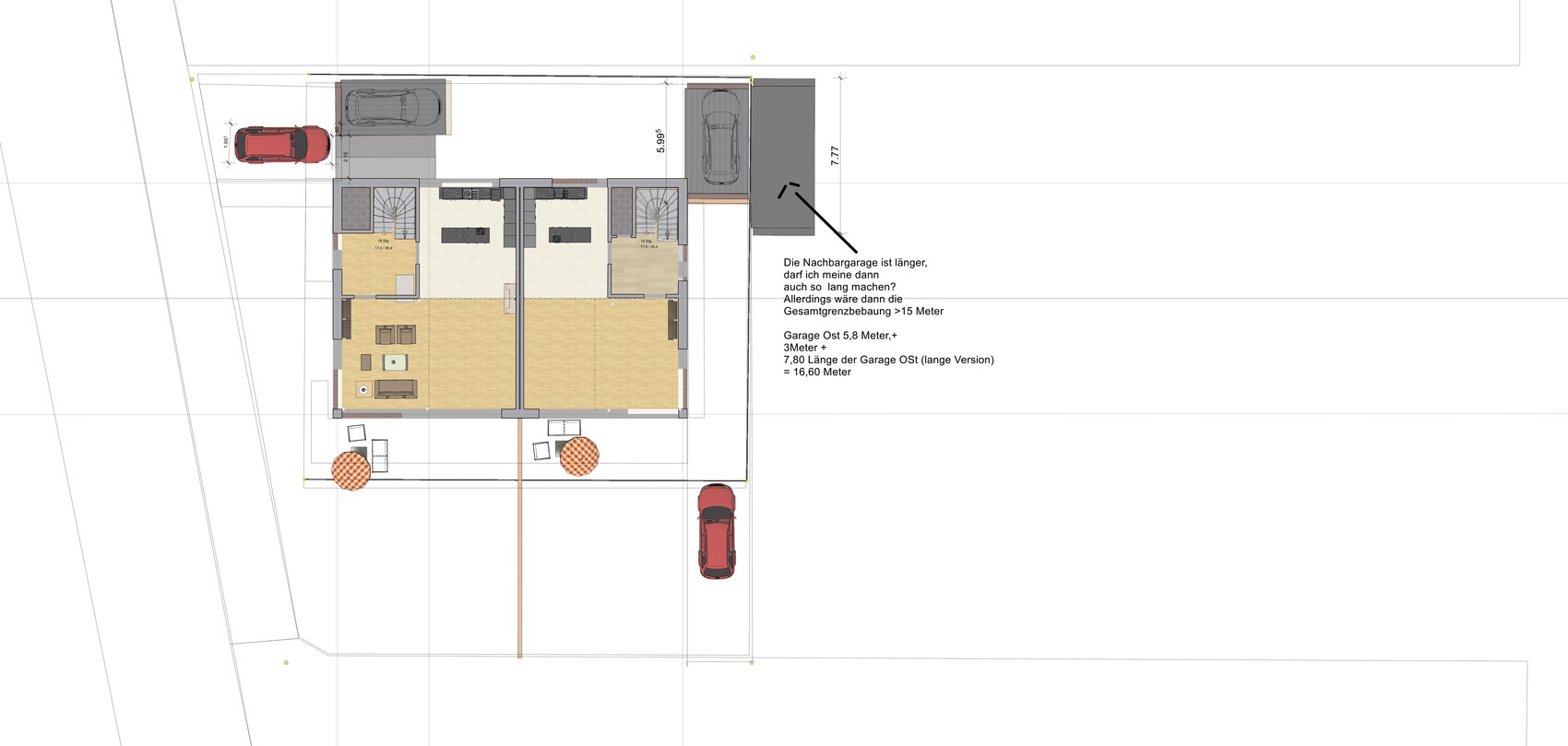

With these images, I wanted to approach the building authority again to see if I can make use of the hillside location in this way and if I can extend the garage (on the western side).
Best regards and happy holidays
Fortunately, the financing is secured.
The shell contractor (related) and architect (friend) are offering market-competitive prices.
The land value here is 1,500 per m2 (approximately 140 dollars per square foot). The sale value per m2 is around 8,000–10,000 per m2 (about 740–930 dollars per square foot).
Therefore, a certain standard must also be taken into account in this regard.
With these images, I wanted to approach the building authority again to see if I can make use of the hillside location in this way and if I can extend the garage (on the western side).
Best regards and happy holidays
