ᐅ Detailed planning for a single-family house, 180 sqm, flat roof, with basement and double garage
Created on: 17 Dec 2017 18:53
I
ivenh0
Development Plan / Restrictions
Plot Size: 594 m² (6389 sq ft)
Slope: South-facing slope
Floor Area Ratio: 0.4
Building Envelope, Building Line and Boundary: 12 x 22 m (39 x 72 ft)
Setback: 2.5 m (8 ft)
Number of Parking Spaces: 2 per residential unit
Roof Type: Flat roof
Architectural Style: Modern
Orientation: South
Maximum Height / Limits: Single-family house + 6.5 m (21 ft)
Client Requirements
Style, Roof Type, Building Type: Modern, flat roof

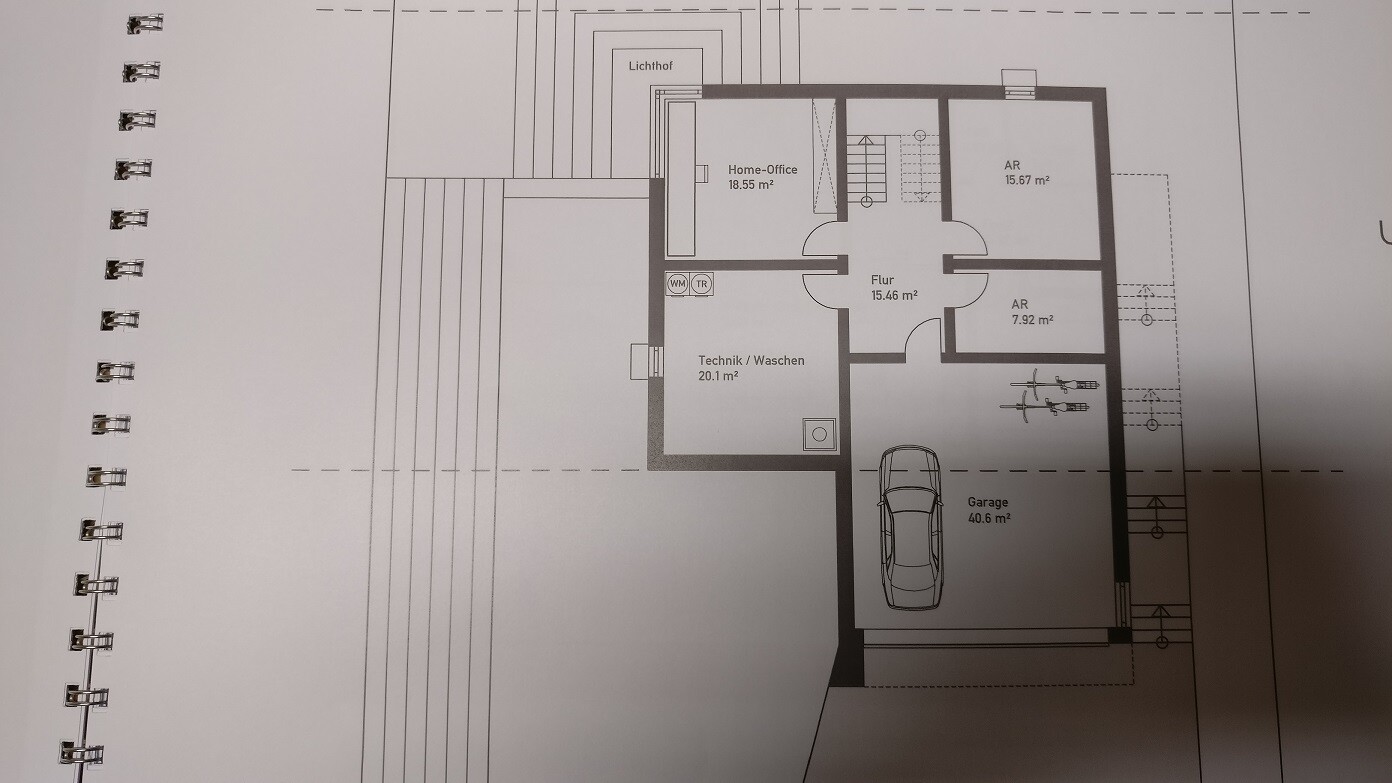

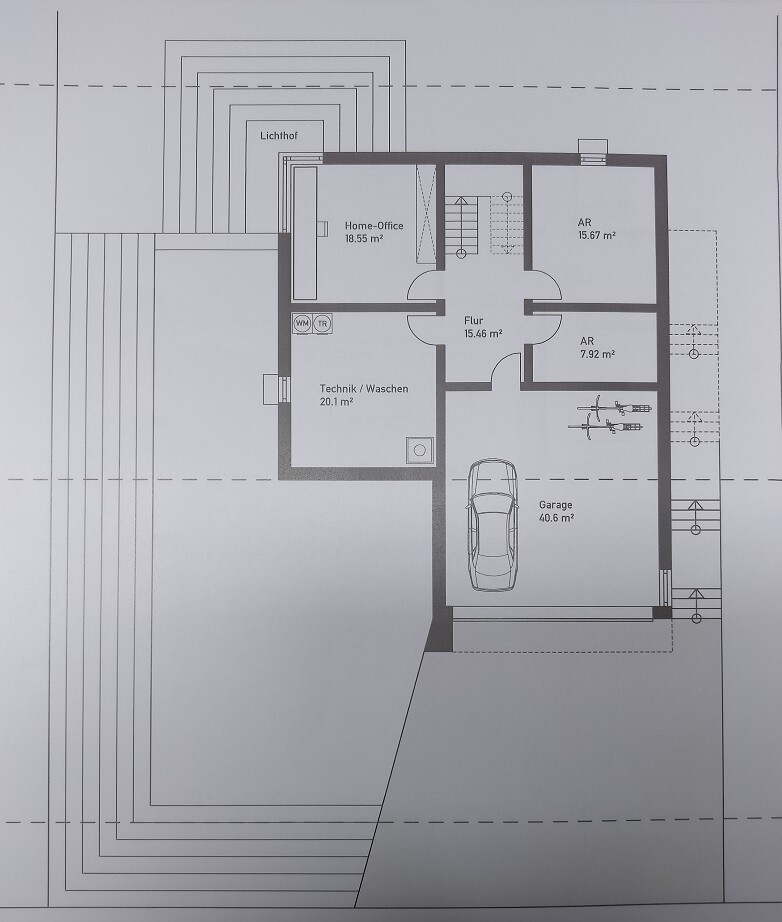

Basement, Floors: Basement with separate apartment + 2 floors
Number of Residents, Ages: 2 (male 26, female 26) + 2 planned children

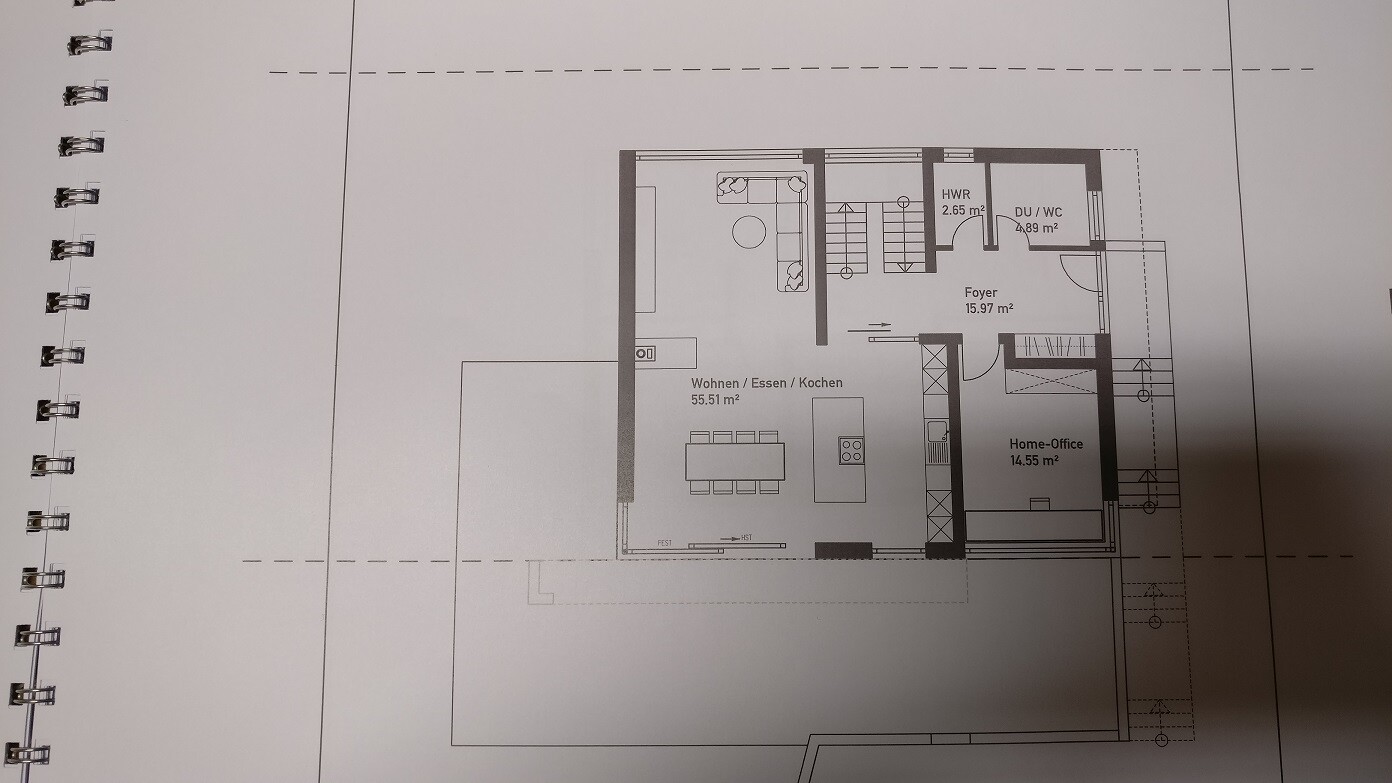

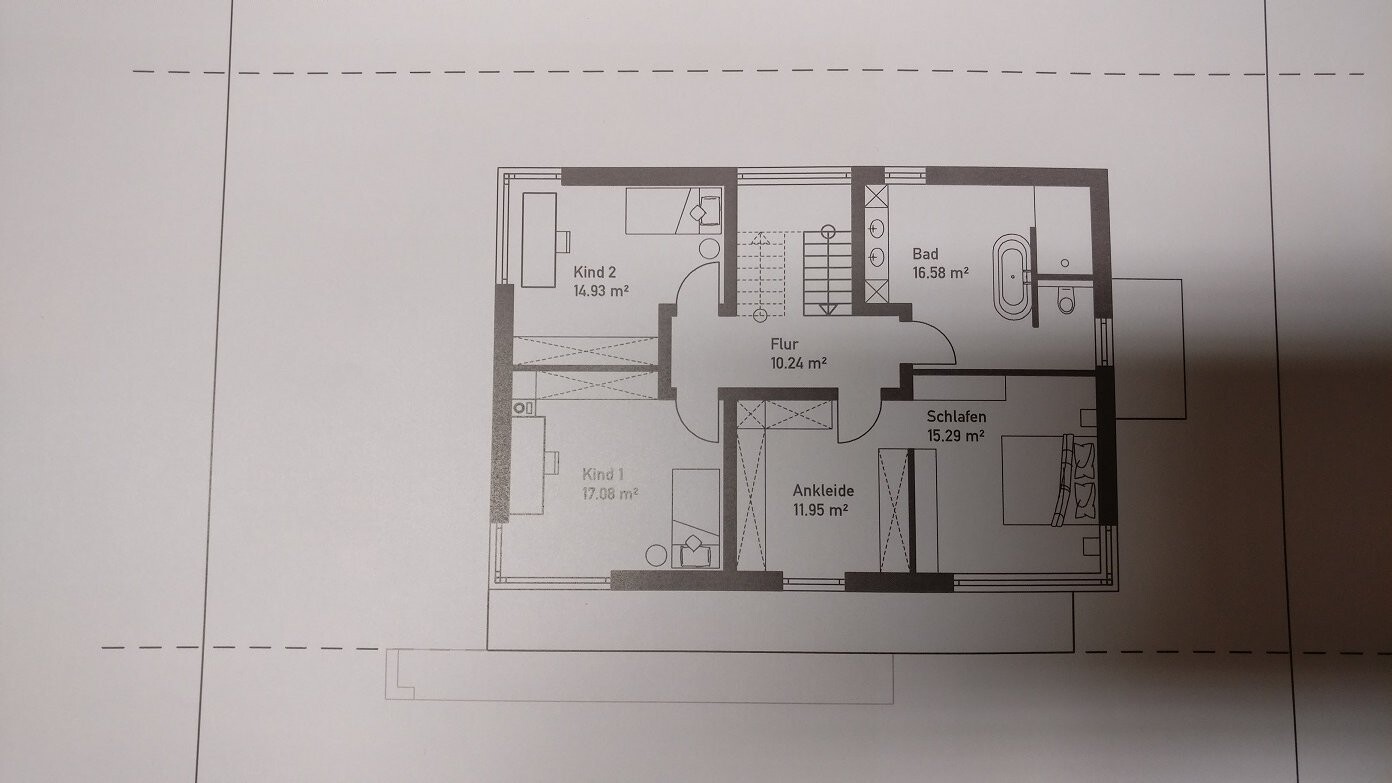

Room Requirements on Ground Floor and Upper Floor: Ground floor (office, living/dining/kitchen, shower-toilet, storage) Upper floor (2 children’s rooms, office, bedroom, bathroom, dressing room)
Office Use: Family or Home Office? Wife is a teacher, I work from home once a week
Number of Overnight Guests per Year: 2-5
Open or Closed Layout: Open
Conservative or Modern Construction: Modern
Open Kitchen, Kitchen Island: Open kitchen with island
Number of Dining Seats: 6-10
Fireplace: Yes
Music / Stereo Wall: –
Balcony, Roof Terrace: –
Garage, Carport: Double garage
Utility Garden, Greenhouse: –
Additional wishes / special features / daily routine, also explanations why something should or should not be included
House Design
Who Designed it: Architect from a construction company

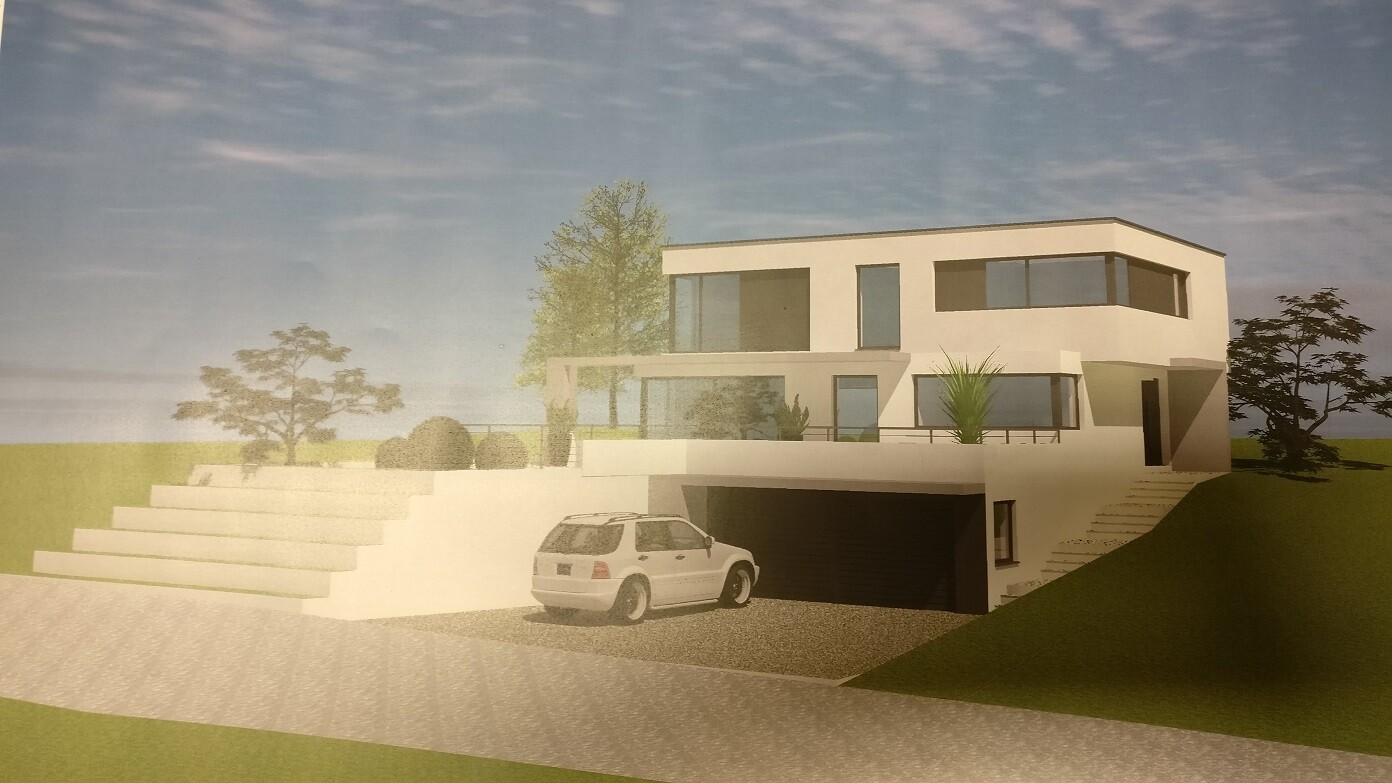

What Do You Like Most? Why? Side driveway to garage, direct access from garage to house, separate apartment concept, open ground floor design, upper floor is perfect in our opinion, gallery
What Do You Like Least? Why? Living/dining area is somewhat too large (wife worries it may be hard to arrange cozily), bedroom window position in the separate apartment is tricky, (north entrance → long access route for guests)
Preferred Heating System: Air-to-water heat pump + photovoltaic system + battery storage
If You Have to Cut Back, On Which Details / Extensions
- Can be cut: Office on upper floor, a few square meters in living/dining area
- Cannot be cut: Remaining room program
Why Has the Design Turned Out As It Is Now?
The room program was provided by us. Furthermore, many requirements and the plot itself influenced the design.
Why Was the Drawing Created in Sweet Home 3D?
The architect’s design is drawn to scale but not dimensioned, so I transferred it to SH3D.
What Is the Most Important / Fundamental Question About the Floor Plan, Summarized in 130 Characters?
What do you think of the floor plan? Any ideas on how to make the large living/dining area feel cozier?
Plot Size: 594 m² (6389 sq ft)
Slope: South-facing slope
Floor Area Ratio: 0.4
Building Envelope, Building Line and Boundary: 12 x 22 m (39 x 72 ft)
Setback: 2.5 m (8 ft)
Number of Parking Spaces: 2 per residential unit
Roof Type: Flat roof
Architectural Style: Modern
Orientation: South
Maximum Height / Limits: Single-family house + 6.5 m (21 ft)
Client Requirements
Style, Roof Type, Building Type: Modern, flat roof
Basement, Floors: Basement with separate apartment + 2 floors
Number of Residents, Ages: 2 (male 26, female 26) + 2 planned children
Room Requirements on Ground Floor and Upper Floor: Ground floor (office, living/dining/kitchen, shower-toilet, storage) Upper floor (2 children’s rooms, office, bedroom, bathroom, dressing room)
Office Use: Family or Home Office? Wife is a teacher, I work from home once a week
Number of Overnight Guests per Year: 2-5
Open or Closed Layout: Open
Conservative or Modern Construction: Modern
Open Kitchen, Kitchen Island: Open kitchen with island
Number of Dining Seats: 6-10
Fireplace: Yes
Music / Stereo Wall: –
Balcony, Roof Terrace: –
Garage, Carport: Double garage
Utility Garden, Greenhouse: –
Additional wishes / special features / daily routine, also explanations why something should or should not be included
House Design
Who Designed it: Architect from a construction company
What Do You Like Most? Why? Side driveway to garage, direct access from garage to house, separate apartment concept, open ground floor design, upper floor is perfect in our opinion, gallery
What Do You Like Least? Why? Living/dining area is somewhat too large (wife worries it may be hard to arrange cozily), bedroom window position in the separate apartment is tricky, (north entrance → long access route for guests)
Preferred Heating System: Air-to-water heat pump + photovoltaic system + battery storage
If You Have to Cut Back, On Which Details / Extensions
- Can be cut: Office on upper floor, a few square meters in living/dining area
- Cannot be cut: Remaining room program
Why Has the Design Turned Out As It Is Now?
The room program was provided by us. Furthermore, many requirements and the plot itself influenced the design.
Why Was the Drawing Created in Sweet Home 3D?
The architect’s design is drawn to scale but not dimensioned, so I transferred it to SH3D.
What Is the Most Important / Fundamental Question About the Floor Plan, Summarized in 130 Characters?
What do you think of the floor plan? Any ideas on how to make the large living/dining area feel cozier?
I can’t really complain so spontaneously [emoji2]
You shouldn’t arbitrarily tear apart a good design.
I would add another window in the living room on the west side and use the corner of the walk-in closet to create a laundry chute accessible from the hallway. Organize the rest on the ground floor and basement accordingly.
You shouldn’t arbitrarily tear apart a good design.
I would add another window in the living room on the west side and use the corner of the walk-in closet to create a laundry chute accessible from the hallway. Organize the rest on the ground floor and basement accordingly.
haydee schrieb:
On the ground floor, maybe swap the utility room and the restroom No, we want the utility room to be directly adjacent to the kitchen/living area.
ypg schrieb:
I can’t really complain on the spot [emoji2]
You shouldn’t just arbitrarily tear apart a good design.
I would add another window in the living room on the west side and use the corner in the dressing room to create the laundry chute accessible from the hallway. The rest can be arranged on the ground floor and basement.Thank you.
I don’t understand the laundry chute part. We had planned it to go from the bathroom on the upper floor and ground floor down to the utility room in the basement.
