ᐅ Small single-family house of approximately 1,500 sq ft – any suggestions for improvements?
Created on: 2 Oct 2019 17:00
M
mambo1988
Hello everyone,
Our plans for our small house are already quite advanced, so we believe this is a good time to ask for your feedback.
Development Plan / Restrictions
Plot size: 355m² (3,820 sq ft)
Slope: no
Site coverage ratio: -
Floor-area ratio: -
Building envelope, building line and limits: -
Edge development: -
Number of stories: 2
Roof style: gable roof or hip roof
Orientation: southeast
Maximum heights / limitations: -
Other: -
Owners’ Requirements
Style, roof type, building type: urban villa
Basement, floors: no basement, ground floor, upper floor, attic used as storage
Number of occupants: 4 (2 children)
Room requirements on ground and upper floors: ground floor – living room, kitchen, office, guest toilet, utility and storage room; upper floor – 2 children’s bedrooms, parents’ bedroom, bathroom
Office use: family use or home office: home office
Guest sleepers per year: 5 (living room)
Open or closed layout: relatively closed
Traditional or modern construction: modern
Open kitchen, kitchen island: yes; kitchen island extends up to the wall under the window
Number of dining seats: minimum 6
Fireplace: no
Music / stereo wall: yes, at the staircase
Balcony, roof terrace: no
Garage, carport: garage with storage, 3 x 9m (10 x 30 ft)
Vegetable garden, greenhouse: no
House Design
Designed by: draftsman and us
What do you especially like? Why?: The open living room and hopefully very efficient use of space for such a relatively small house
What do you dislike? Why?: We are concerned that the utility/storage room, which will also house laundry facilities, may be too small
Cost estimate by architect/planner: €300,000 including garage
Personal budget limit for house including fittings: €310,000; all desired fittings are included in the house price
Preferred heating technology: air-water heat pump
If you have to compromise, on which details/features
- can you do without: walk-in closet
- can you not do without: office
Why did the design end up as it is now? e.g.
Which wishes were implemented by the architect?: Parents’ bedroom in the north, living room in the south
What do you think makes it particularly good or bad?:
Good: hopefully efficient use of space, including the masonry staircase
Bad: Actually nothing really bad; only concerned that the utility room may be a bit small and the living room sofa might be slightly narrow
What is the most important/basic question about the floor plan in 130 characters?
What would you change or improve? Have we overlooked anything that could cause problems later?
Is the size of the utility room sufficient? Air-water heat pump combined with water heater, washing machine, dryer stacked above washing machine, drying rack
Explanation of the images:

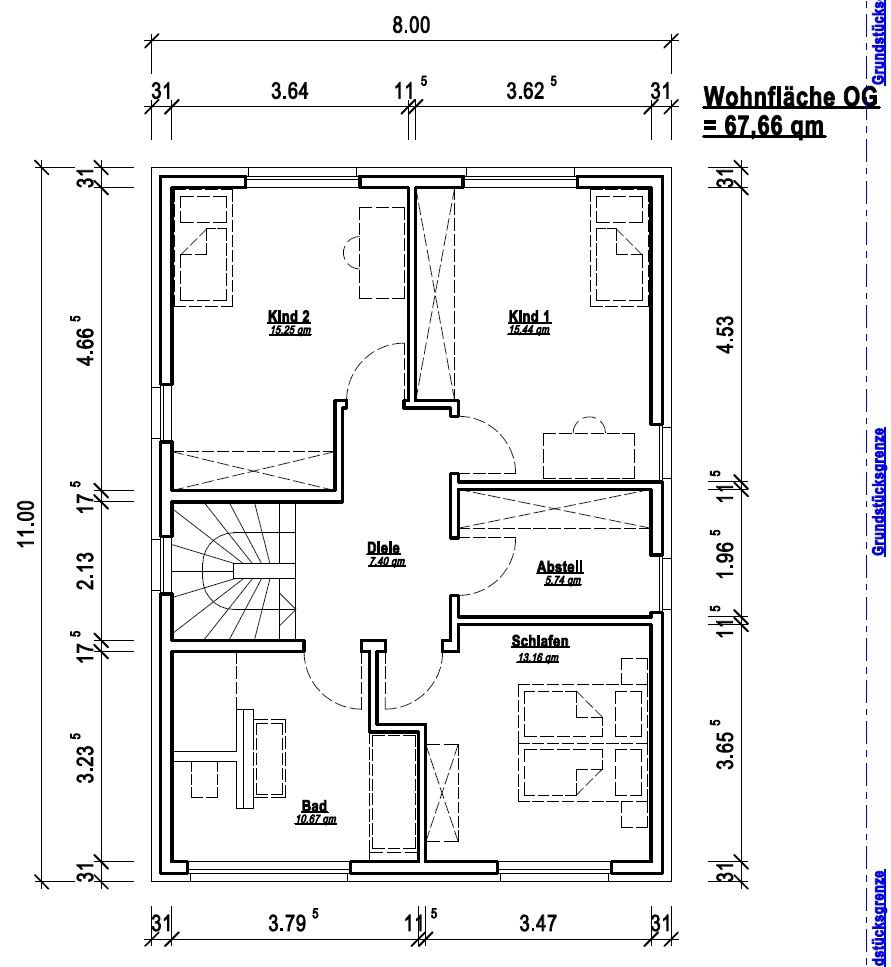

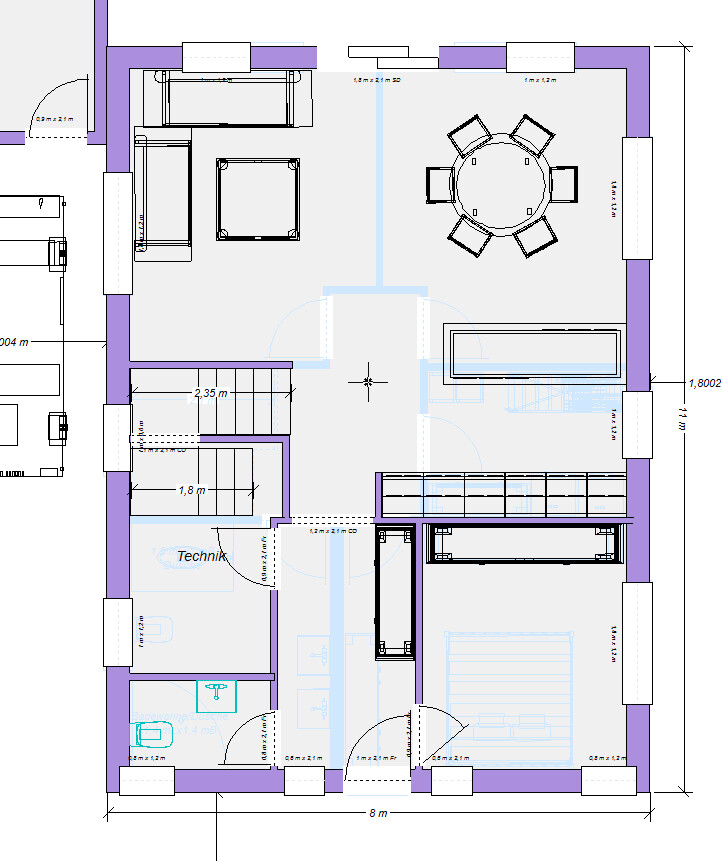

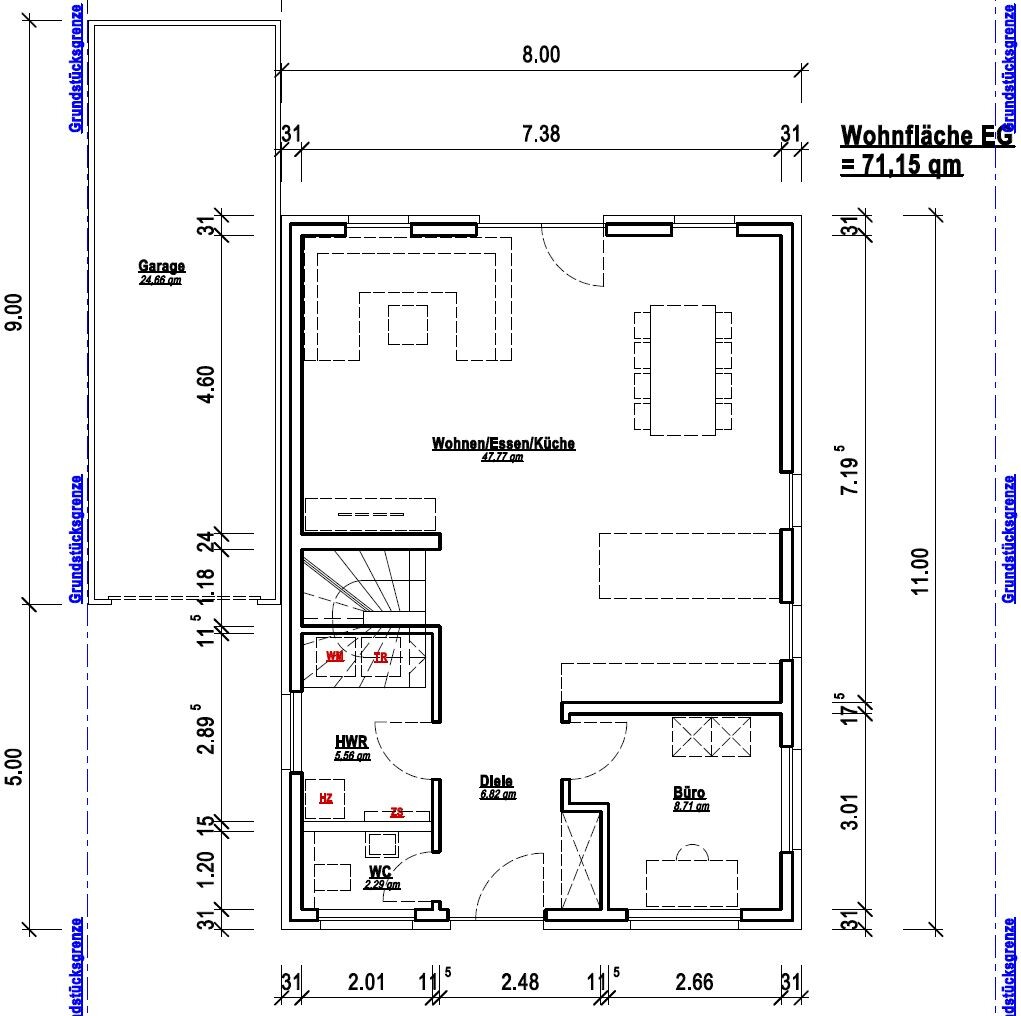

One shows the floor plan with dimensions, the other shows the floor plan with furniture placement. Behind the sofa there should be some space so the children can leave things there occasionally (and to allow more room for surround speakers).
Then comes the house orientation and plot layout.
I hope everything is clear so far. Feel free to ask if not.
Thank you very much!
Our plans for our small house are already quite advanced, so we believe this is a good time to ask for your feedback.
Development Plan / Restrictions
Plot size: 355m² (3,820 sq ft)
Slope: no
Site coverage ratio: -
Floor-area ratio: -
Building envelope, building line and limits: -
Edge development: -
Number of stories: 2
Roof style: gable roof or hip roof
Orientation: southeast
Maximum heights / limitations: -
Other: -
Owners’ Requirements
Style, roof type, building type: urban villa
Basement, floors: no basement, ground floor, upper floor, attic used as storage
Number of occupants: 4 (2 children)
Room requirements on ground and upper floors: ground floor – living room, kitchen, office, guest toilet, utility and storage room; upper floor – 2 children’s bedrooms, parents’ bedroom, bathroom
Office use: family use or home office: home office
Guest sleepers per year: 5 (living room)
Open or closed layout: relatively closed
Traditional or modern construction: modern
Open kitchen, kitchen island: yes; kitchen island extends up to the wall under the window
Number of dining seats: minimum 6
Fireplace: no
Music / stereo wall: yes, at the staircase
Balcony, roof terrace: no
Garage, carport: garage with storage, 3 x 9m (10 x 30 ft)
Vegetable garden, greenhouse: no
House Design
Designed by: draftsman and us
What do you especially like? Why?: The open living room and hopefully very efficient use of space for such a relatively small house
What do you dislike? Why?: We are concerned that the utility/storage room, which will also house laundry facilities, may be too small
Cost estimate by architect/planner: €300,000 including garage
Personal budget limit for house including fittings: €310,000; all desired fittings are included in the house price
Preferred heating technology: air-water heat pump
If you have to compromise, on which details/features
- can you do without: walk-in closet
- can you not do without: office
Why did the design end up as it is now? e.g.
Which wishes were implemented by the architect?: Parents’ bedroom in the north, living room in the south
What do you think makes it particularly good or bad?:
Good: hopefully efficient use of space, including the masonry staircase
Bad: Actually nothing really bad; only concerned that the utility room may be a bit small and the living room sofa might be slightly narrow
What is the most important/basic question about the floor plan in 130 characters?
What would you change or improve? Have we overlooked anything that could cause problems later?
Is the size of the utility room sufficient? Air-water heat pump combined with water heater, washing machine, dryer stacked above washing machine, drying rack
Explanation of the images:
One shows the floor plan with dimensions, the other shows the floor plan with furniture placement. Behind the sofa there should be some space so the children can leave things there occasionally (and to allow more room for surround speakers).
Then comes the house orientation and plot layout.
I hope everything is clear so far. Feel free to ask if not.
Thank you very much!
ypg schrieb:
I don’t want to be a spoil sport, but with a width of 3.62 meters (11.9 feet) between the exterior wall and the staircase (bathroom/bedroom), furnishing the new bedroom won’t work if you add a wardrobe next to the double bed and still expect to have enough space to comfortably get out of bed. I also don’t understand why the original poster doesn’t rotate the bed. Because of the window on the front side? If that were really impressive, I could understand it, but so far it just looks like a random memory.
mambo1988 schrieb:
Thanks for the comment. The walls are planned to be 11.5cm (4.5 inches) thick. How much space do you lose due to plaster and such?
We have adjusted the floor plan to have a clear room width of 3.75m (12.3 feet). That should be enough for us.
The bed is 1.90m (6.2 feet) wide, and we estimated about 60cm (24 inches) of space on each side. That should work well, right? With plaster, you lose about 2cm (0.8 inches) per wall.
60cm (24 inches) is quite tight. It’s definitely possible, but we planned for 80cm (31.5 inches).
For comparison, we have a room width of 3.85m (12.6 feet) and I wouldn’t put a large wardrobe next to the bed there. We only place a dresser with a depth of 30cm (12 inches). You don’t want to be squeezing past the bed inside the house. After all, it’s a house, so it should be a bit more spacious when you have the chance.
Just a quick note regarding the space beside the bed. Usually, you can still get into the bed without any issue, but when you vacuum under the bed, you’ll realize how annoying it is if there’s not enough space for it. From my personal experience (we have 80cm (31.5 inches) and I would have preferred more), I just wanted to share that.
M
mambo19887 Oct 2019 11:00Thanks again for the comments!
Our next step is to talk with the architect. This should be possible within the next 2 weeks. I will get back to you then.
Our next step is to talk with the architect. This should be possible within the next 2 weeks. I will get back to you then.
M
mambo198826 Nov 2019 18:51Hello everyone,
good things take time...
We have finally received the first drafts from the architect.
Before I list our requested changes, I am very curious to hear any tips or suggestions you might have for us.
Thank you in advance!
good things take time...
We have finally received the first drafts from the architect.
Before I list our requested changes, I am very curious to hear any tips or suggestions you might have for us.
Thank you in advance!
