ᐅ Single-family house with approximately 150 sqm floor area – how to plan the staircase?
Created on: 15 Oct 2017 20:12
M
manyyuu
We are currently in the middle of planning our dream house and have now finished the initial drafts. We would greatly appreciate any suggestions, critiques, or improvement ideas. Our main priorities were a large, bright, and open living/dining area, a home office on the ground floor that can also accommodate a pull-out sofa bed, two showers—one being a walk-in shower upstairs alongside a bathtub—and two children's bedrooms of approximately equal size.
We are still uncertain about the following: a separate dressing room (advantages: my husband leaves for work earlier in the morning and can get dressed in a separate room, plus more sound insulation to the children’s room, which will later be a teenager’s room), a small pantry behind the kitchen and whether it should be open or have a narrow sliding door, and whether the staircase should be open or closed with space for a wardrobe underneath. We are also open to general advice on other aspects.
The house will have a gable roof with a 44° pitch and a slightly projecting captain’s gable. The knee wall (kniestock) will be about 1 meter (3 feet) high. Attached are the floor plans for the ground floor and upper floor, as well as the ground floor with the dimensions and outlines of the plot, terrace, and carport. Thank you very much!
Development plan/restrictions
Plot size: 600 m² (90 m² of which is driveway, due to rear development)
Slope: none
Site coverage ratio: 0.3
Floor area ratio: no specification
Building line and boundary: building line on the north side is 5 meters (16 feet) from the property boundary
Boundary setback: 3 meters (10 feet)
Number of parking spaces: 2
Number of floors: 1 full floor
Roof type: gable roof
Architectural style
Orientation
Maximum height/limits: 8.50 meters (28 feet)
Other specifications: none
Owner requirements
Architectural style, roof type, building type: captain’s house
Basement, floors: no basement, 1.5 floors
Number of residents, ages: 4 people, two adults, 2 children aged 3 years each
Space requirements on ground floor and upper floor
Office: family use or home office: home office once per week
Guest sleepers per year: 3
Open or closed architecture
Conservative or modern design
Open kitchen, kitchen island: open living-dining area with kitchen island
Fireplace: no
Carport
Additional wishes/special features/daily routine, including reasons why certain features are included or excluded
House design
Planner: Do-it-Yourself
What do you especially like? Why? The open and bright living area.
What do you not like? Why? The hallway, not enough space for the wardrobe, floor plan not optimal
Personal budget limit for the house including fittings: 300,000 euros (including development but excluding other additional construction costs and land), building in Schleswig-Holstein.
Preferred heating technology: gas boiler with solar thermal for hot water
If you have to do without, which details/features could you forego: pantry, separate dressing room
Why has the design developed the way it is now?
A mix of many examples from various sources.
We are still uncertain about the following: a separate dressing room (advantages: my husband leaves for work earlier in the morning and can get dressed in a separate room, plus more sound insulation to the children’s room, which will later be a teenager’s room), a small pantry behind the kitchen and whether it should be open or have a narrow sliding door, and whether the staircase should be open or closed with space for a wardrobe underneath. We are also open to general advice on other aspects.
The house will have a gable roof with a 44° pitch and a slightly projecting captain’s gable. The knee wall (kniestock) will be about 1 meter (3 feet) high. Attached are the floor plans for the ground floor and upper floor, as well as the ground floor with the dimensions and outlines of the plot, terrace, and carport. Thank you very much!
Development plan/restrictions
Plot size: 600 m² (90 m² of which is driveway, due to rear development)
Slope: none
Site coverage ratio: 0.3
Floor area ratio: no specification
Building line and boundary: building line on the north side is 5 meters (16 feet) from the property boundary
Boundary setback: 3 meters (10 feet)
Number of parking spaces: 2
Number of floors: 1 full floor
Roof type: gable roof
Architectural style
Orientation
Maximum height/limits: 8.50 meters (28 feet)
Other specifications: none
Owner requirements
Architectural style, roof type, building type: captain’s house
Basement, floors: no basement, 1.5 floors
Number of residents, ages: 4 people, two adults, 2 children aged 3 years each
Space requirements on ground floor and upper floor
Office: family use or home office: home office once per week
Guest sleepers per year: 3
Open or closed architecture
Conservative or modern design
Open kitchen, kitchen island: open living-dining area with kitchen island
Fireplace: no
Carport
Additional wishes/special features/daily routine, including reasons why certain features are included or excluded
House design
Planner: Do-it-Yourself
What do you especially like? Why? The open and bright living area.
What do you not like? Why? The hallway, not enough space for the wardrobe, floor plan not optimal
Personal budget limit for the house including fittings: 300,000 euros (including development but excluding other additional construction costs and land), building in Schleswig-Holstein.
Preferred heating technology: gas boiler with solar thermal for hot water
If you have to do without, which details/features could you forego: pantry, separate dressing room
Why has the design developed the way it is now?
A mix of many examples from various sources.
I have been going back and forth about the storage room or utility room upstairs... From my perspective, the downsides are a very small, narrow hallway upstairs and no access to a possible roof window. Of course, the advantages of having a small utility room upstairs are obvious... we’ll see! Also, the window widths have not been fixed yet, so far they are just rough estimates of what might fit. Are you referring to the floor-to-ceiling windows in the children’s rooms and the living area, or all of them?
manyyuu schrieb:
If I mirror the staircase, I would have to move the front door to the right automatically. That should be doable. Then the side panel would simply be under the carport.
RobsonMKK schrieb:
What does the flipped staircase have to do with the carport?You really shouldn’t engage in any discussion without a site plan [emoji23]
If you @manyyou are planning a house with sloped ceilings, you should aim to make the most of these areas for living or bedrooms:
You can place a bed underneath, build a cozy nook, box in the knee walls, or install deep cabinets—so-called space-saving units with sliding doors. Otherwise, for adults it’s more or less dead space. Considering a cost of €1600 per square meter (about $147 per square foot), that’s quite expensive.

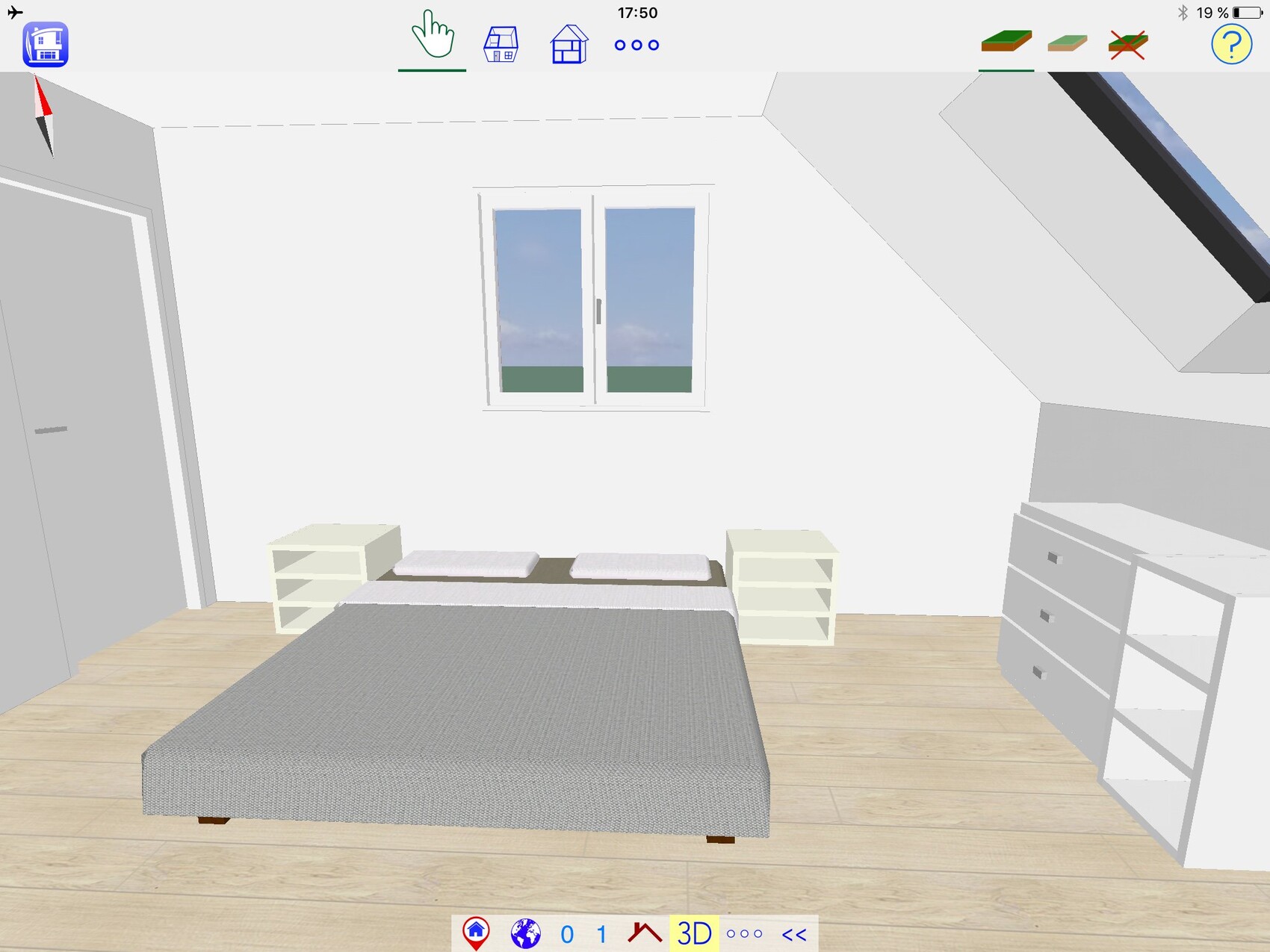

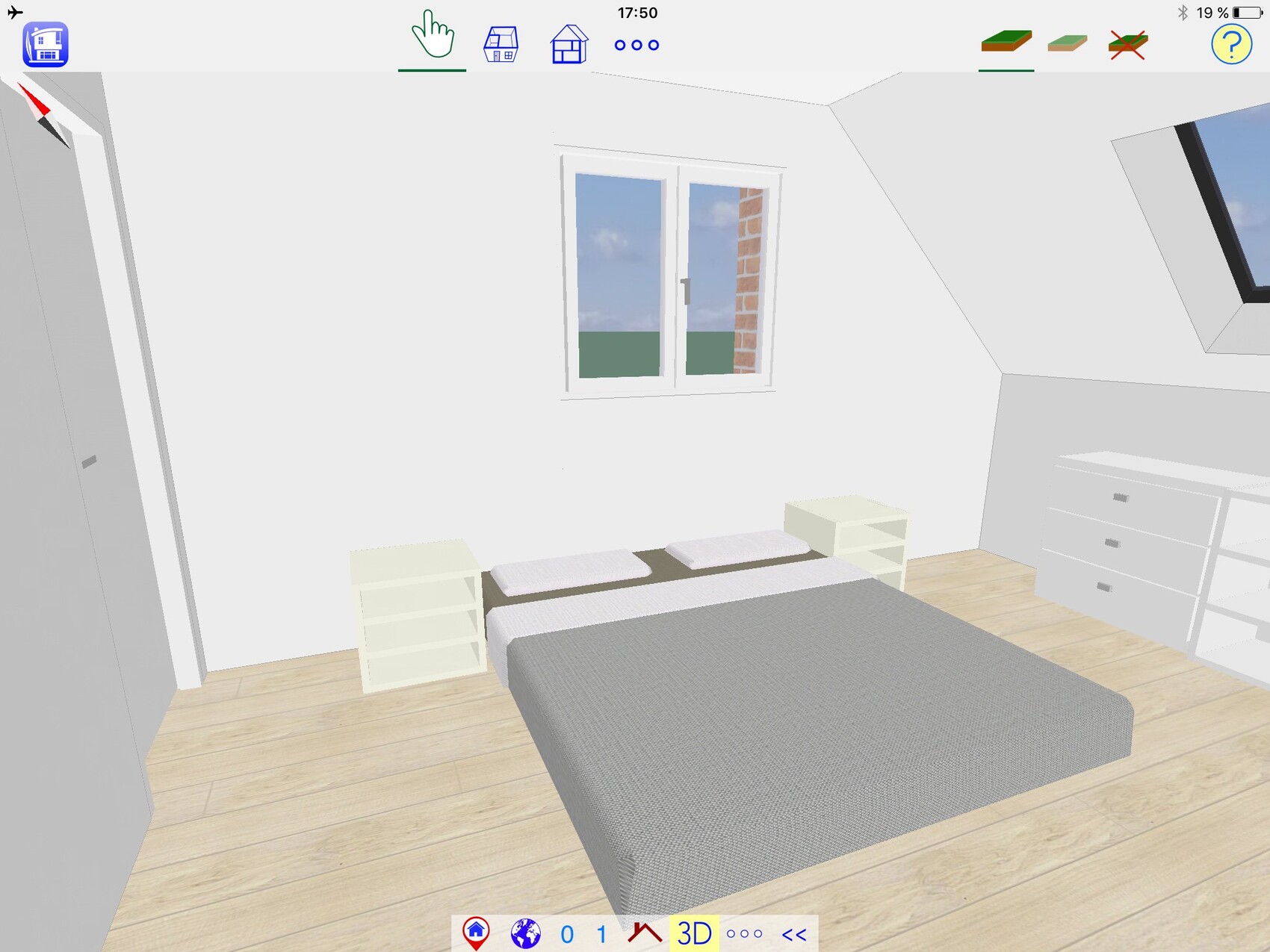

Where is the bed supposed to go? Under the window? Further to the left? And what will be on the right then?
Can you afford the luxury of not planning anything under the slope?
The staircase is the most important element in a house—everything else depends on it. Having 3 meters (10 feet) on one side is unbalanced if you need to plan for 3 bedrooms.
Yes, if the bed is actually going to be placed like that, you will need a knee wall of at least 1.50m (5 feet), I think. 1m (3 feet) would be too low for me, even if the bed is positioned directly under the slope. I experienced that while on vacation. Terrible! I ended up with two bumps on my head from waking up!
