ᐅ Kitchen planning software, layout sketch (electrical outlets, water connections)
Created on: 11 Jun 2022 12:37
D
darksun
Hello,
for our sampling appointment, we need to bring the kitchen plan.
So far, we only have our own kitchen design (but detailed, and we know exactly what should go where), quick question:
Do you have any software recommendations for creating a sketch with measurements?
It is specifically about the positioning of electrical outlets and water supply/drain lines.
Not about how the kitchen or cabinets look!
I use Sweet3D, the top view there is well dimensioned, but here I need a view of the kitchen front (to show the heights).
(or is such a view possible with Sweet3D as well?)
Thanks
Martin
for our sampling appointment, we need to bring the kitchen plan.
So far, we only have our own kitchen design (but detailed, and we know exactly what should go where), quick question:
Do you have any software recommendations for creating a sketch with measurements?
It is specifically about the positioning of electrical outlets and water supply/drain lines.
Not about how the kitchen or cabinets look!
I use Sweet3D, the top view there is well dimensioned, but here I need a view of the kitchen front (to show the heights).
(or is such a view possible with Sweet3D as well?)
Thanks
Martin
We modeled our kitchen using the Ikea planner.
We sent the whole thing as a PDF to the electrical contractor and roughly discussed where/how many outlets should be placed—corners, refrigerator, lighting, etc.
They then marked the outlets appropriately and sent it back.
We added one or two more things—done.
We sent the whole thing as a PDF to the electrical contractor and roughly discussed where/how many outlets should be placed—corners, refrigerator, lighting, etc.
They then marked the outlets appropriately and sent it back.
We added one or two more things—done.

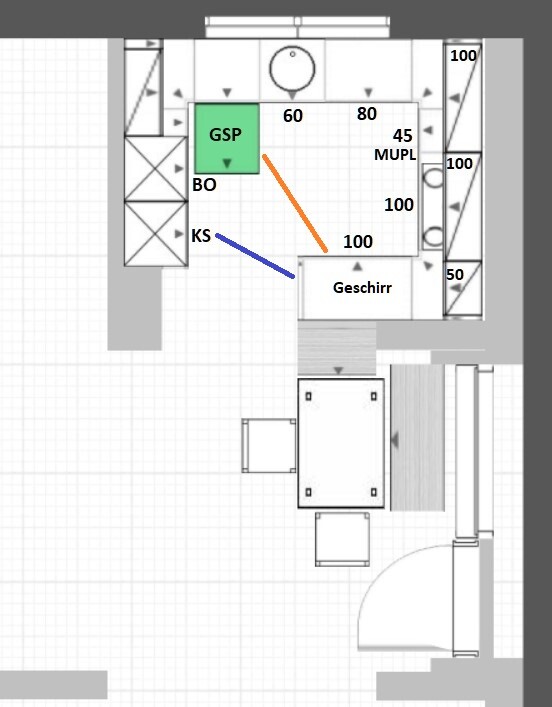

I can create a plan with cabinets exactly as I want them, regardless of the grid, color, or height. Then I can simply add notes using a basic paint program, including descriptions, dimensions, and so on.
Example
From the wall on the left side of the plan:
65cm (26 inches) blind corner cabinet
60cm (24 inches) dishwasher
60cm (24 inches) base cabinet with sink
This means my plumbing connections need to be centered behind the sink base cabinet, roughly at 155cm (61 inches) from the left side of the plan. It doesn’t get any easier than that.

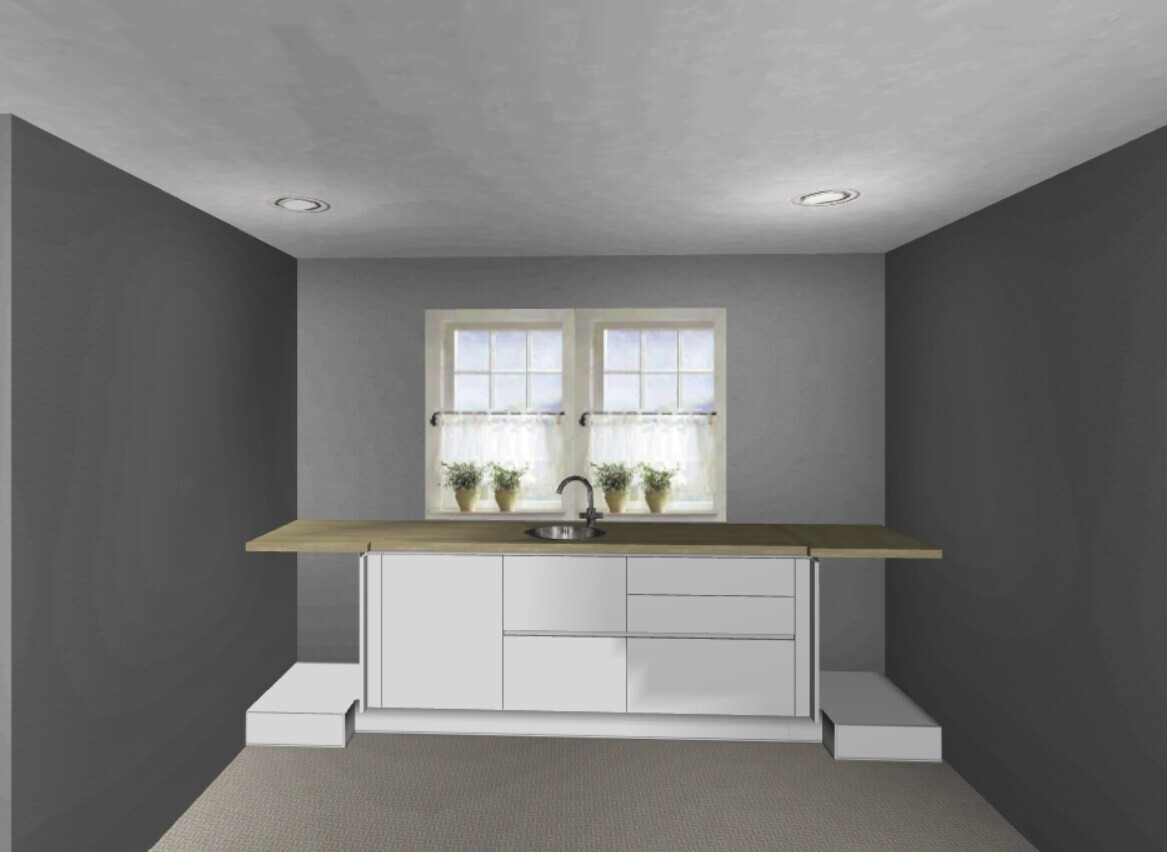

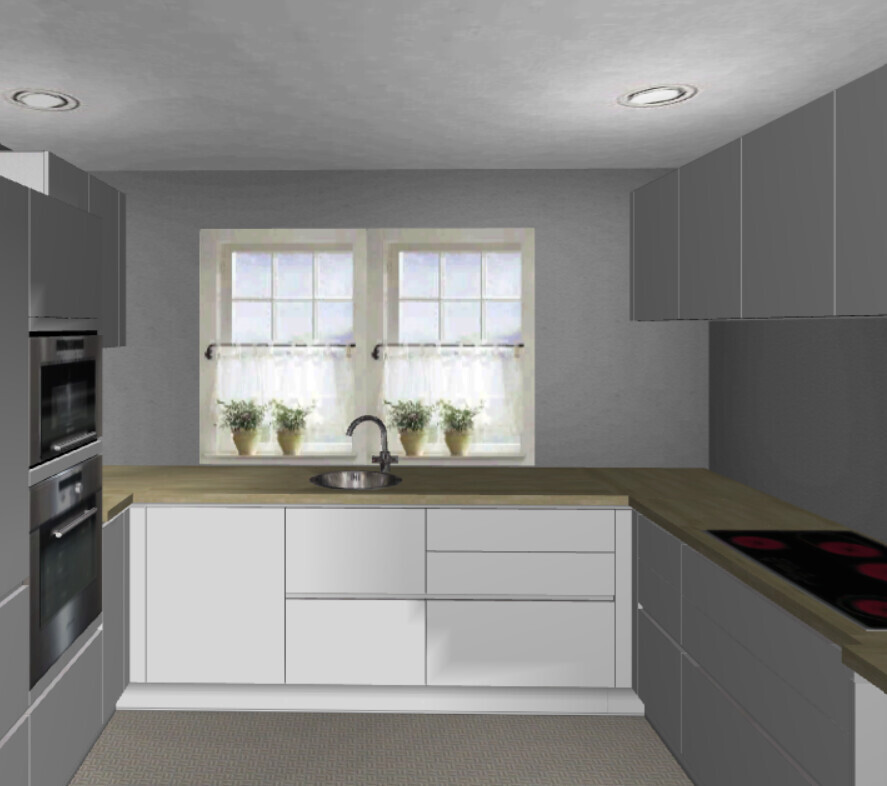

I can also create elevation views with this.
Example
From the wall on the left side of the plan:
65cm (26 inches) blind corner cabinet
60cm (24 inches) dishwasher
60cm (24 inches) base cabinet with sink
This means my plumbing connections need to be centered behind the sink base cabinet, roughly at 155cm (61 inches) from the left side of the plan. It doesn’t get any easier than that.
I can also create elevation views with this.
evelinoz schrieb:
one square is 10 x 10 cm (4 x 4 inches) … more like 50 x 50 cm (20 x 20 inches) 😉
And just a few filler words
evelinoz schrieb:
hm, @ypg. I have been using this software daily for 10 years?
[ATTACH alt="programm-fuer-Küchenplanung-skizze-steckdosen-wasseranschluss-580049-1.png"]72578[/ATTACH] You mean the small ones, right 🙂
They were not visible on my phone.
M
maulwurf7910 Jul 2022 18:40In the end, only the drain connection for the sink and dishwasher really matters. It should be roughly where the sink will be installed later. Electrical and water connections don’t have to be exact, as these can all be routed within the kitchen kickboard.
