ᐅ Installation of a telescopic extractor hood for recirculating operation
Created on: 7 Apr 2016 18:26
A
agu666
Hello,

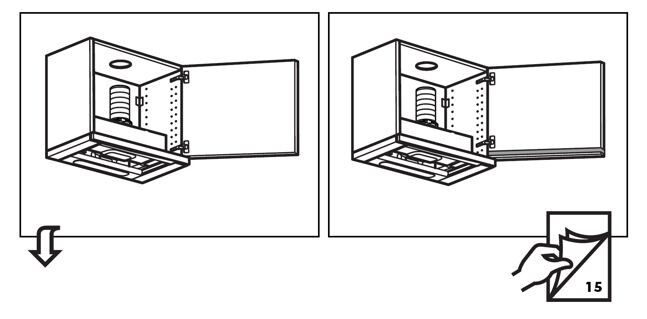

this concerns the installation of a Utdrag extractor hood into a 60x40 cm (24x16 inches) horizontal wall cabinet. There is a diagram in the manual that we do not fully understand, specifically this one:
Depending on the choice, the further assembly changes (especially the attachment of the brackets to the side panels for the offset bottom panel of the wall cabinet).
Unfortunately, the only difference we can see between the two photos is this odd gray line at the bottom edge of the door on the right image. Since we cannot identify what this is supposed to represent or whether it concerns us, we visited IKEA (Berlin-Lichtenberg) again today, where neither two kitchen department employees nor the service technician currently working on another kitchen installation in the showroom could help us.
So, what is that marking on the door supposed to indicate, and why would new holes have to be drilled in the side panels for the brackets?
Also, when using recirculation mode, does the exhaust duct have to be routed out of the cabinet, or can it end inside the cabinet? The cabinet will not be used for anything else.
Thank you in advance!
this concerns the installation of a Utdrag extractor hood into a 60x40 cm (24x16 inches) horizontal wall cabinet. There is a diagram in the manual that we do not fully understand, specifically this one:
Depending on the choice, the further assembly changes (especially the attachment of the brackets to the side panels for the offset bottom panel of the wall cabinet).
Unfortunately, the only difference we can see between the two photos is this odd gray line at the bottom edge of the door on the right image. Since we cannot identify what this is supposed to represent or whether it concerns us, we visited IKEA (Berlin-Lichtenberg) again today, where neither two kitchen department employees nor the service technician currently working on another kitchen installation in the showroom could help us.
So, what is that marking on the door supposed to indicate, and why would new holes have to be drilled in the side panels for the brackets?
Also, when using recirculation mode, does the exhaust duct have to be routed out of the cabinet, or can it end inside the cabinet? The cabinet will not be used for anything else.
Thank you in advance!
I
IKEA-Experte11 Jan 2017 14:35With a good jigsaw, a curve-cutting blade, and a moderate feed speed, the hole can be cut out quite well. The specified diameters for the ventilation pipes refer to the inner diameter.
L
Loftbau224 May 2022 20:30Hello, I have a general question regarding the product. Is installation also possible in a smaller cabinet, approximately 60cm x 40cm x 40cm (width x depth x height) (24 inches x 16 inches x 16 inches), or does it have to be 60cm x 60cm x 40cm (24 inches x 24 inches x 16 inches)?
L
Loftbau224 May 2022 20:31Have you noticed any discoloration on the wall or ceiling at the outlet point?
