ᐅ House placement on a sloped lot: Where should the house be located?
Created on: 17 May 2024 16:41
K
KrisHoss
Hello,
we have purchased a fully serviced plot of land from the municipality. I have already had it surveyed. The plot is sloped, dropping steeply at the lower right corner. After some consideration, I have identified two possible locations for the house (approximately 70 m² (750 sq ft) footprint with a basement, not yet finalized) with different advantages and disadvantages. Maybe you can help me decide between these options. The expected costs for the site work and earthworks for the two options are the main focus.

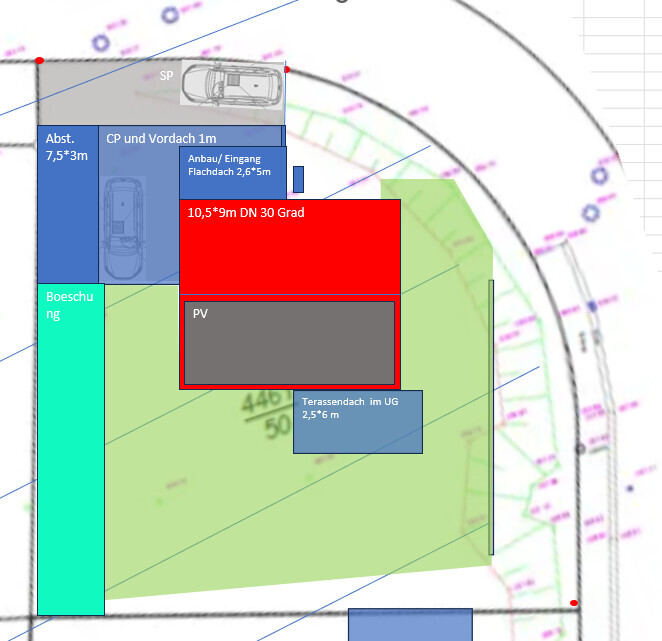

Option 1: The house is located at the upper corner of the plot, with the basement fully underground. Here, about 4.5 m (15 ft) of hillside at the lower right corner need to be retained.
Advantage: The house sits high, likely offering a better view over the valley, with a south-facing garden (is this an advantage?)
Disadvantage: In my view, the lower right corner looks unattractive. The steep slope is probably complex and costly to build and maintain.
Option 2: The house is placed at the lower right corner. Here, the house and the hillside garage retain most of the land. The remaining retaining structures are then moderate in height.
Advantage: It appears better integrated into the terrain, with no unnaturally high support structures. Large courtyard on the eaves side.
Development Plan / Restrictions
Plot size: 625 m² (6,725 sq ft)
Slope: yes, steeply sloping at the lower right corner, see elevation plan
Site occupancy index (Grundflächenzahl): 0.4
Floor space index (Geschossflächenzahl): 0.8
Building envelope, building line and boundary: see attachment
Number of parking spaces: 2
Number of stories: 2
Roof type: gable
Maximum heights / limits: eaves height 4.5 m (15 ft). The reference point is not entirely clear to me, see excerpt from the development plan
Additional requirements: retaining walls max 1.2 m (4 ft) above natural ground level
Client Requirements
Basement, stories: fully basement
Number of people, ages: 2 adults, 2 children (2 and 3 years old)
Room requirements on ground floor and upper floor: office and hobby room, location flexible
Office: home office for the wife, possibly private office for the husband
Guest bedrooms per year: rare
Open or closed architecture: rather open
House Design

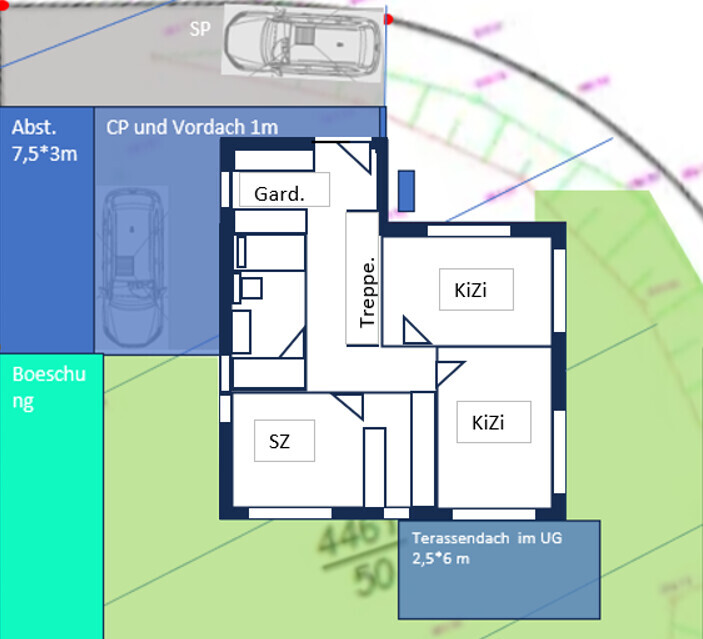

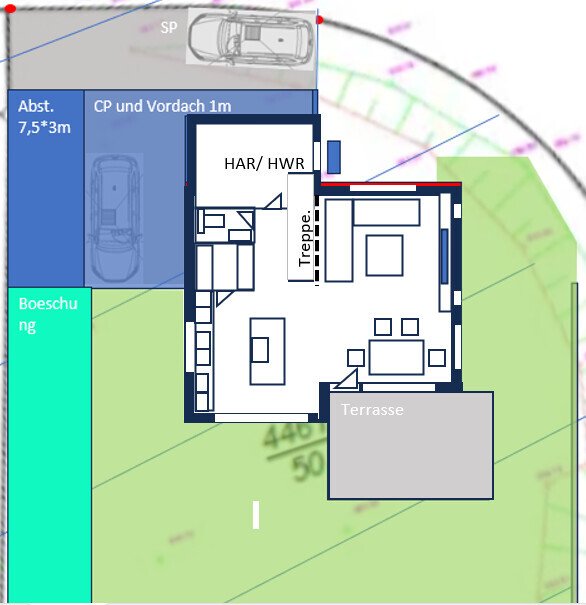

Designer: terrain plan created by me using freeware, floor plan draft by general contractor, although this is not the main focus of my thread
Cost estimate according to architect/planner: about 460,000 (SF)
Personal budget limit for the house, including fittings: 500,000
Preferred heating system:
As mentioned, in the first step I want to find the best location for the house considering site costs and other factors. Accordingly, the entrance will be either at the eaves or gable side.
I would appreciate your assessments of the options, and maybe someone has a third idea?
Thanks and best regards,
Kris
we have purchased a fully serviced plot of land from the municipality. I have already had it surveyed. The plot is sloped, dropping steeply at the lower right corner. After some consideration, I have identified two possible locations for the house (approximately 70 m² (750 sq ft) footprint with a basement, not yet finalized) with different advantages and disadvantages. Maybe you can help me decide between these options. The expected costs for the site work and earthworks for the two options are the main focus.
Option 1: The house is located at the upper corner of the plot, with the basement fully underground. Here, about 4.5 m (15 ft) of hillside at the lower right corner need to be retained.
Advantage: The house sits high, likely offering a better view over the valley, with a south-facing garden (is this an advantage?)
Disadvantage: In my view, the lower right corner looks unattractive. The steep slope is probably complex and costly to build and maintain.
Option 2: The house is placed at the lower right corner. Here, the house and the hillside garage retain most of the land. The remaining retaining structures are then moderate in height.
Advantage: It appears better integrated into the terrain, with no unnaturally high support structures. Large courtyard on the eaves side.
Development Plan / Restrictions
Plot size: 625 m² (6,725 sq ft)
Slope: yes, steeply sloping at the lower right corner, see elevation plan
Site occupancy index (Grundflächenzahl): 0.4
Floor space index (Geschossflächenzahl): 0.8
Building envelope, building line and boundary: see attachment
Number of parking spaces: 2
Number of stories: 2
Roof type: gable
Maximum heights / limits: eaves height 4.5 m (15 ft). The reference point is not entirely clear to me, see excerpt from the development plan
Additional requirements: retaining walls max 1.2 m (4 ft) above natural ground level
Client Requirements
Basement, stories: fully basement
Number of people, ages: 2 adults, 2 children (2 and 3 years old)
Room requirements on ground floor and upper floor: office and hobby room, location flexible
Office: home office for the wife, possibly private office for the husband
Guest bedrooms per year: rare
Open or closed architecture: rather open
House Design
Designer: terrain plan created by me using freeware, floor plan draft by general contractor, although this is not the main focus of my thread
Cost estimate according to architect/planner: about 460,000 (SF)
Personal budget limit for the house, including fittings: 500,000
Preferred heating system:
As mentioned, in the first step I want to find the best location for the house considering site costs and other factors. Accordingly, the entrance will be either at the eaves or gable side.
I would appreciate your assessments of the options, and maybe someone has a third idea?
Thanks and best regards,
Kris
H
hanghaus202329 May 2024 10:16You could share your floor plans to give an idea of what you like.
Since your budget is already quite tight, it makes sense to optimize. The basement is quite expensive and has the most potential for savings.
In my opinion, this only works with option 1, which has a ground floor and a basement.
Since your budget is already quite tight, it makes sense to optimize. The basement is quite expensive and has the most potential for savings.
In my opinion, this only works with option 1, which has a ground floor and a basement.
H
hanghaus202329 May 2024 12:27H
hanghaus202330 May 2024 11:55H
hanghaus20233 Jul 2024 14:52Just wanted to ask how you have decided. Garage on the upper or lower level?
Are there any floor plans available yet?
Are there any floor plans available yet?
Hi, sorry for the late reply.
We haven’t made a final decision yet, but we now have several offers for option 2, which includes a partially exposed basement.
One all-inclusive option, fully ready to move in including all groundwork (only for the house, not the garden) for €535,500, unfortunately the groundwork costs, which are missing from the other offers, are not listed separately.
One move-in ready option without groundwork for €490,000 (only drainage to the sewer).
With the kitchen, furnishings, and the main retaining walls included, the budget of €600,000 is within reach.
Thanks again for the input!
We haven’t made a final decision yet, but we now have several offers for option 2, which includes a partially exposed basement.
One all-inclusive option, fully ready to move in including all groundwork (only for the house, not the garden) for €535,500, unfortunately the groundwork costs, which are missing from the other offers, are not listed separately.
One move-in ready option without groundwork for €490,000 (only drainage to the sewer).
With the kitchen, furnishings, and the main retaining walls included, the budget of €600,000 is within reach.
Thanks again for the input!
D
Dachshund908 Aug 2024 07:01KrisHoss schrieb:
Hi, sorry for the late reply..
We haven't made a final decision yet, but we now have several quotes for option 2, which includes a partially exposed basement..
One all-inclusive offer, completely move-in ready including all earthworks (house only, not the garden) for €535,500 (€535,500), unfortunately, the earthworks costs missing from the other quotes are not listed separately.
One move-in ready offer without earthworks for €490,000 (€490,000) (only drainage to the sewer).
With kitchen, furnishings, and the main retaining walls included, the budget of €600,000 (€600,000) is within reach.
Thanks again for the input! Hi, what is the living area these offers are based on across the 3 floors?
