Good morning everyone,
we are building a single-family house with approximately 200 sqm (2,150 sq ft) of living space on a beautiful sloped plot not far from the city center. We shared some initial drafts a few months ago. Since a lot has changed since then, we are posting the current planning status again and look forward to the discussions:
Development plan/restrictions: development plan
Plot size: 500 sqm (5,380 sq ft)
Slope: yes, about 6 m (20 ft) drop over 28 m (92 ft) plot length (southeast facing slope)
Floor area ratio: 0.2
Plot ratio: 0.3 (variations are expected to be approved if the floor area ratio is respected)
Building envelope, building line and boundaries: standard setback distances
Edge development: garage will be built on the boundary line, which is permitted
Number of parking spaces: 1 + garage driveway
Number of storeys: I + IS (meaning 1 full floor + basement level → basement on the slope)
Roof style: no specification
Architectural style: no specification
Orientation: ridge must run east-west
Maximum heights/limits: eaves max. 3.60 m (11.8 ft) above street level
Other requirements
Homeowners’ requirements
Style, roof type, building type: gable roof with 48° pitch
Basement, floors: basement level – to be used as primary living space on the south slope with access to the terrace
Number of people, ages: parents just over 30, children 0 and 2 years old
Space requirements for ground floor and upper floor: ground floor: main living area and kitchen; upper floor: 3 bedrooms + bathroom; basement: summer living room/playroom with garden access, guest room
Office use: possibly a studio office under the roof (not a decisive factor)
Guests per year: long-term visits anticipated
Open or closed architecture: open
Traditional or modern construction: classic form with large, high windows
Open kitchen, kitchen island: open kitchen with cold island and seating
Number of dining seats: 6
Fireplace: probably yes, but as an external chimney
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: prefabricated garage with masonry undercroft
Utility garden, greenhouse: no
Further wishes/special features/daily routine, including reasons why certain things should be included or excluded:
terrace access at ground level from the basement
photovoltaic system
House design
Who designed it:
- Planner from a construction company (civil engineer) / self-planned by homeowners
What do you particularly like? Why? Large basement room with terrace access. Comfortable overnight accommodation for guests.
What don’t you like? Why? The stair shape is very functional; it optimizes space usage on the upper floor and generally towards the south side of the house. A straight staircase would be preferred visually, though.
The current full storey definition according to the Bavarian Building Code of 1969 forbids, for example, raising the knee wall or adding a second dormer on the upper floor.
Estimated cost according to architect/planner: €360,000
Personal price limit for the house including fixtures: 400,000
Preferred heating technology: air-to-water heat pump
If you have to give up something, what details/finishes can you live without?
- Can give up: photovoltaic system
- Cannot give up: basement with living-quality standards
Why does the design look the way it does? For example:
Based on the plot conditions and the development plan, we have completely redesigned the first draft step by step, incorporating inspiration from this forum and new build areas (offline) / Pinterest and similar sources (online).
Currently, we are still considering the following questions:
- Floor-to-ceiling windows on the south side: single- or double-leaf? Originally double-leaf with 150 cm (60 inches) width planned. We prefer the look without the division, but then probably max. 120 cm (47 inches) wide would be possible.
- Fixed glazing as a large light strip on the southwest corner of the basement or rather two windows aligned with those above on the west facade?
- Omit the window in the small basement room on the northwest side to improve facade appearance?
- Add 2 extra roof windows next to the dormer on the upper floor to bring more light to the children’s rooms?
- Flooring on ground and basement floors: upper floor will have parquet; still undecided between parquet, continuous granite flooring, or exposed screed/smooth floor for the other two levels
We look forward to your comments!
we are building a single-family house with approximately 200 sqm (2,150 sq ft) of living space on a beautiful sloped plot not far from the city center. We shared some initial drafts a few months ago. Since a lot has changed since then, we are posting the current planning status again and look forward to the discussions:
Development plan/restrictions: development plan
Plot size: 500 sqm (5,380 sq ft)
Slope: yes, about 6 m (20 ft) drop over 28 m (92 ft) plot length (southeast facing slope)
Floor area ratio: 0.2
Plot ratio: 0.3 (variations are expected to be approved if the floor area ratio is respected)
Building envelope, building line and boundaries: standard setback distances
Edge development: garage will be built on the boundary line, which is permitted
Number of parking spaces: 1 + garage driveway
Number of storeys: I + IS (meaning 1 full floor + basement level → basement on the slope)
Roof style: no specification
Architectural style: no specification
Orientation: ridge must run east-west
Maximum heights/limits: eaves max. 3.60 m (11.8 ft) above street level
Other requirements
Homeowners’ requirements
Style, roof type, building type: gable roof with 48° pitch
Basement, floors: basement level – to be used as primary living space on the south slope with access to the terrace
Number of people, ages: parents just over 30, children 0 and 2 years old
Space requirements for ground floor and upper floor: ground floor: main living area and kitchen; upper floor: 3 bedrooms + bathroom; basement: summer living room/playroom with garden access, guest room
Office use: possibly a studio office under the roof (not a decisive factor)
Guests per year: long-term visits anticipated
Open or closed architecture: open
Traditional or modern construction: classic form with large, high windows
Open kitchen, kitchen island: open kitchen with cold island and seating
Number of dining seats: 6
Fireplace: probably yes, but as an external chimney
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: prefabricated garage with masonry undercroft
Utility garden, greenhouse: no
Further wishes/special features/daily routine, including reasons why certain things should be included or excluded:
terrace access at ground level from the basement
photovoltaic system
House design
Who designed it:
- Planner from a construction company (civil engineer) / self-planned by homeowners
What do you particularly like? Why? Large basement room with terrace access. Comfortable overnight accommodation for guests.
What don’t you like? Why? The stair shape is very functional; it optimizes space usage on the upper floor and generally towards the south side of the house. A straight staircase would be preferred visually, though.
The current full storey definition according to the Bavarian Building Code of 1969 forbids, for example, raising the knee wall or adding a second dormer on the upper floor.
Estimated cost according to architect/planner: €360,000
Personal price limit for the house including fixtures: 400,000
Preferred heating technology: air-to-water heat pump
If you have to give up something, what details/finishes can you live without?
- Can give up: photovoltaic system
- Cannot give up: basement with living-quality standards
Why does the design look the way it does? For example:
Based on the plot conditions and the development plan, we have completely redesigned the first draft step by step, incorporating inspiration from this forum and new build areas (offline) / Pinterest and similar sources (online).
Currently, we are still considering the following questions:
- Floor-to-ceiling windows on the south side: single- or double-leaf? Originally double-leaf with 150 cm (60 inches) width planned. We prefer the look without the division, but then probably max. 120 cm (47 inches) wide would be possible.
- Fixed glazing as a large light strip on the southwest corner of the basement or rather two windows aligned with those above on the west facade?
- Omit the window in the small basement room on the northwest side to improve facade appearance?
- Add 2 extra roof windows next to the dormer on the upper floor to bring more light to the children’s rooms?
- Flooring on ground and basement floors: upper floor will have parquet; still undecided between parquet, continuous granite flooring, or exposed screed/smooth floor for the other two levels
We look forward to your comments!
Kaspatoo schrieb:
A tip from my wife (seriously, and actually tried herself): try playing a round of SIMS.
PS: rosebud;!;!;!;!;!;!;!;!;!;!;!;!;!;!;!.....[emoji23]
Why so much money?
Interior design like the Americans works fine without cheats [emoji2]
Hello everyone,

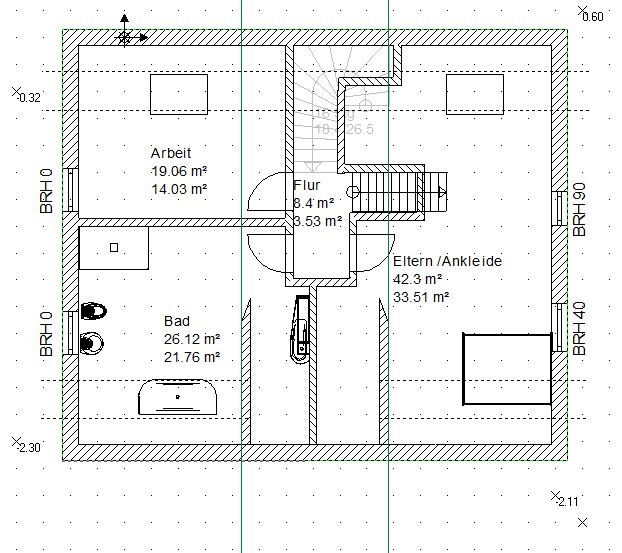

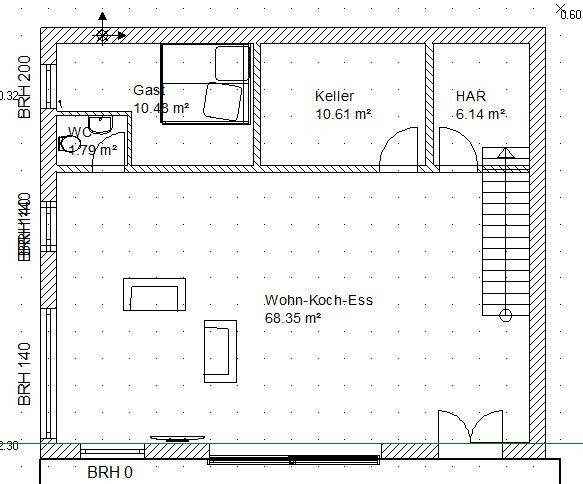

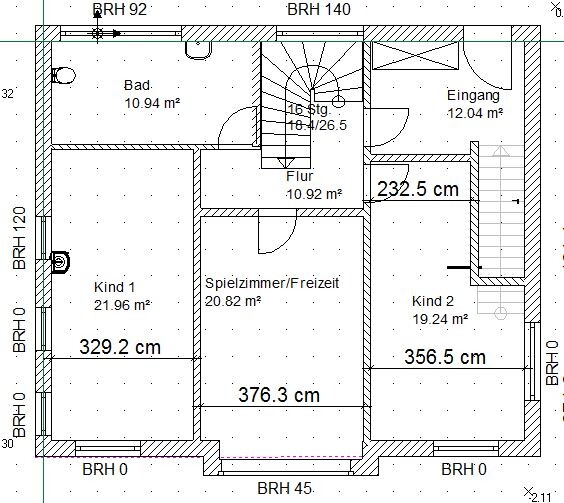

we are reconsidering the layout – there was some criticism and many suggestions for improvement on our previous plans. Many recommended relocating the living area to the basement due to the slope of the land. This way, we would have direct access to the terrace/garden from the living room and distribute the bedrooms between the ground floor and the attic.
We have made a draft inspired by floor plans and staircase designs we have seen both in person and online. Regarding the staircase design to the attic, it is important to note that we are only allowed to build about 50cm (20 inches) of knee wall, and the attic cannot be a full story – with the dormer, we are already at the absolute limit!
We appreciate any comments and suggestions for improvement – both regarding the overall layout and the details!
we are reconsidering the layout – there was some criticism and many suggestions for improvement on our previous plans. Many recommended relocating the living area to the basement due to the slope of the land. This way, we would have direct access to the terrace/garden from the living room and distribute the bedrooms between the ground floor and the attic.
We have made a draft inspired by floor plans and staircase designs we have seen both in person and online. Regarding the staircase design to the attic, it is important to note that we are only allowed to build about 50cm (20 inches) of knee wall, and the attic cannot be a full story – with the dormer, we are already at the absolute limit!
We appreciate any comments and suggestions for improvement – both regarding the overall layout and the details!
SupaCriz schrieb:
we are reconsidering the room layout Then you should also write down the external dimensions at least, so that it looks a bit different from before.
https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
I also find it hard to believe that 360,000€ will be enough. I suspect you will exceed your budget of 400,000€ once you include the desired features.
Did I read correctly that the carport is also planned to have a basement? For 200m² (2,150 sq ft) of living-quality space at an average of 2,000€/m², the cost would likely start from around 400,000€, or you would need to consider a "smaller" house of about 180m² (1,940 sq ft).
Did I read correctly that the carport is also planned to have a basement? For 200m² (2,150 sq ft) of living-quality space at an average of 2,000€/m², the cost would likely start from around 400,000€, or you would need to consider a "smaller" house of about 180m² (1,940 sq ft).
