ᐅ Floor plans for a single-family house, approximately 1,500 sq ft (140 m²), without a basement
Created on: 1 Nov 2016 14:14
S
stefanvery
Development Plan / Restrictions
Plot size: 439 sqm (4720 sq ft)
Slope: yes, approx. 1.3 m (4 ft) descent across the plot, approx. 0.5 m (1.6 ft) in the house area
Site occupancy index (floor space ratio): 0.35
Floor area ratio (FAR): 0.6
Building window, building line and boundary: see development plan
Border development:
Number of parking spaces: 2
Number of storeys: 2
Roof style: any
Architectural style: any
Orientation: southeast or southwest
Maximum height / limits: 10 m (33 ft) above street curb level
Further requirements
Homeowners’ Requirements
Style, roof type, building type: gable roof
Basement, floors: 1.5 floors without basement, approx. 1.25 m (4 ft) knee wall height
Number of occupants, age: 2 adults (32 years + 27 years), children planned
Space requirement on ground floor and upper floor: approx. 130 sqm (1400 sq ft)
Office: family use and home office
Guest sleeping per year: rare
Open or closed layout: closed
Traditional or modern design: mixed
Open kitchen, kitchen island: semi-open to dining room
Number of dining seats: 6
Fireplace: no
Heating: bio-district heating, no own heat generator in the house
Music / stereo wall: yes
Balcony, roof terrace: terraces to southeast and southwest
Garage, carport: 2 carports, 2 parking spaces in front of carport
Utility garden, greenhouse: yes
Other wishes / special features / daily routine: controlled residential ventilation, monolithic wall made of brick or aerated concrete. Due to the lack of a basement, the office and utility room must be located on the ground floor.
Owner’s work: flooring, painting, and installation of controlled residential ventilation
House Design
Who designed it: by us
What do you particularly like?
What do you dislike?
- We don’t find the entrance behind the carport ideal. However, with the rather small plot, there is hardly any alternative. An entrance facing south is not very good, as we want to use the south side for other rooms. If we put the carport completely behind or next to the house, the house moves too much towards the center of the plot, leaving hardly any meaningful garden space in any direction. Suggestions are very welcome here.
- When entering the bathroom, the first thing you see is the shower wall.
Price estimate according to architect/planner: depending on provider, 190,000 to 250,000, including special features, excluding ancillary building costs and materials for owner’s work
Personal budget limit for the house, including fittings: 210,000, including special features, excluding ancillary building costs and materials for owner’s work
Preferred heating technology: district heating available and mandatory
If you had to give up something, which details or extensions?
- Can you do without: actually nothing unnecessary planned
- Cannot do without: n/a
The exterior dimensions (10.24 m x 9.24 m / 33 ft 7 in x 30 ft 4 in) come from a Flair 134 – this provider has so far been by far the most affordable. The dimensions also fit our plot very well. After many other floor plans with different dimensions, we ultimately chose this one.
Basically, we are very satisfied with it; everything seems to be exactly the size we need. Nothing is too big, nothing too small. Of course, bigger would always be nicer.
Our only points of criticism are:
- the shower wall right in front when entering the bathroom
- the house entrance behind the carport. As a passage between the cars, about 1.40 m (4.6 ft) clearance is planned. Beyond that, there is a passage between the house wall and the shed, about 1.70 m (5.6 ft) wide.
What is your opinion on the overall floor plan and these two points of criticism?
Plot size: 439 sqm (4720 sq ft)
Slope: yes, approx. 1.3 m (4 ft) descent across the plot, approx. 0.5 m (1.6 ft) in the house area
Site occupancy index (floor space ratio): 0.35
Floor area ratio (FAR): 0.6
Building window, building line and boundary: see development plan
Border development:
Number of parking spaces: 2
Number of storeys: 2
Roof style: any
Architectural style: any
Orientation: southeast or southwest
Maximum height / limits: 10 m (33 ft) above street curb level
Further requirements
Homeowners’ Requirements
Style, roof type, building type: gable roof
Basement, floors: 1.5 floors without basement, approx. 1.25 m (4 ft) knee wall height
Number of occupants, age: 2 adults (32 years + 27 years), children planned
Space requirement on ground floor and upper floor: approx. 130 sqm (1400 sq ft)
Office: family use and home office
Guest sleeping per year: rare
Open or closed layout: closed
Traditional or modern design: mixed
Open kitchen, kitchen island: semi-open to dining room
Number of dining seats: 6
Fireplace: no
Heating: bio-district heating, no own heat generator in the house
Music / stereo wall: yes
Balcony, roof terrace: terraces to southeast and southwest
Garage, carport: 2 carports, 2 parking spaces in front of carport
Utility garden, greenhouse: yes
Other wishes / special features / daily routine: controlled residential ventilation, monolithic wall made of brick or aerated concrete. Due to the lack of a basement, the office and utility room must be located on the ground floor.
Owner’s work: flooring, painting, and installation of controlled residential ventilation
House Design
Who designed it: by us
What do you particularly like?
What do you dislike?
- We don’t find the entrance behind the carport ideal. However, with the rather small plot, there is hardly any alternative. An entrance facing south is not very good, as we want to use the south side for other rooms. If we put the carport completely behind or next to the house, the house moves too much towards the center of the plot, leaving hardly any meaningful garden space in any direction. Suggestions are very welcome here.
- When entering the bathroom, the first thing you see is the shower wall.
Price estimate according to architect/planner: depending on provider, 190,000 to 250,000, including special features, excluding ancillary building costs and materials for owner’s work
Personal budget limit for the house, including fittings: 210,000, including special features, excluding ancillary building costs and materials for owner’s work
Preferred heating technology: district heating available and mandatory
If you had to give up something, which details or extensions?
- Can you do without: actually nothing unnecessary planned
- Cannot do without: n/a
The exterior dimensions (10.24 m x 9.24 m / 33 ft 7 in x 30 ft 4 in) come from a Flair 134 – this provider has so far been by far the most affordable. The dimensions also fit our plot very well. After many other floor plans with different dimensions, we ultimately chose this one.
Basically, we are very satisfied with it; everything seems to be exactly the size we need. Nothing is too big, nothing too small. Of course, bigger would always be nicer.
Our only points of criticism are:
- the shower wall right in front when entering the bathroom
- the house entrance behind the carport. As a passage between the cars, about 1.40 m (4.6 ft) clearance is planned. Beyond that, there is a passage between the house wall and the shed, about 1.70 m (5.6 ft) wide.
What is your opinion on the overall floor plan and these two points of criticism?
S
stefanvery7 Nov 2016 09:46You are referring to the second floor plan, right? Yes, the living room is very long, and the middle area is hardly usable, which we also don’t like. The toilet placement is unusual, but my wife prefers it out of sight and reach from the bathtub. The niche in the bedroom is meant to be an optimized, more open version of the originally planned small storage room.
There is no 1m (3.3 ft) line with a knee wall height of 1.25m (4.1 ft); the 2m (6.6 ft) line is shown [emoji6]
There is no 1m (3.3 ft) line with a knee wall height of 1.25m (4.1 ft); the 2m (6.6 ft) line is shown [emoji6]
S
stefanvery7 Nov 2016 10:01kbt09 schrieb:
In both versions, the main entrance can only be accessed through the carport... which is rather annoying. Instead of many perspectives, a dimensioned top view including the plot and carport would be more helpful.
The walk-in closet for the parents is rather impractical in both layouts. A clearance of 60 cm (24 inches) in front of the wardrobe doesn’t allow much room to move, and you always have to pass by the person sleeping. Having to enter through the carport was exactly my concern with the floor plan featuring the carport at the bottom. In the other one, I actually like that the entrance is located under the carport roof, without being hidden. Of course, we would prefer a larger plot with access from the north, which would make this easier—but that’s already been purchased, and so far no better idea has come up.

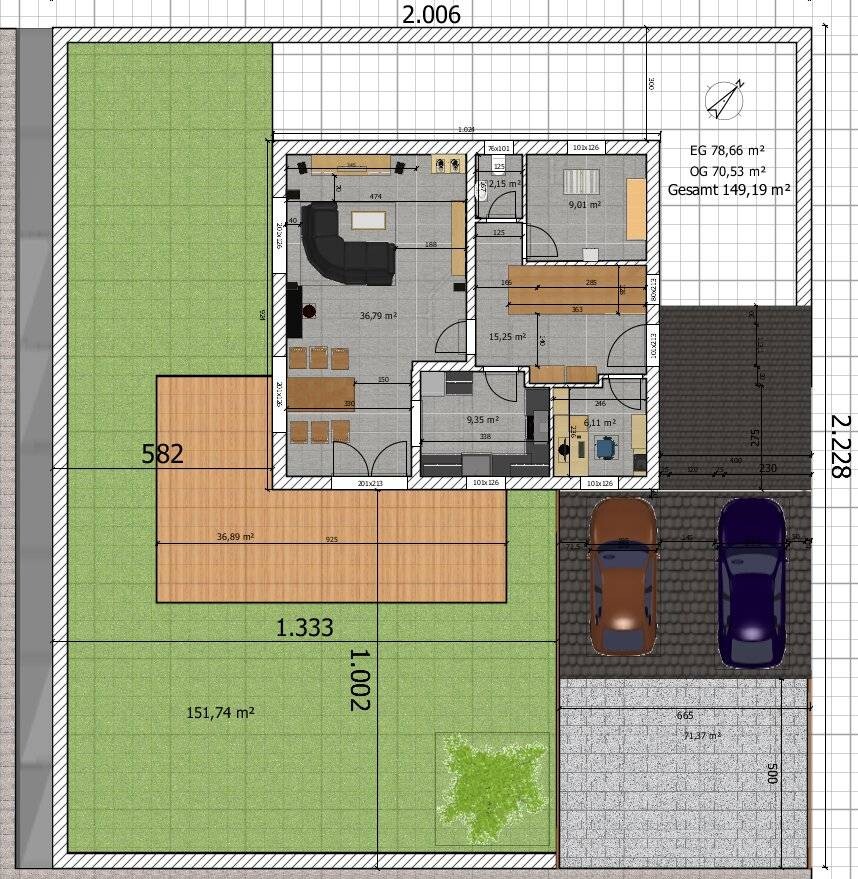

Here it is again with dimensions...
S
stefanvery7 Nov 2016 10:04RobsonMKK schrieb:
I have a suggestion for the ground floor:
Why not put the kitchen where the living area is now? Move the office wall straight down according to the plan, place the living area in the corner, and the dining area in the center.
(for the second suggestion) You basically mean swapping the kitchen and the sofa area? I don’t think that’s a bad idea at all, I’ll have to try it out this evening. Thanks!
Poor planning also applies to floor-to-ceiling windows, which can be frustrating... but the alternative isn’t a cave, it’s proper planning.
In the children’s room, making the only available window near the desk floor-to-ceiling, or planning the layout so poorly in advance that grandma’s display cabinet ends up blocking the window, is obviously not ideal.
Today, I was sitting behind my floor-to-ceiling windows with my parents, enjoying a light version of a conservatory feeling while the children played outside in the snow right in front of them.
In the children’s room, making the only available window near the desk floor-to-ceiling, or planning the layout so poorly in advance that grandma’s display cabinet ends up blocking the window, is obviously not ideal.
Today, I was sitting behind my floor-to-ceiling windows with my parents, enjoying a light version of a conservatory feeling while the children played outside in the snow right in front of them.
stefanvery schrieb:
You basically mean swapping the kitchen and the sofa area? I don’t think that’s a bad idea at all, I’ll have to try it out tonight. Thanks!What came of the swap?
