ᐅ Floor Plan Design for a Single-Family Home on a Sloped Site
Created on: 23 Nov 2020 16:56
J
JayneCobb
Hello everyone,
As I introduced myself here in the general forum, we have had several discussions with different general contractors, both for solid construction and timber frame.
We are now at the point where we have received some floor plan proposals.
I would like to present to you here (firstly?) the draft from the company Holz 1, which we particularly like because of the gallery and because it includes many of the features we communicated in advance.
I redrew this myself, so please forgive me if some elements appear a bit amateurish.
Most of the windows are not included in the drawing. What we would find extremely appealing is the (probably very expensive) idea of extending the eastern glass area at the southeast corner over two floors, but I couldn’t quickly find this option in the program.
I sketched in the larger bed on the ground floor to show proportions, as this room could potentially serve as a bedroom for us later.
From the linked thread above, it was already suggested by several forum members to locate the living/dining area on the garden level and the sleeping area upstairs.
Our reasons for planning it this way (though we are not yet entirely fixed):
- significantly shorter distances for carrying groceries, taking out trash, etc.
- nicer view from the living area into the greenery/mini-valley I described compared to the basement level
- more spacious feeling with an open ceiling/the gallery
- entering and being able to "just relax"
- simple accommodation of a frailty scenario (potentially living on one floor later, at least for a certain time)
We appreciate any further comments, ideas, etc. — thank you in advance!
Development Plan / Restrictions
Lot size: 791 sqm (8505 sq ft)
Slope: yes
Site coverage ratio: 0.35
Floor area ratio: 0.6
Building envelope, building line and boundary: see attachment
Number of parking spaces: 2 (double garage planned)
Number of floors: 2 to 2.5 (garden floor, ground floor, and possibly half an attic as a gallery with open space above ground floor)
Roof type: gable roof (35-42° specified)
Orientation: still open
Maximum heights/limits: ridge height 6.5 m (21 ft 4 in); eaves height 11.5 m (37 ft 9 in)
Additional requirements: Distance from house to street approx. 4.50 m (15 ft), terrain slopes downward from street
Owners’ Requirements
Style, roof form, building type:
Unfortunately, the development plan restricts us to a gable roof; if we had free choice, I would have opted for a clear Bauhaus style.
Basement, floors:
Garden floor 1/4 basement, 3/4 sleeping area. Above that, ground floor as living area, possibly a half open attic (gallery with open space + 1 room).
Number of people, ages:
3-4 people: 44 and 46 years old; son 1.5 years old, and husband’s 12-year-old daughter (she either spends every second weekend there or lives there permanently).
Space requirements on ground and upper floors:
Because the garage will likely need a basement due to the slope, we have planned the basement (storage, possibly workshop) there with access both from the garden side and from inside the house. On the garden/basement floor itself: technical room and laundry, three bedrooms, and main bathroom. On the ground floor (level with street, also accessible from garage) is the living area with kitchen, open living and dining area, pantry/utility room, an office/guest room, and a guest bathroom. An architect from a developer suggested the possibility of a half attic as a gallery with open space over the living area and a small room (guest room, office), which I really like.
Office: family use or home office?
There will definitely be some home office usage.
Number of guests per year:
Hard to say, but a small guest room is planned.
Open or closed architecture:
Rather open in the living area; above all, the view into the unbuildable, sloping green space (southeast) should be emphasized by high ceilings (no intermediate floor there) and large windows.
Open kitchen, kitchen island:
Kitchen can be separated by sliding door; no kitchen island needed.
Number of dining seats:
6
Fireplace:
Preferred (or wood stove), but not a must.
Music/Stereo wall:
Yes
Balcony, roof terrace:
Balcony on the ground floor facing southeast (preferably partly recessed into the house, but probably too little space), south side.
Garage, carport:
Garage preferred.
Productive garden, greenhouse:
Partly productive garden, partly digging/play area, partly nice to look at, partly play options for our son.
Other wishes/special features/daily routine, including reasons why something should or should not be:
We imagine a KfW55 standard house prepared for photovoltaic system installation.
I want the ground floor designed so that if mobility becomes limited in the future, we don’t have to move out immediately but can live on one level. Therefore, an additional room on the ground floor is a must, currently used as office/guest room and potentially convertible into a bedroom. For the same reason, the guest bathroom should already have a shower, and somewhere on the ground floor space for washing machine connections should be planned.
I personally lean toward spaciousness and many rooms but notice that the budget clearly limits this. My partner is more minimalist and wouldn’t mind if the house isn’t too large.
House Design
Planner:
Planner from a construction company
What do you particularly like? Why?
Gallery/open space (openness)
What do you not like? Why?
Less space (e.g. currently small bathroom, which can be adjusted) — budget-driven
Price estimate according to architect/planner:
520,000-550,000 euros gross (very rough estimate, no formal offer yet)
Personal price limit for house including fittings:
530,000 euros (but never say never)
Preferred heating technology:
Air-to-water heat pump
If you have to give up, on which details/extensions
- can you live without:
Garage can be shorter
- can you not live without:
Something open (some special feature/beautiful detail)
View of the biotope strip to the southeast
Why is the design the way it is now?
Were the corresponding/which wishes implemented by the architect?
Yes.
What makes it particularly good or bad in your eyes?
Airy, sufficient number of rooms
What is the most important/basic question about the floor plan in 130 characters?
Is the layout of the house suitable to meet our requirements?
As I introduced myself here in the general forum, we have had several discussions with different general contractors, both for solid construction and timber frame.
We are now at the point where we have received some floor plan proposals.
I would like to present to you here (firstly?) the draft from the company Holz 1, which we particularly like because of the gallery and because it includes many of the features we communicated in advance.
I redrew this myself, so please forgive me if some elements appear a bit amateurish.
Most of the windows are not included in the drawing. What we would find extremely appealing is the (probably very expensive) idea of extending the eastern glass area at the southeast corner over two floors, but I couldn’t quickly find this option in the program.
I sketched in the larger bed on the ground floor to show proportions, as this room could potentially serve as a bedroom for us later.
From the linked thread above, it was already suggested by several forum members to locate the living/dining area on the garden level and the sleeping area upstairs.
Our reasons for planning it this way (though we are not yet entirely fixed):
- significantly shorter distances for carrying groceries, taking out trash, etc.
- nicer view from the living area into the greenery/mini-valley I described compared to the basement level
- more spacious feeling with an open ceiling/the gallery
- entering and being able to "just relax"
- simple accommodation of a frailty scenario (potentially living on one floor later, at least for a certain time)
We appreciate any further comments, ideas, etc. — thank you in advance!
Development Plan / Restrictions
Lot size: 791 sqm (8505 sq ft)
Slope: yes
Site coverage ratio: 0.35
Floor area ratio: 0.6
Building envelope, building line and boundary: see attachment
Number of parking spaces: 2 (double garage planned)
Number of floors: 2 to 2.5 (garden floor, ground floor, and possibly half an attic as a gallery with open space above ground floor)
Roof type: gable roof (35-42° specified)
Orientation: still open
Maximum heights/limits: ridge height 6.5 m (21 ft 4 in); eaves height 11.5 m (37 ft 9 in)
Additional requirements: Distance from house to street approx. 4.50 m (15 ft), terrain slopes downward from street
Owners’ Requirements
Style, roof form, building type:
Unfortunately, the development plan restricts us to a gable roof; if we had free choice, I would have opted for a clear Bauhaus style.
Basement, floors:
Garden floor 1/4 basement, 3/4 sleeping area. Above that, ground floor as living area, possibly a half open attic (gallery with open space + 1 room).
Number of people, ages:
3-4 people: 44 and 46 years old; son 1.5 years old, and husband’s 12-year-old daughter (she either spends every second weekend there or lives there permanently).
Space requirements on ground and upper floors:
Because the garage will likely need a basement due to the slope, we have planned the basement (storage, possibly workshop) there with access both from the garden side and from inside the house. On the garden/basement floor itself: technical room and laundry, three bedrooms, and main bathroom. On the ground floor (level with street, also accessible from garage) is the living area with kitchen, open living and dining area, pantry/utility room, an office/guest room, and a guest bathroom. An architect from a developer suggested the possibility of a half attic as a gallery with open space over the living area and a small room (guest room, office), which I really like.
Office: family use or home office?
There will definitely be some home office usage.
Number of guests per year:
Hard to say, but a small guest room is planned.
Open or closed architecture:
Rather open in the living area; above all, the view into the unbuildable, sloping green space (southeast) should be emphasized by high ceilings (no intermediate floor there) and large windows.
Open kitchen, kitchen island:
Kitchen can be separated by sliding door; no kitchen island needed.
Number of dining seats:
6
Fireplace:
Preferred (or wood stove), but not a must.
Music/Stereo wall:
Yes
Balcony, roof terrace:
Balcony on the ground floor facing southeast (preferably partly recessed into the house, but probably too little space), south side.
Garage, carport:
Garage preferred.
Productive garden, greenhouse:
Partly productive garden, partly digging/play area, partly nice to look at, partly play options for our son.
Other wishes/special features/daily routine, including reasons why something should or should not be:
We imagine a KfW55 standard house prepared for photovoltaic system installation.
I want the ground floor designed so that if mobility becomes limited in the future, we don’t have to move out immediately but can live on one level. Therefore, an additional room on the ground floor is a must, currently used as office/guest room and potentially convertible into a bedroom. For the same reason, the guest bathroom should already have a shower, and somewhere on the ground floor space for washing machine connections should be planned.
I personally lean toward spaciousness and many rooms but notice that the budget clearly limits this. My partner is more minimalist and wouldn’t mind if the house isn’t too large.
House Design
Planner:
Planner from a construction company
What do you particularly like? Why?
Gallery/open space (openness)
What do you not like? Why?
Less space (e.g. currently small bathroom, which can be adjusted) — budget-driven
Price estimate according to architect/planner:
520,000-550,000 euros gross (very rough estimate, no formal offer yet)
Personal price limit for house including fittings:
530,000 euros (but never say never)
Preferred heating technology:
Air-to-water heat pump
If you have to give up, on which details/extensions
- can you live without:
Garage can be shorter
- can you not live without:
Something open (some special feature/beautiful detail)
View of the biotope strip to the southeast
Why is the design the way it is now?
Were the corresponding/which wishes implemented by the architect?
Yes.
What makes it particularly good or bad in your eyes?
Airy, sufficient number of rooms
What is the most important/basic question about the floor plan in 130 characters?
Is the layout of the house suitable to meet our requirements?
H

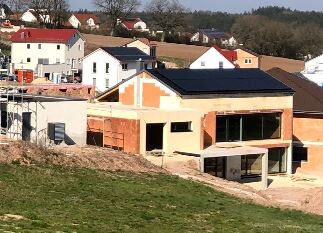

hanghaus200031 May 2021 09:15This person built something similar here.
hanghaus2000 schrieb:
In the east, they will probably build a house directly in front of you soon.I assume that neighbor "64" will focus heavily on a south-facing garden. To the south, there is quite a wide planting strip adjoining here.https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
H
hanghaus200031 May 2021 15:5711ant schrieb:
I assume that neighbor "64" will optimize for a large south-facing garden. There is a fairly wide planting strip adjacent to the south here. I agree with that. 30 characters left.
hanghaus2000 schrieb:
I agree with that.Exactly. So the neighboring buildings, without rotating the house, would at worst limit the view only for the office.https://www.instagram.com/11antgmxde/
https://www.linkedin.com/company/bauen-jetzt/
H
hanghaus200031 May 2021 21:2411ant schrieb:
There you go. So, the neighboring building, without rotating the house, would cause a view obstruction, potentially at worst for the office.My main concern is actually about solar energy gain. 😉J
JayneCobb1 Jun 2021 00:44Hello,
I just remembered that we looked at this orientation quite early on (introduced here as the “Massiv 1” draft).
There was a general opinion that houses and ridgelines should ideally be oriented toward the street. This also feels more coherent to us.
Regarding photovoltaic panels: The various builders we contacted all agreed that nowadays this hardly matters. For personal use, an east-west orientation can even be slightly more advantageous.
To the south of us and the adjacent plots to the east, the land remains undeveloped because there is a designated biotope area defined in the development plan that must not be altered. The dashed areas in the most recent plan shown are already part of this biotope, which had to be acquired (advantageously) along with the property. Apart from a building ban, there are no significant restrictions.
I had a longer conversation with the builder today. He considers moving the garage back by 2.50 m (8 feet) the only reasonable solution. Especially since excavator work would otherwise have to be done on the neighbor’s property, and that area is already finished... This works for us.
He also suggested removing the air-source heat pump (he thinks 14 kW is too high and suspects it was accidentally included by the architect) from the cold basement, since that is thermally unfavorable. We decided we don’t really need the extra downstairs WC. That space will become a hobby room, and the current hallway plus parts of the original hobby room between the living area and basement will become a technical/washing room. You would have to go through this room to get to the basement (and possibly the hobby room), but I don’t see that as a problem. He will discuss this further with the architect; we’ll see how the plans evolve.
The neighboring plot 64 is an interesting case. The plot still hasn’t been sold, only reserved. I’ve now learned that, due to the slope, the wastewater pipes need to be buried 4 m (13 feet) deep. However, at the northern neighbor’s property 63, it is not allowed to dig so deep near their garage (which borders the narrow, only access road to the site) because of structural concerns...
No idea if or how this can be resolved. Maybe we’re lucky and the lot will remain undeveloped for a long time. 😎
I just remembered that we looked at this orientation quite early on (introduced here as the “Massiv 1” draft).
There was a general opinion that houses and ridgelines should ideally be oriented toward the street. This also feels more coherent to us.
Regarding photovoltaic panels: The various builders we contacted all agreed that nowadays this hardly matters. For personal use, an east-west orientation can even be slightly more advantageous.
To the south of us and the adjacent plots to the east, the land remains undeveloped because there is a designated biotope area defined in the development plan that must not be altered. The dashed areas in the most recent plan shown are already part of this biotope, which had to be acquired (advantageously) along with the property. Apart from a building ban, there are no significant restrictions.
I had a longer conversation with the builder today. He considers moving the garage back by 2.50 m (8 feet) the only reasonable solution. Especially since excavator work would otherwise have to be done on the neighbor’s property, and that area is already finished... This works for us.
He also suggested removing the air-source heat pump (he thinks 14 kW is too high and suspects it was accidentally included by the architect) from the cold basement, since that is thermally unfavorable. We decided we don’t really need the extra downstairs WC. That space will become a hobby room, and the current hallway plus parts of the original hobby room between the living area and basement will become a technical/washing room. You would have to go through this room to get to the basement (and possibly the hobby room), but I don’t see that as a problem. He will discuss this further with the architect; we’ll see how the plans evolve.
The neighboring plot 64 is an interesting case. The plot still hasn’t been sold, only reserved. I’ve now learned that, due to the slope, the wastewater pipes need to be buried 4 m (13 feet) deep. However, at the northern neighbor’s property 63, it is not allowed to dig so deep near their garage (which borders the narrow, only access road to the site) because of structural concerns...
No idea if or how this can be resolved. Maybe we’re lucky and the lot will remain undeveloped for a long time. 😎
