ᐅ Single-family house floor plan on a slightly sloped plot, approximately 175 m²
Created on: 14 Feb 2023 13:53
U
Unnerfranggn
Hello,
we are a family of four and are planning our first own house.
We are completely new to this and hope to avoid some pitfalls or at least get some useful warnings here in the forum before making mistakes.
This is my first post here – please be patient if I have forgotten important details for you and I will try to add anything missing.
Hopefully, most questions can be answered from the questionnaire.
Development Plan / Restrictions
Plot size: 439m² (according to development plan – residential area not fully serviced yet, plot not surveyed. Front approx. 13m (43 feet) wide, widening to 17m (56 feet) after a curve, approx. 27m (89 feet) long)
Slope: Gentle north-facing slope, plot rises about 2.5m (8 feet) towards the south
Site coverage ratio: 0.3
Floor area ratio: 0.6
Building envelope, building line, and boundaries: See development plan excerpt. 3m (10 feet) setback from road, otherwise according to BayBO (Bavarian building code). Carports/garages may also be built outside the building boundaries (not at the rear)
Edge development: Fill or similar up to a maximum of 2m (6.5 feet) above traffic surface
Number of parking spaces: 2
Number of floors allowed: 2 full stories permitted
Roof style: Any allowed
Style: Detached or semi-detached house allowed
Orientation: As far as I can tell, we may choose the access road
Maximum heights/limits: Wall height 6.5m (21 feet) (“reference point is the respective topographically highest point at the public traffic area within the street facade length in front of the middle of the main building”). Ridge height 12m (39 feet).
Further regulations: The development plan feels very detailed, I don’t know what else might be relevant but can look it up. I believe I’m not allowed to share a link?!
Homeowners’ Requirements
Style, roof shape, building type: We want a single-family house for a family of four with dogs. Preferably with a cozy garden.
Basement and floors: Due to the slope and a need for plenty of (storage) space, we considered a basement (facing north and partially above ground), plus 2 full floors. Knee wall (kniestock) 1.6–1.8m (5–6 feet) if possible. Preferred roof type is gable roof, currently planned with a 25° pitch.
Number of occupants, age: 2 adults, 2 children (5 and 6 years old), and 3 dogs
Space requirements on ground and upper floor: Our current ideas:
- Ground floor: open kitchen-living-dining area, guest toilet, pantry. Preferably a generous hallway/entrance area with room for arriving and storage.
- Upper floor: 2 children’s rooms, bright and spacious, children’s bathroom (with shower), master area with bedroom/walk-in closet/master bathroom (shower and bathtub).
- Basement: utility/technical room, storage, office, guest room. If possible, office and guest room with as large windows as possible facing downhill; the basement should protrude about 1–1.5m (3–5 feet) from the ground (facing north/towards the service road).
Office: Family use or home office? Office room with home office for 1 person.
Guests per year: 8–10 times per year, usually 2–4 guests for several days each
Open or closed architecture: Preferably as open and bright as possible
Conservative or modern construction: Normal?
Open kitchen, island: Kitchen preferably open, cooking island optional (or flush with wall for more countertop space), pantry desired
Number of dining seats: 4–10, often have guests for meals
Fireplace: No
Music/audio wall: “Regular TV/music family living room” with no special acoustic requirements
Balcony, roof terrace: Rather not – garden terrace is sufficient
Garage, carport: No garage needed, a carport with storage space for 1 car (+ space for garden tools and bikes, possibly with preparation for electric car charging) would be great
Utility garden, greenhouse: No
Other wishes/special features/daily routine, including reasons why certain things are desired or not:
- We want our own space with lots of light and room for everyone, including places to retreat and to work. The living-dining area with a large dining table should be the heart of family life.
- Originally, we wished for a “two-story gable bay window” (according to the catalog) to brighten the dining area and also enhance the exterior appeal. Financially, this is questionable (~€30,000 approx. cost, not yet included). Maybe a large seating window next to the dining area instead?

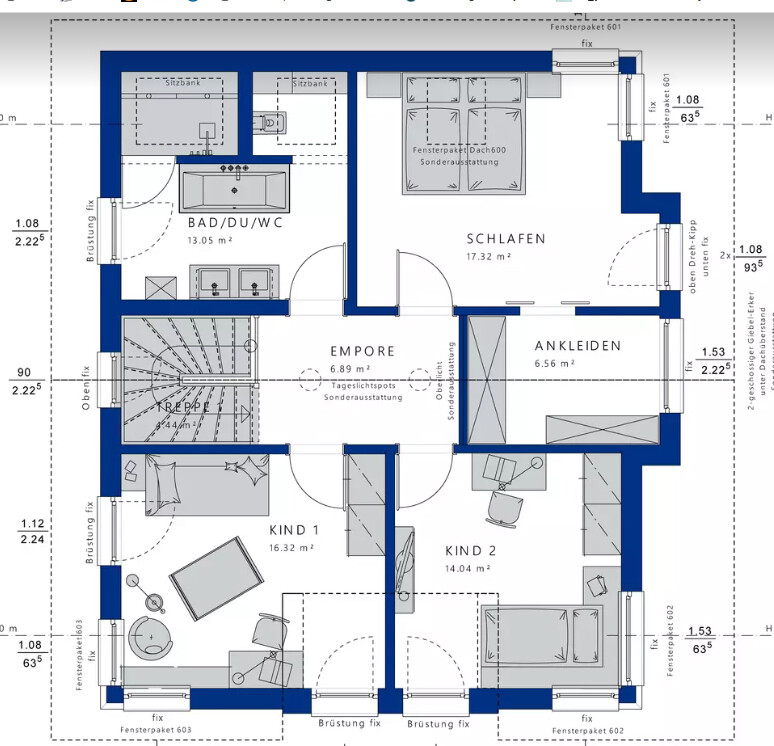

- We would like to modify the shown floor plans as follows (see hand-drawn sketches): In the basement, largest possible windows (light wells or shafts possible?) and 2 rooms as a living basement. On the ground floor, entrance from the east side, large hallway, pantry. On the upper floor, the children’s rooms should face south, the master area north. Generally, as many large windows as possible, especially in living spaces.
- We would like the carport including the shed described above to be located eastwards up to the plot boundary, preferably the full possible 9m (30 feet) length and as wide as possible when the house is sited as close as possible to the road on the west side. However, with the front door on the ground floor, the driveway to the carport would slope upward. The carport should also provide the canopy over the front door.
House Design
Who created the design: By us based on the “Evolution139” by Bien-Zenker plus “grid extensions”. Exterior dimensions based on current calculation 9.41m + 11.92m (31 feet + 39 feet).
What do you particularly like? Why? Open living area: living room is open but without a direct line of sight to the kitchen, large children’s rooms
What do you dislike? Why?
- We are unsure about the best layout for the entrance area including wardrobe/guest toilet/pantry. Should the hallway’s access to the living area be aligned with the front door or the stairs?
- As currently planned in our heads, only the guest toilet and master bathroom are stacked vertically. Children’s bathroom and utility room are in different areas – will this work?
Price estimate from architect/planner: House with grid extensions including basement (not a living basement), turnkey (KfW 40+ or NH40 standard): €520,000
Personal budget limit for the house including equipment: €600,000
Preferred heating system: Air-to-water heat pump with underfloor heating.
If you had to give up, on which details or upgrades
-you could give up:
-you cannot give up: Light, open living-dining area
Why is the design the way it is now?
We have a “pre-contract with price guarantee” with Bien-Zenker. After being allocated a plot by the municipality, we chose a house from the “Evolution” series that fits the plot dimensions. The internal layout should be “freely changeable,” or we could possibly choose another house from this series. Staircase shape and position should also be adjustable.

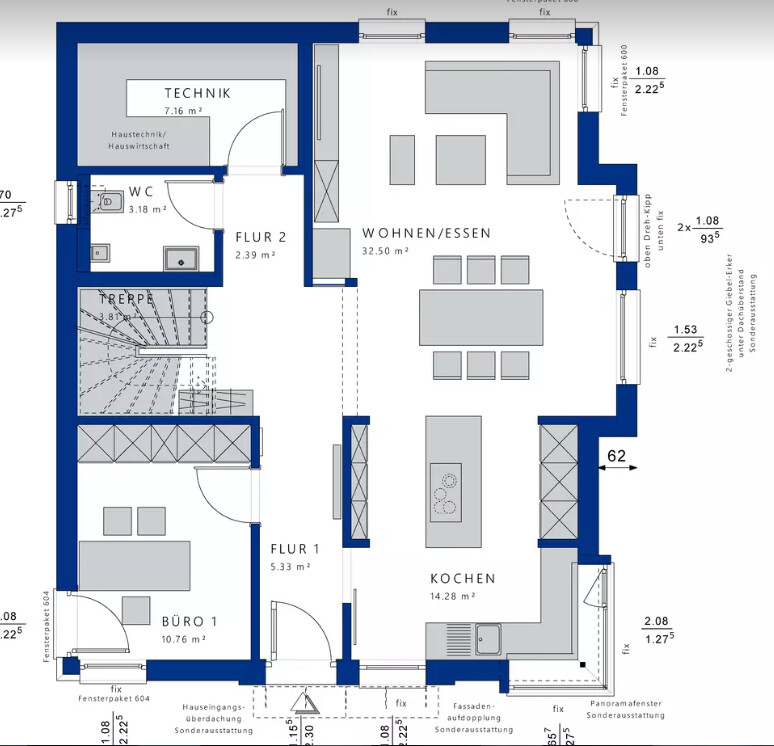

The floor plan screenshots come from the catalog or a preliminary plan from the seller. The hand-drawn floor plans reflect our ideas for the layout and the plot arrangement. I haven’t added windows yet.
With our ideas/wishes (and hopefully input/tips from you) the next step is the architect. Our architect so far does not seem to want to be very creative – if we give him a finished plan, he will probably just use it?! Hence, beforehand we ask for your opinions.
What is the most important/fundamental question about the floor plan, summarized in 130 characters?
- Does the plot layout make sense? Are there better alternatives?
- Are the carport and driveway feasible (incline? space by front door?)
- Can the bathrooms be located as per the sketches?
- Is a living basement financially possible?
- How much space is needed for light wells in front of basement windows?
- Ideas for floor plan variations or obvious mistakes?
- Obvious cost-saving potential?
Thanks in advance and have a sunny day!
Roland
Edit: The development plan excerpts are oriented north on top, south at bottom.
we are a family of four and are planning our first own house.
We are completely new to this and hope to avoid some pitfalls or at least get some useful warnings here in the forum before making mistakes.
This is my first post here – please be patient if I have forgotten important details for you and I will try to add anything missing.
Hopefully, most questions can be answered from the questionnaire.
Development Plan / Restrictions
Plot size: 439m² (according to development plan – residential area not fully serviced yet, plot not surveyed. Front approx. 13m (43 feet) wide, widening to 17m (56 feet) after a curve, approx. 27m (89 feet) long)
Slope: Gentle north-facing slope, plot rises about 2.5m (8 feet) towards the south
Site coverage ratio: 0.3
Floor area ratio: 0.6
Building envelope, building line, and boundaries: See development plan excerpt. 3m (10 feet) setback from road, otherwise according to BayBO (Bavarian building code). Carports/garages may also be built outside the building boundaries (not at the rear)
Edge development: Fill or similar up to a maximum of 2m (6.5 feet) above traffic surface
Number of parking spaces: 2
Number of floors allowed: 2 full stories permitted
Roof style: Any allowed
Style: Detached or semi-detached house allowed
Orientation: As far as I can tell, we may choose the access road
Maximum heights/limits: Wall height 6.5m (21 feet) (“reference point is the respective topographically highest point at the public traffic area within the street facade length in front of the middle of the main building”). Ridge height 12m (39 feet).
Further regulations: The development plan feels very detailed, I don’t know what else might be relevant but can look it up. I believe I’m not allowed to share a link?!
Homeowners’ Requirements
Style, roof shape, building type: We want a single-family house for a family of four with dogs. Preferably with a cozy garden.
Basement and floors: Due to the slope and a need for plenty of (storage) space, we considered a basement (facing north and partially above ground), plus 2 full floors. Knee wall (kniestock) 1.6–1.8m (5–6 feet) if possible. Preferred roof type is gable roof, currently planned with a 25° pitch.
Number of occupants, age: 2 adults, 2 children (5 and 6 years old), and 3 dogs
Space requirements on ground and upper floor: Our current ideas:
- Ground floor: open kitchen-living-dining area, guest toilet, pantry. Preferably a generous hallway/entrance area with room for arriving and storage.
- Upper floor: 2 children’s rooms, bright and spacious, children’s bathroom (with shower), master area with bedroom/walk-in closet/master bathroom (shower and bathtub).
- Basement: utility/technical room, storage, office, guest room. If possible, office and guest room with as large windows as possible facing downhill; the basement should protrude about 1–1.5m (3–5 feet) from the ground (facing north/towards the service road).
Office: Family use or home office? Office room with home office for 1 person.
Guests per year: 8–10 times per year, usually 2–4 guests for several days each
Open or closed architecture: Preferably as open and bright as possible
Conservative or modern construction: Normal?
Open kitchen, island: Kitchen preferably open, cooking island optional (or flush with wall for more countertop space), pantry desired
Number of dining seats: 4–10, often have guests for meals
Fireplace: No
Music/audio wall: “Regular TV/music family living room” with no special acoustic requirements
Balcony, roof terrace: Rather not – garden terrace is sufficient
Garage, carport: No garage needed, a carport with storage space for 1 car (+ space for garden tools and bikes, possibly with preparation for electric car charging) would be great
Utility garden, greenhouse: No
Other wishes/special features/daily routine, including reasons why certain things are desired or not:
- We want our own space with lots of light and room for everyone, including places to retreat and to work. The living-dining area with a large dining table should be the heart of family life.
- Originally, we wished for a “two-story gable bay window” (according to the catalog) to brighten the dining area and also enhance the exterior appeal. Financially, this is questionable (~€30,000 approx. cost, not yet included). Maybe a large seating window next to the dining area instead?
- We would like to modify the shown floor plans as follows (see hand-drawn sketches): In the basement, largest possible windows (light wells or shafts possible?) and 2 rooms as a living basement. On the ground floor, entrance from the east side, large hallway, pantry. On the upper floor, the children’s rooms should face south, the master area north. Generally, as many large windows as possible, especially in living spaces.
- We would like the carport including the shed described above to be located eastwards up to the plot boundary, preferably the full possible 9m (30 feet) length and as wide as possible when the house is sited as close as possible to the road on the west side. However, with the front door on the ground floor, the driveway to the carport would slope upward. The carport should also provide the canopy over the front door.
House Design
Who created the design: By us based on the “Evolution139” by Bien-Zenker plus “grid extensions”. Exterior dimensions based on current calculation 9.41m + 11.92m (31 feet + 39 feet).
What do you particularly like? Why? Open living area: living room is open but without a direct line of sight to the kitchen, large children’s rooms
What do you dislike? Why?
- We are unsure about the best layout for the entrance area including wardrobe/guest toilet/pantry. Should the hallway’s access to the living area be aligned with the front door or the stairs?
- As currently planned in our heads, only the guest toilet and master bathroom are stacked vertically. Children’s bathroom and utility room are in different areas – will this work?
Price estimate from architect/planner: House with grid extensions including basement (not a living basement), turnkey (KfW 40+ or NH40 standard): €520,000
Personal budget limit for the house including equipment: €600,000
Preferred heating system: Air-to-water heat pump with underfloor heating.
If you had to give up, on which details or upgrades
-you could give up:
-you cannot give up: Light, open living-dining area
Why is the design the way it is now?
We have a “pre-contract with price guarantee” with Bien-Zenker. After being allocated a plot by the municipality, we chose a house from the “Evolution” series that fits the plot dimensions. The internal layout should be “freely changeable,” or we could possibly choose another house from this series. Staircase shape and position should also be adjustable.
The floor plan screenshots come from the catalog or a preliminary plan from the seller. The hand-drawn floor plans reflect our ideas for the layout and the plot arrangement. I haven’t added windows yet.
With our ideas/wishes (and hopefully input/tips from you) the next step is the architect. Our architect so far does not seem to want to be very creative – if we give him a finished plan, he will probably just use it?! Hence, beforehand we ask for your opinions.
What is the most important/fundamental question about the floor plan, summarized in 130 characters?
- Does the plot layout make sense? Are there better alternatives?
- Are the carport and driveway feasible (incline? space by front door?)
- Can the bathrooms be located as per the sketches?
- Is a living basement financially possible?
- How much space is needed for light wells in front of basement windows?
- Ideas for floor plan variations or obvious mistakes?
- Obvious cost-saving potential?
Thanks in advance and have a sunny day!
Roland
Edit: The development plan excerpts are oriented north on top, south at bottom.
Unnerfranggn schrieb:
What would you have recommended to us if we were still "free," @K a t j a?
Well, as I already mentioned, to me this is definitely a split-level plot. The main reason is the small size. The staircase with an entrance landing would be my second option.
Dietmar’s sketch might look nice, but it doesn’t reflect reality. He should please draw the street as well! Then it quickly becomes clear that the entire property would need to be retained on the street side. Apart from the high cost, this also creates, more or less, a kind of “concrete vault.”
Why split-level? On larger plots, even with half-story height differences within the building area, you can often gently level and terrace the terrain by landscaping. But if you only have 3 meters (10 feet) to the property boundary, gentle grading is not an option. Then a retaining wall is necessary. Maybe someone else has a better idea. The experts at Bien-Zenker should advise you! Since they even have a special “slope division,” perfect! Let them show what’s possible.
Two general points worth mentioning, in my opinion:
1. If you buy a sloping plot (and this is one), you shouldn’t expect to avoid stairs. That would be quite unrealistic. The question remains how steep the slope really is within the building envelope. Here we are only estimating based on your contour lines.
2. Draw a side view of your plot with the slope on graph paper with millimeter (inch) scale. Then take a rectangle matching the footprint of your house and place it on top. You absolutely need to get a feel for your land. Especially the position of the terrace must be final, ideally so that water does not collect there later and you don’t have to jump down 1 meter (3 feet) from your terrace doors (this has all happened before).
U
Unnerfranggn17 Feb 2023 23:23hanghaus2023 schrieb:
How old are the children?5 and 6K a t j a schrieb:

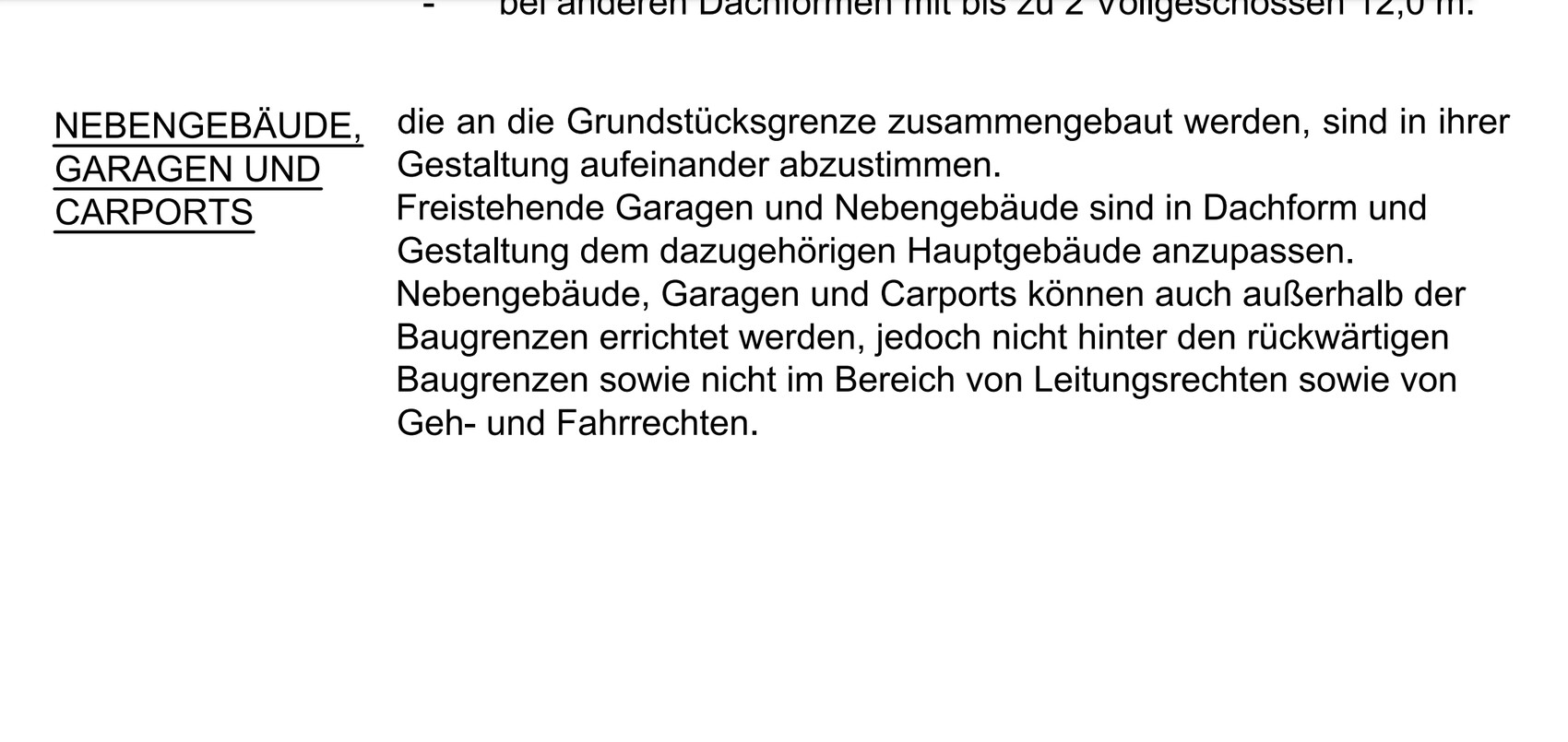

About the carport: is it really allowed to be right next to the street? That’s quite rare. Please read the zoning plan carefully again regarding this.This is what it says:
Is the carport then allowed next to the street?
I will have to find out at which authority the “slope department” will come into play. At least you are already giving us some insight. And once the plot can be officially surveyed and we know exactly where the reference point for the building height is, the planning can really become concrete.
Choosing the sloped plot wasn’t exactly intentional – it was more that after years of searching, it was the first thing we could get… of course, we’re not surprised by the conditions – but we can at least try to align our wishes with the plot :-)
The idea of using graph paper and a template is already on the agenda!
Unnerfranggn schrieb:
but try to somehow align our wishes with the plot, Then be careful not to get too tangled up when you strongly insist on something, for example having direct ground-level access to the house, which will likely lead to several compromises. It’s better to accept a small drawback and keep the rest attractive.
A sloped plot is actually a great opportunity: it helps you avoid building a boring detached house.
If you choose a split-level design, you will definitely build WITH the plot and make the most of it.

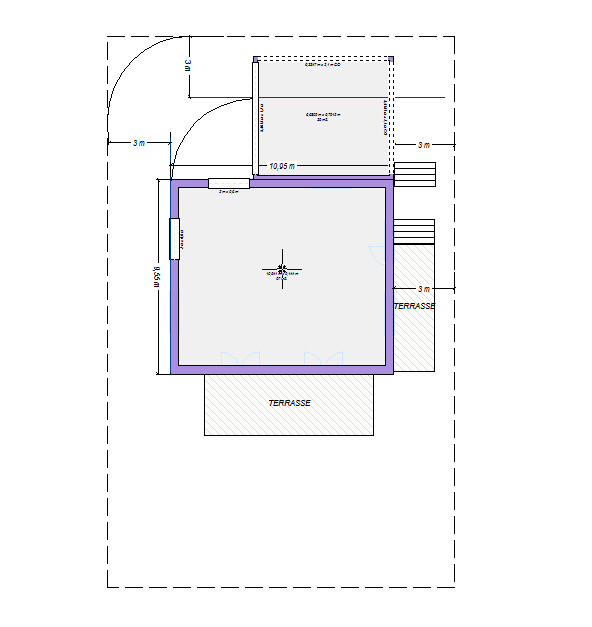

Here is another layout with an external staircase that might be a bit more appealing:
The house has been rotated and reduced to one and a half stories—for budget reasons and, in my opinion, also more visually acceptable. The carport is at street level directly in front. The roof shape would probably have to be a pitched roof then. That’s not included here yet. Maybe the whole structure could be shifted slightly more to the south, so it’s easier to maneuver when parking. I come up with just under 11 meters (36 feet) in width. Bien-Zenker can probably pull something from their portfolio that roughly matches this.
The house has been rotated and reduced to one and a half stories—for budget reasons and, in my opinion, also more visually acceptable. The carport is at street level directly in front. The roof shape would probably have to be a pitched roof then. That’s not included here yet. Maybe the whole structure could be shifted slightly more to the south, so it’s easier to maneuver when parking. I come up with just under 11 meters (36 feet) in width. Bien-Zenker can probably pull something from their portfolio that roughly matches this.
