Hello everyone!
As some users have requested before, I’m now starting a new thread with the current planning of our detached house, which is about to be finalized.
These are the preliminary drawings for the building permit / planning permission application, and I have one last chance to review them and point out any issues.
It still seems to me that there is less than 1.20m (4 feet) of space between the two wardrobes in the dressing room. Or am I seeing this wrong? Apparently, the rooms on the left and right were overlooked and not adjusted accordingly.
Two Velux ceiling spotlights are still planned to illuminate the upper floor hallway.
In the basement, on the right side in the upper room, a window similar to the one on the left basement side is an option.
We still haven’t decided on the T30 fire-rated door to the garage, even though it is shown in the plans. Most likely, for safety reasons and the limited use of the kitchen at the other end of the house, we will eventually forgo it.
User 11ant pointed out that the right window in child’s room 2 is suboptimally positioned. However, this could still be changed after submitting the building permit / planning permission application. Our architect thinks moving the window to the left would negatively affect the house’s exterior appearance. We’ll have to see about that.
As some users have requested before, I’m now starting a new thread with the current planning of our detached house, which is about to be finalized.
These are the preliminary drawings for the building permit / planning permission application, and I have one last chance to review them and point out any issues.
It still seems to me that there is less than 1.20m (4 feet) of space between the two wardrobes in the dressing room. Or am I seeing this wrong? Apparently, the rooms on the left and right were overlooked and not adjusted accordingly.
Two Velux ceiling spotlights are still planned to illuminate the upper floor hallway.
In the basement, on the right side in the upper room, a window similar to the one on the left basement side is an option.
We still haven’t decided on the T30 fire-rated door to the garage, even though it is shown in the plans. Most likely, for safety reasons and the limited use of the kitchen at the other end of the house, we will eventually forgo it.
User 11ant pointed out that the right window in child’s room 2 is suboptimally positioned. However, this could still be changed after submitting the building permit / planning permission application. Our architect thinks moving the window to the left would negatively affect the house’s exterior appearance. We’ll have to see about that.
T
Traumfaenger4 Jul 2018 20:39R.Hotzenplotz schrieb:

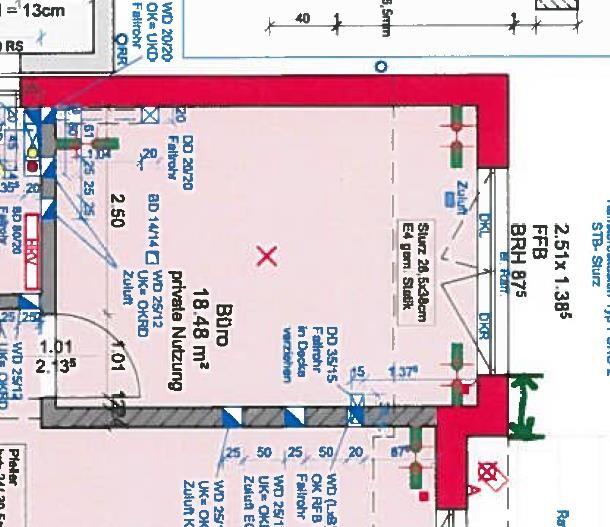

To bring this wall back into alignment, a roughly 0.80 m² (8.6 sq ft) area in the specified position (see attachment) would need to be “trimmed” by about 1.5 cm (0.6 inches) / 1.5 cm (0.6 inches) would have to be removed from the exterior masonry.Could you please share the drawing (attachment)? I don’t quite understand the 0.8 m² (8.6 sq ft) figure. That’s a very small area compared to the entire exterior wall. Or am I missing something?
R
R.Hotzenplotz4 Jul 2018 21:06Traumfaenger schrieb:
Could you please share the drawing (attachment?)? I haven't quite understood the 0.8 sqm (8.6 sq ft). That is a tiny area compared to the exterior wall. Or am I missing something?Sure.
haydee schrieb:
What about the diameter of the pipes in the plumbing section? Weren't they too small?The expert says that, from his perspective, everything fits. To be absolutely sure, he wants to see the domestic water pipe network calculation. Let’s see if I can get it on short notice. Sometimes the documents are not released easily and only come after repeated requests. The architect, who no longer works there, told me he once got into serious trouble when he sent me a heating load calculation. I don’t understand why, if you do things properly, there has to be such secrecy.
R.Hotzenplotz schrieb:
Sure.
The expert says that, from his perspective, everything is fine. To be on the safe side, he wants to see the calculation of the potable water pipe network. Let’s see if I can get that on short notice. I’m curious to see. I would guess there isn’t one and that it was built the way “we have always done it.”
R

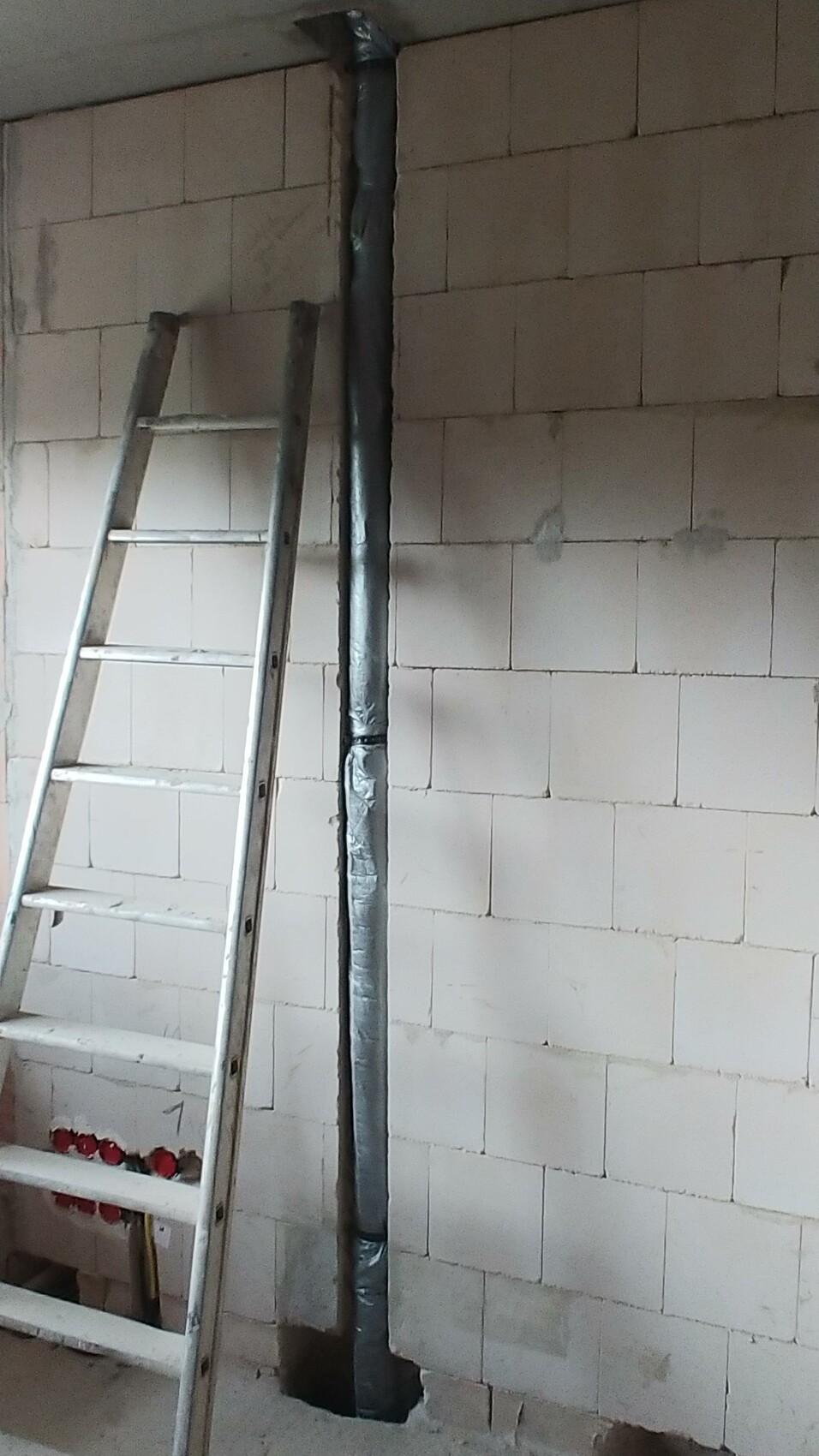

R.Hotzenplotz4 Jul 2018 23:52I forgot to mention that the pipe, which caused so much trouble, is finally in its intended position! It has been routed through the ceiling.
