ᐅ Single-family house floor plan of approximately 150 square meters on a plot located behind other properties
Created on: 27 Feb 2023 08:24
H
Hausbaurer
Hello housebuilding forum members,
I enjoy reading this forum and would like to share our planning for discussion. Our plot is designated as parcel number 173/6.
Development Plan / Restrictions
Plot size: 498 m² (driveway approx. 60 m² (645 sq ft))
Slope: No
Site coverage ratio: No development plan (§34 Building Code)
Floor area ratio: No development plan (§34 Building Code)
Building envelope, building line and boundary: 3 m (10 ft) from plot boundary according to Bavarian Building Regulations
Edge development: none
Number of parking spaces: 1
Number of floors: 1.5
Roof type: Gable roof with a pitch of 40-45°
Architectural style: Single-family house
Orientation: Ridge line East/West
Placement on the plot: Northwest
Maximum height / limits: approx. 9 m (30 ft) (§34 Building Code)
Immediate neighbors: North neighbor 1.5 floors with gable roof. South neighbor single floor with hip roof. West neighbor 1.5 floors with gable roof. Next-nearest neighbor south 1.5–2 floors with gable roof and knee wall >1.2 m (4 ft).
Owner’s requirements
Style, roof type, building type: Gable roof, knee wall 1.4 m (4.5 ft), single-family house
Basement, floors: Usable basement (concrete), ground floor, upper floor
Number of people, age: 4 (2 adults + 2 toddlers)
Room requirements on ground and upper floors: Ground floor (kitchen, living room, shower bath, wardrobe, office), upper floor (2 bedrooms, 2 children’s rooms, bathroom)
Office: Home office
Guest bedrooms per year: 0
Open or closed architecture: Tending rather closed
Conservative or modern construction: Modern
Open kitchen, kitchen island: Yes, no kitchen island
Number of dining seats: 6–8
Fireplace: No
Music/sound wall: No
Balcony, roof terrace: No
Garage, carport: Garage or carport
Utility garden, greenhouse: No
Additional wishes / special features / daily routine, also with reasons why some features are wanted or not:
House design
Planner:
- Do-it-Yourself
What do you particularly like? Why?: Shower niches in the bathrooms, large children’s rooms facing west, L-shaped living-dining area instead of a narrow layout
What do you dislike? Why?: Upper floor bathroom, office located in the southeast instead of northwest
Cost estimate according to architect/planner: 580,000 EUR
Personal price limit for house including fittings:
Preferred heating technology: Air-to-water heat pump with underfloor heating.
If you had to give up, which details / extensions
- could you give up:
Office on ground floor (if replaced by usable basement space)
- could you not give up:
4 bedrooms
Why is the design as it is now?
Requirements and many attempts with our furniture. As much garden as possible on the south and east sides.
What is the most important / fundamental question about the floor plan in 130 characters?
How much clearance should be planned on the north side for the garage or carport? The passage should allow room for people and bicycles (bicycle shed planned behind the garage/carport). Is the overall design usable or have we overlooked something?
Best regards,
Hausbaurer
I enjoy reading this forum and would like to share our planning for discussion. Our plot is designated as parcel number 173/6.
Development Plan / Restrictions
Plot size: 498 m² (driveway approx. 60 m² (645 sq ft))
Slope: No
Site coverage ratio: No development plan (§34 Building Code)
Floor area ratio: No development plan (§34 Building Code)
Building envelope, building line and boundary: 3 m (10 ft) from plot boundary according to Bavarian Building Regulations
Edge development: none
Number of parking spaces: 1
Number of floors: 1.5
Roof type: Gable roof with a pitch of 40-45°
Architectural style: Single-family house
Orientation: Ridge line East/West
Placement on the plot: Northwest
Maximum height / limits: approx. 9 m (30 ft) (§34 Building Code)
Immediate neighbors: North neighbor 1.5 floors with gable roof. South neighbor single floor with hip roof. West neighbor 1.5 floors with gable roof. Next-nearest neighbor south 1.5–2 floors with gable roof and knee wall >1.2 m (4 ft).
Owner’s requirements
Style, roof type, building type: Gable roof, knee wall 1.4 m (4.5 ft), single-family house
Basement, floors: Usable basement (concrete), ground floor, upper floor
Number of people, age: 4 (2 adults + 2 toddlers)
Room requirements on ground and upper floors: Ground floor (kitchen, living room, shower bath, wardrobe, office), upper floor (2 bedrooms, 2 children’s rooms, bathroom)
Office: Home office
Guest bedrooms per year: 0
Open or closed architecture: Tending rather closed
Conservative or modern construction: Modern
Open kitchen, kitchen island: Yes, no kitchen island
Number of dining seats: 6–8
Fireplace: No
Music/sound wall: No
Balcony, roof terrace: No
Garage, carport: Garage or carport
Utility garden, greenhouse: No
Additional wishes / special features / daily routine, also with reasons why some features are wanted or not:
House design
Planner:
- Do-it-Yourself
What do you particularly like? Why?: Shower niches in the bathrooms, large children’s rooms facing west, L-shaped living-dining area instead of a narrow layout
What do you dislike? Why?: Upper floor bathroom, office located in the southeast instead of northwest
Cost estimate according to architect/planner: 580,000 EUR
Personal price limit for house including fittings:
Preferred heating technology: Air-to-water heat pump with underfloor heating.
If you had to give up, which details / extensions
- could you give up:
Office on ground floor (if replaced by usable basement space)
- could you not give up:
4 bedrooms
Why is the design as it is now?
Requirements and many attempts with our furniture. As much garden as possible on the south and east sides.
What is the most important / fundamental question about the floor plan in 130 characters?
How much clearance should be planned on the north side for the garage or carport? The passage should allow room for people and bicycles (bicycle shed planned behind the garage/carport). Is the overall design usable or have we overlooked something?
Best regards,
Hausbaurer
H
Hausbaurer1 Mar 2023 14:25K a t j a schrieb:
Just a thought: if the neighbor constantly uses your driveway, will they also share the cost of repairs if it gets damaged? We haven't considered that yet. I would expect paving to have a certain durability, even though the cars now apparently weigh 2 tons or more.
K a t j a schrieb:
Do you already have a company you want to build with, or are you planning to start exploring to get a feel for the plot first? We have already contacted several prefab home builders and received a design, though it looks different from our own. We still want to ask some traditional builders (solid construction) for comparison.
K a t j a schrieb:
Can you provide the dimensions of the plot (the overall rectangle is enough, excluding the driveway)? North, East, South, West: approximately 20x21x19x22 meters (65.6x68.9x62.3x72.2 feet).
H
Hausbaurer1 Mar 2023 15:16Ibdk14 schrieb:
Hmm, and does he really have the garage doors on the west side of his garage?That’s the plan. According to the Geoatlas, it’s about 10.x meters (33.x feet) between the house and the property boundary.H

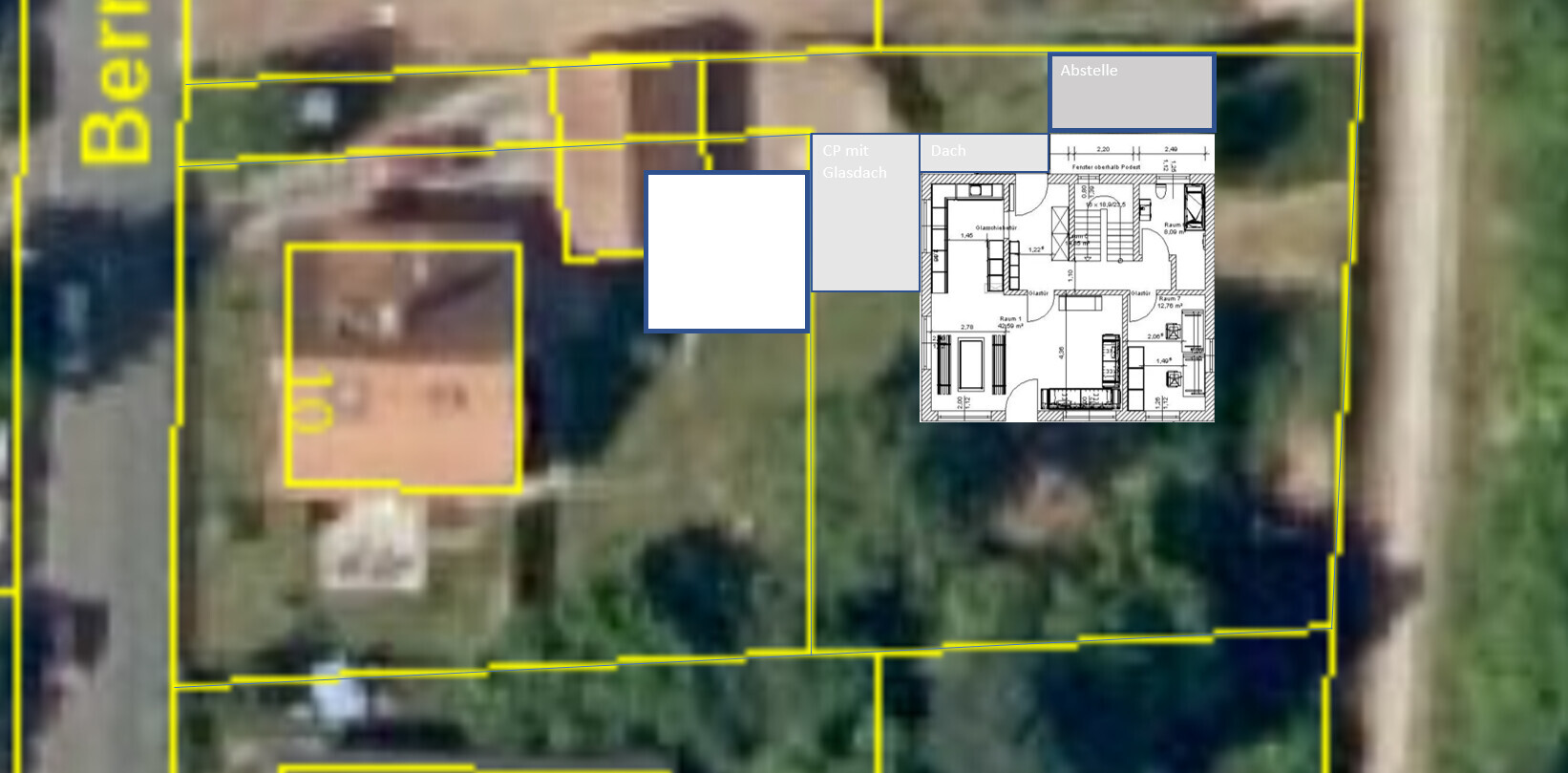

hanghaus20231 Mar 2023 19:29Thank you for the aerial photo.
I checked the measurements on the Bayernatlas. In my opinion, the boundary should be 11 m (36 feet) from the neighboring house. However, the driveway on the west side is only 5 m (16 feet) wide.

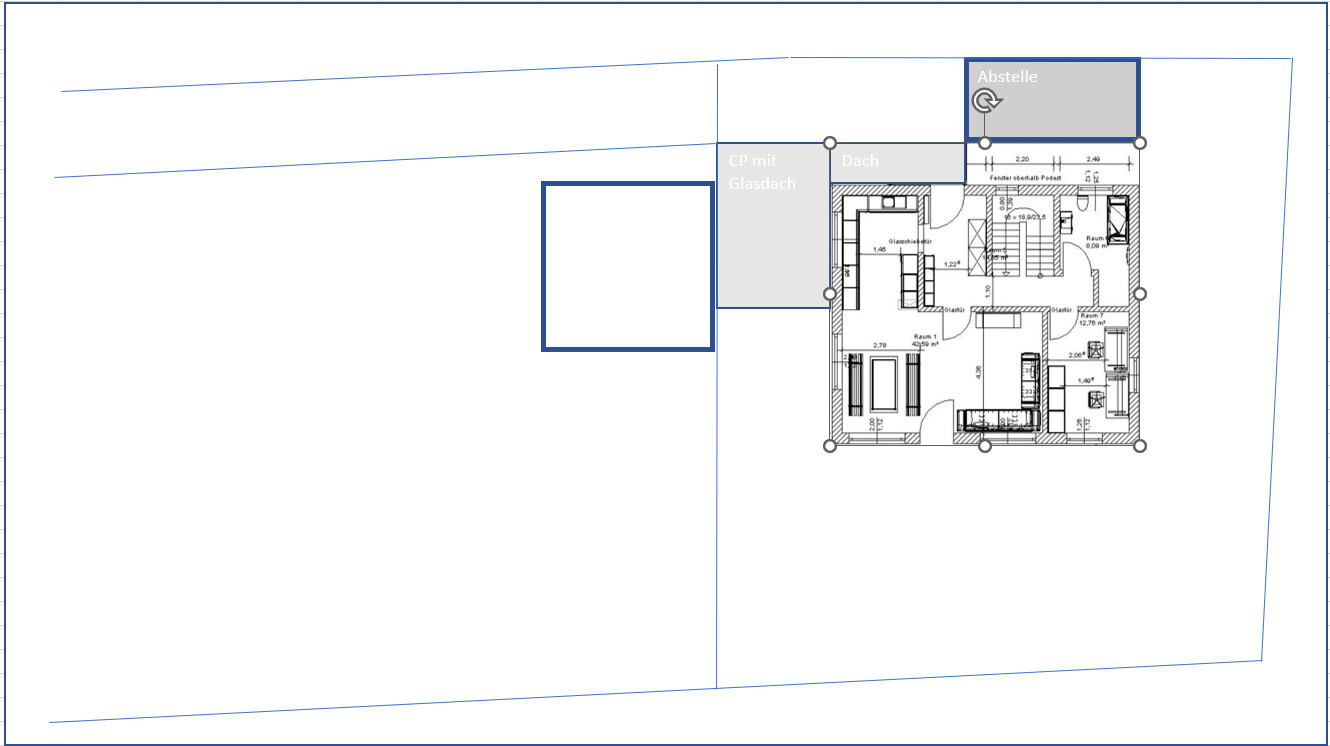

Here is a redrawing of the plot.
I checked the measurements on the Bayernatlas. In my opinion, the boundary should be 11 m (36 feet) from the neighboring house. However, the driveway on the west side is only 5 m (16 feet) wide.
Here is a redrawing of the plot.
H
hanghaus20231 Mar 2023 19:43Hausbaurer schrieb:
North, East, South, West: approx. 20x21x19x22 (in meters).I measured the following in the Bayernatlas.North: 20.00 m (66 ft)
East: 21.65 m (71 ft)
South: 19.00 m (62 ft)
West: 22.25 m (73 ft)
Hausbaurer schrieb:
It doesn’t seem easy to find architects who are willing to take on the planning of a single-family house. I have received many rejections in the Nuremberg-Erlangen-Fürth region.
Our current idea is to work with the planner of a general contractor to realize the house construction. I am happy to help with finding architects and construction companies. Not every option appeals to me either, but analyzing your rejections may reveal ways to make your inquiries more effective.
My approach would be slightly different and basically reversed, initially involving an architect for "Module A" (a house building roadmap, also for you: the HOAI phase model!). Once you have searched for the post (including the quotation marks), you will also find how to contact me.
Hausbaurer schrieb:
The elevation of the plot is unremarkable, almost flat. [...] We can imagine setting up three or four rooms here. One of the rooms will be used for technical equipment. If the plot is suitable for a slab-on-grade foundation house, then having a basement (especially if you need one plus three or four additional rooms that you just want) is a luxury. It’s an option, but in this case, I would rather buy a large ice cream with whipped cream and enjoy the generous change.
