Hello friends,

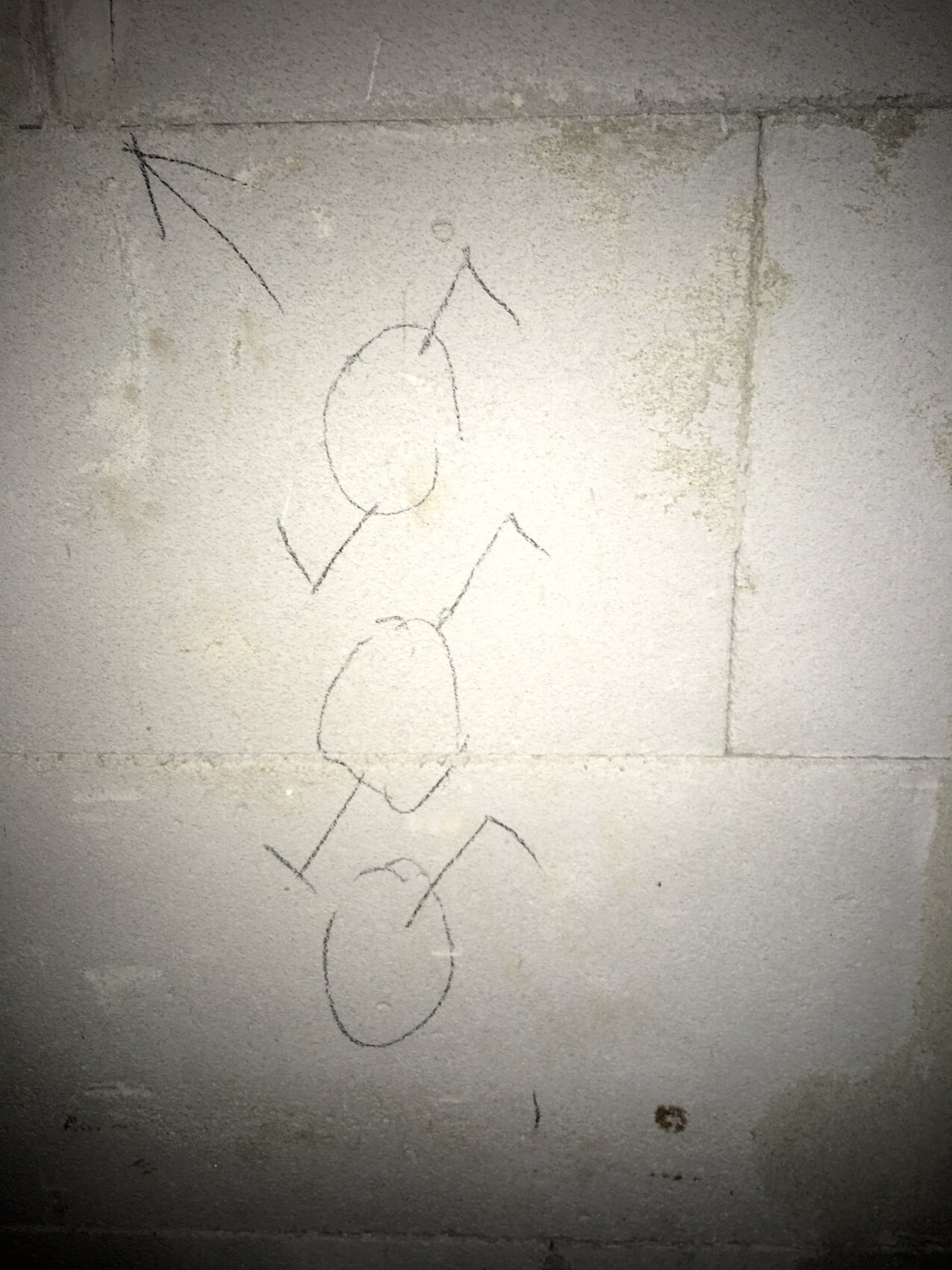

what do these symbols mean?
The front door opens to the left, and the symbols are on the right.
What is their purpose?

Am I understanding this correctly:
Top symbol for the light switch in the stairwell/upper hallway.
Middle switch for the light in the entrance/hallway.
Bottom switch for the outdoor light.

Looking forward to your advice.

Kritzeleien auf roher Betonwand: drei Kreise verbunden durch Linien, einfache Skizze
R
Robbaut
21 Mar 2017 21:08
Two "flags" mean a two-way switch, one is a standard switch.
J
jamal-01
21 Mar 2017 21:16
What does that mean now?
RobsonMKK21 Mar 2017 21:20
Robbaut schrieb:
Two "flags" mean a two-way switch, one is a regular switch
R
Robbaut
21 Mar 2017 21:37
Wikipedia explains the two-way switch very clearly... Nothing more can be inferred from the diagram, meaning which lamp is controlled by which switch should have been noted or remembered by the electrician.
J
jamal-01
21 Mar 2017 22:04
But these are lamps, right?
