ᐅ Design of Ground Floor and Upper Floor Layouts, plus L-Shaped Canopy – Tips
Created on: 14 May 2020 23:04
M
mondbauHello house building forum friends,
I have designed a draft and would appreciate tips on the design of a city villa measuring 10.3 x 10.3 m (34 x 34 ft).

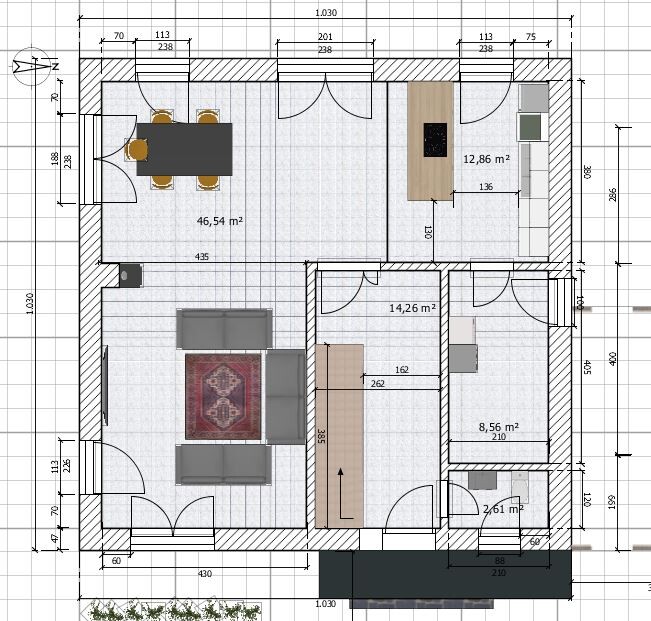

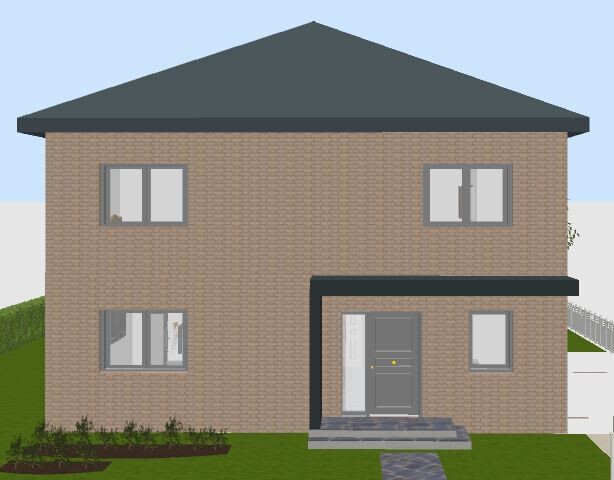

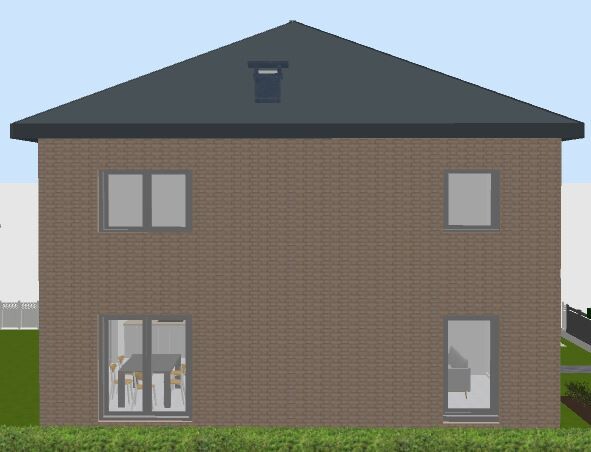

- I am not happy with the front of the house. The window arrangement on the front is mediocre in my opinion. But how can I keep the proportions in relation to the door?
- I am concerned about the chimney shaft, but I can’t find a better location.
- Are L-shaped canopies typically made from Trespa or similar materials?
- Do L-shaped canopies need to respect the building boundary line? (Here it is 3 m (10 ft) from the street)
- How can such a 5 m (16 ft) wide canopy be attached to the brick masonry?
- Does anyone have more tips for me?

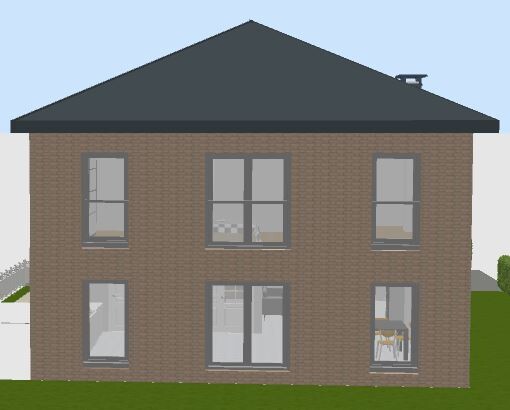

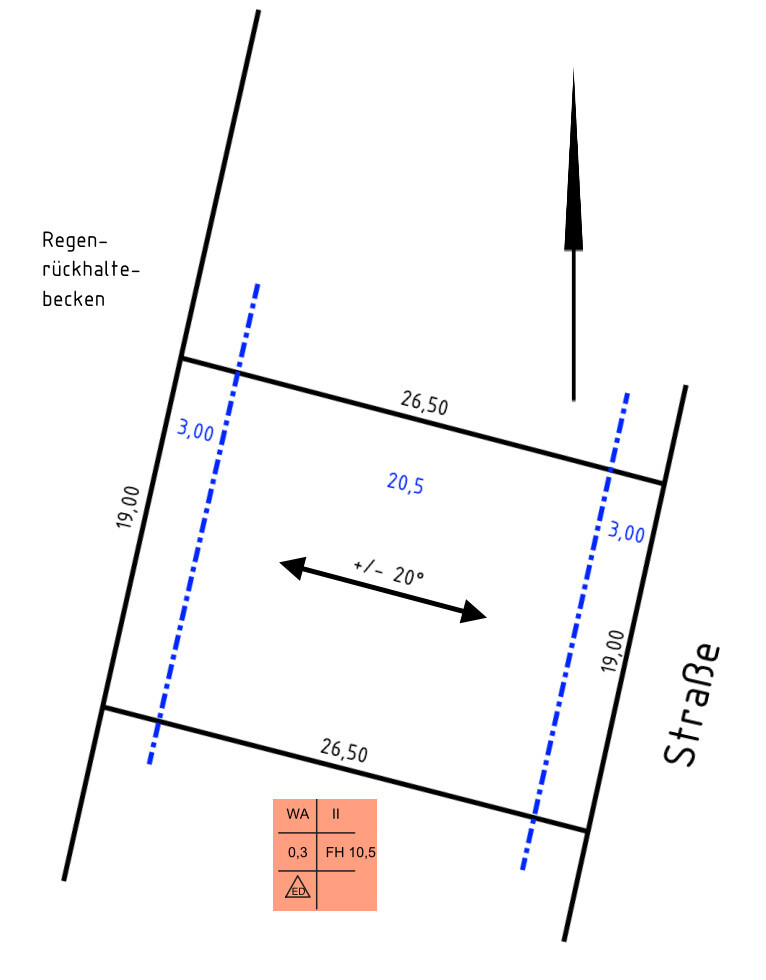

Development plan / restrictions
Plot size: 500 sqm (5,382 sq ft)
Slope: none
Site occupancy index: 0.3
Floor space index: 2
Building line and boundary: 3 m (10 ft) to the street
Edge development: no
Number of parking spaces: 1
Number of floors: 2
Roof type: hipped roof, 30°
Style: city villa, KFW55 standard
Orientation: southern length axis
Maximum height limits: 10.5 m (34 ft)
Client requirements
Style (city villa), roof type (hip or pyramid roof)
Building type (square footprint due to length axis and entrance from street side)
Basement: no
Number of floors: 2
Number of occupants, age: 4 (2 adults and 2 toddlers)
Space requirement on ground and upper floors: approx. 160 sqm (1,722 sq ft)
Office: family use, not home office
Occasional overnight guests: rare
Open or closed layout: undecided
Traditional or modern construction: modern
Open kitchen with island: yes
Number of dining seats: 6 persons
Fireplace: yes
Carport
House design
Designer: Do-it-yourself
What do you like most? Why? Many floor-to-ceiling windows. Open kitchen.
What do you not like? Why? Front of the house, window placement is not optimal. The chimney shaft, but it can’t be done better.
Personal budget for house including fittings: €300,000
Preferred heating technology: gas boiler
If you have to give up something, which features / expansions?
- Can you manage without: guest room
- Can’t do without: floor-to-ceiling windows
Why does the design look the way it does now?
10.3 x 10.3 m (34 x 34 ft). Somehow everything has to fit in.
I have designed a draft and would appreciate tips on the design of a city villa measuring 10.3 x 10.3 m (34 x 34 ft).
- I am not happy with the front of the house. The window arrangement on the front is mediocre in my opinion. But how can I keep the proportions in relation to the door?
- I am concerned about the chimney shaft, but I can’t find a better location.
- Are L-shaped canopies typically made from Trespa or similar materials?
- Do L-shaped canopies need to respect the building boundary line? (Here it is 3 m (10 ft) from the street)
- How can such a 5 m (16 ft) wide canopy be attached to the brick masonry?
- Does anyone have more tips for me?
Development plan / restrictions
Plot size: 500 sqm (5,382 sq ft)
Slope: none
Site occupancy index: 0.3
Floor space index: 2
Building line and boundary: 3 m (10 ft) to the street
Edge development: no
Number of parking spaces: 1
Number of floors: 2
Roof type: hipped roof, 30°
Style: city villa, KFW55 standard
Orientation: southern length axis
Maximum height limits: 10.5 m (34 ft)
Client requirements
Style (city villa), roof type (hip or pyramid roof)
Building type (square footprint due to length axis and entrance from street side)
Basement: no
Number of floors: 2
Number of occupants, age: 4 (2 adults and 2 toddlers)
Space requirement on ground and upper floors: approx. 160 sqm (1,722 sq ft)
Office: family use, not home office
Occasional overnight guests: rare
Open or closed layout: undecided
Traditional or modern construction: modern
Open kitchen with island: yes
Number of dining seats: 6 persons
Fireplace: yes
Carport
House design
Designer: Do-it-yourself
What do you like most? Why? Many floor-to-ceiling windows. Open kitchen.
What do you not like? Why? Front of the house, window placement is not optimal. The chimney shaft, but it can’t be done better.
Personal budget for house including fittings: €300,000
Preferred heating technology: gas boiler
If you have to give up something, which features / expansions?
- Can you manage without: guest room
- Can’t do without: floor-to-ceiling windows
Why does the design look the way it does now?
10.3 x 10.3 m (34 x 34 ft). Somehow everything has to fit in.
