Hello everyone,

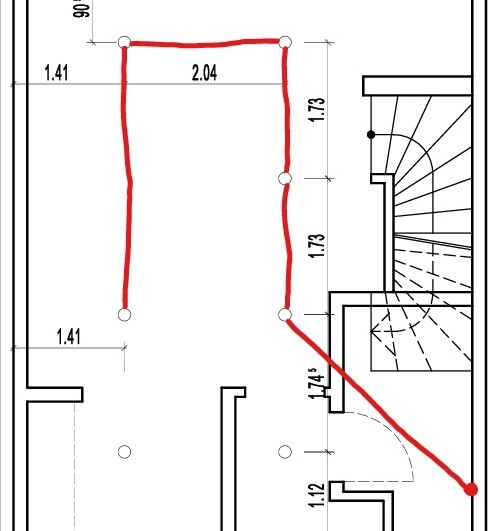

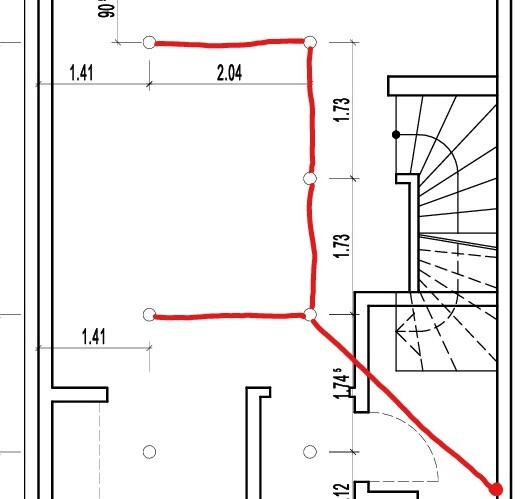

I now need to connect the recessed spotlights together. Is it possible to wire the spots as shown in the first image? Or do I have to follow the second layout?
The conduit would be the Fränkische FFKUS 25. If that’s not sufficient, then the 20 mm (0.8 inch) version.
For the cable, I would use NYM 5 x 1.5 mm² (5 conductors, 1.5 mm²).

Everything should be controlled via DALI.

Grundriss eines Gebäudes mit rotem Pfad durch Räume und Treppenaufgang


Grundriss eines Gebäudes mit roter Wegführung um Wände und Treppen; Maßangaben in Metern.
Mycraft13 Dec 2019 08:35
No matter whether it is image 1 or 2, DALI handles it without any problems.
W
WingVII
13 Dec 2019 17:31
What kind of spotlights are you using there?
lin0r8713 Dec 2019 17:43
Ledvance SPOT ADJUST DALI 8 W 3000 K IP20 WT
lin0r8714 Dec 2019 12:18
Just another question... The shell construction worker installed the junction boxes but didn’t wait for me to connect them... Concrete has been poured.
Can I still drill through 25cm (10 inches) of concrete and run the cable through the ceiling?
F
Fuchur
14 Dec 2019 12:52
Yes, this is also deliberately done like that in our case. Installation then takes place on the unfinished subfloor of the floor above.
