ᐅ Bungalow with a gable roof, edge development, 8 by 17 meters
Created on: 29 Apr 2018 22:51
G
Grit Stephan
Hello,
we have a building plot and everything is still possible.
Of course, we have wishes and ideas.
Just like people are different, we all build our houses differently...
I’m interested in how you would approach having two sides, namely the east and south sides, facing a green area: but with a tree preservation and planting requirement on the south side...
And you want to be part of this garden...
Here are the facts as suggested by the moderation:
Plot size 1159 sqm (12,470 sq ft)
No slope, only a slight incline along a ditch, but it’s on the building boundary anyway. With trees and planting according to the development plan on the long side, where a tree already stands. Building boundary on the long side 6 meters (20 feet). The rest 3 meters (10 feet).
Floor area ratio known only as a percentage: 60% may be built on.
Plot ratio unknown at the moment, definitely ridge height 12 meters (39 feet). Surrounding buildings are mostly one and a half stories, and bungalows are planned. There are practically no restrictions.
Building window, building line and boundary
Edge development, only known after consulting authorities, our plan fits...
Number of parking spaces 3
Number of floors 1 (1.5 floors would also be conceivable)
Roof shape gable roof.
Style simple bungalow
Orientation? See plan.
Maximum heights/restrictions
Other requirements are met.
2 neighbors.
One on the north side and one on the west side, but only on a small section.
The rest of the west side is the access driveway.
Client requirements
We have no particular style preference; for us, the important thing is that we found a nice building plot in this location at all and that we focus more on a reasonable budget, finding an affordable mortgage payment, and being able to live well in the long term.
Household of 4 people, visitors 3-5 (at once) at least 4 weekends per year... We have a caravan that is used as an extra bedroom for us.
An office and workspace would be very advantageous for us as technology and craft enthusiasts.
Sufficient space on a small footprint.
The living area could also be open up to the roof... Or have a ceiling like the other rooms. But no exact idea yet... The structural engineering should be feasible, but it’s not yet decided what budget we want to allocate to that...
Whether conservative or modern... I’d say a healthy mix. In any case, with
an open kitchen, a small kitchen island (not a must) but reasonable storage space in the kitchen. As a mom, I want to be part of the busy life, and I can no longer imagine having a separate kitchen.
A basement is not essential.
Double garage planned. Possibly a carport.
Number of dining seats: 6 definitely, 8 would be great.
A fireplace is planned.
Wishes/particulars/daily routine, also reasons why this or that should or should not be:
1. Room layout:
Bedroom on the long side, as that’s the quiet green side. The kitchen and living room should be basically part of the garden.
The kitchen has morning and evening sun.
The entrance is at the front because we decided that a side entrance near the neighbor—for example: getting out of the car and around the corner, behind the house—is too far away for us, and the front facing the street would otherwise only have a window for the utility room...
Terrace location still open. Probably there will be two... The evening sun will come around again.
House design
Who is the plan by:
Idea from the internet, adapted plan created by ourselves.
All windows on the south side are floor-to-ceiling. Two patio doors: one facing east, one to the south off the dining room. Kitchen sink window has a lower window section. Another kitchen window is also floor-to-ceiling.
Other rooms (bathroom, guest WC, office, utility room) standard height.
Oh, and the kitchen island here is probably drawn too large. Actually, it would be 1 meter (3.3 feet) on the sides and 1.5 meters (5 feet) facing the kitchen counter.
What do you particularly like? Why?
Bedroom on a quiet side, no neighbor.
Kitchen and living room basically part of the garden, also a corner without neighbors, facing the green.
What don’t you like? Why?
Storage room too far from the kitchen, but still the best solution... And my plan is to fit as much as possible into the kitchen.
Cost estimate, somewhere between 150,000 and 220,000 (without garage and without outdoor facilities)
Preferred heating technology: not settled yet, we are currently looking into air-source heat pumps.
If you had to give up something, which details/extras
- could you live without:
- could you not live without:
Bedroom, living, and kitchen must face the green side...
Fireplace must be included,
2 children’s rooms,
Bathtub must be included...
I could maybe do without a second patio door? And kitchen layout, I’m still open.
Looking forward to your suggestions and feedback.
I hope for constructive, respectful criticism.
we have a building plot and everything is still possible.
Of course, we have wishes and ideas.
Just like people are different, we all build our houses differently...
I’m interested in how you would approach having two sides, namely the east and south sides, facing a green area: but with a tree preservation and planting requirement on the south side...
And you want to be part of this garden...
Here are the facts as suggested by the moderation:
Plot size 1159 sqm (12,470 sq ft)
No slope, only a slight incline along a ditch, but it’s on the building boundary anyway. With trees and planting according to the development plan on the long side, where a tree already stands. Building boundary on the long side 6 meters (20 feet). The rest 3 meters (10 feet).
Floor area ratio known only as a percentage: 60% may be built on.
Plot ratio unknown at the moment, definitely ridge height 12 meters (39 feet). Surrounding buildings are mostly one and a half stories, and bungalows are planned. There are practically no restrictions.
Building window, building line and boundary
Edge development, only known after consulting authorities, our plan fits...
Number of parking spaces 3
Number of floors 1 (1.5 floors would also be conceivable)
Roof shape gable roof.
Style simple bungalow
Orientation? See plan.
Maximum heights/restrictions
Other requirements are met.
2 neighbors.
One on the north side and one on the west side, but only on a small section.
The rest of the west side is the access driveway.
Client requirements
We have no particular style preference; for us, the important thing is that we found a nice building plot in this location at all and that we focus more on a reasonable budget, finding an affordable mortgage payment, and being able to live well in the long term.
Household of 4 people, visitors 3-5 (at once) at least 4 weekends per year... We have a caravan that is used as an extra bedroom for us.
An office and workspace would be very advantageous for us as technology and craft enthusiasts.
Sufficient space on a small footprint.
The living area could also be open up to the roof... Or have a ceiling like the other rooms. But no exact idea yet... The structural engineering should be feasible, but it’s not yet decided what budget we want to allocate to that...
Whether conservative or modern... I’d say a healthy mix. In any case, with
an open kitchen, a small kitchen island (not a must) but reasonable storage space in the kitchen. As a mom, I want to be part of the busy life, and I can no longer imagine having a separate kitchen.
A basement is not essential.
Double garage planned. Possibly a carport.
Number of dining seats: 6 definitely, 8 would be great.
A fireplace is planned.
Wishes/particulars/daily routine, also reasons why this or that should or should not be:
1. Room layout:
Bedroom on the long side, as that’s the quiet green side. The kitchen and living room should be basically part of the garden.
The kitchen has morning and evening sun.
The entrance is at the front because we decided that a side entrance near the neighbor—for example: getting out of the car and around the corner, behind the house—is too far away for us, and the front facing the street would otherwise only have a window for the utility room...
Terrace location still open. Probably there will be two... The evening sun will come around again.
House design
Who is the plan by:
Idea from the internet, adapted plan created by ourselves.
All windows on the south side are floor-to-ceiling. Two patio doors: one facing east, one to the south off the dining room. Kitchen sink window has a lower window section. Another kitchen window is also floor-to-ceiling.
Other rooms (bathroom, guest WC, office, utility room) standard height.
Oh, and the kitchen island here is probably drawn too large. Actually, it would be 1 meter (3.3 feet) on the sides and 1.5 meters (5 feet) facing the kitchen counter.
What do you particularly like? Why?
Bedroom on a quiet side, no neighbor.
Kitchen and living room basically part of the garden, also a corner without neighbors, facing the green.
What don’t you like? Why?
Storage room too far from the kitchen, but still the best solution... And my plan is to fit as much as possible into the kitchen.
Cost estimate, somewhere between 150,000 and 220,000 (without garage and without outdoor facilities)
Preferred heating technology: not settled yet, we are currently looking into air-source heat pumps.
If you had to give up something, which details/extras
- could you live without:
- could you not live without:
Bedroom, living, and kitchen must face the green side...
Fireplace must be included,
2 children’s rooms,
Bathtub must be included...
I could maybe do without a second patio door? And kitchen layout, I’m still open.
Looking forward to your suggestions and feedback.
I hope for constructive, respectful criticism.
Grit Stephan1 May 2018 10:34kbt09 schrieb:
It is 36.1 m (118.4 ft)... unclear, it probably means 36 m (118 ft).My mistake. Yesterday, I quickly drew on the plan with measurements in color (unfortunately only using Paint) and ended up making a 36 look like a 26. Sorry about that.
kbt09 schrieb:
Here is a basic idea of how it could also be divided.
At first glance, my initial question is... how much more would this roof structure and the three rectangles nested inside each other (I’m not sure how to say this technically) cost compared to our “railway car” design?
Or, put differently, what would be the price, fully engineered, for this "basic version"?
As a reminder, the railway car is a simple rectangle with a gable roof, compared to this angled bungalow with a hip roof...
Grit Stephan1 May 2018 10:47Regarding the exterior appearance alone, our idea of a bungalow would match the Bungalow 100 from Town & Country (not the floor plan, just the house pictures found online).

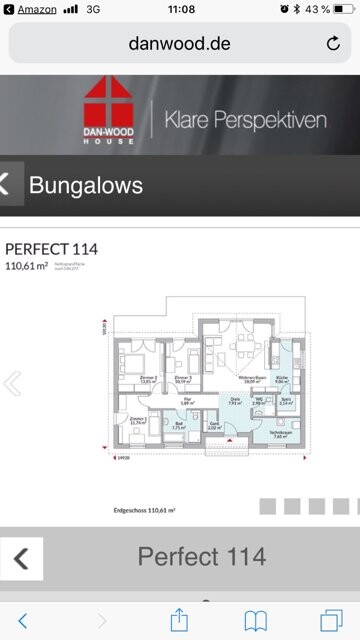

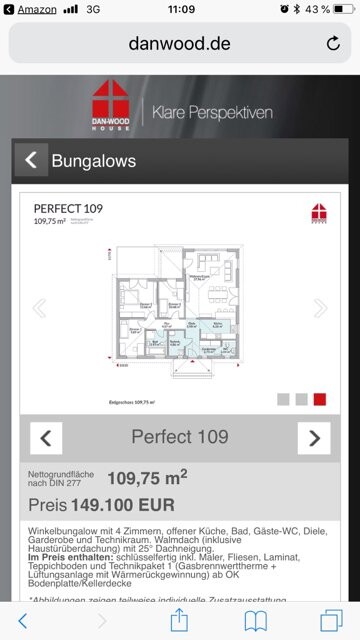

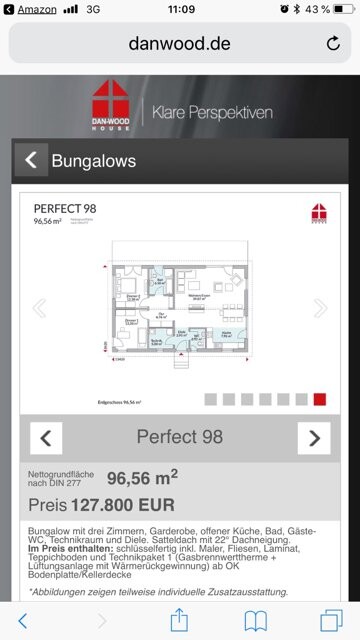

If possible, I would first like to see a floor plan of a simple rectangular bungalow, but optimized in layout.
As for an L-shaped bungalow, the previous attempts were more or less an L shape to allow for a pitched roof.
A hip roof is definitely nice, but it costs a bit more, and we actually like a bungalow with a pitched roof quite well.
Edit: It can also be more unusual, facing south, like an architectural bungalow, as often shown in advertisements. That definitely has its appeal, but it probably doesn’t fit our budget—unless someone knows a clever way to achieve this… suggestions are welcome.
If possible, I would first like to see a floor plan of a simple rectangular bungalow, but optimized in layout.
As for an L-shaped bungalow, the previous attempts were more or less an L shape to allow for a pitched roof.
A hip roof is definitely nice, but it costs a bit more, and we actually like a bungalow with a pitched roof quite well.
Edit: It can also be more unusual, facing south, like an architectural bungalow, as often shown in advertisements. That definitely has its appeal, but it probably doesn’t fit our budget—unless someone knows a clever way to achieve this… suggestions are welcome.
This will clearly cost significantly more. Five figures.
Thinking along the lines of Yvonne’s sketch to avoid the railway carriage will be cheaper. The design from kbt is actually only affordable to build with shed roofs. The masons don’t care about the angle at the corner, but the carpenters do.
Thinking along the lines of Yvonne’s sketch to avoid the railway carriage will be cheaper. The design from kbt is actually only affordable to build with shed roofs. The masons don’t care about the angle at the corner, but the carpenters do.
Every corner means more materials and potentially higher craftsmanship efforts.
I would still place the entrance in the center and divide the zones from there. Extra budget for many large windows to make the house feel more open. Perhaps a small projection (bay window) in the middle on the south side could capture some of the western sun.
Then a pitched roof that can be accessed with a fixed staircase.
I would still place the entrance in the center and divide the zones from there. Extra budget for many large windows to make the house feel more open. Perhaps a small projection (bay window) in the middle on the south side could capture some of the western sun.
Then a pitched roof that can be accessed with a fixed staircase.
These floor plans work well as a basis for slim houses with simple zoning, which avoid placing the bedrooms directly facing north.
I think there are some good ideas here that, with a bit of redesign, could also allow for stairs to the upper floor.
Also, take a look at the plan from @Steffi33. From what I remember, she had similar ideas to you and implemented them likewise. Unfortunately, it also includes a very large hallway, but she is happy with the house.
