ᐅ Own floor plan design for a 180 sqm urban villa with double garage – feedback requested
Created on: 30 Dec 2022 10:14
D
dimba234
Hello everyone,
after being an active silent reader here for quite some time, I decided it was time to register.
A few weeks ago, we applied for a building plot with our local municipality and have now received the approval for the land. Although we plan to start building at the beginning of 2024, we are already putting a lot of thought into how our house might look. We have created a rough floor plan draft ourselves. I would like to ask you for feedback and suggestions.
Development Plan / Restrictions
Plot size: 576 sqm (6,200 sq ft)
Slope: no
Site occupancy index (floor area ratio for ground coverage): 0.3
Floor space index (floor area ratio for all floors): 0.6
Building envelope, building line and boundary: building boundary as per development plan
Edge development: see attachment
Number of parking spaces: at least 1.5 parking spaces
Number of floors: 2 full stories
Roof type: hip roof, gable roof, pitched roof, saddle roof
Architectural style: -
Orientation: see attachment
Maximum height / limits: eaves height 7 m (23 ft)
Other requirements: -
Homeowners’ Requirements
Architectural style, roof type, building type: single-family house with two full stories and a hip roof
Basement, floors: no basement, two full floors
Number of people, ages: 2 adults, 2 children (2 1/2 years and newborn)
Room needs on ground floor and upper floor:
Office: family use or home office? Two offices (ground floor + upper floor)
Guest bedrooms per year: -
Open or closed layout: open living and dining area
Traditional or modern construction: modern
Open kitchen, kitchen island: open kitchen, kitchen island not necessarily required
Number of dining seats: 6-8
Fireplace: no
Music/stereo wall: no
Balcony, roof terrace: no
Garage, carport: double garage with storage space; carport with shed also possible
Utility garden, greenhouse: no
Other wishes / special features / daily routine, including reasons why certain things are preferred or avoided: -
House Design
Who designed it:
-Do-it-Yourself
What do you particularly like? Why? Two offices; open living and dining area with cozy sofa corner; children’s rooms facing south; master bedroom facing north; utility room with access to the garage
What do you not like? Why? Overall, we like our design. We want to maximize the use of our garden area on the south side. To get more out of it, the house would need to be narrower and longer (currently 11 x 10.5 m (36 x 34.5 ft)). In our designs, this always failed because the rooms become too narrow and elongated. As laypersons, we probably overlook major planning mistakes. So, we ask here for constructive criticism and suggestions.
Cost estimate according to architect/planner: -
Personal budget limit for the house, including fittings: 500,000
Preferred heating technology: -
If you have to give up one or more details/additions,
-what can you do without: garage, the second office/guest room
-what you cannot do without: -
Why did the design end up like this? E.g.
-Collection of ideas from catalogs and internet searches
What is the most important / fundamental question about the floor plan, summarized in 130 characters?
The main question is whether we have sensibly planned the layout and arrangement of garage, house entrance, and rooms in relation to the plot and its orientation. Is the design coherent overall?

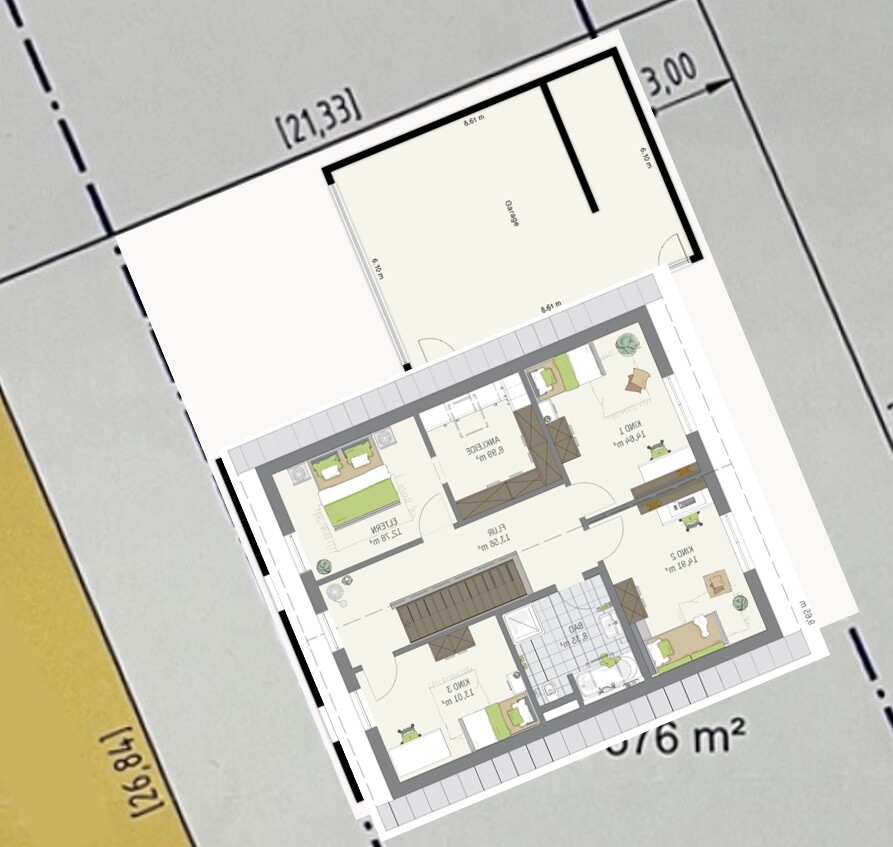

The attached image with the house on the plot (Entwurf.jpg) is a draft from the responsible planning office for the building area. We want to build the house and garage aligned in the same way. However, the house will be placed at the front building boundary and the garage shifted towards the rear plot boundary.
PS: We created the design with a rudimentary online tool. Unfortunately, the tool does not allow adjusting room names (therefore “playroom” instead of “children’s room,” etc.), but I think you understand what is meant.
I look forward to your feedback 🙂!
