Hello, today I had to wait for an hour and only had my notebook with me... so I just doodled a bit.

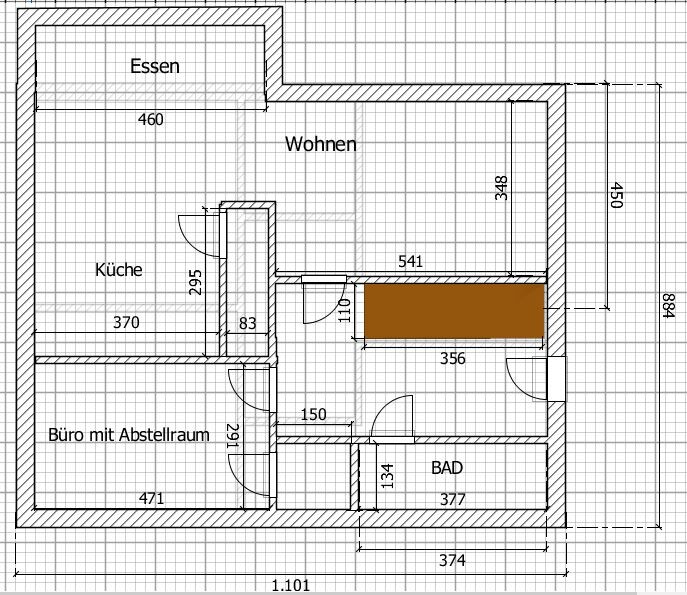

This is my very first draft of the ground floor, and it probably still has quite a few mistakes.
What I’m curious about is whether there are any major errors here (for example, the staircase?).
North is at the bottom right.
One square represents half a meter (0.5 m / 20 inches).
This is my very first draft of the ground floor, and it probably still has quite a few mistakes.
What I’m curious about is whether there are any major errors here (for example, the staircase?).
North is at the bottom right.
One square represents half a meter (0.5 m / 20 inches).
M

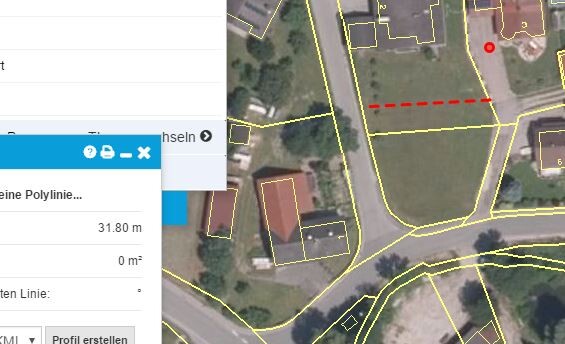

MIA_SAN_MIA__29 May 2017 22:51Development Plan / Restrictions
Plot size: flexible between 700 and 950 m² (7,535 and 10,225 sq ft)
Slope: gentle incline
Site coverage ratio: 0.4
Floor area ratio: 0.6
Building envelope, building line, and boundary: according to BayBo
Number of parking spaces: 2
Number of storeys: 2 + basement
Roof type: according to development plan, gable roof (building authority confirmed that an exemption permit is obtainable → existing shed roof built under this plan)
Architectural style: open
Orientation: open
Maximum heights / limits: ridge height not to exceed 6.5 m (21 ft 4 inches)
Additional requirements
Client Requirements:
Architectural style, roof type, building type: modern, hipped roof, urban villa
Basement, storeys: basement + 2 storeys
Number of occupants, ages: 2 (27, 24) + 2 children planned
Space requirements on ground floor and upper floor: total 180 m² (1,938 sq ft) planned
Office: family use or home office? Home office
Guest bedrooms per year: 0–5 (no guest room needed)
Open or closed architecture: open
Conservative or modern construction style: modern/mixed
Open kitchen, kitchen island: both desired
Number of dining seats: at least 8
Fireplace: yes
Music / stereo wall: 5.1 system
Balcony, roof terrace: not strictly necessary
Garage, carport: double garage
Utility garden, greenhouse: raised bed if possible
Additional wishes / special features / daily routine: pantry and small storage room on each floor desired (for vacuum cleaner, etc.)
House Design
Designer: currently DIY, architect or structural engineer under consideration
What do you particularly like? Why? Pantry (living in a rural area, long distances to shops), larger office (home office, convertible to bedroom in old age possible), vestibule between garage and house
What do you dislike? Why? Spiral staircase
If you had to give up details/extensions:
-can be given up: storage rooms, children’s bathroom
-can’t be given up: pantry, kitchen island, office
Why is the design as it is now?
Own ideas, Pinterest, Google
What do you think makes it especially good or poor?
Staircase placement is not yet ideal, pantry is difficult to position.
Plot size: flexible between 700 and 950 m² (7,535 and 10,225 sq ft)
Slope: gentle incline
Site coverage ratio: 0.4
Floor area ratio: 0.6
Building envelope, building line, and boundary: according to BayBo
Number of parking spaces: 2
Number of storeys: 2 + basement
Roof type: according to development plan, gable roof (building authority confirmed that an exemption permit is obtainable → existing shed roof built under this plan)
Architectural style: open
Orientation: open
Maximum heights / limits: ridge height not to exceed 6.5 m (21 ft 4 inches)
Additional requirements
Client Requirements:
Architectural style, roof type, building type: modern, hipped roof, urban villa
Basement, storeys: basement + 2 storeys
Number of occupants, ages: 2 (27, 24) + 2 children planned
Space requirements on ground floor and upper floor: total 180 m² (1,938 sq ft) planned
Office: family use or home office? Home office
Guest bedrooms per year: 0–5 (no guest room needed)
Open or closed architecture: open
Conservative or modern construction style: modern/mixed
Open kitchen, kitchen island: both desired
Number of dining seats: at least 8
Fireplace: yes
Music / stereo wall: 5.1 system
Balcony, roof terrace: not strictly necessary
Garage, carport: double garage
Utility garden, greenhouse: raised bed if possible
Additional wishes / special features / daily routine: pantry and small storage room on each floor desired (for vacuum cleaner, etc.)
House Design
Designer: currently DIY, architect or structural engineer under consideration
What do you particularly like? Why? Pantry (living in a rural area, long distances to shops), larger office (home office, convertible to bedroom in old age possible), vestibule between garage and house
What do you dislike? Why? Spiral staircase
If you had to give up details/extensions:
-can be given up: storage rooms, children’s bathroom
-can’t be given up: pantry, kitchen island, office
Why is the design as it is now?
Own ideas, Pinterest, Google
What do you think makes it especially good or poor?
Staircase placement is not yet ideal, pantry is difficult to position.
M
MIA_SAN_MIA__31 May 2017 13:13Hello everyone,

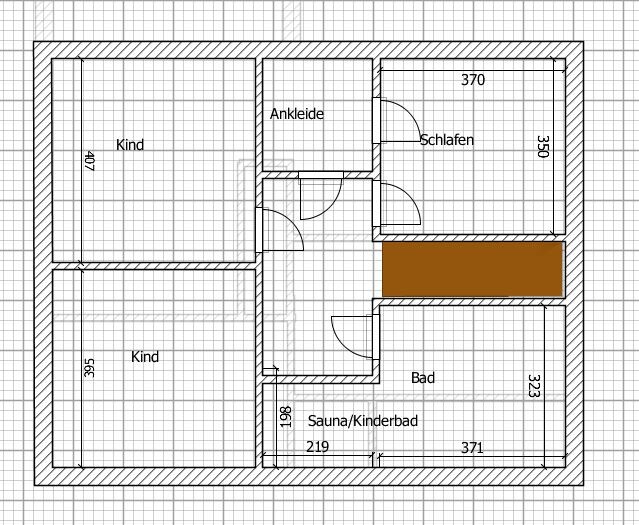

Here are some new drafts from me:
I actually quite like the attic layout. On the ground floor, the bathroom feels too large to me, but I’m not sure how to make it smaller since the staircase limits the space.
The small storage room in the office is intended for the vacuum cleaner, mop, cleaning supplies, and so on. I would prefer not to keep those items with the food.
Upstairs faces southwest.
Here are some new drafts from me:
I actually quite like the attic layout. On the ground floor, the bathroom feels too large to me, but I’m not sure how to make it smaller since the staircase limits the space.
The small storage room in the office is intended for the vacuum cleaner, mop, cleaning supplies, and so on. I would prefer not to keep those items with the food.
Upstairs faces southwest.
M
MIA_SAN_MIA__31 May 2017 13:29Forgot to include a wardrobe. That also solved the issue with the bathroom.
The pantry doesn’t work. You lose some space due to the plaster on the 83 cm (32.7 inches). Once you put in a shelf, you won’t be able to fit inside anymore. You basically have just enough storage space that would also fit in a kitchen cabinet.
The storage room is similarly small to the pantry. You might want to consider a large standalone cabinet here as well.
Do you really want to convert the office into a bedroom? In that case, there would be no shower.
Upstairs, I don’t like the doors to the bedroom and walk-in closet. I might consider removing one.
Try drawing in all your existing and desired furniture. Some areas just seem a bit small and cramped to me, but I could be mistaken.
The storage room is similarly small to the pantry. You might want to consider a large standalone cabinet here as well.
Do you really want to convert the office into a bedroom? In that case, there would be no shower.
Upstairs, I don’t like the doors to the bedroom and walk-in closet. I might consider removing one.
Try drawing in all your existing and desired furniture. Some areas just seem a bit small and cramped to me, but I could be mistaken.
I don’t like the pantry. Instead, build it into the 370mm (15 inches) wall and create an opening at the front with a ventilation block in front of it. That way, the potatoes won’t spoil as quickly. As it is now, the pantry is so confined that it’s only suitable for canned beans and ravioli. Karsten
Considering a basement, I find a pantry somewhat unnecessary, especially with those dimensions. For the most common items, it’s really better to plan a practical cupboard. Then you can have storage space for a vacuum cleaner, brooms, etc., in a suitable small storage room.
The staircase layout also seems a bit tight to me, especially right next to the entrance.
It is also useful to place a north arrow on the drawing or to sketch the floor plan on the intended plot, or to rotate the floor plan so that north is at the top.
The living area should be facing west, right? Then the entrance would now be on the north side?
The staircase layout also seems a bit tight to me, especially right next to the entrance.
It is also useful to place a north arrow on the drawing or to sketch the floor plan on the intended plot, or to rotate the floor plan so that north is at the top.
The living area should be facing west, right? Then the entrance would now be on the north side?
